ProductsFunctional NeurosurgeryStereotaxyTarget point simulator

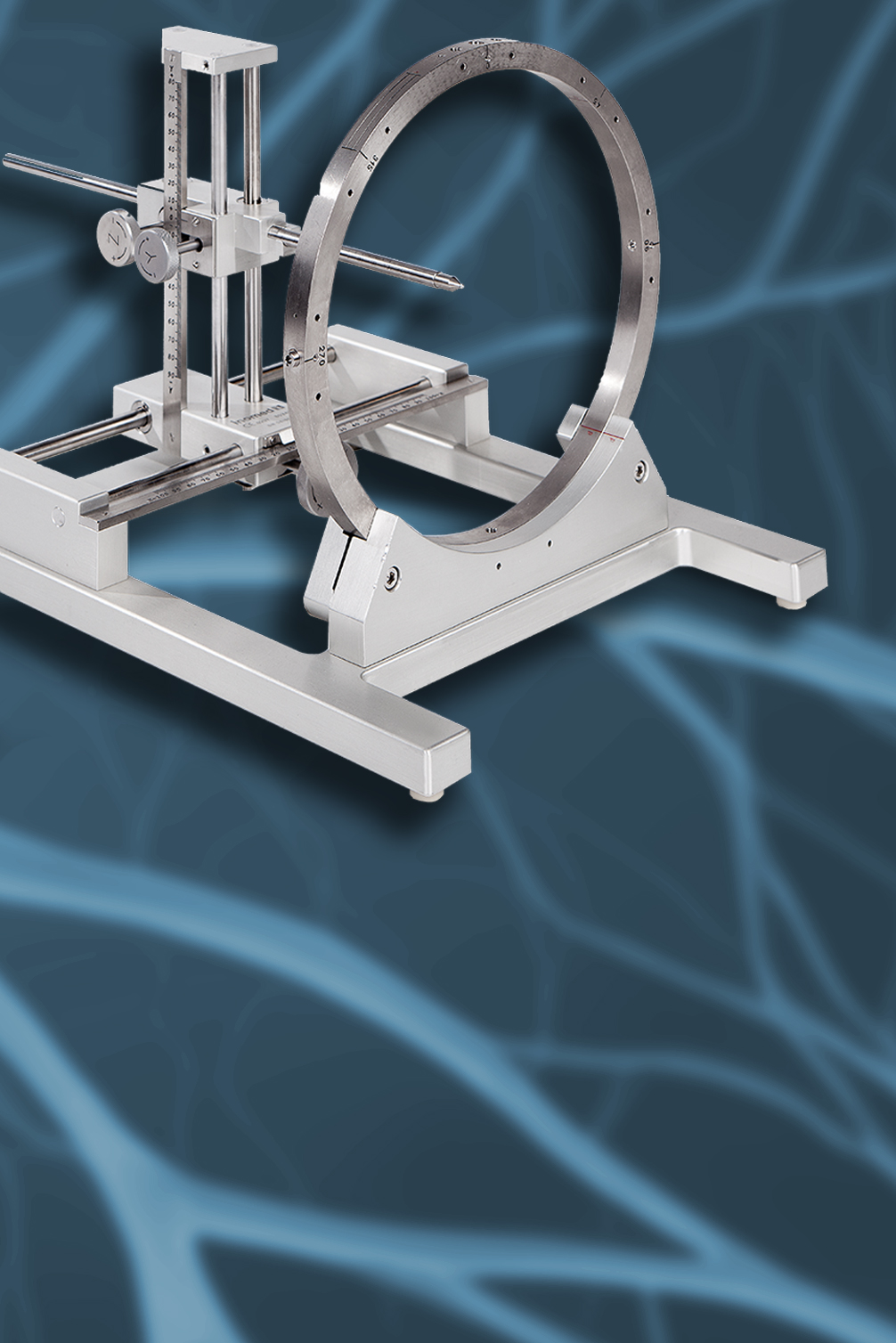

Target point simulatorThe stereotactic target point simulator from inomed, also known as the phantom, is only available from inomed. It enables the users to check all the parameters set on the stereotactic system and provides a realistic simulation of the intervention on the patients. The target point simulator thus contributes significantly to patient safety.
Target point simulatorTarget point simulatorTarget point simulator
ProductsFunctional NeurosurgeryStereotaxyTarget point simulator
Target point simulatorThe stereotactic target point simulator from inomed, also known as the phantom, is only available from inomed. It enables the users to check all the parameters set on the stereotactic system and provides a realistic simulation of the intervention on the patients. The target point simulator thus contributes significantly to patient safety.


Variants Accessories
Request demoRequest information
Variants

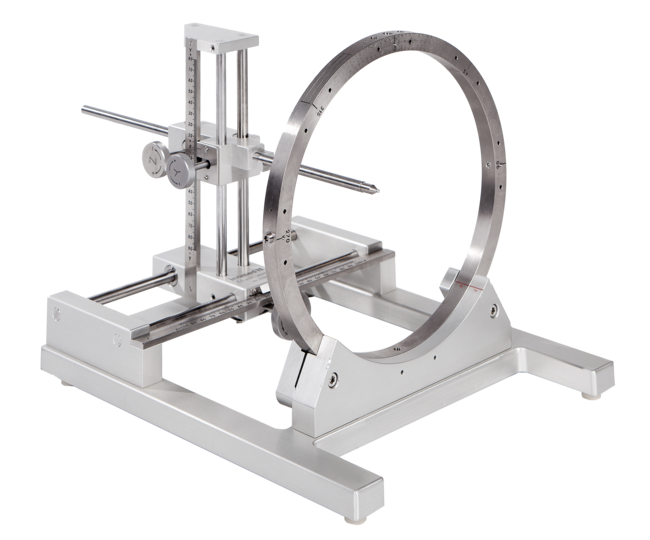

Target point simulator complete (for titanium head ring unit)
Item no.: 803400Target point simulator complete (for titanium head ring unit)Compatible with all inomed stereotactic systems. The set includes the TPS (803401) for setting the target point in the X, Y and Z axes, a simulator mounting ring for the titanium ring made of aluminium as well as a sterilisation tray.
Available
Go to product page
Add to watch list
Target point simulator for OSS (for ceramic head ring unit)
Item no.: 803430Target point simulator for OSS (for ceramic head ring unit)Compatible with all inomed stereotactic systems. The set contains the TPS (803401) for setting the target point in the X, Y and Z axes, a simulator mounting ring for the ceramic ring made of aluminium as well as a sterilisation tray.
Available
Go to product page
Add to watch list
Accessories
Head ring, aluminium
Item no.: 803111Head ring, aluminiumHead ring made of aluminium for mounting on the target point simulator for simulating the titanium ring on the patient’s head.
Available
Add to watch list
Simulator mounting ring for OSS
Item no.: 803107Simulator mounting ring for OSSHead ring made of aluminium for mounting on the target point simulator for simulating the ceramic ring on the patient’s head.
Available
Add to watch list
Socket wrench
Item no.: 803405Socket wrenchFor attaching all types of screws to inomed stereotactic items. The material consists of 1.4021.
Available
Add to watch list
ZD test needle 190 mm
Item no.: 803420ZD test needle 190 mmFor checking stereotactic planning on the target point simulator or for marking the access point on the patient’s head. The item has a diameter of 2.5 mm.
Available
Add to watch list
RM test needle 280 mm
Item no.: 803410RM test needle 280 mmFor checking stereotactic planning on the target point simulator or for marking the access point on the patient’s head. The item has a diameter of 3 mm.
Available
Add to watch list

Precision without compromise

The inomed target point simulator enables the verification of target coordinates and the setting of all inomed stereotactic systems. The target point simulator is used intraoperatively in the sterile field. Before attaching the stereotactic aiming bow to the patient ring, the settings are checked on the target point simulator.

Product features

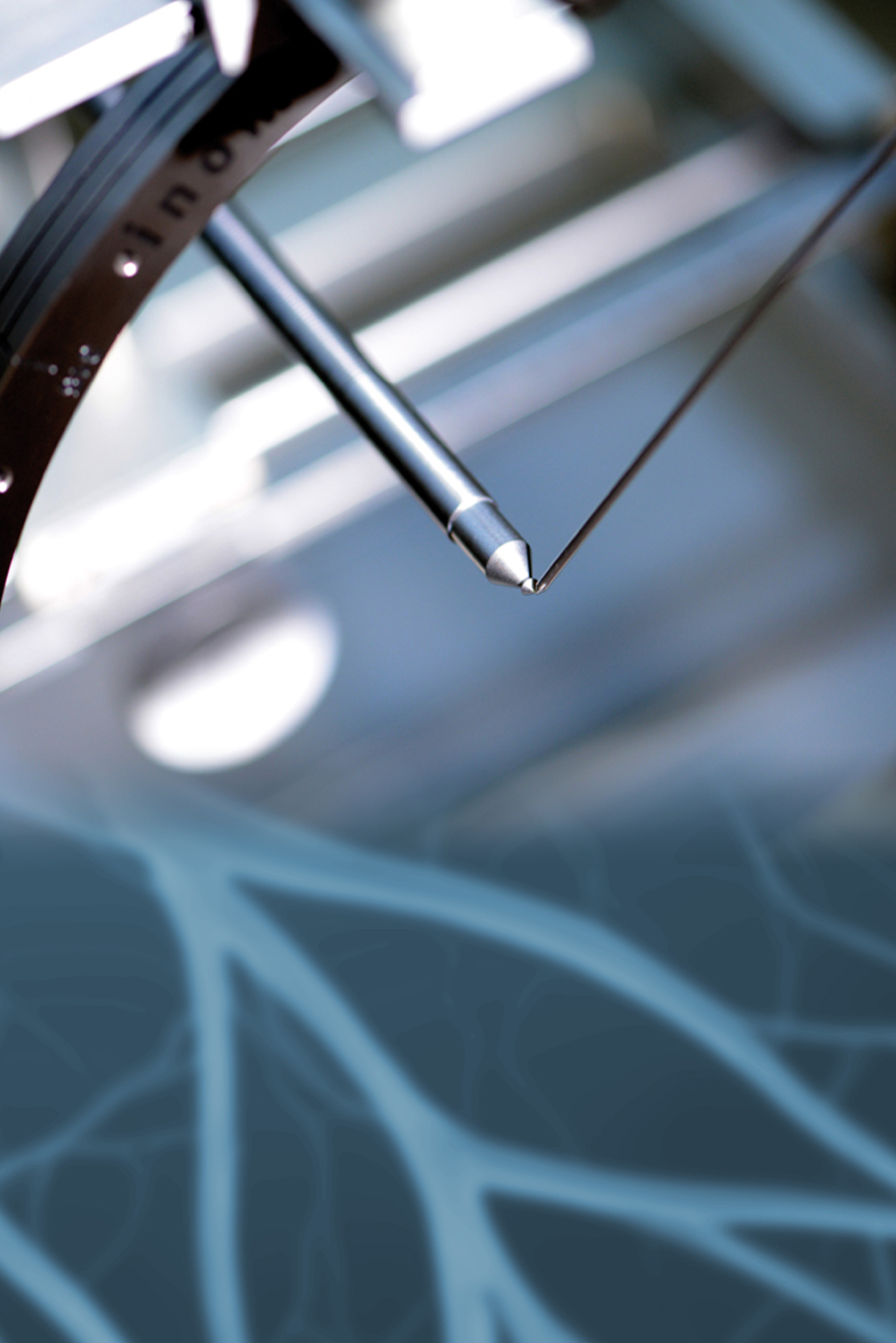

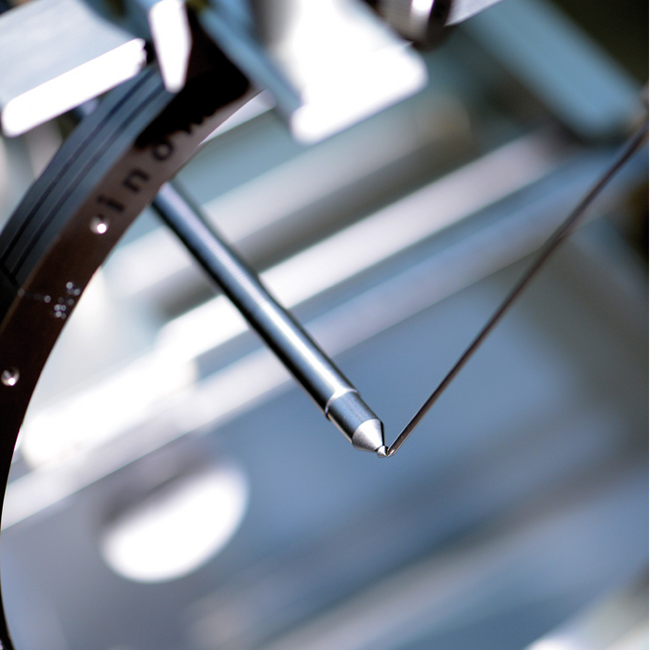

Illustration of the target point
Illustration of the target point
Individual target point verification

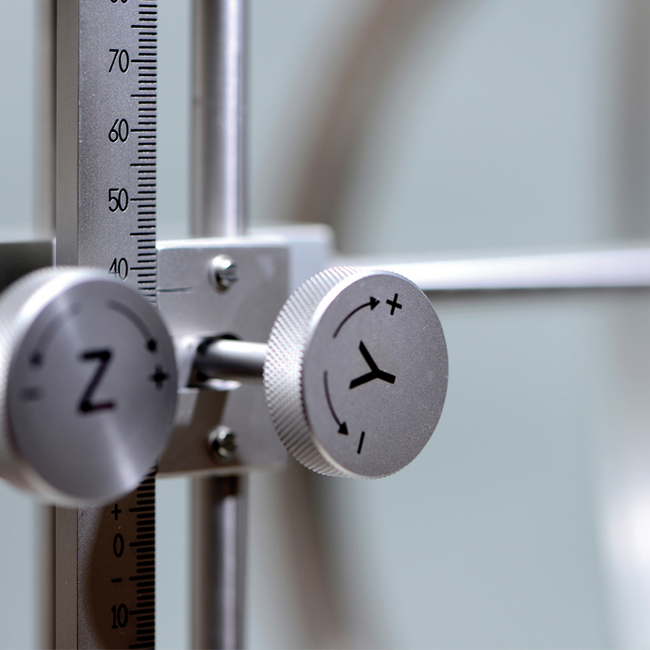

A metal rod with a precisely defined tip can be moved along the X-, Y- and Z-axes using three smooth-running thumb screws. The tip of the rod corresponds to the target point in the patient’s brain, which was determined by the medical team's patient-specific planning of the stereo­tactic intervention.
The target point simulator enables patient-specific verification of the coordinates
Compatible target point simulator
Compatible target point simulator
Compatible target point simulator

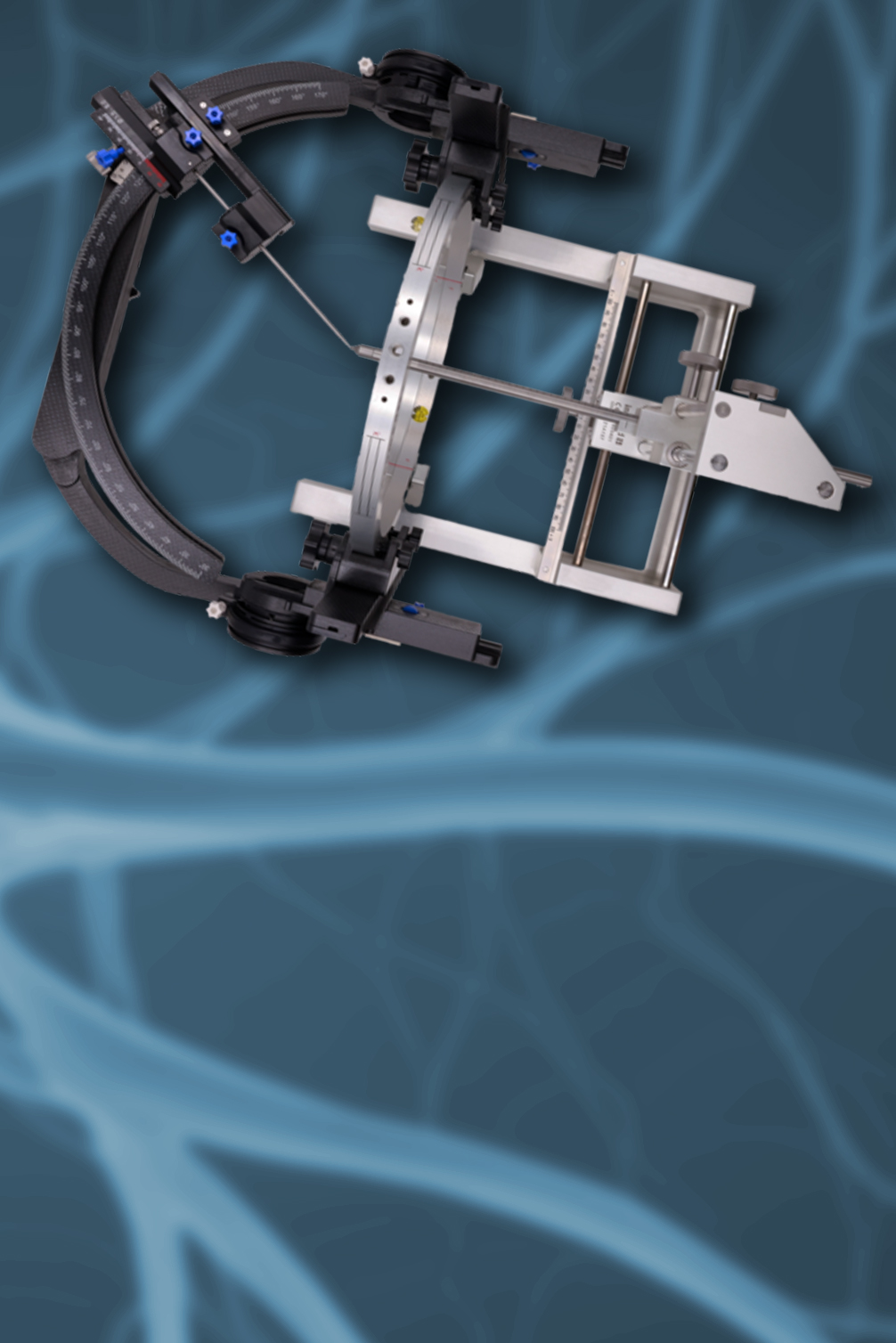

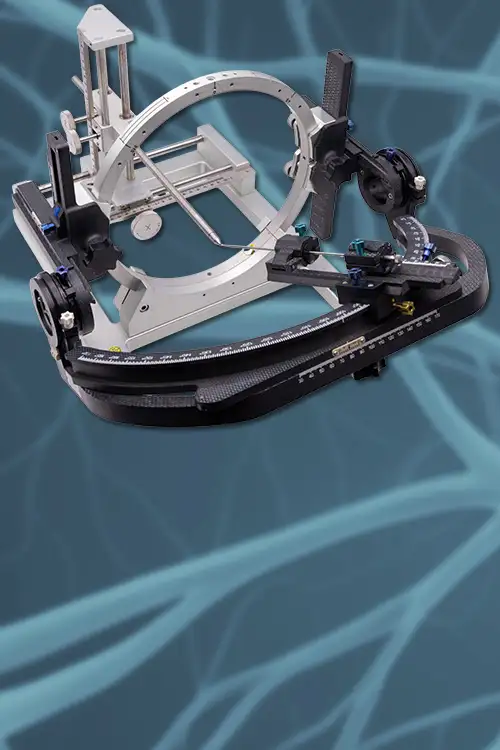

An aluminium ring is attached to the target point simulator, simulating the corresponding head ring that is attached to the patient's head. This ring can either replicate the circular titanium ring or the slightly oval ceramic ring. All inomed target bow units, such as the SUSy, ZD and RM system, can be mounted on these rings. The inomed target point simulator is therefore compatible with all inomed sterotactic systems and enables precise simulation of the patient situation using the phantom.
The inomed target point simulator is compatible with all inomed stereotactic systems
Recognise errors and rectify them immediately
Recognise errors and rectify them immediately
High patient safety
Despite the generally quite simple target point setting, an additional check on the phantom is always recommended. Any errors that may have occurred when setting the coordinates on the aiming bow or curved/bent instruments can be recognised and rectified immediately on the phantom. The phantom is therefore the final authority for avoiding stereotactic errors before starting the intervention on the patients. The use of the phantom can increase patients safety during neurosurgical procedures.
Recognise setting errors and verify and adjust again if necessary

Relevant procedures

Relevant application fields

Application accessories

Users can choose from a wide range of accessories and instruments that can be used with the inomed stereotactic systems. A large range of accessories opens up almost innumerable possibilities and universal use in modern stereotaxy.

Go to stereotactic accessories

FAQ

How can the target point simulator be integrated into the surgical workflow?

The target and trepanation point coordinates are defined on the basis of the X-ray, CT and MRI images and converted into stereotactic coordinates using a planning software such as the inomed Planning System (iPS). With the inomed stereo­tactic systems, the coordinates obtained in this way can now be set directly on the aiming bow carriage. The prepared stereotactic system is then mounted on the target point simulator ring. The ring on the target point simulator imitates the ring on the patient’s head.

Which head ring units can the target point simulator be combined with?

The inomed target point simulator (phantom) can be combined with all inomed head ring units, whether titanium ring or ceramic ring.

Which stereotactic systems is the target point simulator compatible with?

The target point simulator is compatible with all inomed stereotactic systems: SUSy, RM stereotactic system and ZD stereotactic system.
