inomed Medizintechnik GmbH
ProductsFunctional NeurosurgeryStereotaxyRM stereotactic system

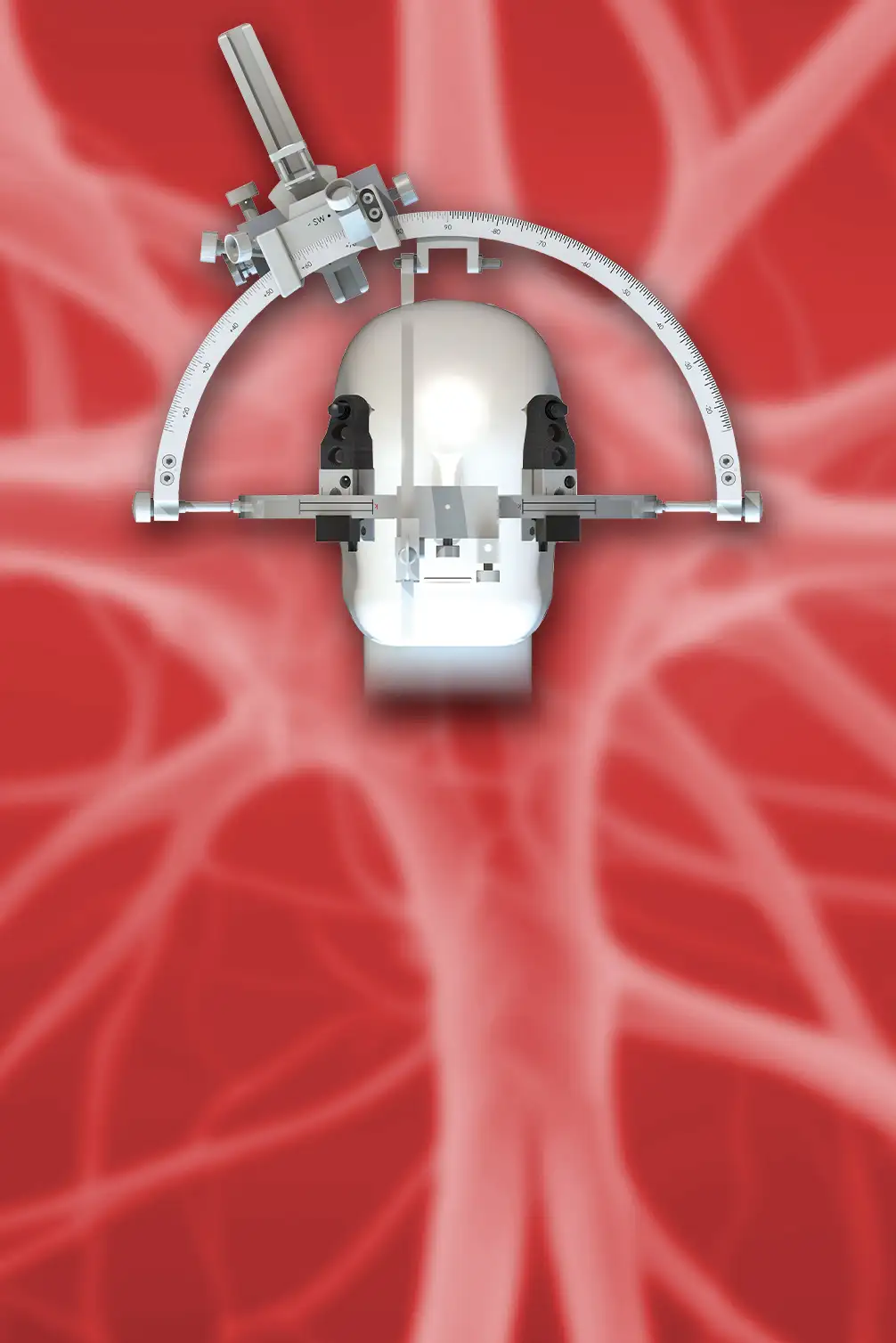

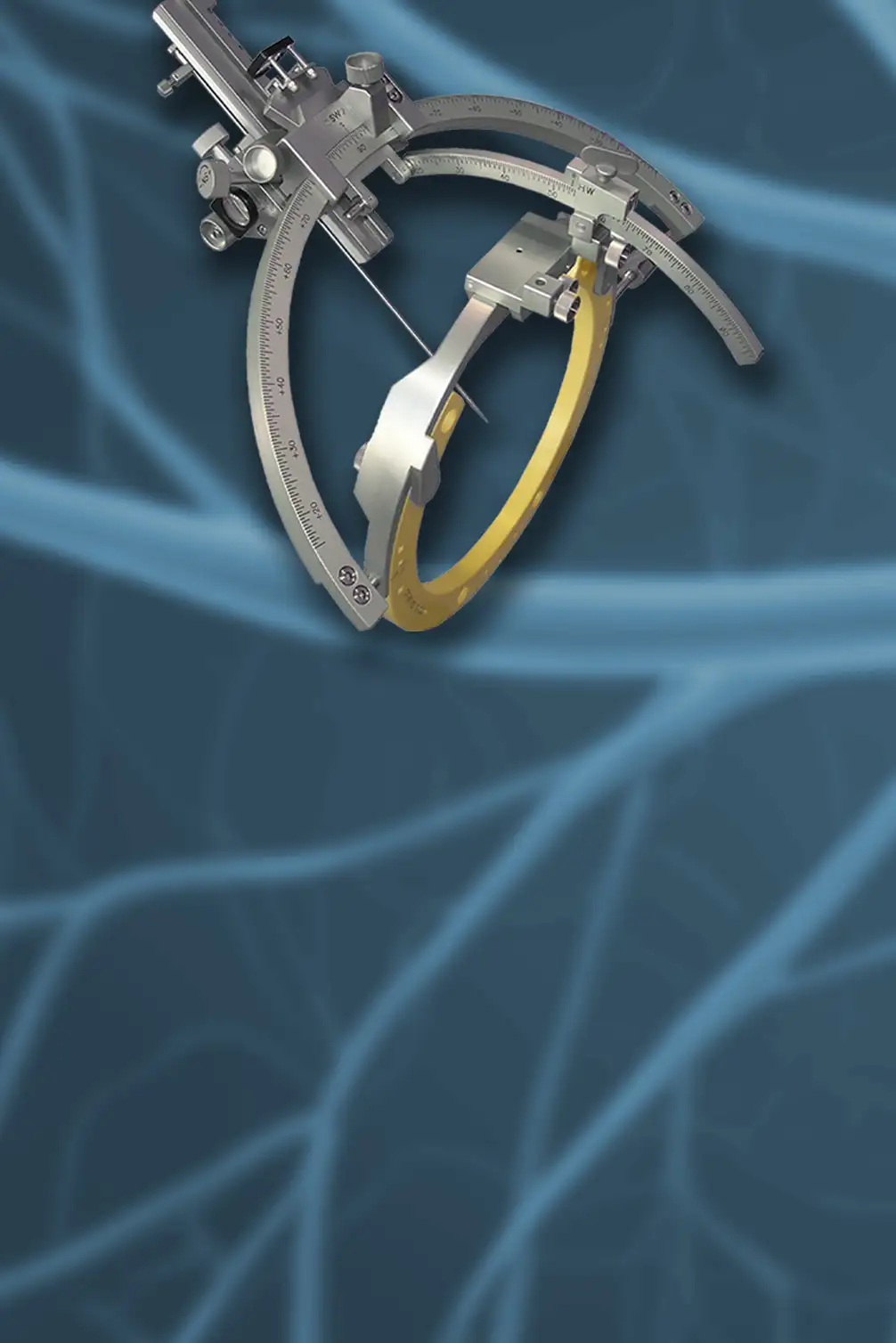

RM stereotactic systemThe Riechert-Mundinger (RM) system supports users during stereotactically guided interventions in functional neuro­surgery. It is the only stereotactic system on the market that offers 3-point fixation. This unique feature ensures that the RM system is highly stable and precise.
RM stereotactic systemRM stereotactic systemRM stereotactic systemRM stereotactic system
ProductsFunctional NeurosurgeryStereotaxyRM stereotactic system
RM stereotactic systemThe Riechert-Mundinger (RM) system supports users during stereotactically guided interventions in functional neuro­surgery. It is the only stereotactic system on the market that offers 3-point fixation. This unique feature ensures that the RM system is highly stable and precise.


Variants Extensions Accessories
Request demoRequest information
Variants
RM stereotaxy unit
Item no.: 801000RM stereotaxy unitPolar coordinate principle, working length of 280 mm, three-point fixation for maximum stability and precision, positive and negative mounting options. The scope of delivery also includes vertical arcs in two sizes (105° and 85°) as well as a matching cleaning tray.
Available
Add to watch list
Extensions
Head ring unit CT compatible for convergence radiation
Item no.: 803004Head ring unit CT compatible for convergence radiationThe set consists of a head ring made of titanium, 4 head fixing posts each in size M (46.5 mm) and XL (91.5 mm), 4 carriers for head fixing posts, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Available
Add to watch list
CT localisation set for titanium & aluminium head ring
Item no.: 809050CT localisation set for titanium & aluminium head ringThe Rev R localisation set is designed for use with the closed titanium ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Available
Add to watch list
OSS head ring unit
Item no.: 803005OSS head ring unitThe set consists of a head ring made of ceramic, 4 CFRP head fixing posts, an aluminium locking bow for the option of AP mounting, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Available
Add to watch list
CT/MR localisation set for OSS incl. transport case
Item no.: 809045CT/MR localisation set for OSS incl. transport caseThe Rev U localisation set is designed for use with the open ceramic ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Available
Add to watch list

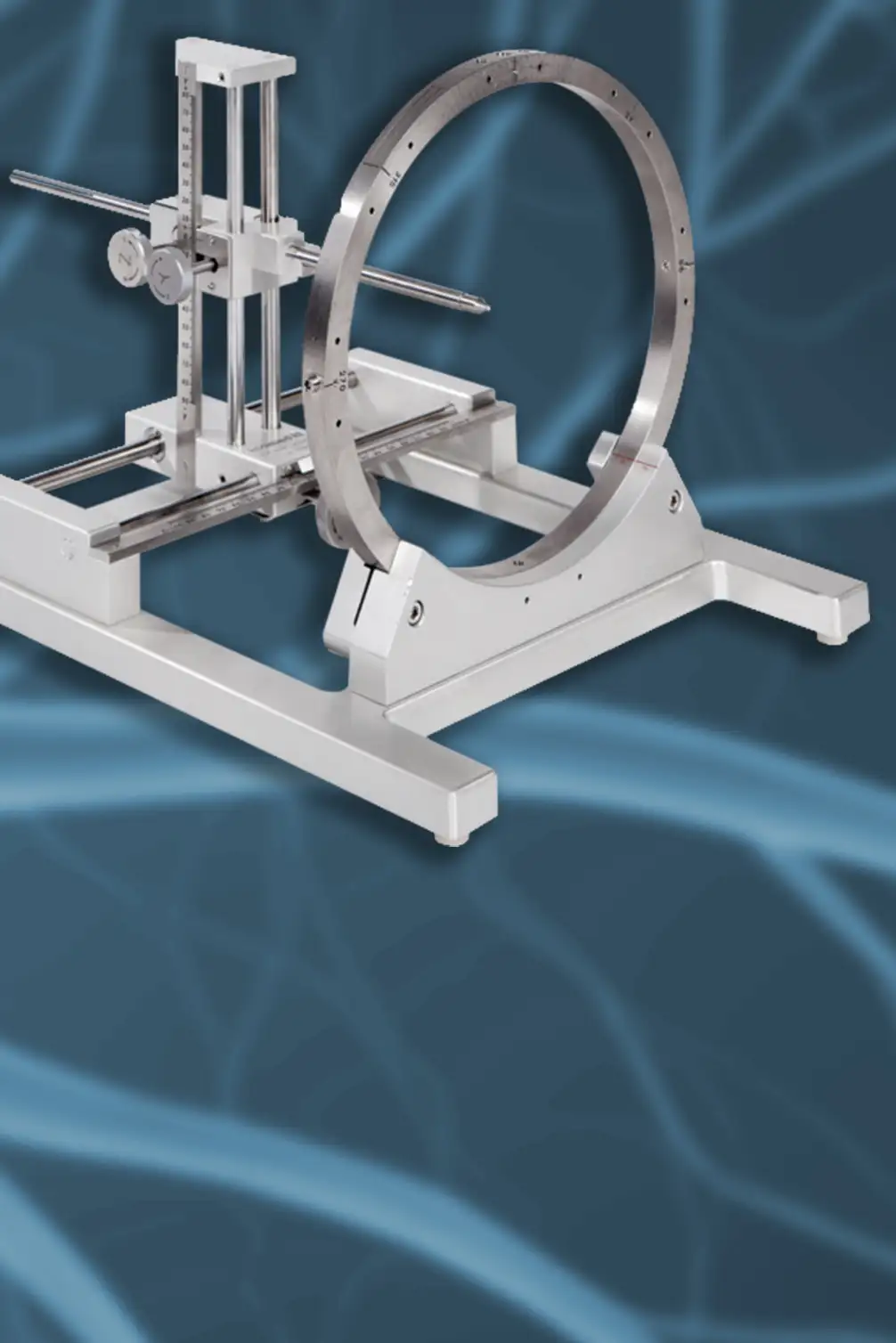

Target point simulator complete (for titanium head ring unit)
Item no.: 803400Target point simulator complete (for titanium head ring unit)Compatible with all inomed stereotactic systems. The set includes the TPS, a simulator mounting ring for the ceramic ring made of aluminium as well as a sterilisation box.
Available
Go to product page
Add to watch list
Target point simulator for OSS (for ceramic head ring unit)
Item no.: 803430Target point simulator for OSS (for ceramic head ring unit)Compatible with all inomed stereotactic systems. The set includes the TPS, a simulator mounting ring for the ceramic ring made of aluminium as well as a sterilisation box.
Available
Go to product page
Add to watch list
MicroDrive, hand operated, range 40 mm
Item no.: 590580MicroDrive, hand operated, range 40 mmPrecision instrument for positioning electrodes during stereotactic interventions. The item is autoclavable and can be adapted to many different stereotactic systems.
Available
Go to product page
Add to watch list
RM vertical arc 145°
Item no.: 801016RM vertical arc 145°Compatible with the RM stereotactic system
Available
Add to watch list
RM vertical arc 45°
Item no.: 801018RM vertical arc 45°Compatible with the RM stereotactic system
Available
Add to watch list
Accessories
Sterilisation tray for RM (Riechert-Mundinger)
Item no.: 803960Sterilisation tray for RM (Riechert-Mundinger)Stereotactic tray for RM stereotactic system (801000). The tray measures 476x246x224 mm.
Available
Add to watch list
Universal CT holder
Item no.: 809200Universal CT holderFor clamping both inomed titanium and ceramic head ring units. The item measures 280x300x75 mm.
Available
Add to watch list
Positioning aid for inomed stereotactic systems
Item no.: 803000Positioning aid for inomed stereotactic systemsFor quick and reliable alignment of the titanium ring on the patient’s head by a single person. Alignment in every direction is possible.
Available
Add to watch list
RM test needle 280 mm
Item no.: 803410RM test needle 280 mmFor checking stereotactic planning on the target point simulator or for marking the access point on the patient’s head. The item has a diameter of 3 mm.
Available
Add to watch list

High stability and precision

The RM stereotactic system was named after its developers, Prof. Traugott Riechert and Prof. Fritz Mundinger. It serves as a support for users during stereotactically guided interventions in functional neurosurgery.

Brochure – Stereotactic Systems

Product features

Relevant procedures

Relevant application fields

Application accessories

Users can choose from a wide range of accessories and instruments that can be used with the inomed stereotactic systems. A large range of accessories opens up almost innumerable possibilities and universal use in modern stereotaxy.

Go to stereotactic accessories

FAQ

How can the RM stereotactic system be adjusted as accurately as possible?

To ensure the most accurate setting possible, the RM stereo­tactic system is fitted with verniers for the corresponding scales. The vernier enables the determination of small measurement values that can no longer be read from the main scale. To get a feel for the fine adjustment, it helps to know that a vernier scale interval corresponds to a value of 1/10 of a degree. However, to ensure easy adjustment, magnifying glasses are provided to enable the values to be read or set precisely.

Is the RM stereotactic system compatible with the inomed target point simulator?

The RM stereotactic system is compatible with the inomed target point simulator. The combination with the inomed target point simulator increases safety in use. All patient-specific settings can be checked exactly before the intervention is started on the patients.

What mounting options does the RM stereotactic system offer?

The RM stereotactic system allows the treating neuro­surgeons to precisely reach every point in the working area of the RM system in the brain. The working area in the brain is determined by the position of the ring system. Specifically, it is possible to mount the RM system in both positive and negative orientation. The standard positive mounting can be used to access the frontal and occipital cranial regions, while the negative mounting can be used to reach the posterior fossa and pituitary gland.

Enjoy a wide range of benefits

Register now!

Further information

Brochure – Stereotactic Systems
