ZD stereotactic systemThe Zamorano-Dujovny (ZD) system supports users during stereotactically guided interventions in functional neurosurgery. It is based on the widely used center-of-arc principle, which makes it possible to reach the desired target point precisely, while the access point can be selected flexibly.
ZD stereotactic systemZD stereotactic systemZD stereotactic systemZD stereotactic system
ProductsFunctional NeurosurgeryStereotaxyZD stereotactic system
ZD stereotactic systemThe Zamorano-Dujovny (ZD) system supports users during stereotactically guided interventions in functional neurosurgery. It is based on the widely used center-of-arc principle, which makes it possible to reach the desired target point precisely, while the access point can be selected flexibly.


Variants Extensions Accessories
Request demoRequest information
Variants
ZD module unit with micrometer advance
Item no.: 802010ZD module unit with micrometer advanceCenter-of-arc principle, working length of 190 mm, single-point fixation for flexible and easy mounting, lateral and AP mounting options. The scope of delivery also includes instrument holders and instrument guides in two sizes (2–3 mm and 4–8 mm) as well as a matching cleaning tray.
Available
Go to product page
Add to watch list
Extensions
Headring unit CT compatible for convergence radiation
Item no.: 803004Headring unit CT compatible for convergence radiationThe set consists of a head ring made of titanium, 4 head fixing posts each in size M (46.5 mm) and XL (91.5 mm), 4 carriers for head fixing posts, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Available
Add to watch list
CT Localisation set for Titanium & Aluminium Headring
Item no.: 809050CT Localisation set for Titanium & Aluminium HeadringThe Rev R localisation set is designed for use with the closed titanium ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Available
Add to watch list

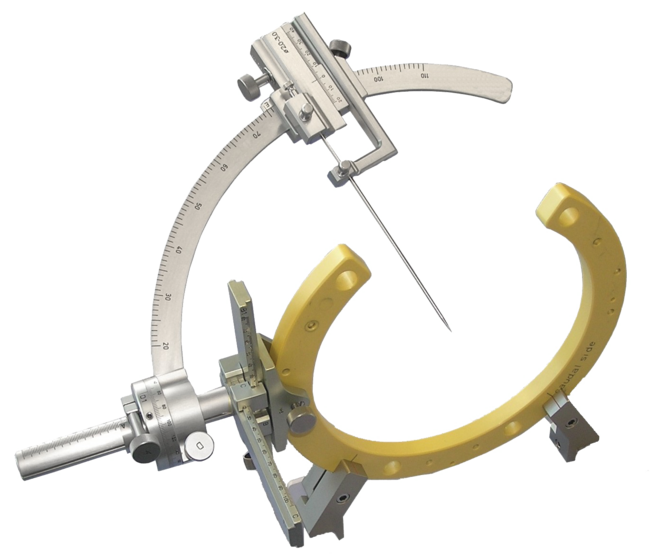

OSS head ring unit
Item no.: 803005OSS head ring unitThe set consists of a head ring made of ceramic, 4 CFRP head fixing posts, a locking bow for the option of AP mounting, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Available
Add to watch list
CT/MR Localisation set for OSS incl. transport case
Item no.: 809045CT/MR Localisation set for OSS incl. transport caseThe Rev U localisation set is designed for use with the open ceramic ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Available
Add to watch list
ZD fixing rail for OSS
Item no.: 802020ZD fixing rail for OSSFor attaching the ZD stereotactic system to the ceramic ring.
Available
Add to watch list
MicroDrive, hand operated, range 40 mm
Item no.: 590580MicroDrive, hand operated, range 40 mmPrecision instrument for positioning electrodes during stereotactic interventions. The item is autoclavable and can be adapted to many different stereotactic systems.
Available
Go to product page
Add to watch list
Target point simulator complete (for titanium head ring unit)
Item no.: 803400Target point simulator complete (for titanium head ring unit)Compatible with all inomed stereotactic systems. The set includes the TPS, a simulator mounting ring for the ceramic ring made of aluminium as well as a sterilisation box.
Available
Go to product page
Add to watch list
Target point simulator for OSS (for ceramic head ring unit)
Item no.: 803430Target point simulator for OSS (for ceramic head ring unit)Compatible with all inomed stereotactic systems. The set includes the TPS, a simulator mounting ring for the ceramic ring made of aluminium as well as a sterilisation box.
Available
Go to product page
Add to watch list
Accessories
Sterilisation tray for ZD (Zamorano-Dujovny)
Item no.: 803950Sterilisation tray for ZD (Zamorano-Dujovny)Stereotactic tray for ZD stereotactic system (802010). The tray measures 480x250x115 mm.
Available
Add to watch list
Universal CT holder
Item no.: 809200Universal CT holderFor clamping both inomed titanium and ceramic head ring units. The item measures 280x300x75 mm.
Available
Add to watch list
Positioning aid for inomed stereotactic systems
Item no.: 803000Positioning aid for inomed stereotactic systemsFor quick and reliable alignment of the titanium ring on the patient’s head by a single person. Alignment in every direction is possible.
Available
Add to watch list
ZD test needle 190 mm
Item no.: 803420ZD test needle 190 mmFor checking stereotactic planning on the target point simulator or for marking the access point on the patient’s head. The item has a diameter of 2.5 mm.
Available
Add to watch list

Easy handling with high precision and stability

The ZD stereotactic system was named after its developers, Prof. L. Zamorano and Prof. M. Dujovny. It serves as a support for users during stereotactically guided interventions in functional neurosurgery.

Brochure – Stereotactic Systems

Product features

Relevant procedures

Relevant application fields

Application accessories

Users can choose from a wide range of accessories and instruments that can be used with the inomed stereotactic systems. A large range of accessories opens up almost innumerable possibilities and universal use in modern stereotaxy.

Go to stereotactic accessories

FAQ

Is it possible to choose different mounting positions?

Depending on the stereotactic ring used, up to six different mounting positions are possible. This allows the surgeons to select the appropriate approach that is as gentle as possible on the patients and offers flexibility in trajectory planing.

Is the ZD stereotactic system compatible with the inomed target point simulator?

The ZD stereotactic system is compatible with the inomed target point simulator. The combination with the inomed target point simulator increases safety in use. All patient-specific settings can be checked exactly before the intervention is started on the patients.
