inomed Medizintechnik GmbH
ProductsPain TreatmentC3 CryoSystem
C3 CryoSystemThe C3 CryoSystem is specially designed for the application of cyroanalgesia. The integrated electrical stimulation allows the affected nerve pathways to be precisely localised. Chronic pain is one of the main indications of the C3 CryoSystem.
C3 CryoSystemC3 CryoSystem
ProductsPain TreatmentC3 CryoSystem
C3 CryoSystemThe C3 CryoSystem is specially designed for the application of cyroanalgesia. The integrated electrical stimulation allows the affected nerve pathways to be precisely localised. Chronic pain is one of the main indications of the C3 CryoSystem.

The C3 CryoSystem is used for pain treatment through cryoanalgesia. The integrated stimulator allows precise localisation of motor and sensory nerves. It includes a patient management feature in which treatment protocols can be stored with individual comments. The system also offers connectivity options for a foot switch and keyboard.


Brochure – Fire & IceBrochure – C3 CryoSystem
Variants Accessories
Request demoRequest information
Variants
C3 CryoSystem
Item no.: 217000C3 CryoSystemThe C3 CryoSystem is used for pain treatment through cryoanalgesia. It enables motor and sensory stimulation for nerve localisation.
Available
Go to product page
Add to watch list
Accessories
Foot switch for C3 CryoSystem
Item no.: 217010Foot switch for C3 CryoSystemThe foot switch can be used to control the entire procedure, making it unnecessary to operate the device directly.
Available
Add to watch list
C3 CryoProbe 1.3 mm blunt for C3 CryoSystem
Item no.: 217100C3 CryoProbe 1.3 mm blunt for C3 CryoSystemThe C3 CryoProbe has a diameter of 1.3 mm and a blunt tip.
Available
Add to watch list
C3 CryoProbe 2.1 mm sharp for C3 CryoSystem
Item no.: 217200C3 CryoProbe 2.1 mm sharp for C3 CryoSystemThe C3 CryoProbe has a diameter of 2.1 mm and a sharp tip.
Available
Add to watch list
Trolley for C3 CryoSystem
Item no.: 217300Trolley for C3 CryoSystemThe C3 CryoSystem is placed on the trolley. The trolley also offers the option of safely storing a gas cylinder.
Available
Add to watch list

Using cryoanalgesia to “freeze” the nerve

Our cryo device, the C3 CryoSystem, plays a special role in the treatment of chronic pain. The effect of cold has been used to treat pain since ancient times. Cryoanalgesia has thus been able to establish itself as a modern method in minimally invasive pain treatment and is well accepted by patients.

Product features

The basic principle of cryoanalgesia
The basic principle of cryoanalgesia
“Freeze” the nerve
The basic principle of cryoanalgesia is to precisely localise the affected nerve using an imaging technique and electrical stimulation. This is followed by freezing for two to three minutes. The application of extreme cold to the nerve pathways causes second-degree damage or axonotmesis (severing of the axon), but the connective tissue remains intact and enables the nerve to regenerate. The C3 CryoSystem uses either CO₂ with a boiling point of -79 °C or N₂O with a boiling point of -89 °C.
The nerve is precisely localised by electrical stimulation and then treated with freezing.

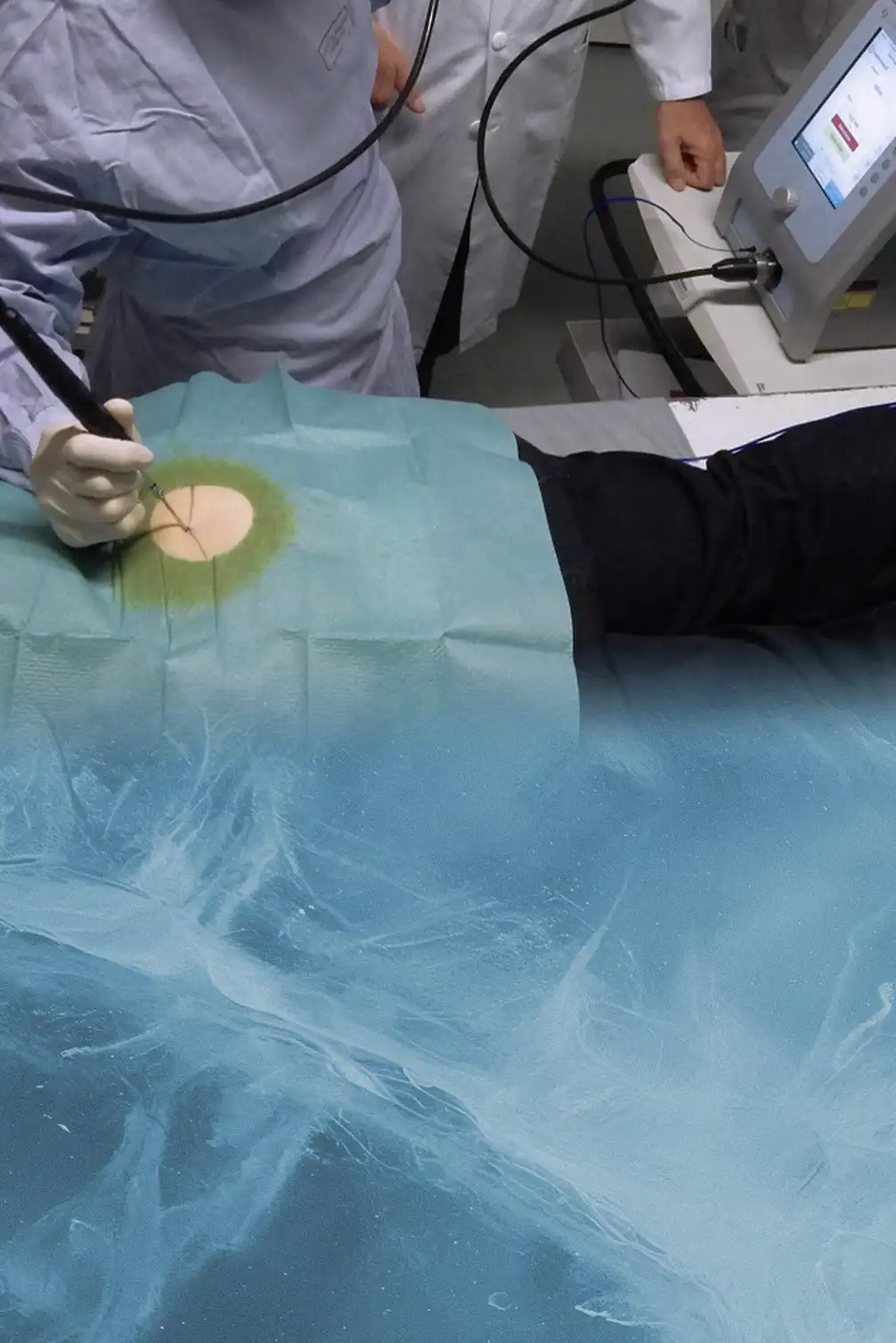

Photo: Application of the C3 CryoSystem on the patient's back
Intuitive and easy operation
Intuitive and easy operation
Intuitive operation
The C3 CryoSystem is a state-of-the-art cryo device with an electric stimulator that has been specially designed for use in cryoanalgesia. To ensure that the cryo application is performed optimally, all relevant parameters are automatically controlled by the system. The system is equipped with a clear screen that enables intuitive and easy operation. The C3 CryoSystem offers the option of comprehensively documenting the entire cryoanalgesia procedure in the integrated patient management system.
The C3 CryoSystem with the associated C3 CryoProbes from inomed enables the device to be used easily and intuitively.

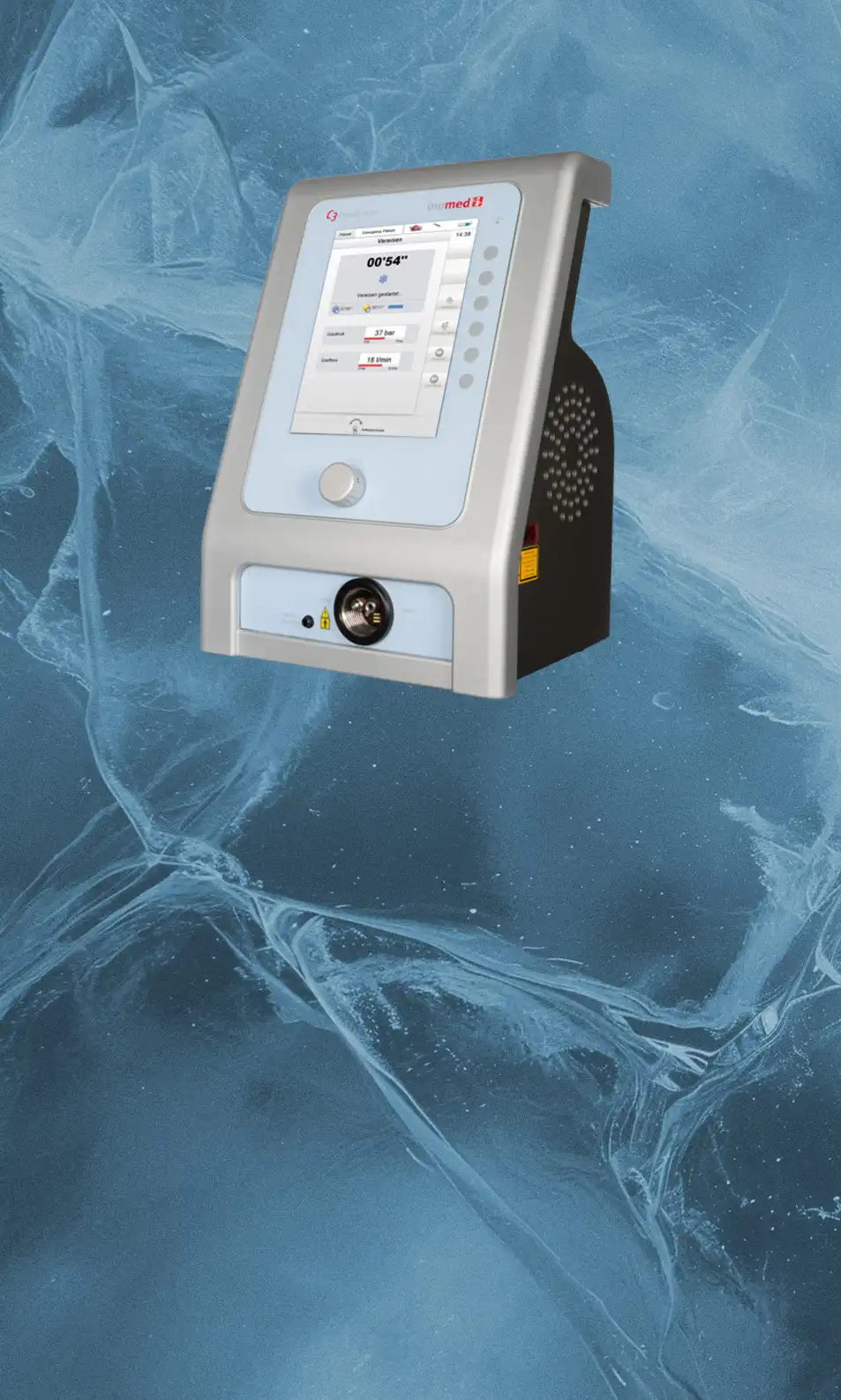

Photo: C3 CyroSystem
Precise target control
Precise target control
Precise target control
The system features a real-time graphical display of the most important parameters during cryoanalgesia. Motor and sensory stimulation allows target points in pain treatment to be determined precisely.
The C3 CryoSystem is ideal for determining target points.


The inomed C3 CryoSystem allows the pain therapists to “put the pain on ice” by using cryoanalgesia. Chronic pain represents a huge challenge for healthcare professionals and diminishes the quality of life of those affected. The inomed C3 CryoSystem can provide effective pain relief by interrupting the pain pathways through cryoanalgesia.



Link: YouTube video C3 CryoSystem

Relevant procedures

Relevant application fields

Application accessories

inomed offers a wide range of accessories for cryoanalgesia with the C3 CryoSystem. This includes the reusable C3 CryoProbes with different diameters and matching cannulas.

Go to C3 CryoSystem accessories

FAQ

What is the maximum pressure of the gas cylinder that can be connected to the system?

Gas cylinders with a maximum pressure of 60 bar (870 psi) may be connected to our cryo device, the C3 CryoSystem.

What type of gas cylinder can be used with the C3 CryoSystem?

The C3 CryoSystem requires the use of a gas cylinder without a riser pipe.

Which gas can be used for the C3 CryoSystem?

The C3 CryoSystem is to be used with medical-grade CO₂ (carbon dioxide) or N₂O (nitrous oxide).
