inomed Medizintechnik GmbH

ProductsIntraoperative NeuromonitoringIONM accessoriesVascular surgery accessories

Vascular surgery accessories


Always the right accessories for vascular surgery.

inomed enables reliable signal recording using stimulation and recording accessories, which have been specially developed for the requirements of intraoperative use. Tested and developed together with users and manufactured according to German quality standards, inomed accessories are used worldwide every day to support patient safety.

Electrodes

In the field of vascular surgery, electrodes can be used both for the stimulation of nerve and muscle tissue and for the recording of electrophysiological signals. Single electrodes and sets of common standard forms (e.g. needle electrodes, corkscrew electrodes, surface adhesive electrodes) as well as many special forms (e.g. bipolar oculomotorius electrodes, isolated electrodes, double needle electrodes, paediatric electrodes) are available. All electrodes have a 1.5 mm touchproof connector and can therefore be used flexibly.

SDN electrode GN 20/1500, stainless steel
SDN electrode GN 20/1500, stainless steel
533651
SDN electrode GN 20/1500, stainless steel
1.5 mm touchproof connector, 1 electrode green (Ground), needle length 20 mm, diameter 0.45 mm, cable length 1500 mm, disposable product, EO sterilised
Add to watch list
SDN electrodes RD/BK 15/2000, stainless steel
SDN electrodes RD/BK 15/2000, stainless steel
533637
SDN electrodes RD/BK 15/2000, stainless steel
1.5 mm touchproof connector, pair of electrodes red/black, needle length 15 mm, diameter 0.45 mm, cable length 2000 mm, disposable product, EO sterilised
Add to watch list

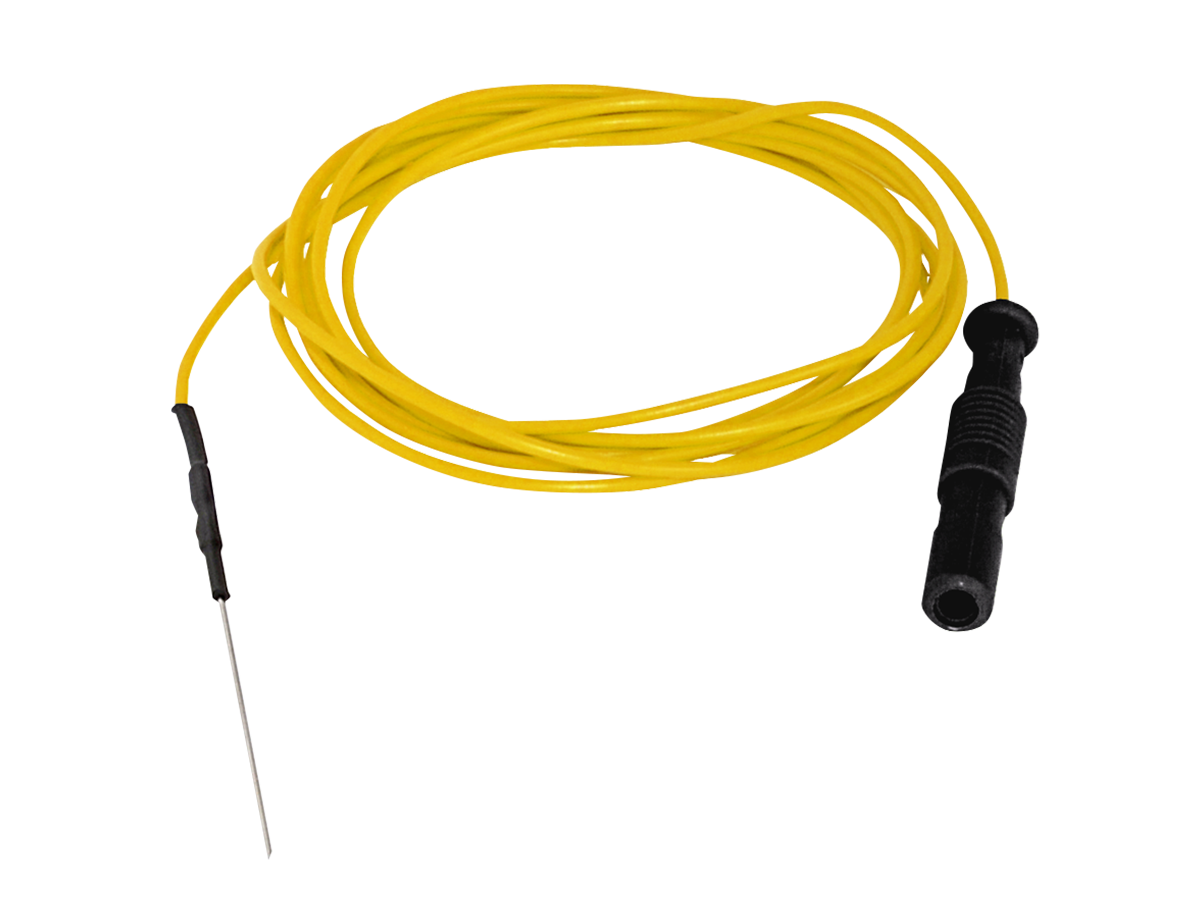

SDN electrode YE 15/1000, stainless steel
SDN electrode YE 15/1000, stainless steel
533623
SDN electrode YE 15/1000, stainless steel
SDN electrode YE 15/1000, stainless steel 1.5 mm touchproof connector, 1 electrode yellow, needle length=15 mm, diameter=0.45 mm, cable length=1000 mm, disposable product, EO sterilised
Add to watch list
SDN electrode GN 15/1000, stainless steel
SDN electrode GN 15/1000, stainless steel
533625
SDN electrode GN 15/1000, stainless steel
SDN electrode GN 15/1000, stainless steel 1.5 mm touchproof connector DIN 42802, 1 electrode green, needle length=15 mm, needle diameter=0.45 mm, cable length=1000 mm, disposable product, EO sterilised
Add to watch list
SDN electrode GN 20/3000, stainless steel
SDN electrode GN 20/3000, stainless steel
533653
SDN electrode GN 20/3000, stainless steel
SDN electrode GN 20/3000, stainless steel 1.5 mm touchproof connector DIN 42802, 1 electrode green (Ground), needle length=20 mm, needle diameter=0.45 mm, cable length=3000 mm, disposable product, EO sterilised
Add to watch list

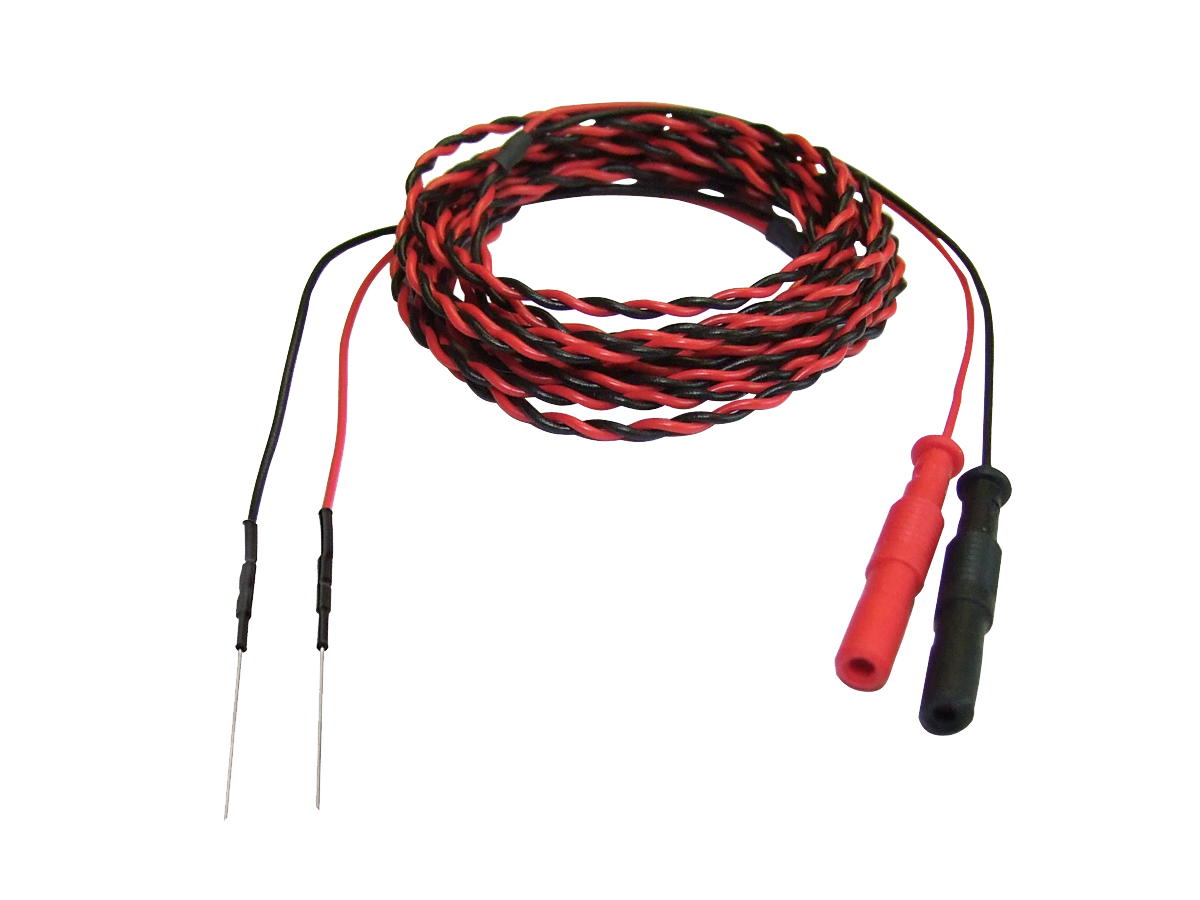

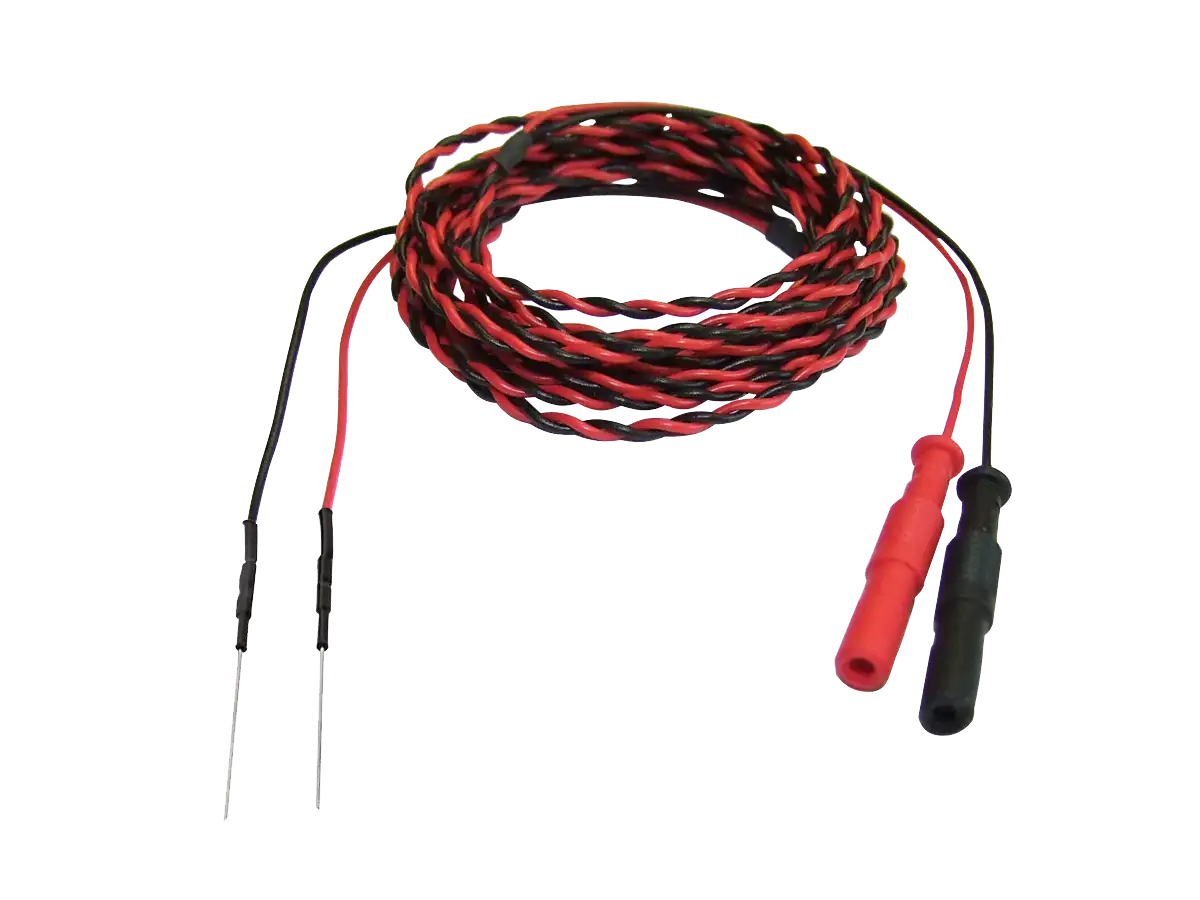

SDN electrodes RD/BK 20/2000, stainless steel
SDN electrodes RD/BK 20/2000, stainless steel
533657
SDN electrodes RD/BK 20/2000, stainless steel
SDN electrodes RD/BK 20/2000, stainless steel 1.5 mm touchproof connector DIN 42802, pair of electrodes red/black, needle length=20 mm, needle diameter=0.45 mm, cable length=2000 mm, disposable product, EO sterilised
Add to watch list
Corkscrew electrode set spiral needle 0.6 mm with tip, cable 1 m
Corkscrew electrode set spiral needle 0.6 mm with tip, cable 1 m
530750
Corkscrew electrode set spiral needle 0.6 mm with tip, cable 1 m
With 1.5 mm touchproof male connector DIN 42802, 10 sterile sets with each 6 electrodes red, green, yellow, blue, black and white, packed individually, disposable product, EO sterilised
Add to watch list
All available electrodes

ISIS function modules and accessories

The modular structure of the ISIS function modules enables flexibility for demanding neuromonitoring. 16-channel amplifiers for ISIS IOM systems are available in four versions (16 Ch differential, 16 Ch referential, 16 Ch referential + AEP stimulator, 8 Ch differential + 8 Ch referential + AEP stimulator).

ISIS Headbox 16 Ch. DIF
ISIS Headbox 16 Ch. DIF
504271
ISIS Headbox 16 Ch. DIF
Enables the recording of 16 differential channels. Can be combined with: 520302, 540531, 540532, 540533, 540534, 540535
Add to watch list
ISIS Neurostimulator
ISIS Neurostimulator
504180
ISIS Neurostimulator
Constant current stimulator, 1-channel direct nerve stimulator: 0.01 to 25 mA, 12-channel high current stimulator: 0.2 to 250 mA, for use with inomed software. Can be combined with: 540501, 540511, 540510, 540559, 540560
Add to watch list
EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
540523
EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
For maximal 8-channel recording to a common reference and the possibility to connect AEP Earphones (540340). Can be combined with: 504285, 540559
Add to watch list
ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
504285
ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
Enables the recording of 8 referential, 8 differential channels and the AEP stimulator. Can be combined with: 540340, 540523, 540525, 540531
Add to watch list
MEP Stimulation Adaptor for Grid/TES Stimulation matrix
MEP Stimulation Adaptor for Grid/TES Stimulation matrix
540510
MEP Stimulation Adaptor for Grid/TES Stimulation matrix
For 8-channel high-current stimulation for connection to Grid/TES stimulation matrix. Can be combined with: 504180, 540559, 540560
Add to watch list
Stimulation Adaptor for ISIS Neurostimulator
Stimulation Adaptor for ISIS Neurostimulator
540511
Stimulation Adaptor for ISIS Neurostimulator
For 8-channel high-current stimulation. Can be combined with: 504180
Add to watch list
EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
540525
EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP
For maximal 8-channel recording to a common reference. Can be combined with: 504285, 540559
Add to watch list
EMG/MEP Adaptor Ch. 1-8 for 504271 for ISIS Headbox 16 Ch. DIF
EMG/MEP Adaptor Ch. 1-8 for 504271 for ISIS Headbox 16 Ch. DIF
540531
EMG/MEP Adaptor Ch. 1-8 for 504271 for ISIS Headbox 16 Ch. DIF
For maximal 8-channel differential recording.
Add to watch list
EMG/MEP Adaptor Ch. 9-16 for 504271 for ISIS Headbox 16 Ch. DIF
EMG/MEP Adaptor Ch. 9-16 for 504271 for ISIS Headbox 16 Ch. DIF
540532
EMG/MEP Adaptor Ch. 9-16 for 504271 for ISIS Headbox 16 Ch. DIF
For maximal 8-channel differential recording.
Add to watch list
EMG/MEP Adaptor Ch. 1-8 for 504271 for colour-coded accessories
EMG/MEP Adaptor Ch. 1-8 for 504271 for colour-coded accessories
540533
EMG/MEP Adaptor Ch. 1-8 for 504271 for colour-coded accessories
For maximal 8 colour-coded differential recording channels.
Add to watch list
Grid/TES Stimulation matrix 8 Ch. for ISIS Neurostimulator
Grid/TES Stimulation matrix 8 Ch. for ISIS Neurostimulator
540559
Grid/TES Stimulation matrix 8 Ch. for ISIS Neurostimulator
For interconnection of up to 8 electrode contacts for cortical stimulation and up to 6 electrodes for transcranial electrical stimulation using high-current stimulation, with LED illumination. Can be combined with: 540523, 540525, 540510, 504180
Add to watch list
Grid/TES Stimulation matrix 16 Ch. for ISIS Neurostimulator
Grid/TES Stimulation matrix 16 Ch. for ISIS Neurostimulator
540560
Grid/TES Stimulation matrix 16 Ch. for ISIS Neurostimulator
For interconnection of up to 16 electrode contacts for cortical stimulation and up to 6 electrodes for transcranial electrical stimulation using high-current stimulation, with LED illumination. Can be combined with: 540522, 540524, 540510, 504180
Add to watch list
SEP Stimulation Adaptor for ISIS Neurostimulator
SEP Stimulation Adaptor for ISIS Neurostimulator
540501
SEP Stimulation Adaptor for ISIS Neurostimulator
4-channel high-current stimulation and 1-channel direct nerve stimulation (DNS). Can be combined with: 504180
Add to watch list
Video interface for ISIS IOM incl. software and hardware
Video interface for ISIS IOM incl. software and hardware
540013
Video interface for ISIS IOM incl. software and hardware
Consisting of a video software license for NeuroExplorer software, Magewell USB Capture AIO, BNC interface
Add to watch list
All available ISIS system components

C2 adaptor boxes and accessories

Cost efficiency through flexibility. 1 system, expandable to 6 application fields means of additional adaptor boxes.
Trolley for C2 Xplore
Trolley for C2 Xplore
508301
Trolley for C2 Xplore
Floor element with 4 wheels, front wheels with brakes, table with grey handles, rail mounting for adaptor boxes, big drawer, special drawer for keyboard, shelf for printer
Add to watch list
Transport cover for C2 Xplore
Transport cover for C2 Xplore
508313
Transport cover for C2 Xplore
Tear-resistant transport casing, with front reinforcement, with foldable pocket at the back
Add to watch list
Transportation case for C2
Transportation case for C2
508312
Transportation case for C2
Suitable for C2 NerveMonitor and C2 Xplore, top compartment with drawer, telescopic handle, 2 corner castors, WxHxD: 365x270x685 mm
Add to watch list
Holder for tablet
Holder for tablet
508562
Holder for tablet
To be attached to drip stands, suitable for tablets with a height of 222 to 334 mm, width of 128 to 232 mm and depth of 6 to 11 mm
Add to watch list
Sterile cover for tablet
Sterile cover for tablet
504365
Sterile cover for tablet
Tablet cover for use in sterile environment, size: 8‘‘ x 10‘‘ (20 cm x 25.4 cm), latex-free, EO sterilised
Add to watch list
Laser printer set
Laser printer set
508335
Laser printer set
With medical approved power supply
Add to watch list

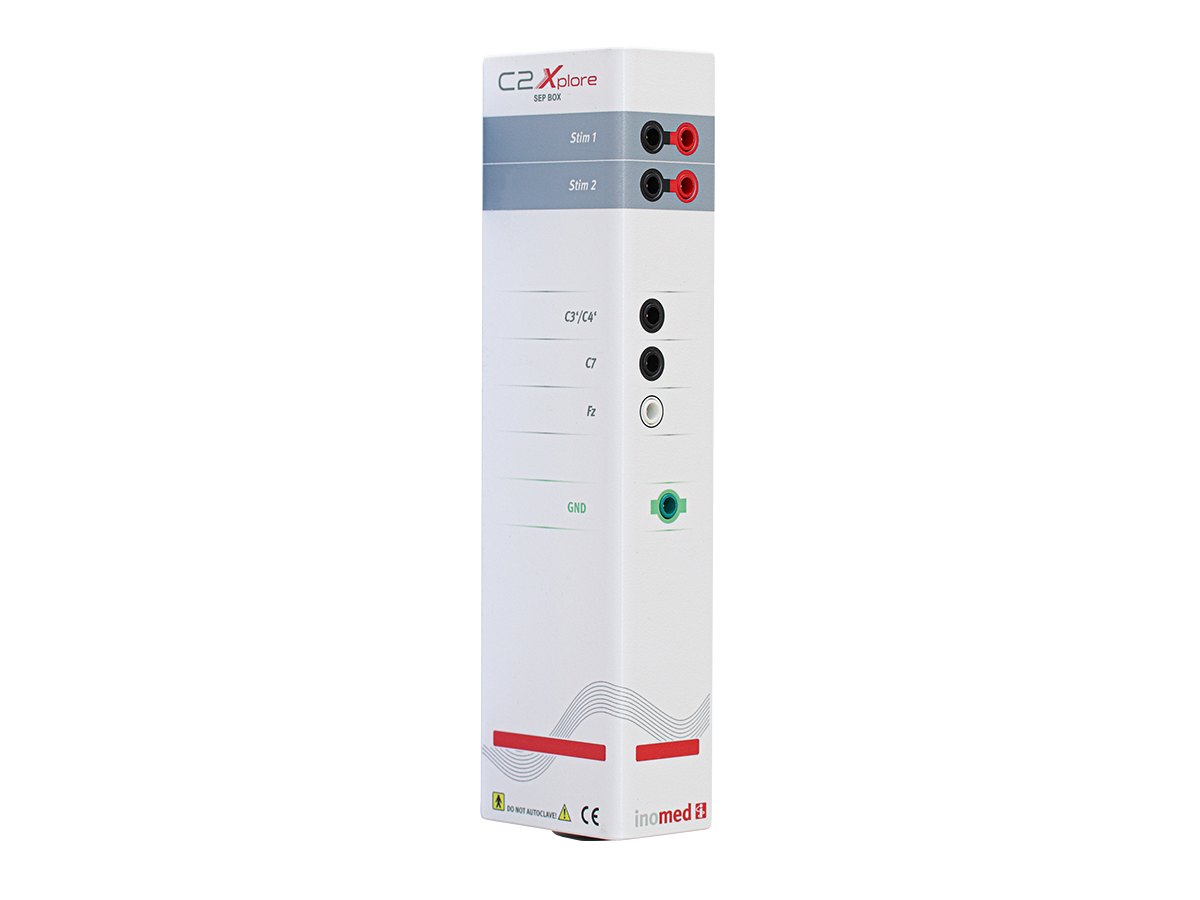

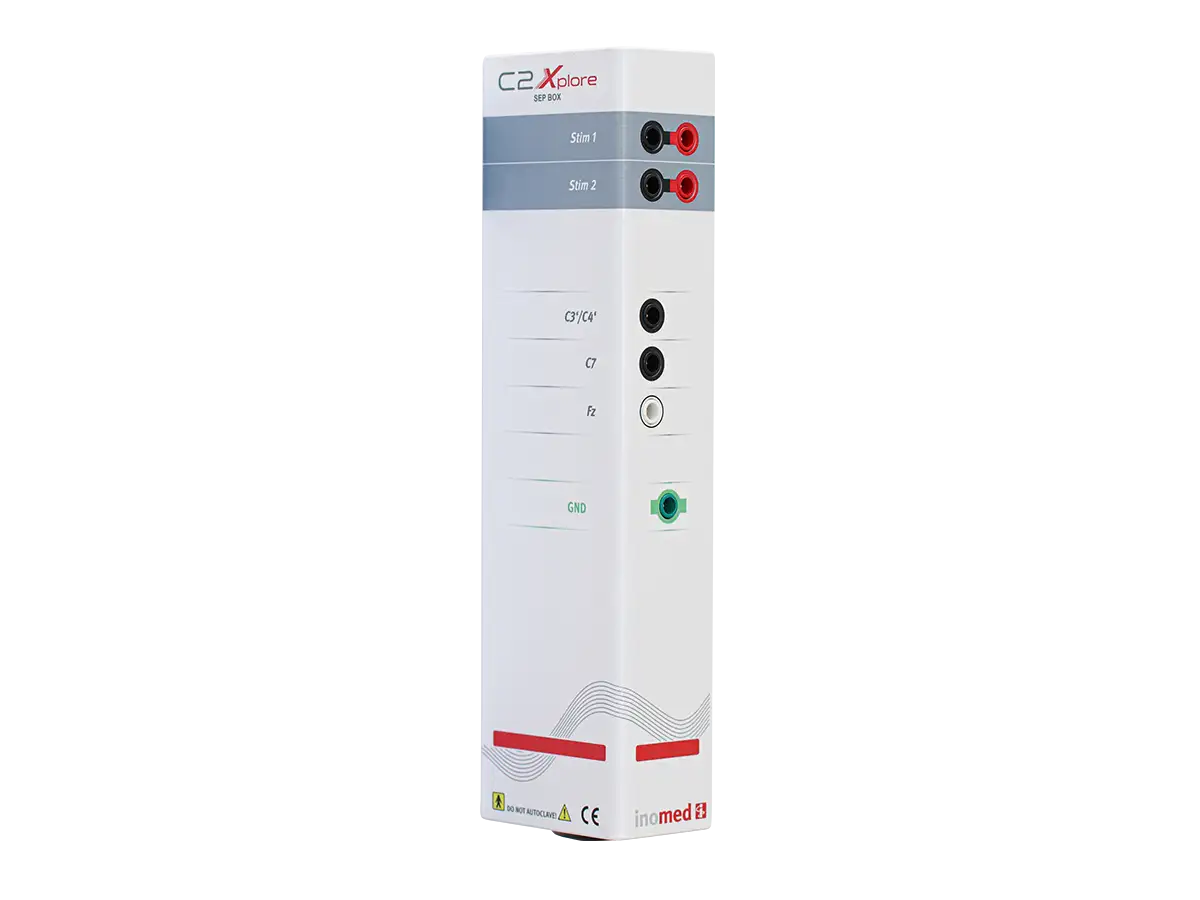

SEP Box for C2 Xplore
SEP Box for C2 Xplore
540432
SEP Box for C2 Xplore
SEP Box for C2 Xplore Stimulation: 2 channels, Recording: 2 EP channels with reference and GND, referential, cable length 5 m, delivered non-sterile, not autoclavable
Add to watch list
inoView V2 Software Module for C2 Xplore
inoView V2 Software Module for C2 Xplore
508517
inoView V2 Software Module for C2 Xplore
Software module for the wireless connection to a tablet to use the inoView app for the C2 Xplore. Contains one WiFi stick.
Add to watch list
C2 Xplore WiFi Set for use inside the operating room
C2 Xplore WiFi Set for use inside the operating room
508566
C2 Xplore WiFi Set for use inside the operating room
WiFi module for wireless connection to the hospital network and for patient data storage via WiFi for the C2 Xplore. Con­tains one WiFi stick. Maximum data rate 150 Mbps, supports IEEE 802.11 n, b, g
Add to watch list
HL7 network integration for C2 Xplore
HL7 network integration for C2 Xplore
508524
HL7 network integration for C2 Xplore
The network connection via HL7 enables data exchange between C2 Xplore and the hospital network (HIS). Includes license and project costs for the initial setup via remote support. The network connection is complemented by the annual support.
Add to watch list
All available C2 system components

Further information

Further application accessories in the IONM accessories catalogue
