inomed Medizintechnik GmbH

ProductsIntraoperative NeuromonitoringIONM accessoriesThyroid surgery accessories

Thyroid surgery accessories


Always the right accessories for thyroid surgery.

inomed enables reliable signal recording using stimulation and recording accessories, which have been specially developed for the requirements of intraoperative use. Tested and developed together with users and manufactured according to German quality standards, inomed accessories are used worldwide every day to support patient safety.

Recording electrodes

The inomed recording electrodes are specially designed for reliable signal recording on the vocal muscle. Thanks to the 8 long electrode contacts and 360° surface coverage, they offer excellent signal stability.
ALM Tube I.D. 7.0, O.D. 9.7
ALM Tube I.D. 7.0, O.D. 9.7
530845
ALM Tube I.D. 7.0, O.D. 9.7
For EMG recording, 4 channels, clear PVC tube, Murphy type, latex free, disposable product, EO sterilised
Add to watch list
ALM Tube I.D. 7.5, O.D. 10.3
ALM Tube I.D. 7.5, O.D. 10.3
530846
ALM Tube I.D. 7.5, O.D. 10.3
For EMG recording, 4 channels, clear PVC tube, Murphy type, latex free, disposable product, EO sterilised
Add to watch list
ALM Tube I.D. 8.0, O.D. 11.0
ALM Tube I.D. 8.0, O.D. 11.0
530847
ALM Tube I.D. 8.0, O.D. 11.0
For EMG recording, 4 channels, clear PVC tube, Murphy type, latex free, disposable product, EO sterilised
Add to watch list
Laryngeal Electrode Select for tube with 6-7 mm inner diameter
Laryngeal Electrode Select for tube with 6-7 mm inner diameter
530855
Laryngeal Electrode Select for tube with 6-7 mm inner diameter
Adhesive surface=32x29.7 mm, electrode surface=685 mm², with neutral adhesive electrode, disposable product, EO sterilised
Add to watch list
Laryngeal Electrode Select for tube with 7-9 mm inner diameter
Laryngeal Electrode Select for tube with 7-9 mm inner diameter
530856
Laryngeal Electrode Select for tube with 7-9 mm inner diameter
Adhesive surface=37x37.6 mm, electrode surface=1057 mm², with neutral adhesive electrode, disposable product, EO sterilised
Add to watch list
All available electrodes

Stimulation probes

Stimulation probes are used for the electrical stimulation of nerves and neuronal structures. In thyroid surgery, both monopolar and bipolar probes are used. The DELTA-Electrode was developed specifically for continuous monitoring.
BCS probe 45 mm angled 30°
BCS probe 45 mm angled 30°
522603
BCS probe 45 mm angled 30°
1.5 mm touchproof connector DIN 42802, angled 30°, bipolar concentric, working length=45 mm, total length with handle=155 mm, cable length=3000 mm, disposable product, EO sterilised
Add to watch list
Stimulation probe 45 mm monopolar, angled 30°
Stimulation probe 45 mm monopolar, angled 30°
525603
Stimulation probe 45 mm monopolar, angled 30°
1.5 mm touchproof connector DIN 42802, angled 30°, active tip=2 mm, working length=45 mm, total length with handle=160 mm, with neutral SDN electrode black, cable length=3000 mm, disposable product, EO sterilised
Add to watch list

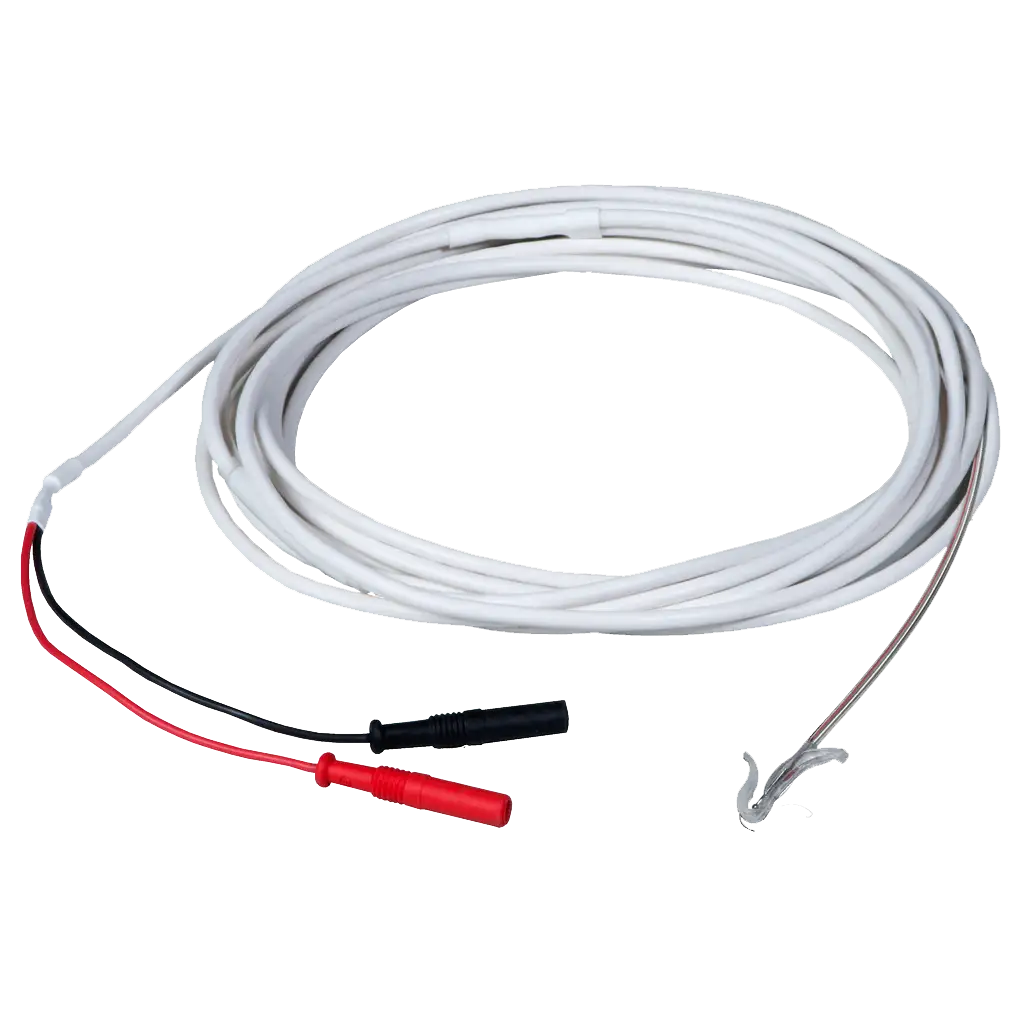

DELTA-Electrode with sterile connection cable
DELTA-Electrode with sterile connection cable
522623
DELTA-Electrode with sterile connection cable
Disposable stimulation electrode for continuous vagus monitoring with sterile connection cable
Add to watch list

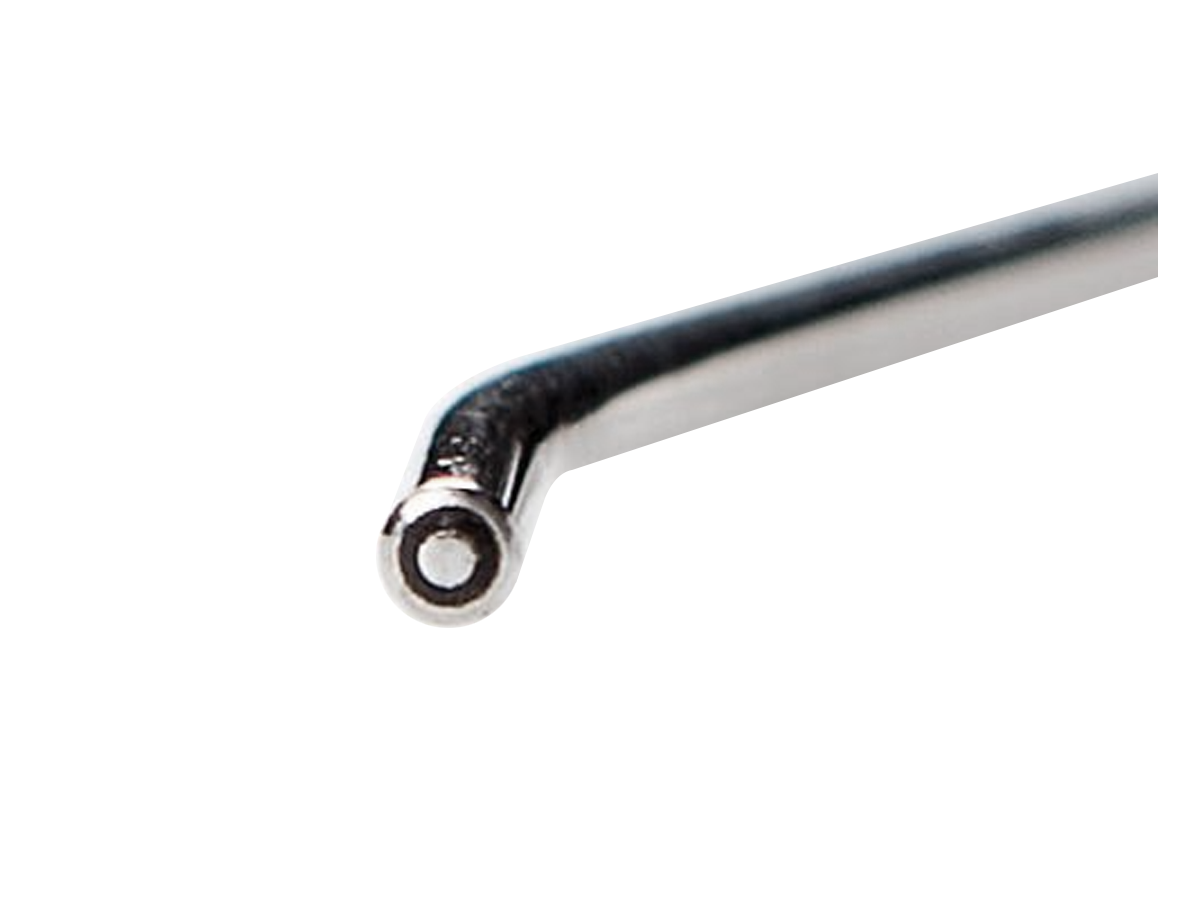

BCS probe 230 mm angled 30°
BCS probe 230 mm angled 30°
522627
BCS probe 230 mm angled 30°
1.5 mm touchproof connector DIN 42802, angled 30°, bipolar concentric, working length=230 mm, total length with handle=340 mm, cable length=3000 mm, disposable product, EO sterilised
Add to watch list
Stimulation probe 85 mm monopolar, straight, flexible
Stimulation probe 85 mm monopolar, straight, flexible
525608
Stimulation probe 85 mm monopolar, straight, flexible
Stimulation probe 85 mm monopolar, straight, flexible, 1.5 mm touchproof connector DIN 42802, active tip=0.4 mm, working length=85 mm, total length with handle=195 mm, with neutral SDN electrode black, cable length=3000 mm, disposable product, EO sterilised
Add to watch list
Micro fork probe 45 mm straight
Micro fork probe 45 mm straight
522610
Micro fork probe 45 mm straight
1.5 mm touchproof connector DIN 42802, straight, fork width=2 mm, fork length=3 mm, working length=45 mm, total length with handle=155 mm, cable length=3000 mm, disposable product, EO sterilised
Add to watch list
All available stimulation probes

C2 adaptor boxes and accessories

Cost efficiency through flexibility. 1 system, expandable to 6 application fields by means of additional adaptor boxes.
Trolley for C2 Xplore
Trolley for C2 Xplore
508301
Trolley for C2 Xplore
Floor element with 4 wheels, front wheels with brakes, table with grey handles, rail mounting for adaptor boxes, big drawer, special drawer for keyboard, shelf for printer
Add to watch list
Transport cover for C2 Xplore
Transport cover for C2 Xplore
508313
Transport cover for C2 Xplore
Tear-resistant transport casing, with front reinforcement, with foldable pocket at the back
Add to watch list
Transportation case for C2
Transportation case for C2
508312
Transportation case for C2
Suitable for C2 NerveMonitor and C2 Xplore, top compartment with drawer, telescopic handle, 2 corner castors, WxHxD: 365x270x685 mm
Add to watch list
Holder for tablet
Holder for tablet
508562
Holder for tablet
To be attached to drip stands, suitable for tablets with a height of 222 to 334 mm, width of 128 to 232 mm and depth of 6 to 11 mm
Add to watch list
Sterile cover for tablet
Sterile cover for tablet
504365
Sterile cover for tablet
Tablet cover for use in sterile environment, size: 8‘‘ x 10‘‘ (20 cm x 25.4 cm), latex-free, EO sterilised
Add to watch list
Laser printer set
Laser printer set
508335
Laser printer set
With medical approved power supply
Add to watch list
Head Box for C2 Xplore
Head Box for C2 Xplore
540430
Head Box for C2 Xplore
Stimulation: 2 channels, recording: 8 EMG channels (4x Redel, 4x TP) and GND, differential, cable length 5 m, delivered non-sterile, not autoclavable
Add to watch list

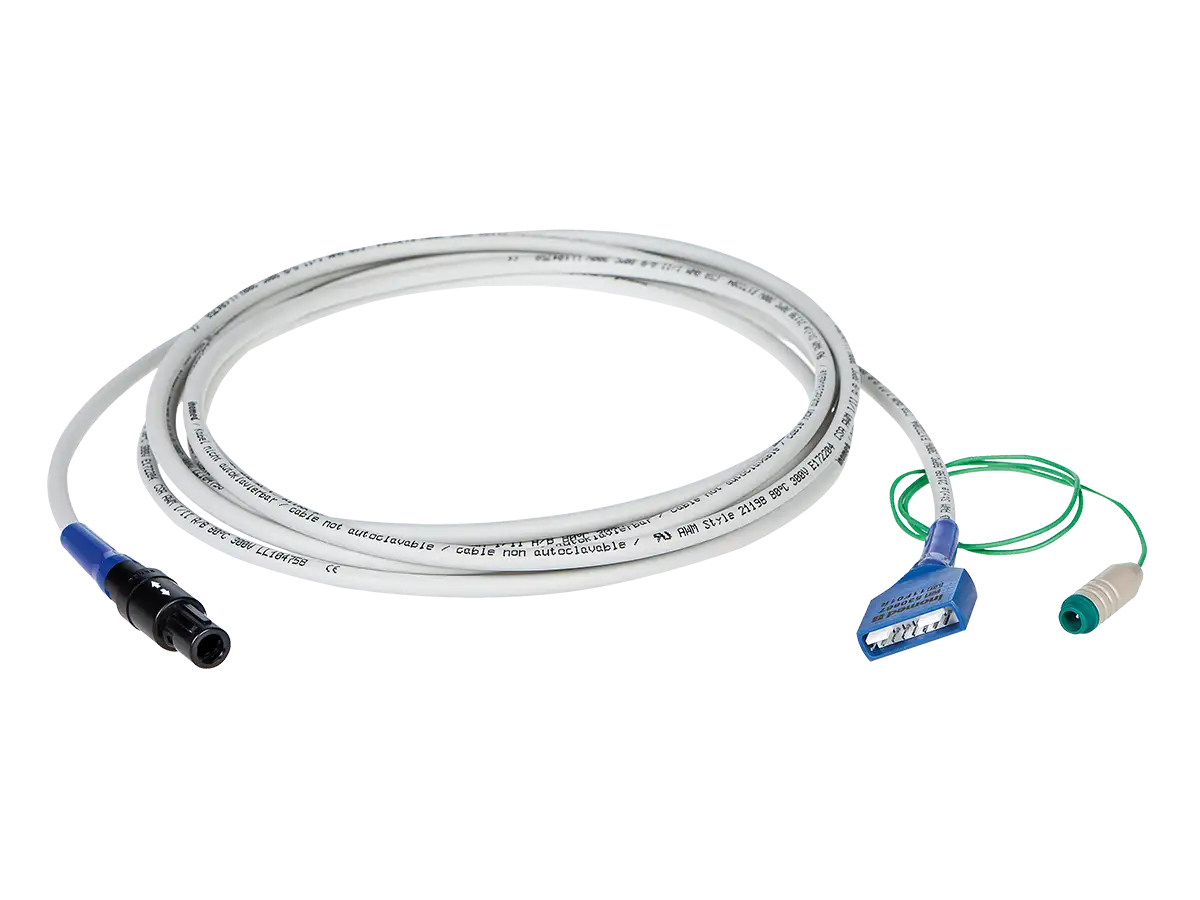

Connection cable for adhesive laryngeal electrode Select
Connection cable for adhesive laryngeal electrode Select
530867
Connection cable for adhesive laryngeal electrode Select
Cable cable length=4 m, 4 channel diff. with reference, Redel male connector: 10-pole 40°, bend protection: blue, delivered non-sterile, can be disinfected
Add to watch list
inoView V2 Software Module for C2 Xplore
inoView V2 Software Module for C2 Xplore
508517
inoView V2 Software Module for C2 Xplore
Software module for the wireless connection to a tablet to use the inoView app for the C2 Xplore. Contains one WiFi stick.
Add to watch list
C2 Xplore WiFi Set for use inside the operating room
C2 Xplore WiFi Set for use inside the operating room
508566
C2 Xplore WiFi Set for use inside the operating room
WiFi module for wireless connection to the hospital network and for patient data storage via WiFi for the C2 Xplore. Con­tains one WiFi stick. Maximum data rate 150 Mbps, supports IEEE 802.11 n, b, g
Add to watch list
HL7 network integration for C2 Xplore
HL7 network integration for C2 Xplore
508524
HL7 network integration for C2 Xplore
The network connection via HL7 enables data exchange between C2 Xplore and the hospital network (HIS). Includes license and project costs for the initial setup via remote support. The network connection is complemented by the annual support.
Add to watch list
Mute Sensor for suppression of HF noise
Mute Sensor for suppression of HF noise
510025
Mute Sensor for suppression of HF noise
For use with C2 Xplore and ISIS IOM systems, delivered non-sterile, can be disinfected
Add to watch list
All available C2 system components

Further information

Further application accessories in the IONM accessories catalogue
