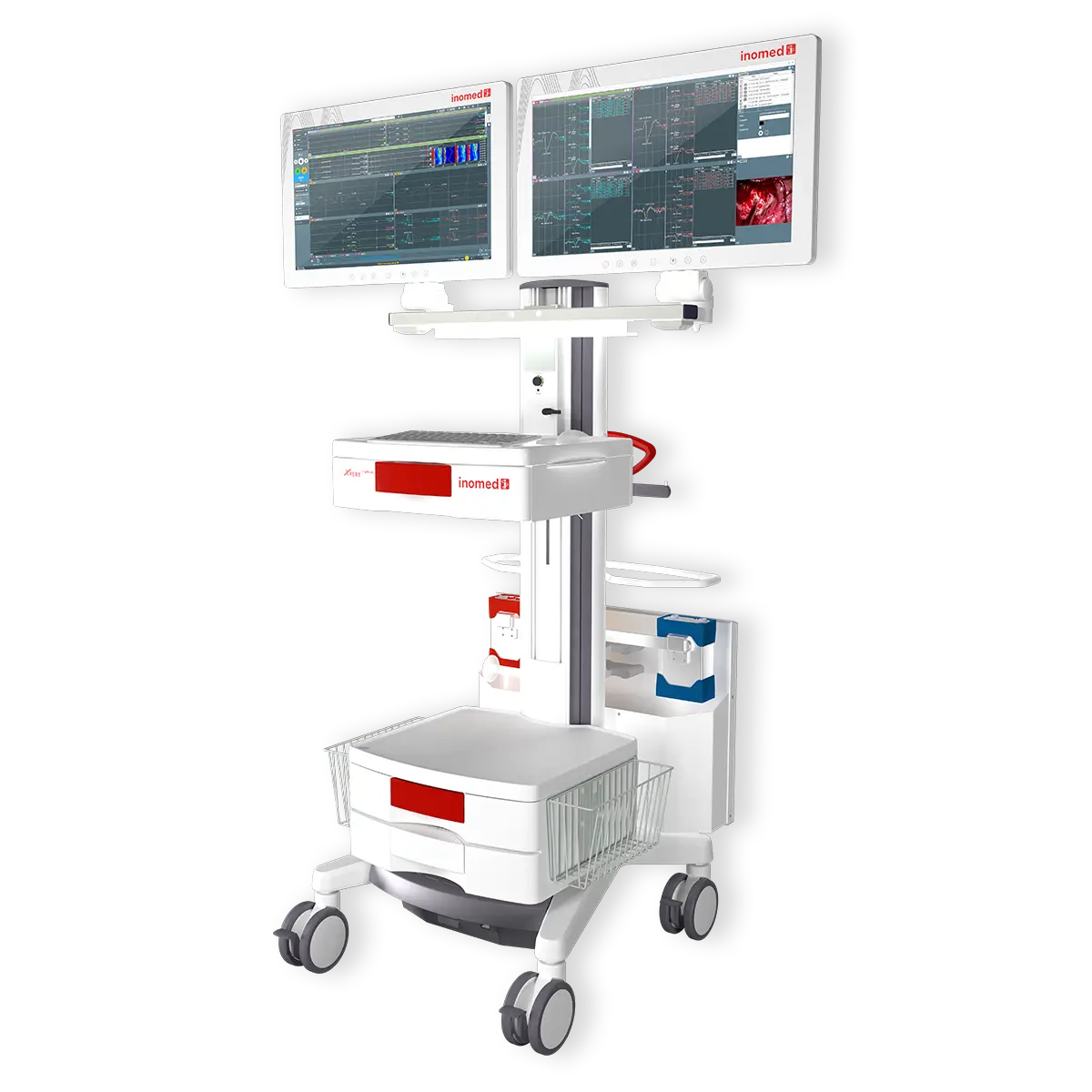

ISIS IOM family: Systems for neurophysiological monitoring

Add to watch list

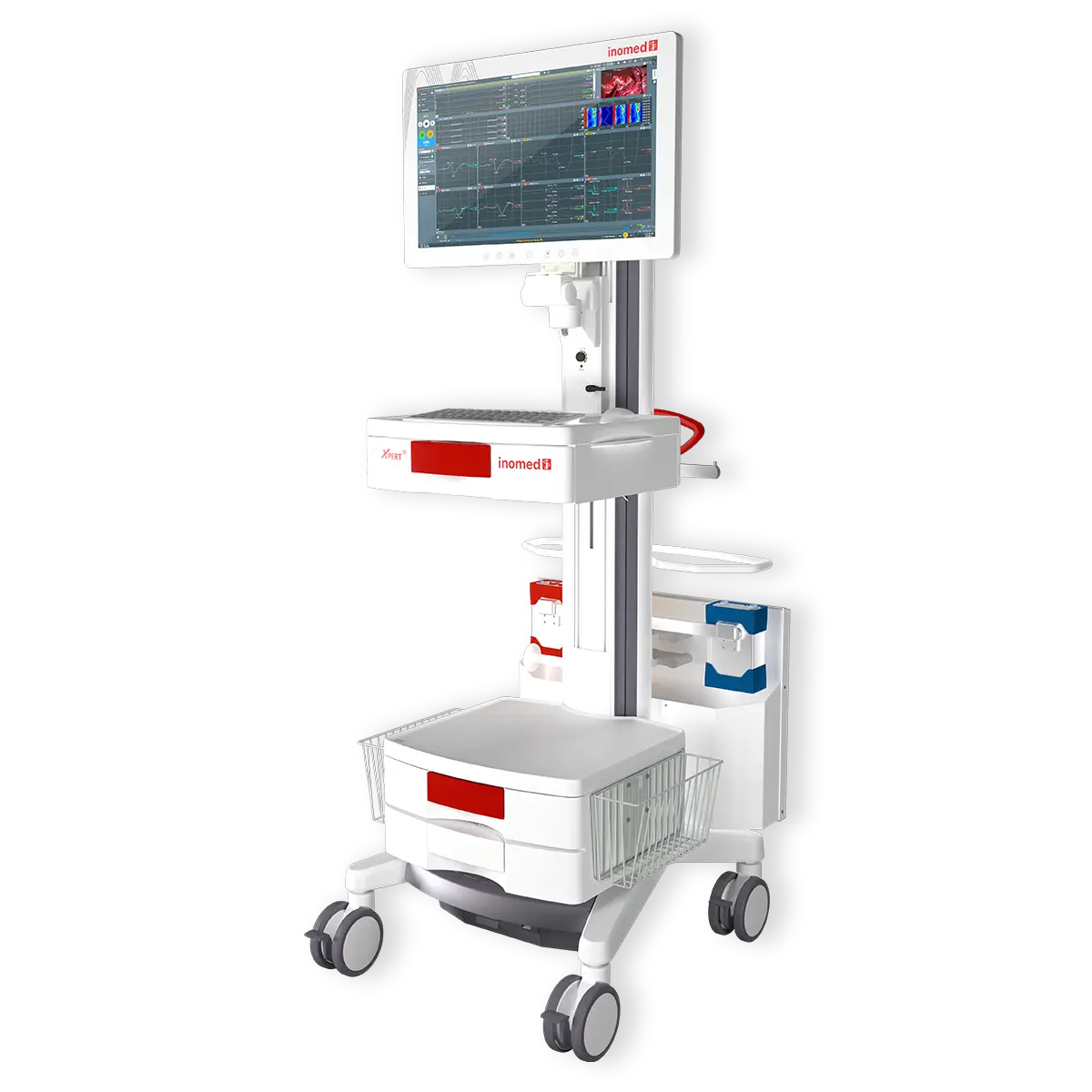

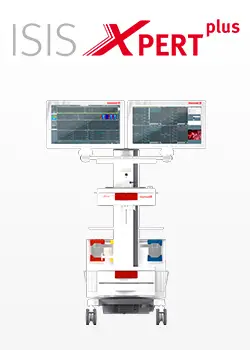

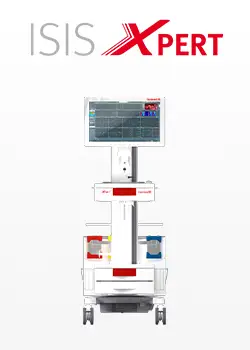

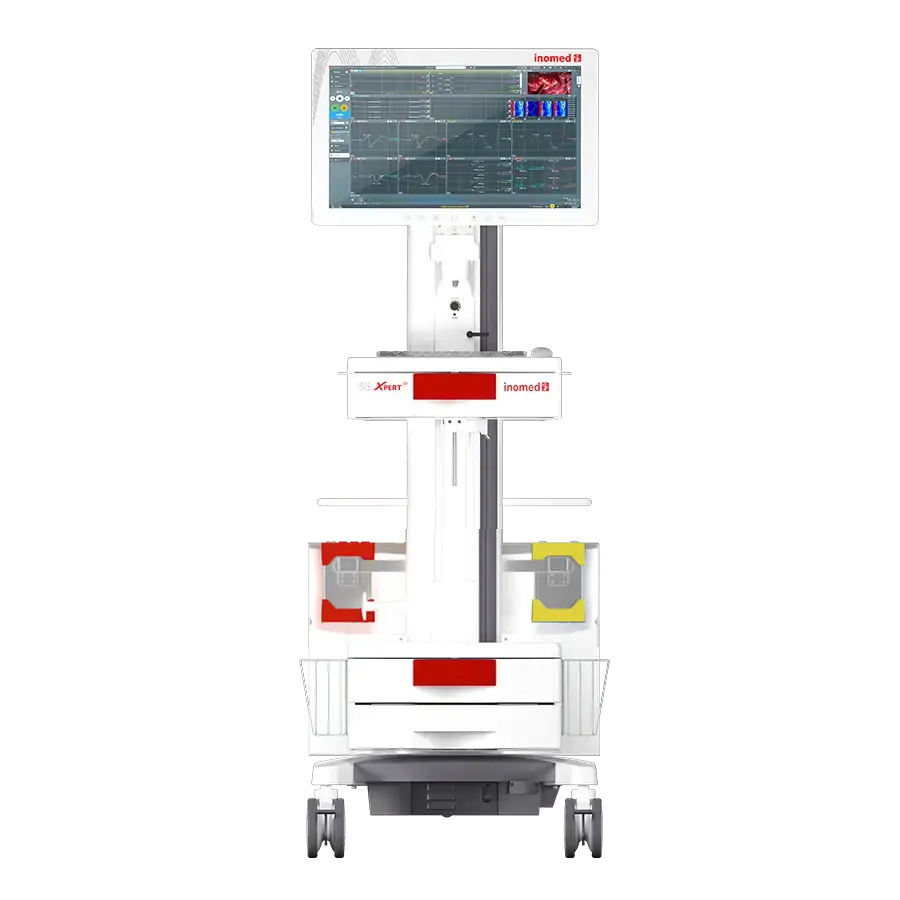

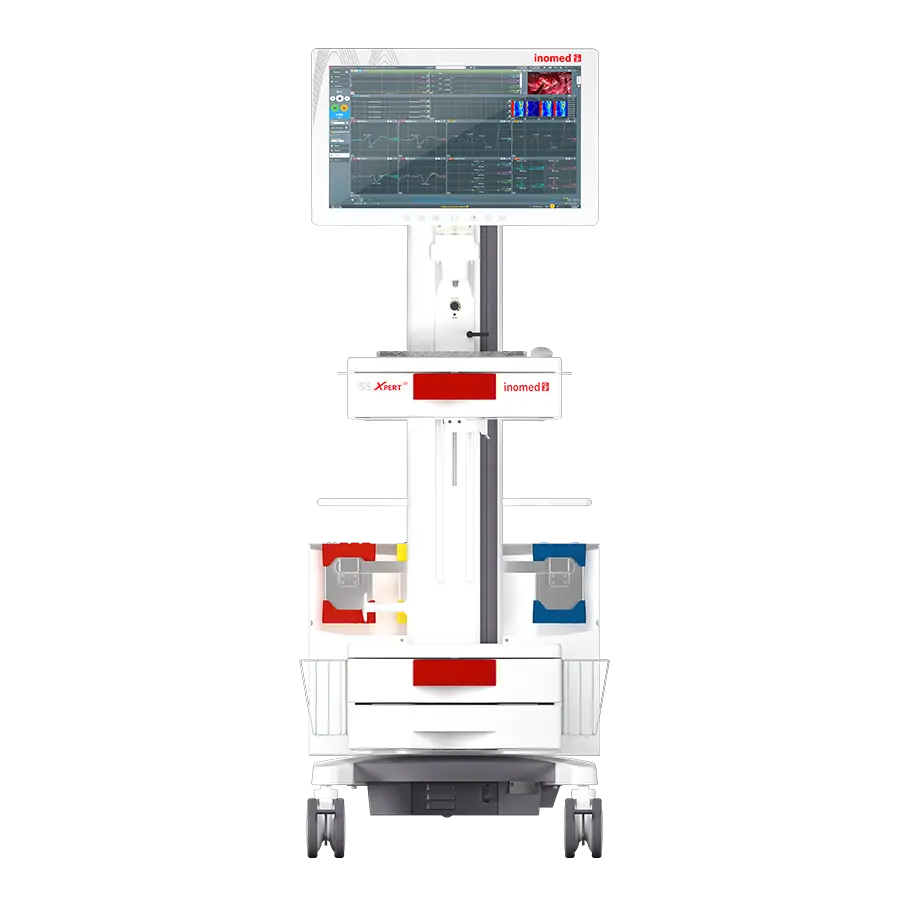

Item no.: 504005-16CHISIS Xpert 16-channel systemThe powerful ISIS Xpert combines mobility with functionality. It consists of an equipment cart with panel PC, keyboard drawer, accessory basket, constant current stimulator, amplifier with a total of 16 recording channels (24 inputs: 8 referential and 16 differential) and all necessary adaptor boxes.

Available

Add to watch list

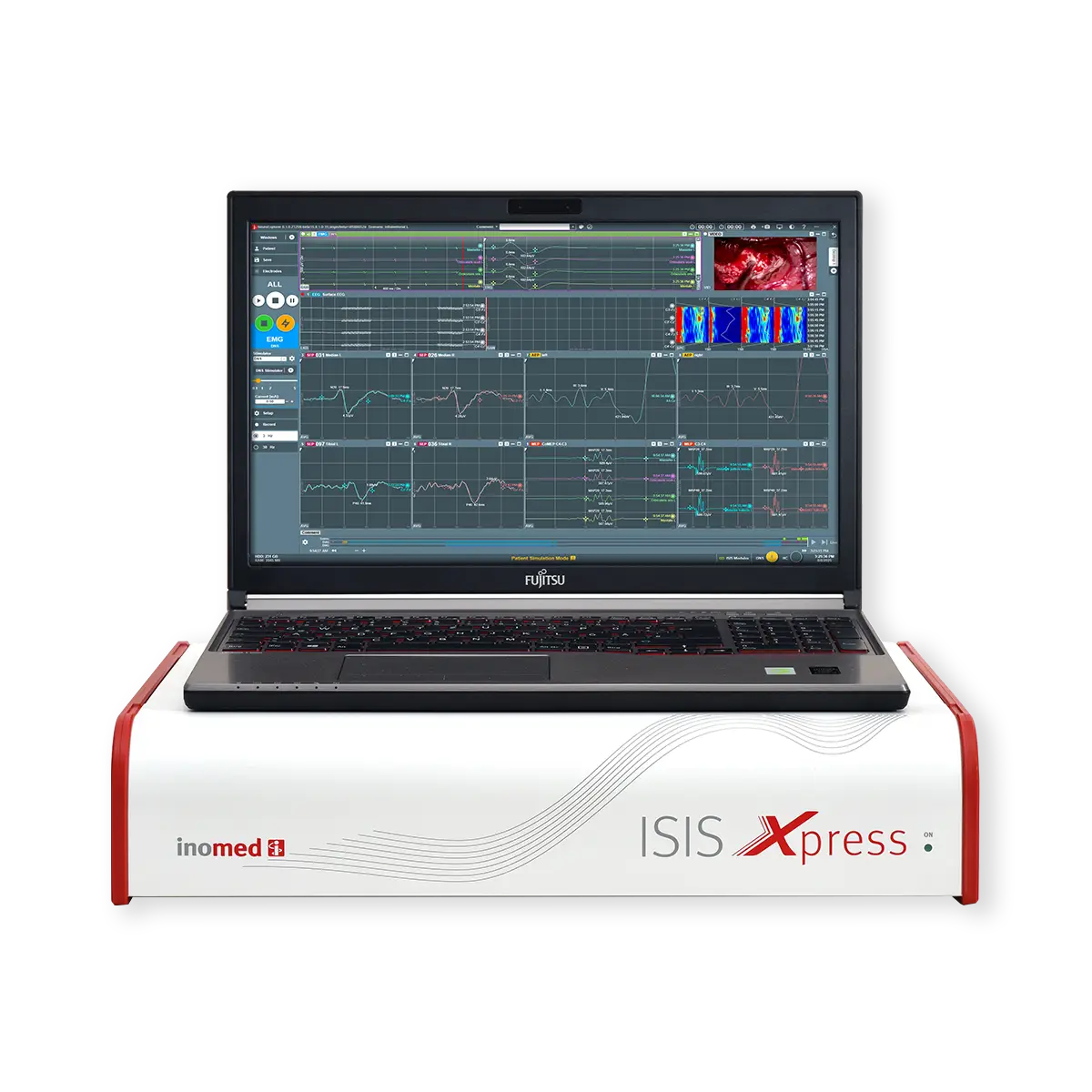

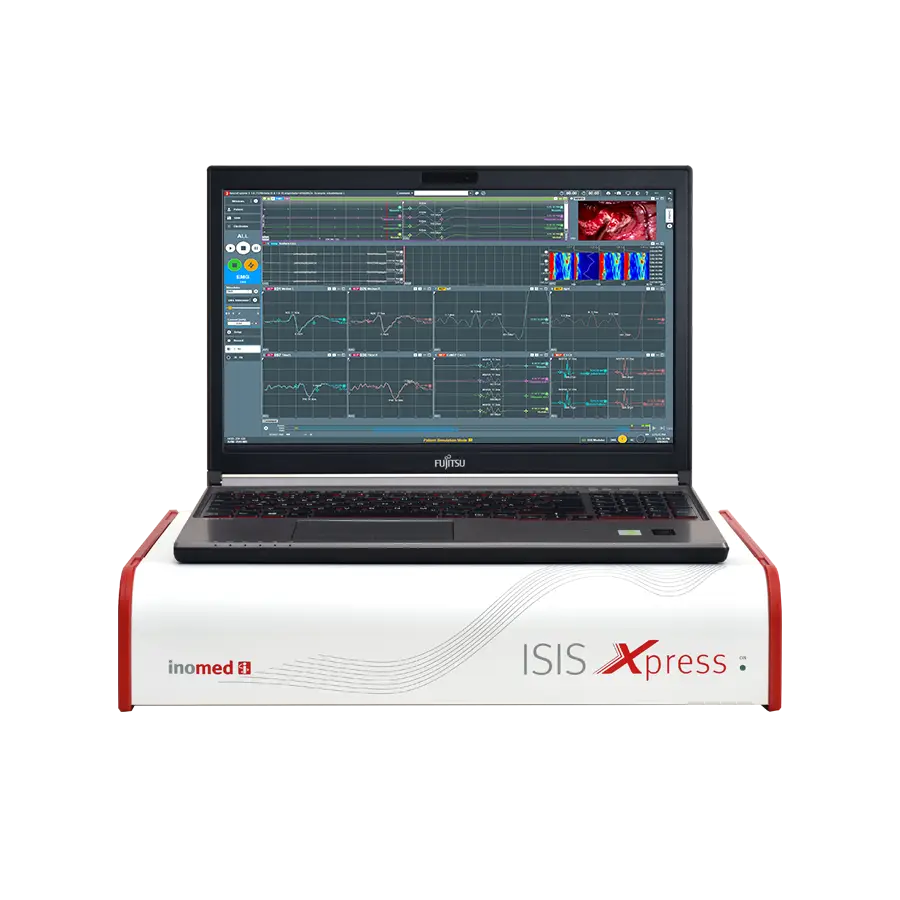

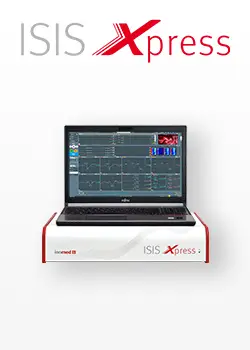

Item no.: 504006-32CHISIS Xpress 32-channel system for neurosurgeryThe ISIS Xpress is the portable version of the ISIS IOM system. It consists of the ISIS Xpress base unit, trolley, notebook, notebook and accessory bag, constant current stimulator, amplifier with a total of 32 recording channels (56 inputs: 8 referential and 48 differential) and all necessary adaptor boxes.

Available

Add to watch list

Item no.: 504006-16CHISIS Xpress 16-channel systemThe ISIS Xpress is the portable version of the ISIS IOM system. It consists of the ISIS Xpress base unit, trolley, notebook, notebook and accessory bag, constant current stimulator, amplifier with a total of 16 recording channels (24 inputs: 8 referential and 16 differential) and all necessary adaptor boxes.

Available

Add to watch list

Software modules

Item no.: 504400ISIS Software DataSyncFor storing and accessing neuromonitoring data from multiple ISIS systems via a central server

Available

Add to watch list

Item no.: 504415ISIS Software Screen2VideoFor recording a desktop video of the NeuroExplorer application, e.g. for documentation and training purposes

Available

Add to watch list

Item no.: 504418ISIS Software Multi-channel VideoFor displaying up to four video sources on the measurement screen, including recording function

Available

Add to watch list

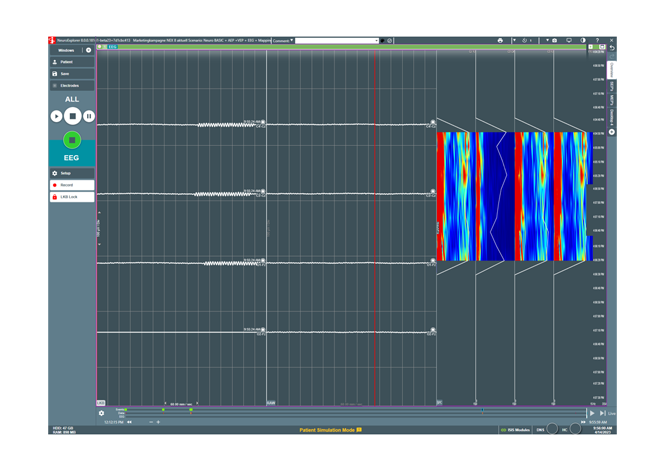

Item no.: 504423ISIS Software Scalp-EEGFor recording an electroencephalogram (EEG) as a raw signal and spectral analysis (CSA/DSA), for software version 8

Available

Add to watch list

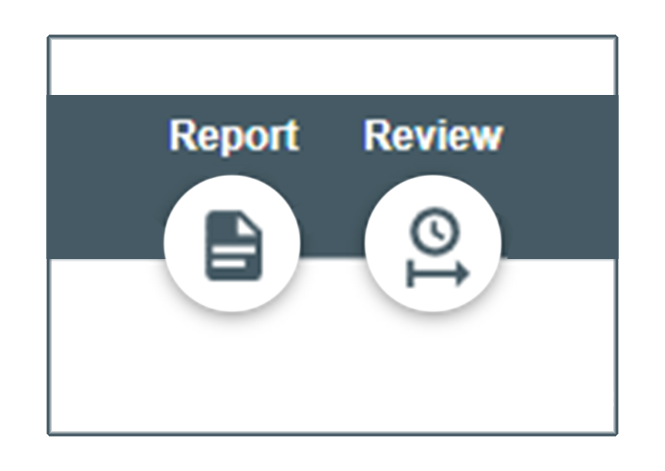

Item no.: 504401ISIS Analysis SoftwareFor viewing and analysing neurophysiological measurements on a PC

Available

Add to watch list

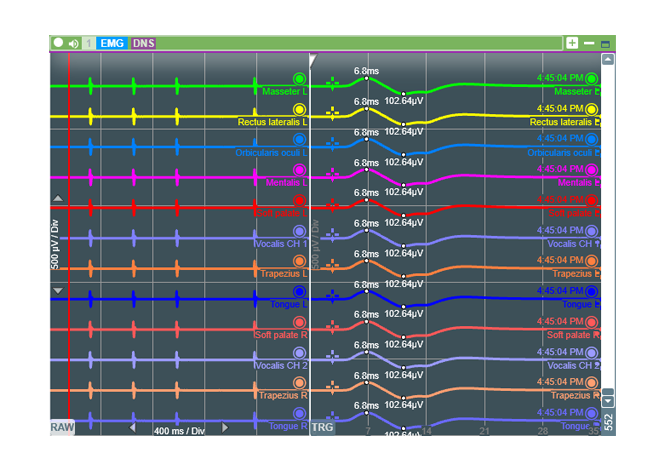

Item no.: 504402ISIS Software EMGFor recording free-running and triggered elecromyography measurements (EMG)

Available

Add to watch list

Item no.: 504403ISIS Software Channel SelectFor selecting the best EMG signal when using the ALM Tube or Laryngeal Electrode Select

Available

Add to watch list

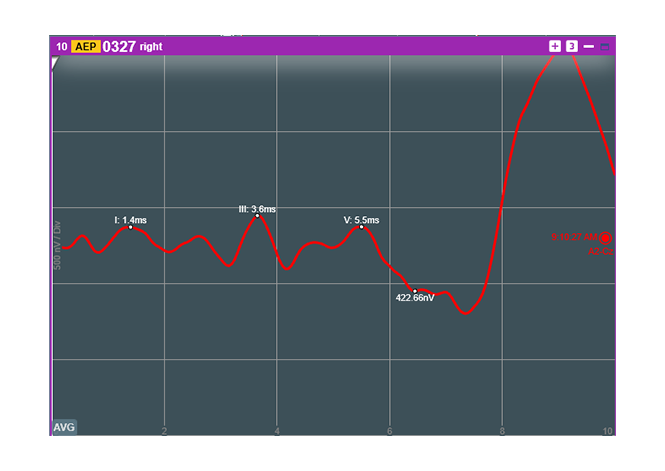

Item no.: 504404ISIS Software AEPFor recording auditory evoked potentials (AEP)

Available

Add to watch list

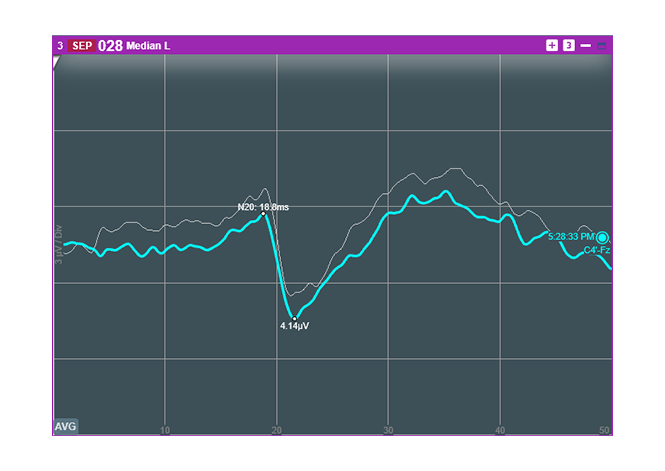

Item no.: 504406ISIS Software SEPFor recording somatosensory evoked potentials (SEP)

Available

Add to watch list

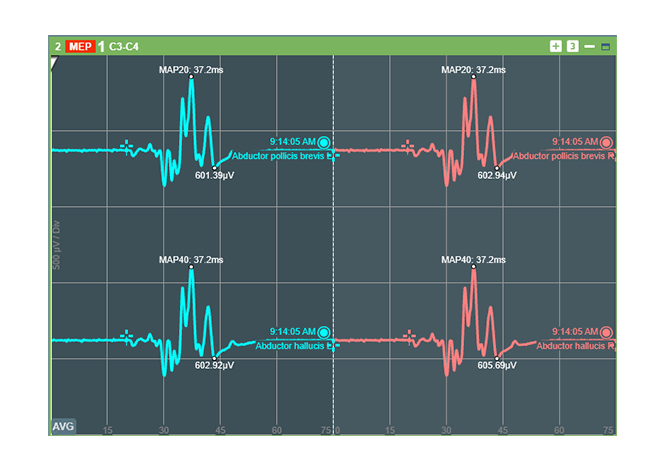

Item no.: 504408ISIS Software MEPFor recording motor evoked potentials (MEP)

Available

Add to watch list

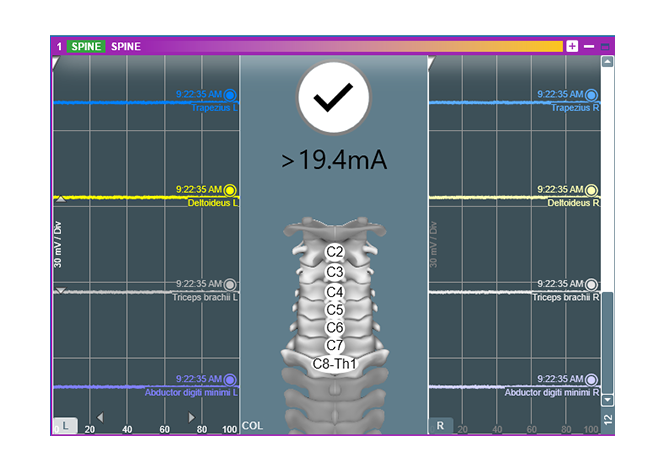

Item no.: 504409ISIS Software SpineFor automated pedicle stimulation using triggered EMG

Available

Add to watch list

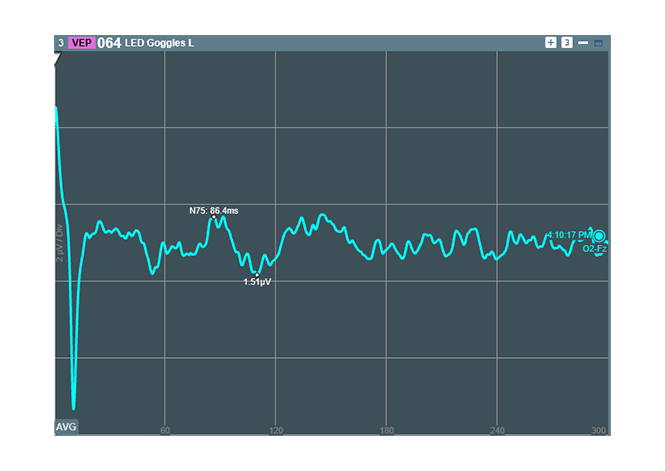

Item no.: 504410ISIS Software VEPFor recording visual evoked potentials (VEP)

Available

Add to watch list

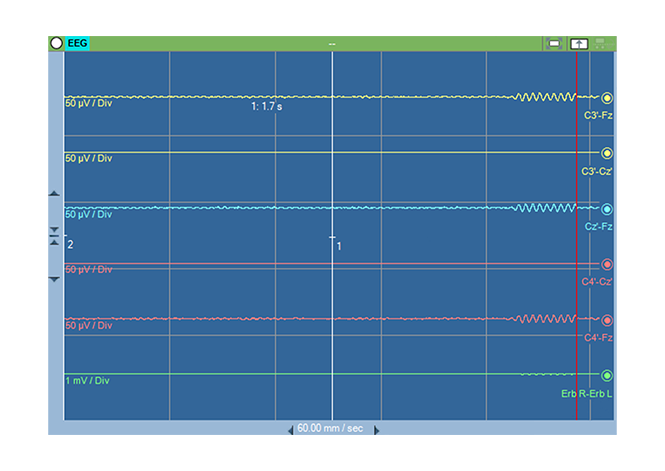

Item no.: 504414ISIS Software EEGFor recording an electroencephalogram (EEG) or an electrocorticogram (ECoG), for software version 6 and 7

Available

Add to watch list

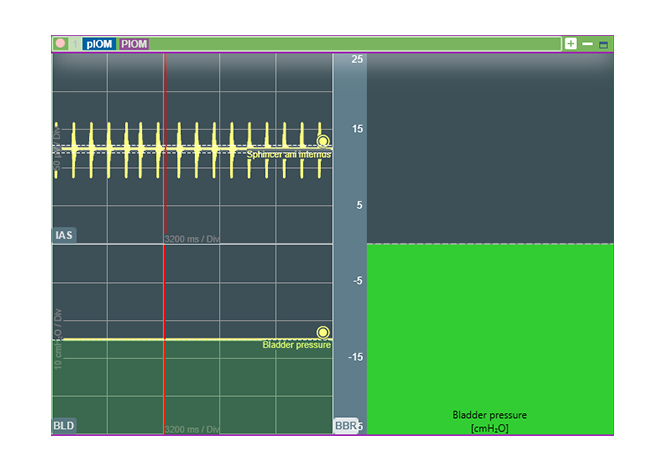

Item no.: 504411ISIS Software pIOMFor performing pelvic intraoperative neuromonitoring by recording an EMG of the internal anal sphincter and measuring bladder pressure

Available

Add to watch list

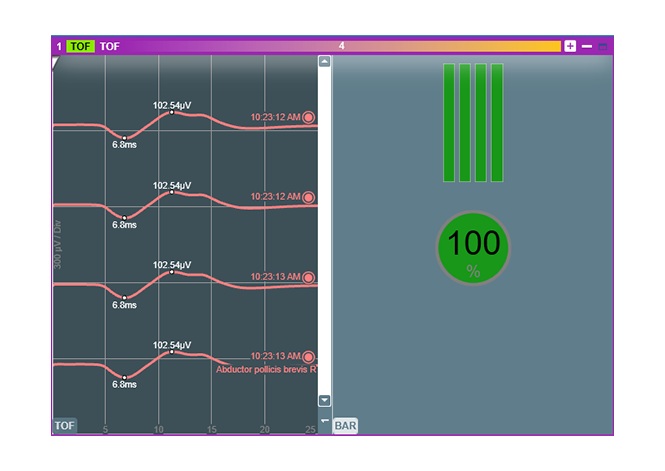

Item no.: 504407ISIS Software TOFFor performing an automated train-of-four measurement for muscle relaxation measurement

Available

Add to watch list

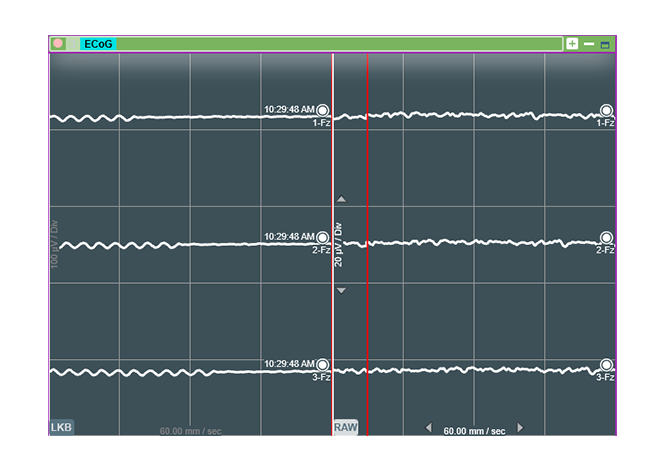

Item no.: 504424ISIS Software ECoGFor recording an electroencephalogram (EEG) or an electrocorticogram (ECoG)

Available

Add to watch list

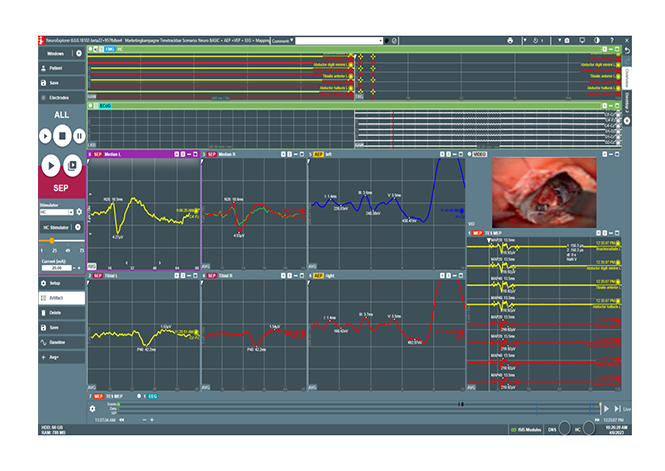

Item no.: 540013Video interface for ISIS IOM incl. software and hardwareConsisting of a video software license for NeuroExplorer software, Magewell USB Capture AIO, BNC interface

Available

Add to watch list

Extensions

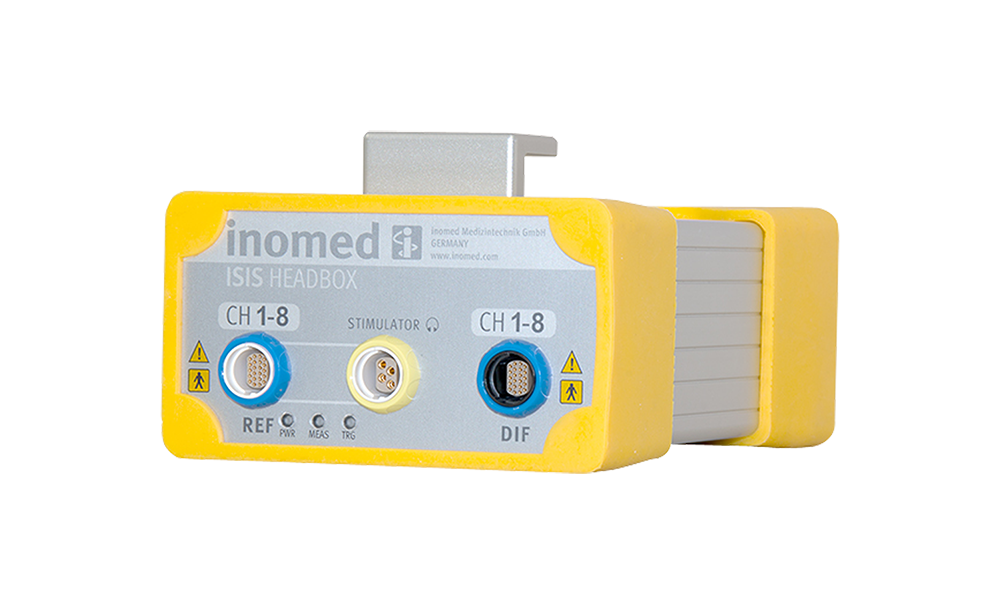

Item no.: 504285ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEP Enables the recording of 8 referential, 8 differential channels and the AEP stimulator. Can be combined with: 540340, 540523, 540525, 540531

Available

Add to watch list

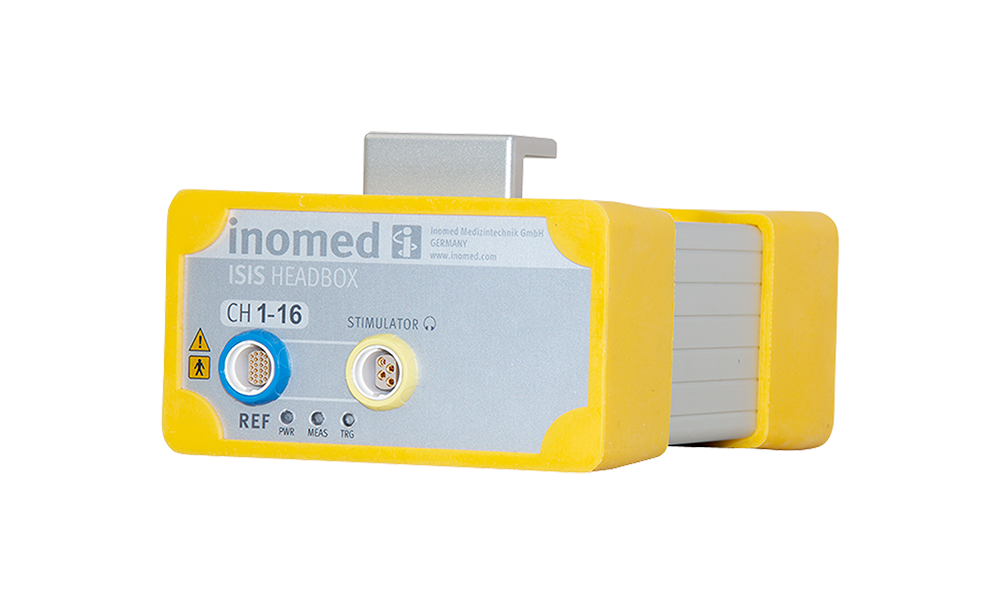

Item no.: 504281ISIS Headbox 16 Ch. REF-AEPEnables the recording of 16 referential channels and the stimulation of AEPs. Can be combined with: 540522, 540524

Available

Add to watch list

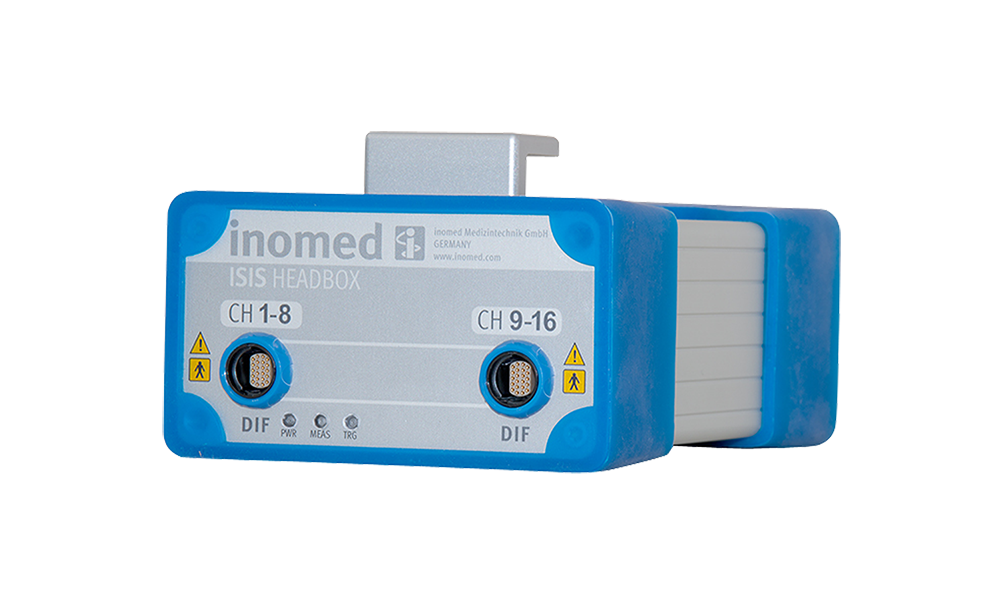

Item no.: 504271ISIS Headbox 16 Ch. DIFEnables the recording of 16 differential channels. Can be combined with: 520302, 540531, 540532, 540533, 540534, 540535

Available

Add to watch list

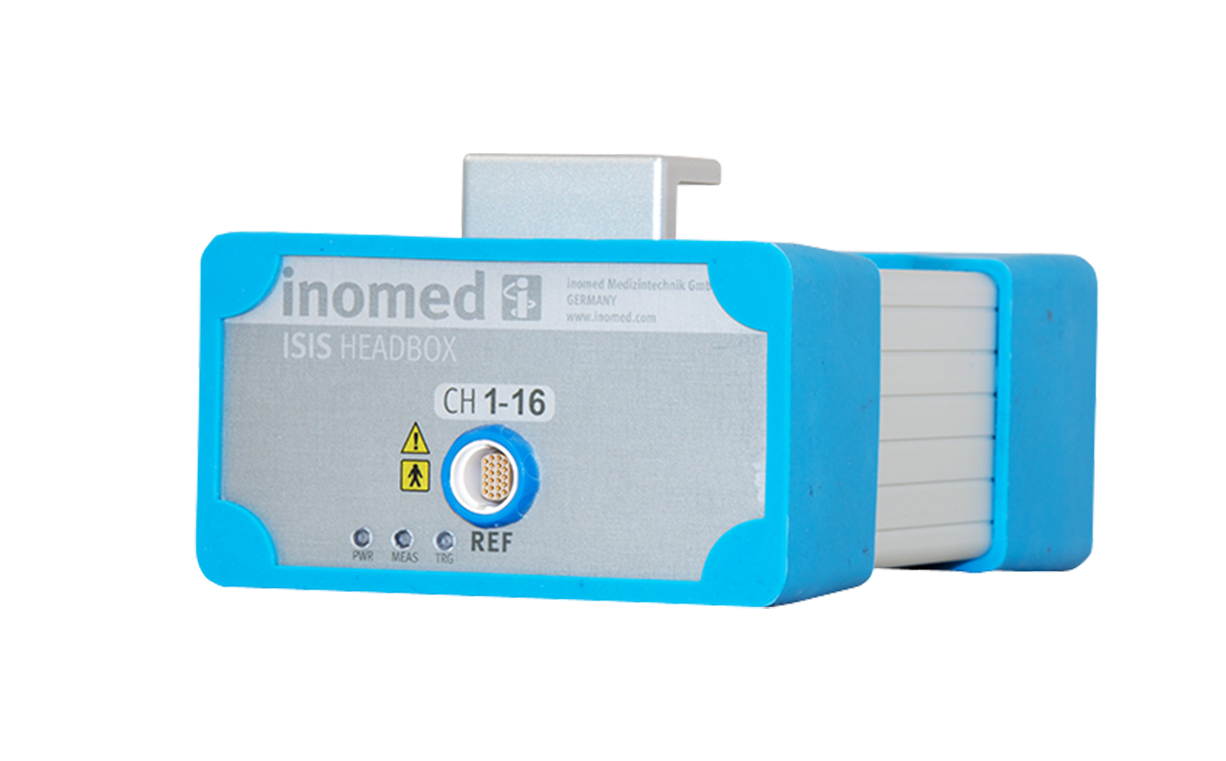

Item no.: 504261ISIS Headbox 16 Ch. REFEnables the recording of 16 referential channels. Can be combined with: 540524

Available

Add to watch list

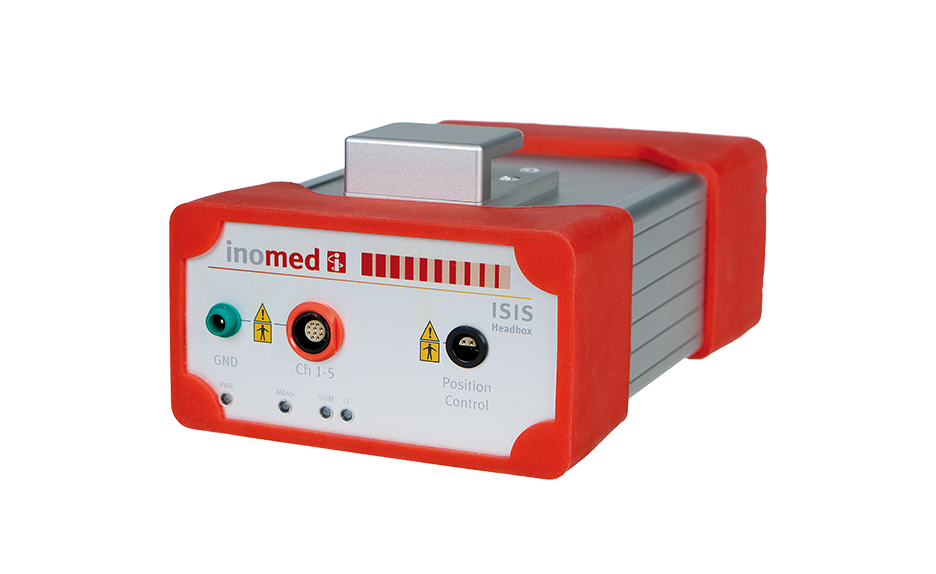

Item no.: 590210ISIS Headbox U5S MEREnables the recording of 5 channels incl. test stimulation. Can be combined with: 590710, 590711

Available

Add to watch list

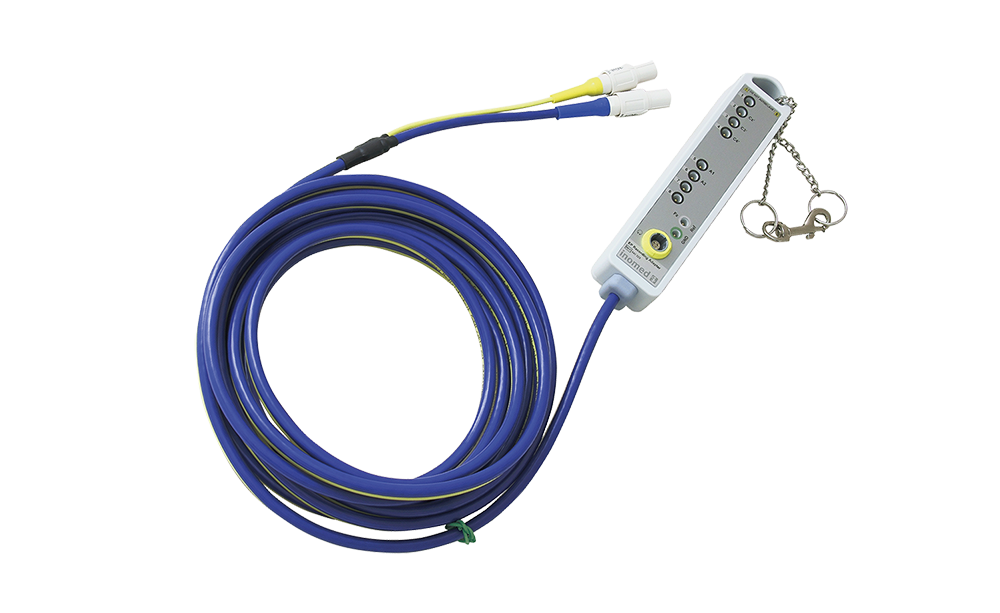

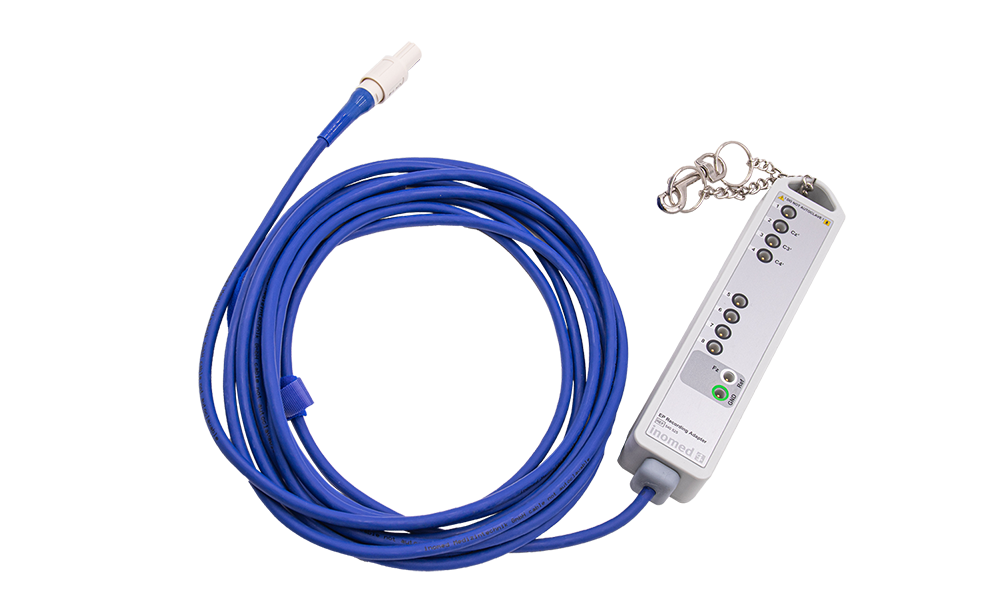

Item no.: 540523EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEPFor maximal 8-channel recording to a common reference and the possibility to connect AEP Earphones (540340). Can be combined with: 504285, 540559

Available

Add to watch list

Item no.: 540525EP Adaptor for ISIS Headbox 8 Ch. DIF-8 Ch. REF-AEPFor maximal 8-channel recording to a common reference. Can be combined with: 504285, 540559

Available

Add to watch list

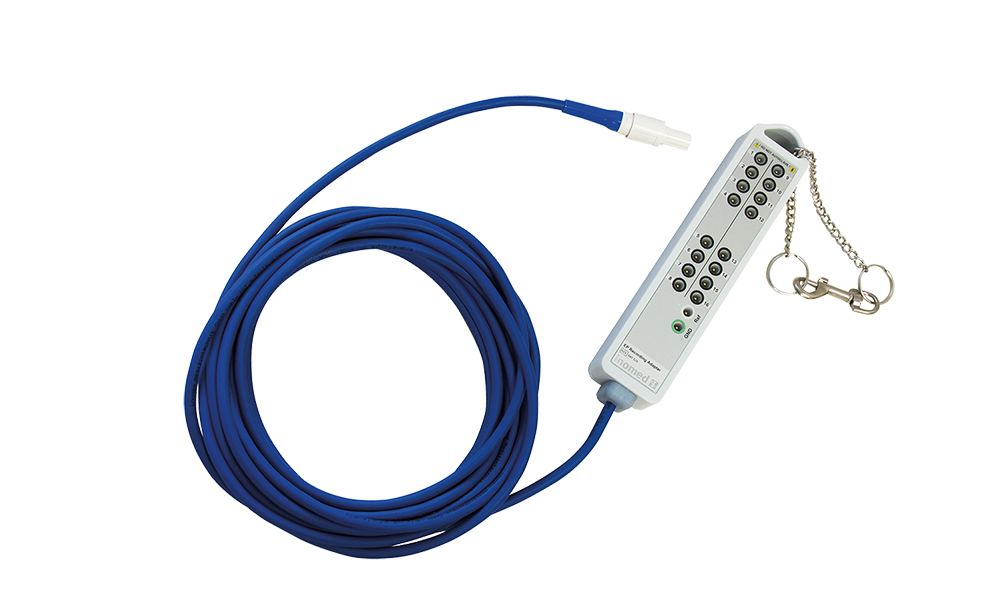

Item no.: 540524EP Adaptor for ISIS Headbox 16 Ch. REFFor maximal 16-channel recording to a common reference. Can be combined with: 504281, 504261, 540560

Available

Add to watch list

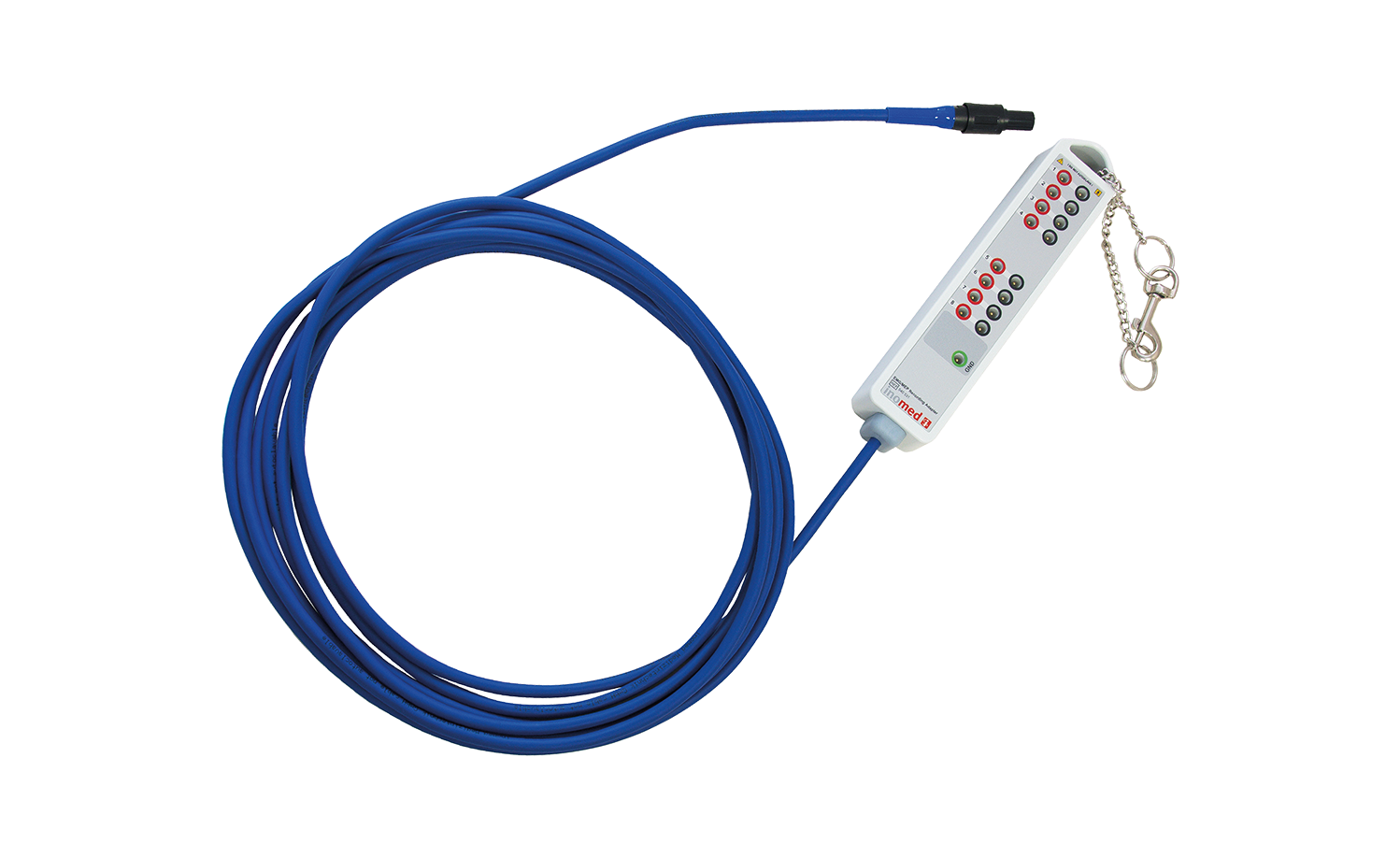

Item no.: 540531EMG/MEP Adaptor Ch. 1-8 for 504271 for ISIS Headbox 16 Ch. DIFFor maximal 8-channel differential recording.

Available

Add to watch list

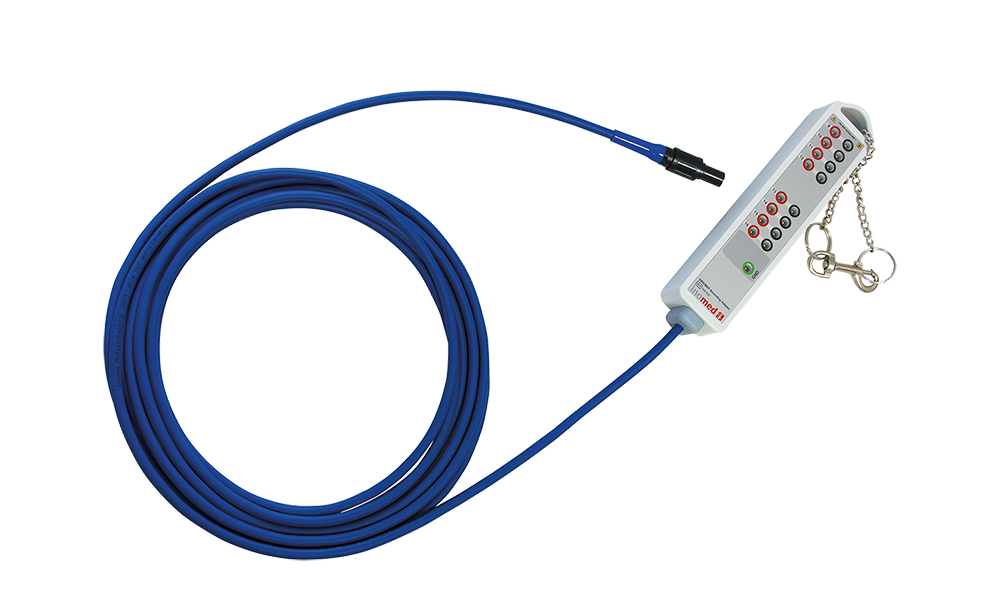

Item no.: 540532EMG/MEP Adaptor Ch. 9-16 for 504271 for ISIS Headbox 16 Ch. DIF For maximal 8-channel differential recording.

Available

Add to watch list

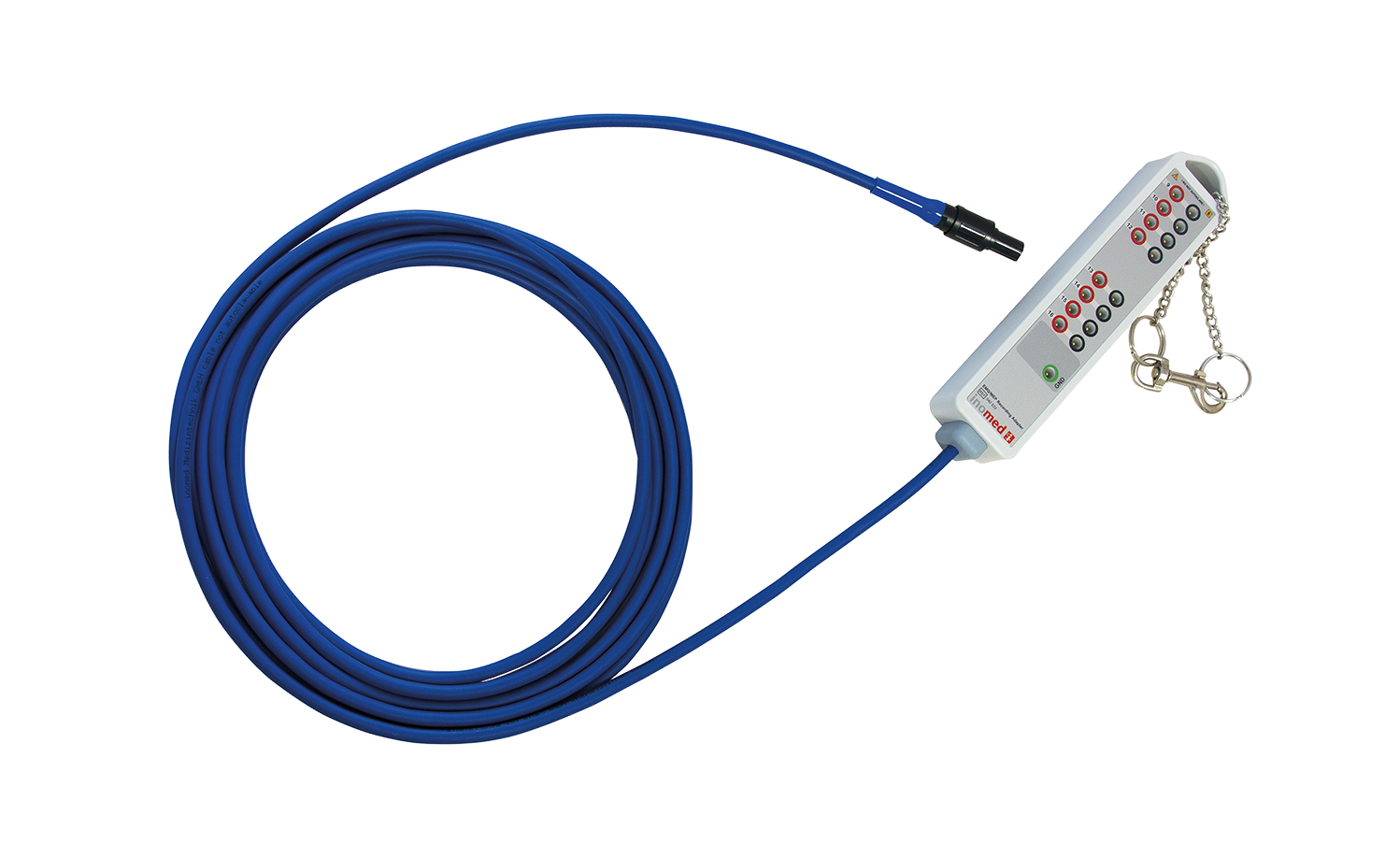

Item no.: 540533EMG/MEP Adaptor Ch. 1-8 for 504271 for colour-coded accessoriesFor maximal 8 colour-coded differential recording channels.

Available

Add to watch list

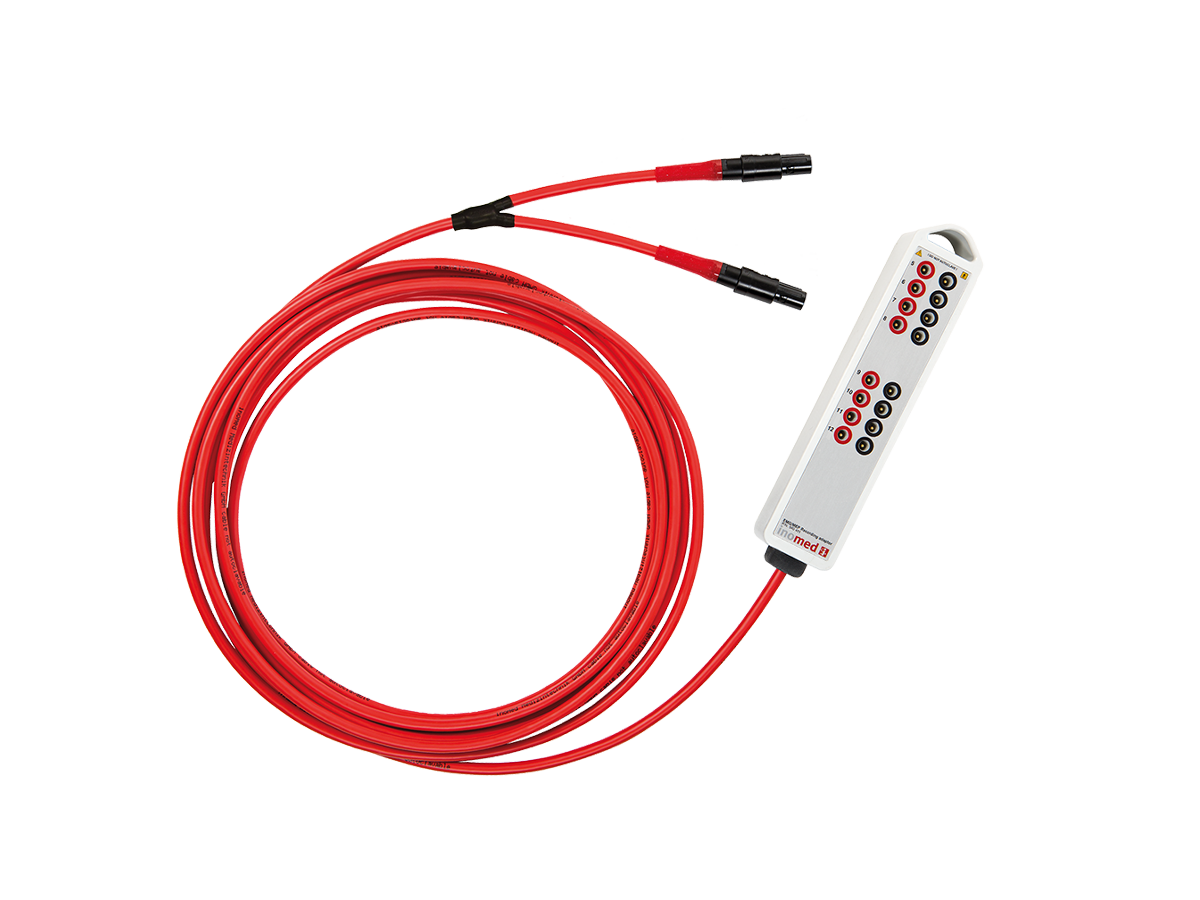

Item no.: 540511Stimulation Adaptor for ISIS NeurostimulatorFor 8-channel high-current stimulation. Can be combined with: 504180

Available

Add to watch list

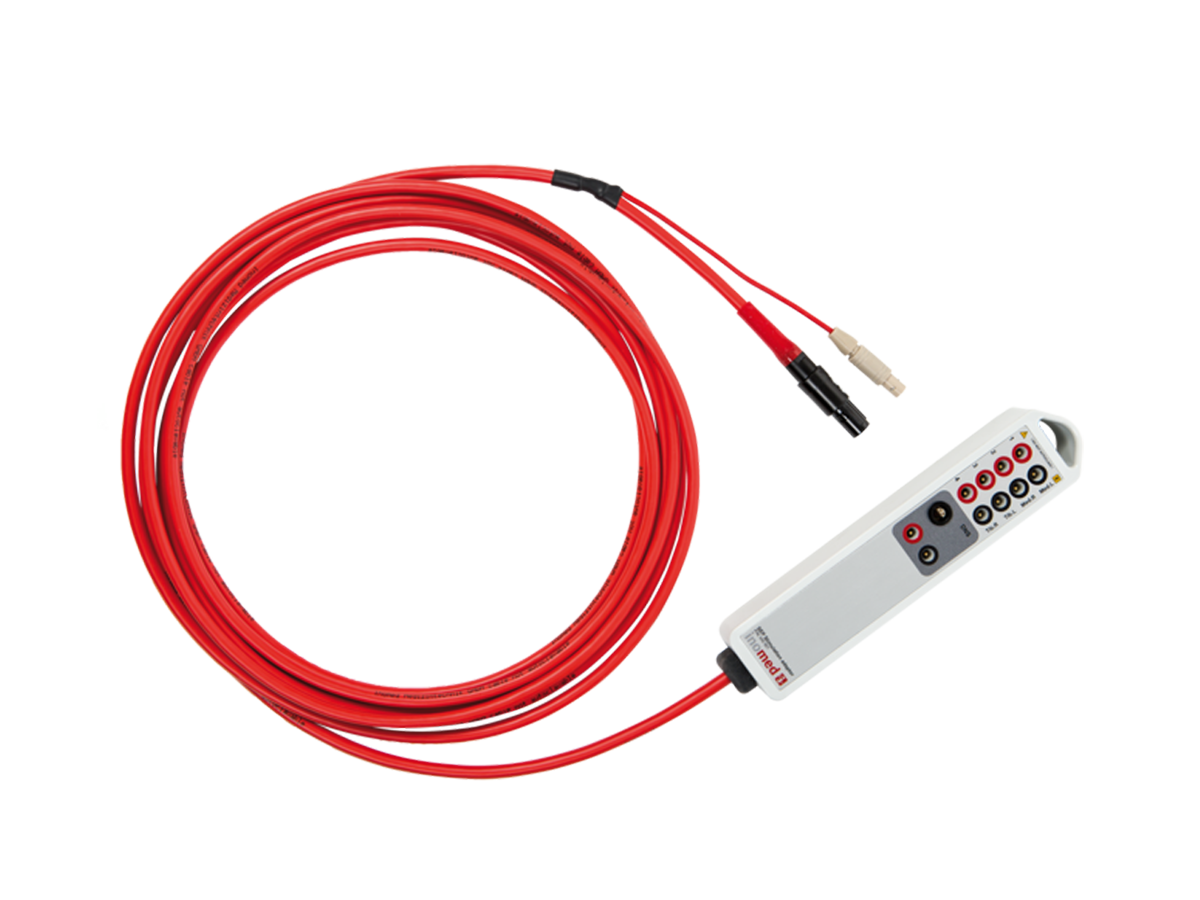

Item no.: 540501SEP Stimulation Adaptor for ISIS Neurostimulator4-channel high-current stimulation and 1-channel direct nerve stimulation (DNS). Can be combined with: 504180

Available

Add to watch list

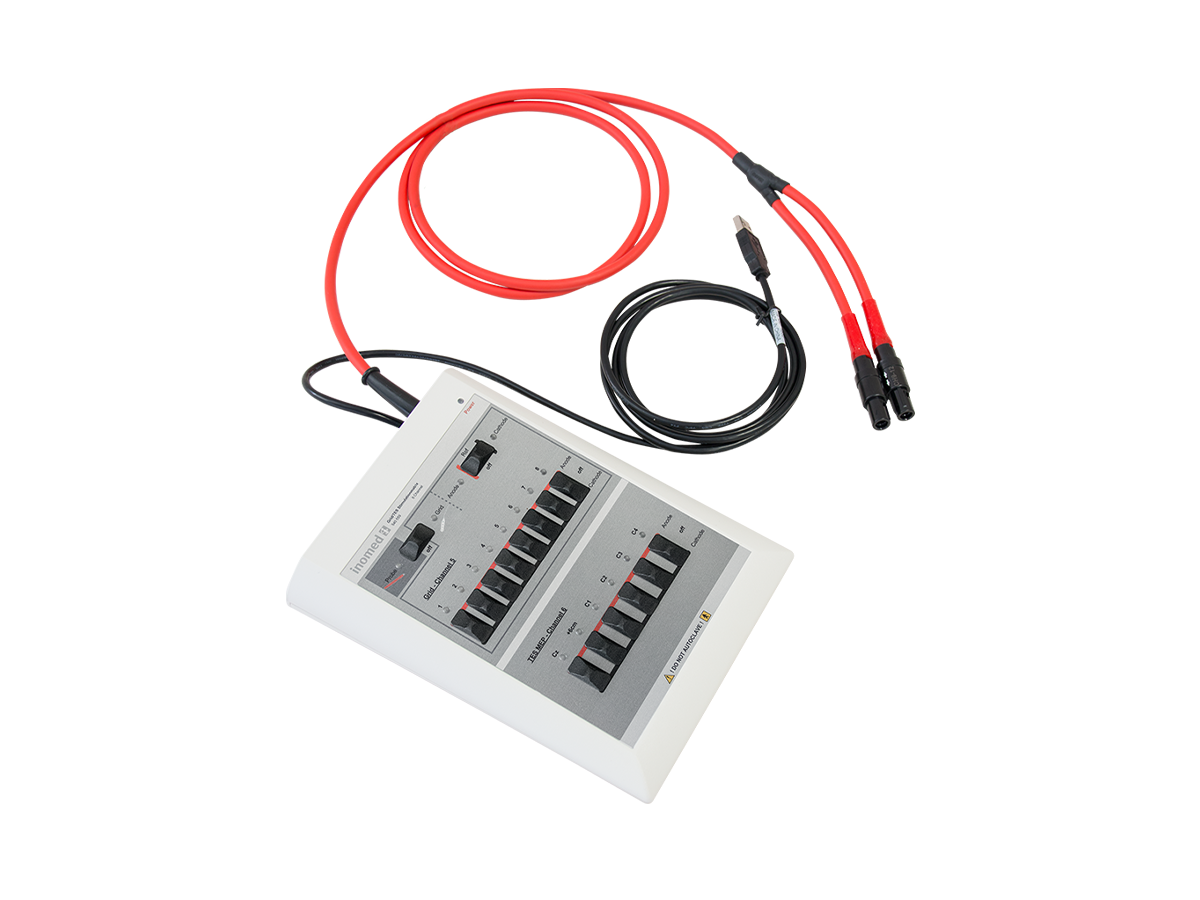

Item no.: 540559Grid/TES Stimulation matrix 8 Ch. for ISIS NeurostimulatorFor interconnection of up to 8 electrode contacts for cortical stimulation and up to 6 electrodes for transcranial electrical stimulation using high-current stimulation, with LED illumination. Can be combined with: 540523, 540525, 540510, 504180

Available

Add to watch list

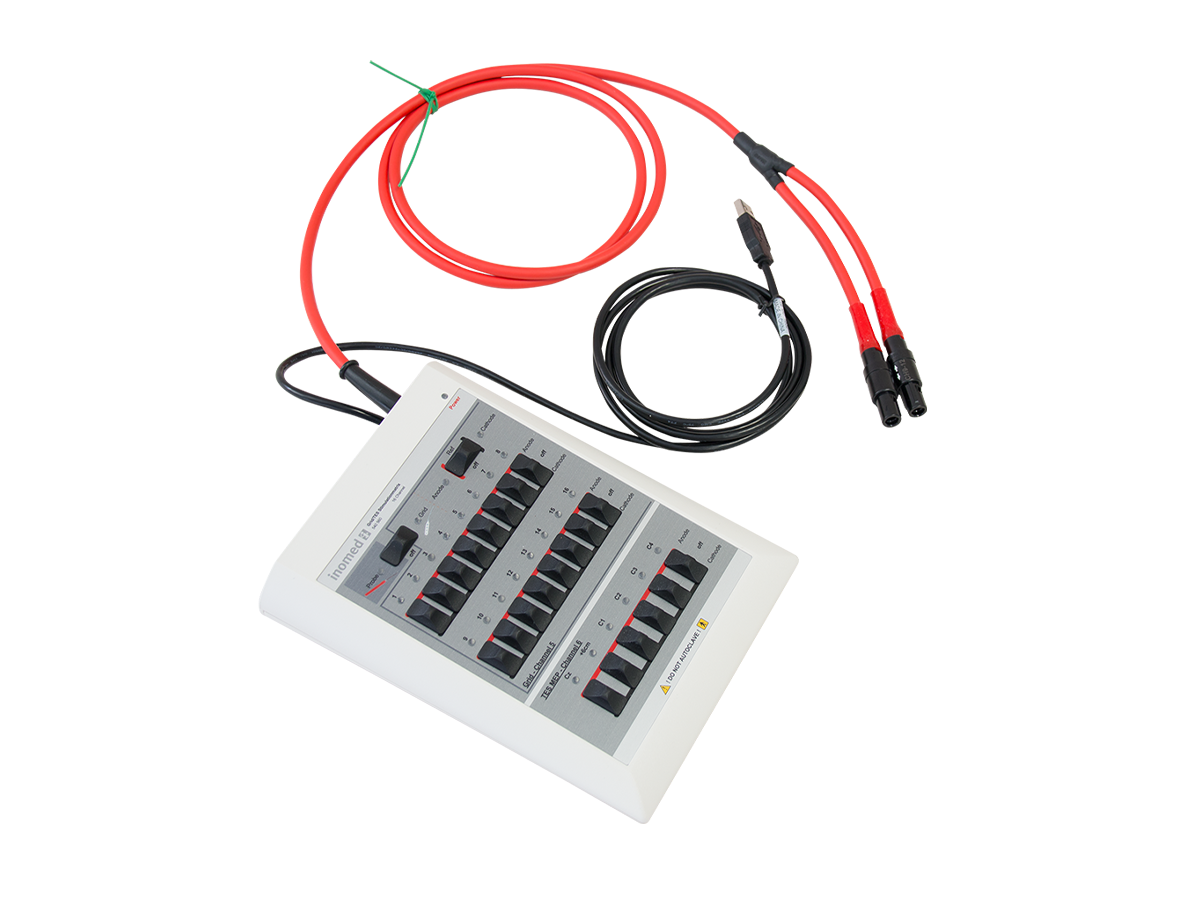

Item no.: 540560Grid/TES Stimulation matrix 16 Ch. for ISIS NeurostimulatorFor interconnection of up to 16 electrode contacts for cortical stimulation and up to 6 electrodes for transcranial electrical stimulation using high-current stimulation, with LED illumination. Can be combined with: 540522, 540524, 540510, 504180

Available

Add to watch list

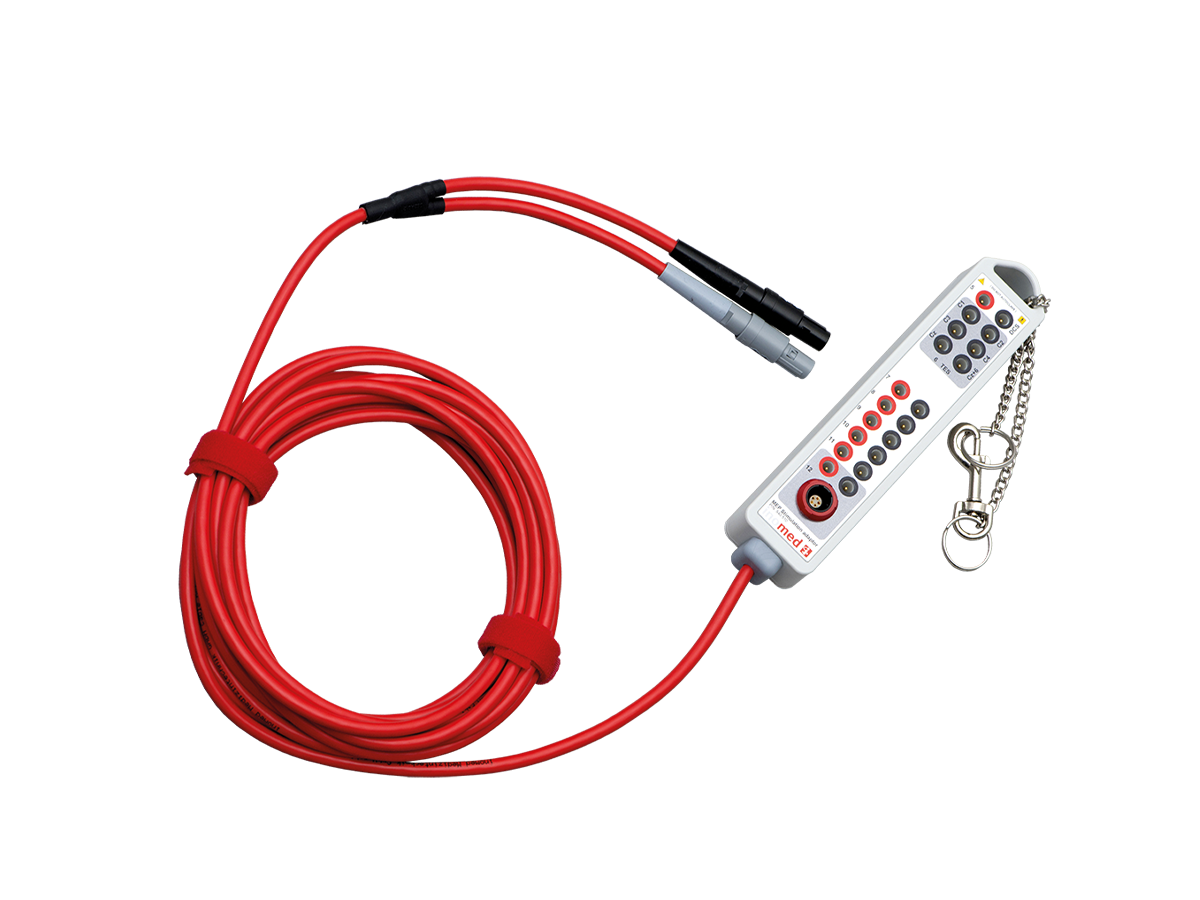

Item no.: 540510MEP Stimulation Adaptor for Grid/TES Stimulation matrixFor 8-channel high-current stimulation for connection to Grid/TES stimulation matrix. Can be combined with: 504180, 540559, 540560

Available

Add to watch list

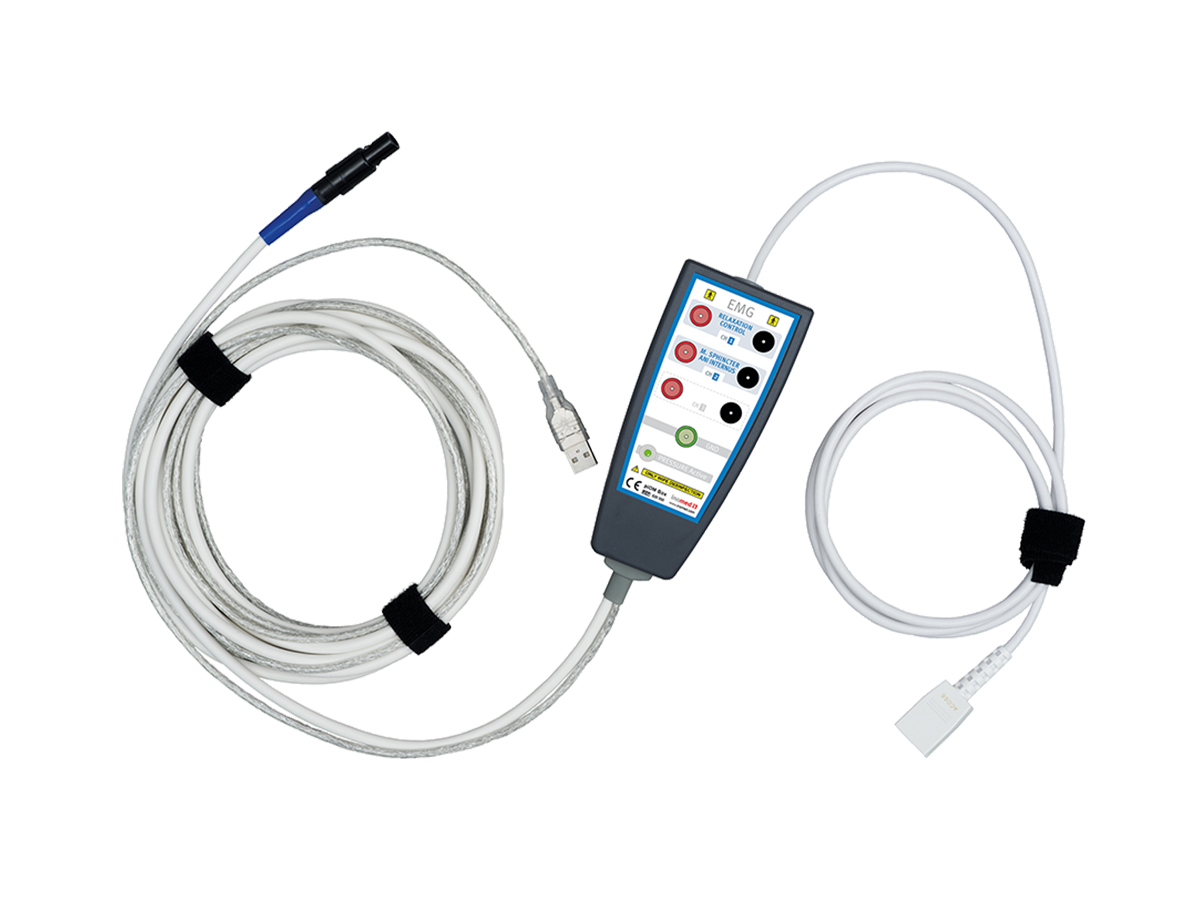

Item no.: 520302pIOM Box for 504271/504285For connection to IONM devices

Available

Add to watch list

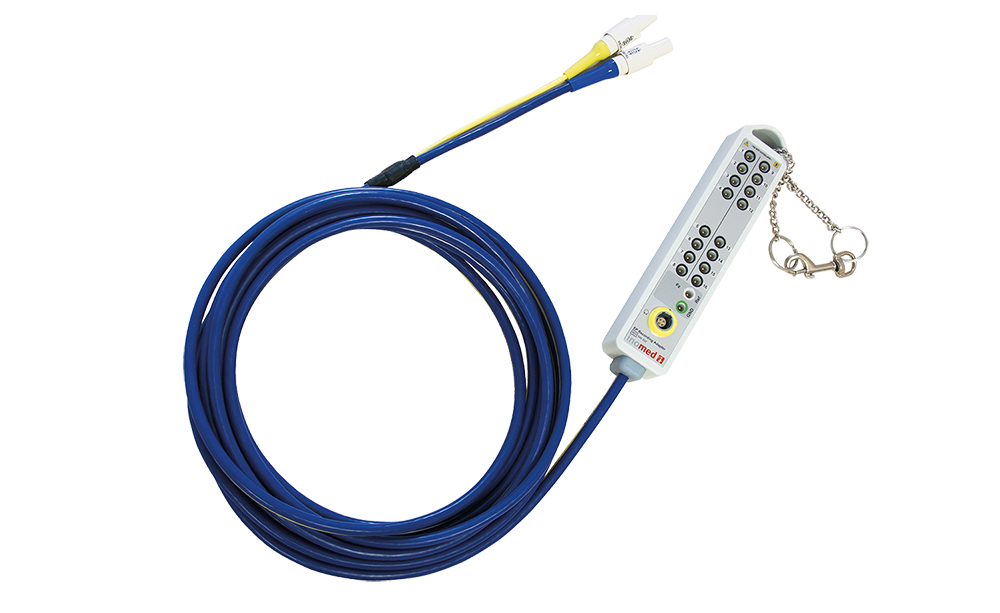

Item no.: 540522EP Adaptor for ISIS Headbox 16 Ch. REF-AEPFor maximal 16-channel recording to a common reference and the possibility to connect AEP Earphones (540340). Can be combined with: 504281, 504261, 540560

Available

Add to watch list

Accessories

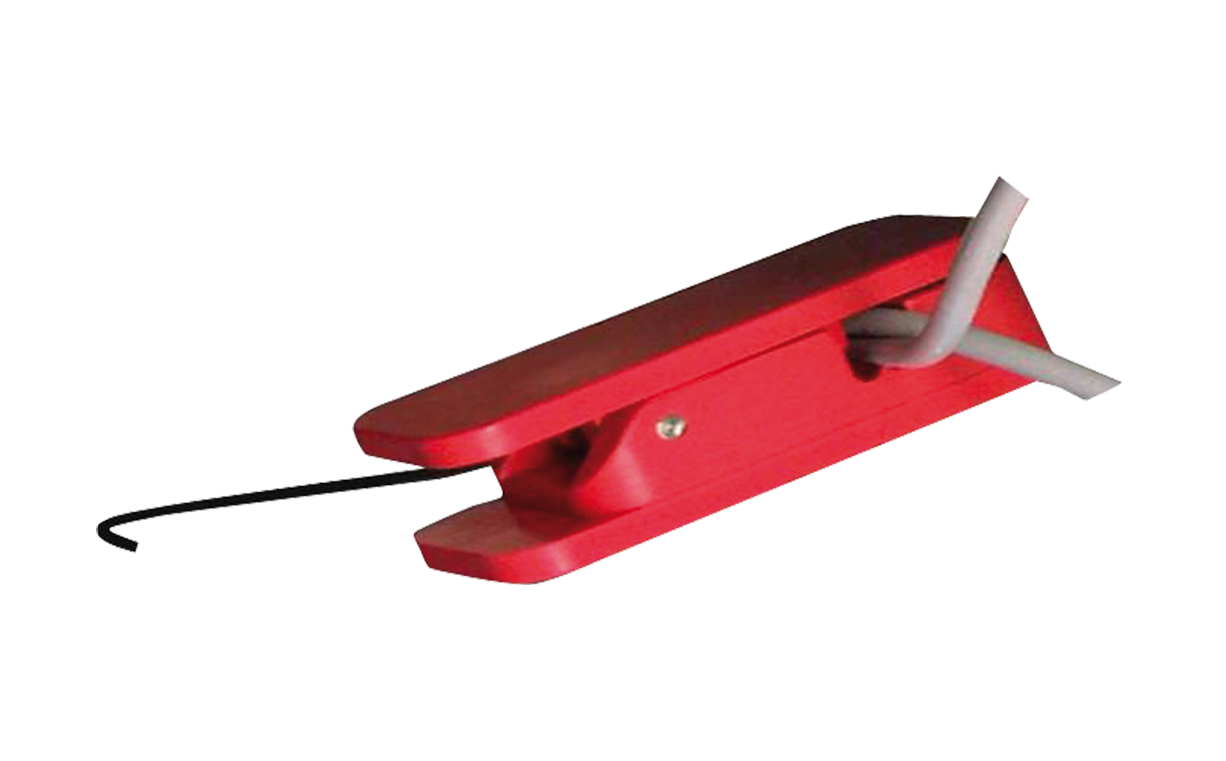

Item no.: 510025Mute Sensor for suppression of HF noiseFor use with C2 Xplore and ISIS IOM systems, delivered non-sterile, can be disinfected

Available

Add to watch list

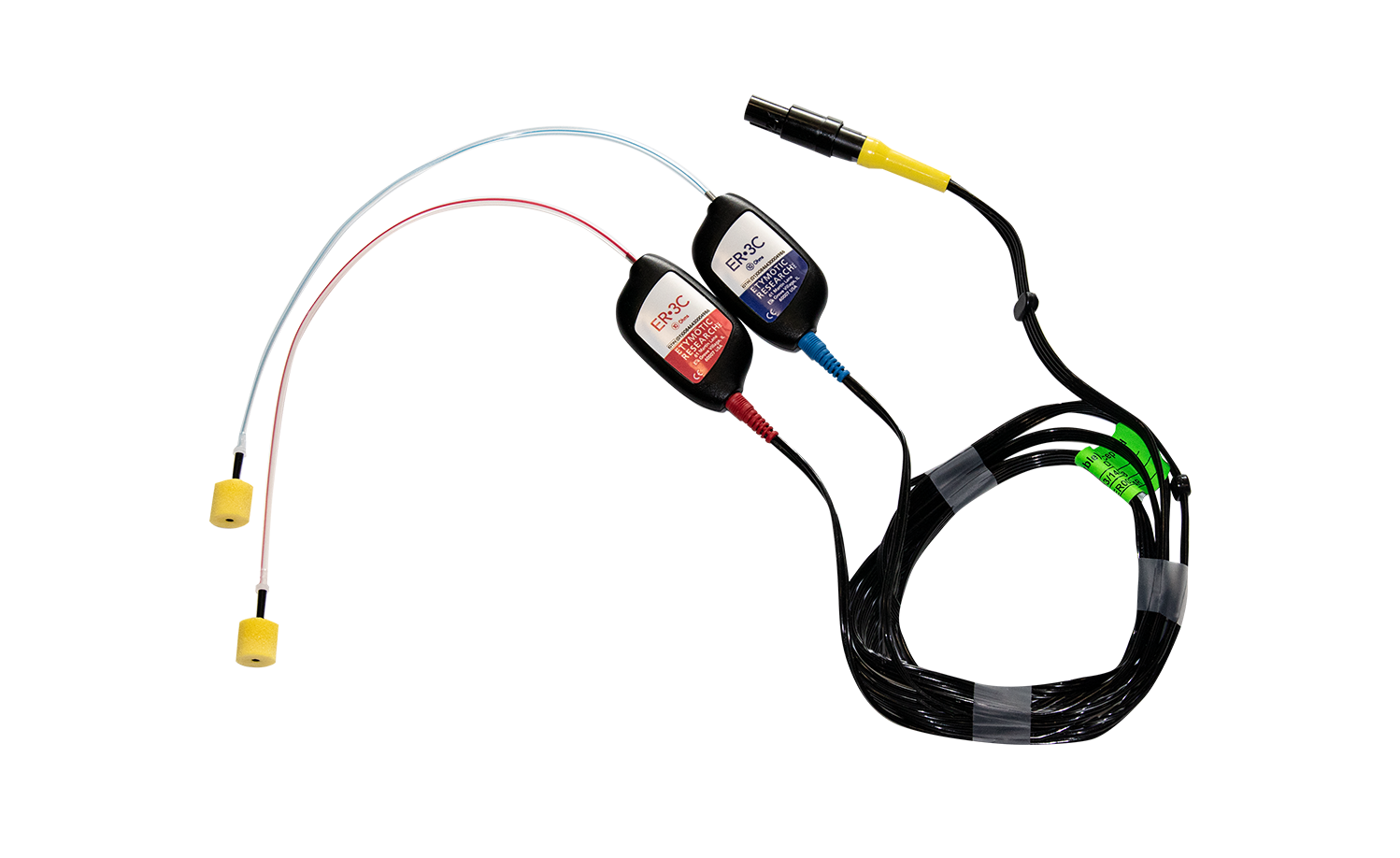

Item no.: 540340AEP Insert Earphones for ISIS IOM systems and NeMoFor ISIS IOM systems with range of earplugs in three different sizes, silicon tubes red and blue, cable length 2 m, with Redel connector yellow, delivered non-sterile, not autoclavable

Available

Add to watch list

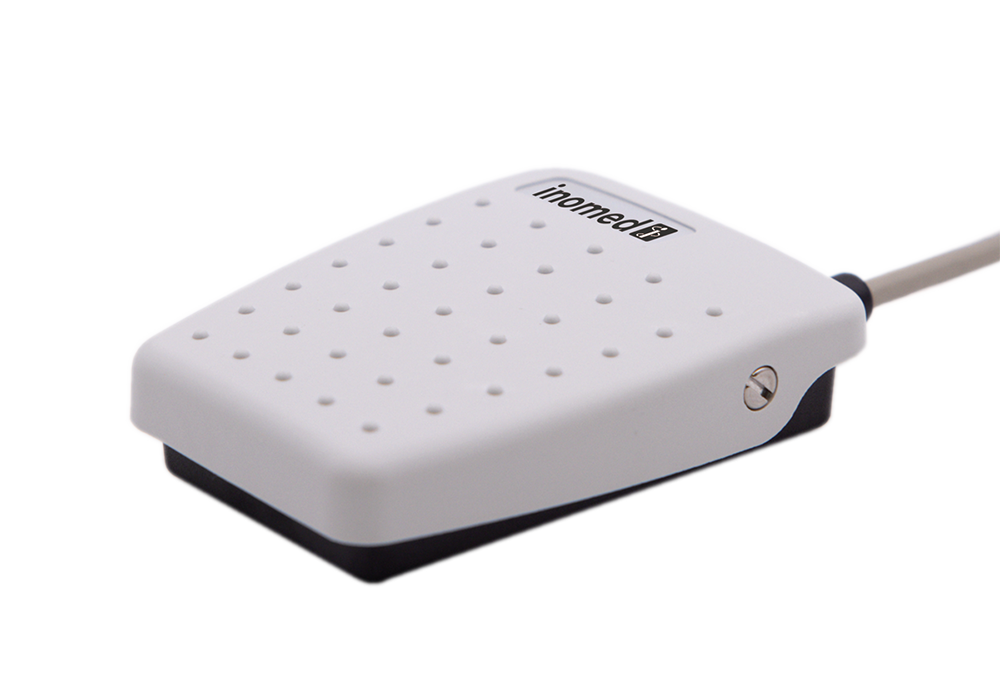

Item no.: 504136Foot switch to start a MEP stimulationFoot switch with USB connection, grey, non-sterile, wipe-disinfectable

Available

Add to watch list

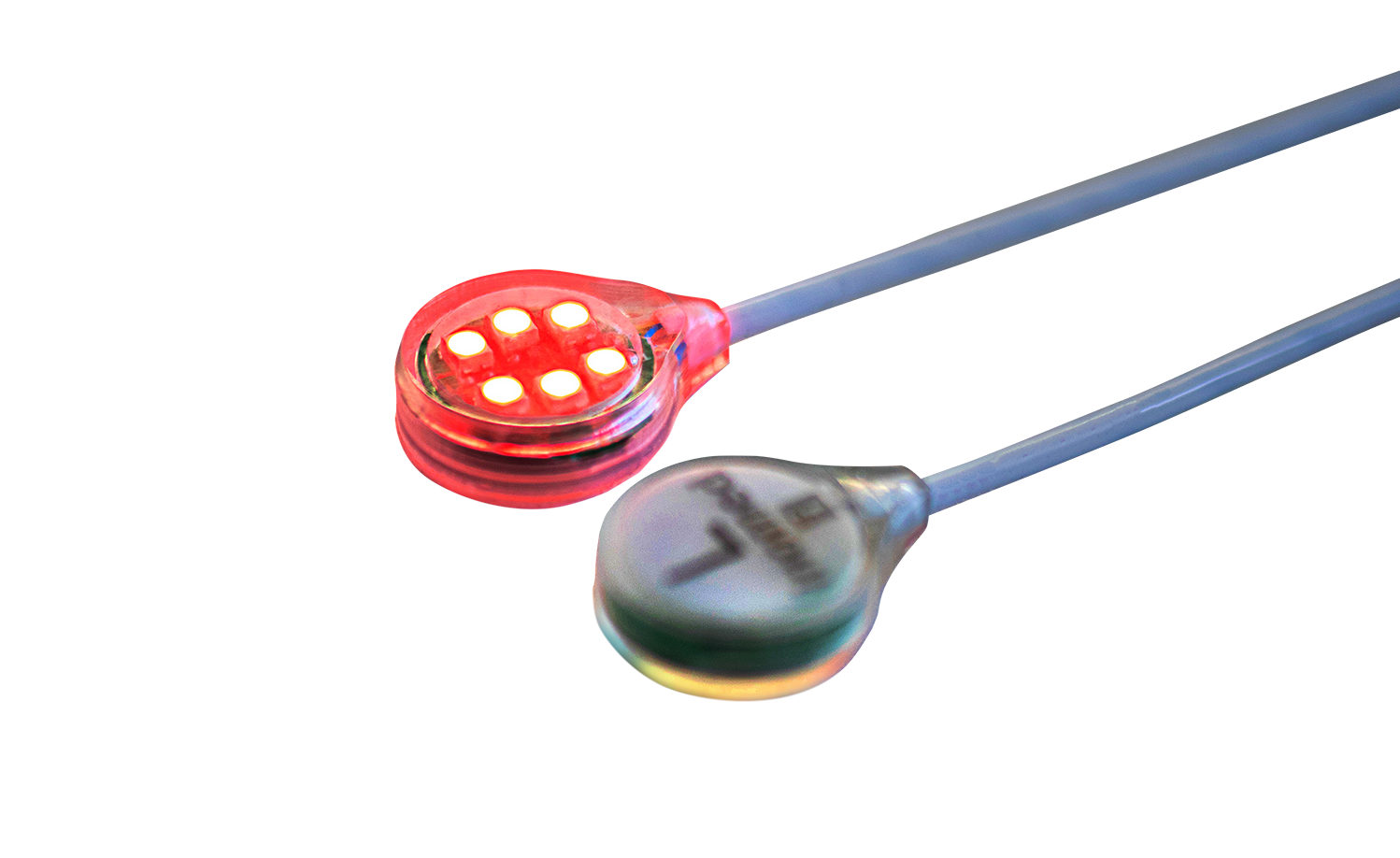

Item no.: 505055LED flash goggles for VEP stimulation6 red LEDs, touchproof connection, R/L labelling, delivered non-sterile, wipe-disinfectable

Available

Add to watch list

Application accessories

NeurosurgeryFurther accessories for the application field

Available

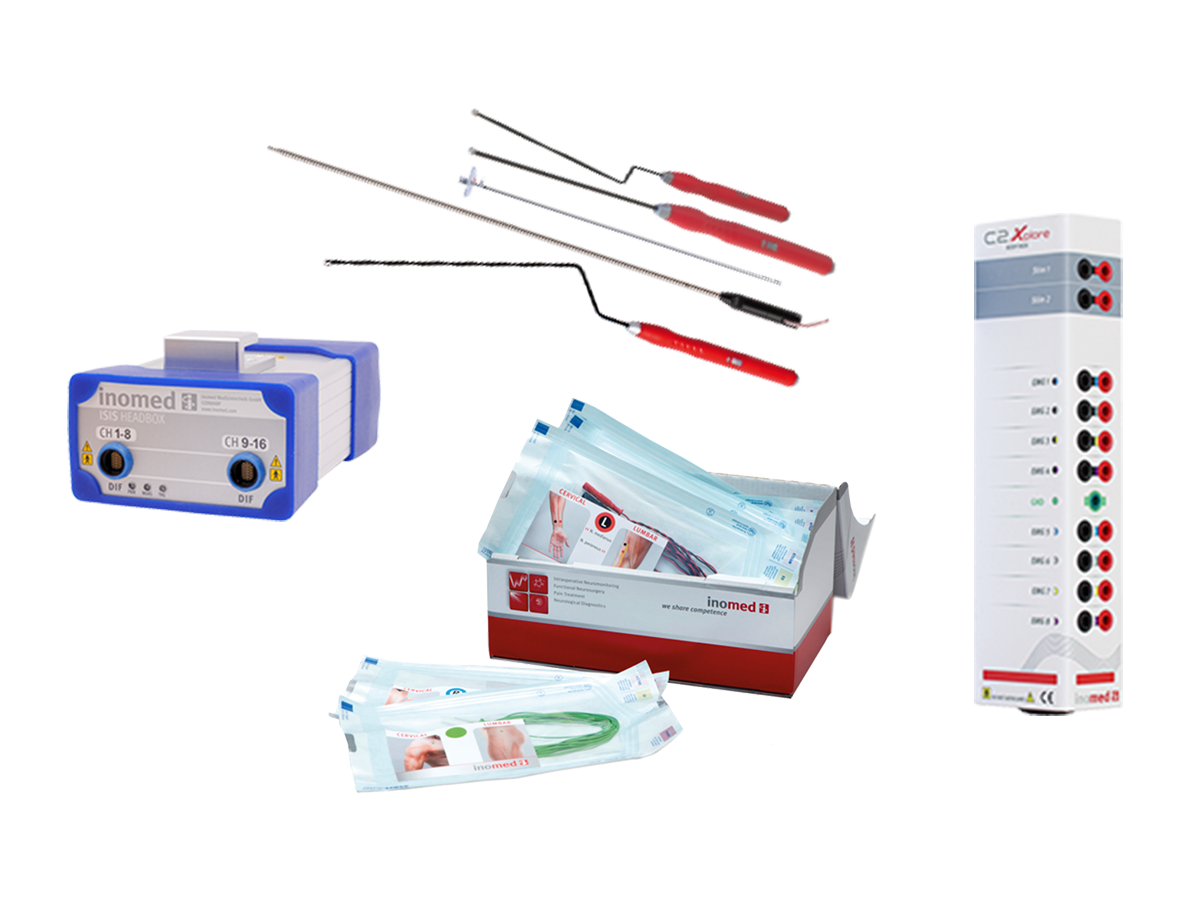

Spine surgeryFurther accessories for the application field

Available

Vascular surgeryFurther accessories for the application field

Available

Pelvic neuromonitoringFurther accessories for the application field

Available

Brochure – ISIS Xpert New Customer

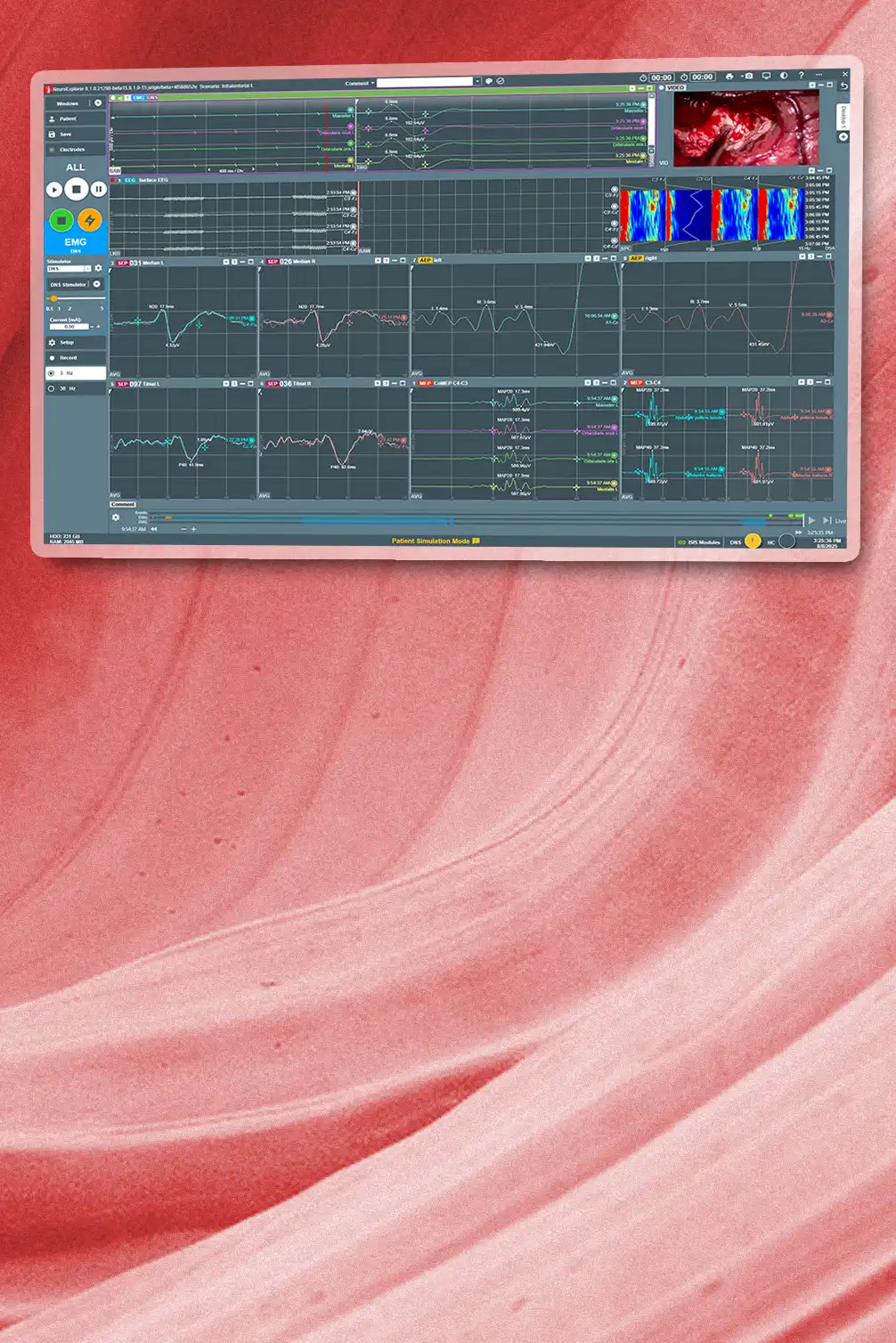

NeuroExplorer 8

All ISIS IOM systems are equipped with the new, particularly flexible NeuroExplorer software generation

Go to product

Maximum flexibility for demanding neuromonitoring

Flexible configuration of measurement modalities (EMG, MEP, SEP, AEP, VEP, pIOM and ECoG) and the ability to combine a wide variety of applications mean you can individually tailor IONM to your clinical routine and research. The systems’ modular structure and the ability to individually combine different ISIS Headboxes and the ISIS Neurostimulator mean that the system can be individually configured for specific intraoperative neuromonitoring requirements and optionally also for microelectrode recording for deep brain stimulation.

At a glance

Up to 64 recording channels
EMG, MEP, SEP, AEP, VEP, EEG, TOF, Spine (automated EMG), pIOM (bladder pressure and autonomous muscles)
12-channel high-current stimulator (0.2–250 mA), 1-channel low-current stimulator (0.1–25 mA), anodal, cathodal, biphasic, alternating
Intuitive software with pre-installed scenarios and illustrated user manual
Patented stimulation artefact suppression
Dynamic mapping with visual and acoustic feedback
Multi-video window for up to four video sources and connection options to surgical microscopes and screens
Screen-to-video function for training and documentation
Display of measurement curves in Zeiss Kinevo miscroscopes
Multiple network integration options
Flexible data export and data streaming for backup and research
Professional training and support (courses, webinars, technical support)

Product features

NeuroExplorer 8

User-friendly design
Wide range of standard scenarios and templates – ideal for beginners
Flexible layout and many export options – perfect for experts
New possibilities with workflow scheduler, desktops and table view
Complete documentation thanks to the extended time bar and report function

Learn more NeuroExplorer 8

The intuitive NEX software offers a host of user-friendly functions, ensures clear overview and is quick to master in the often stressful operating room environment.

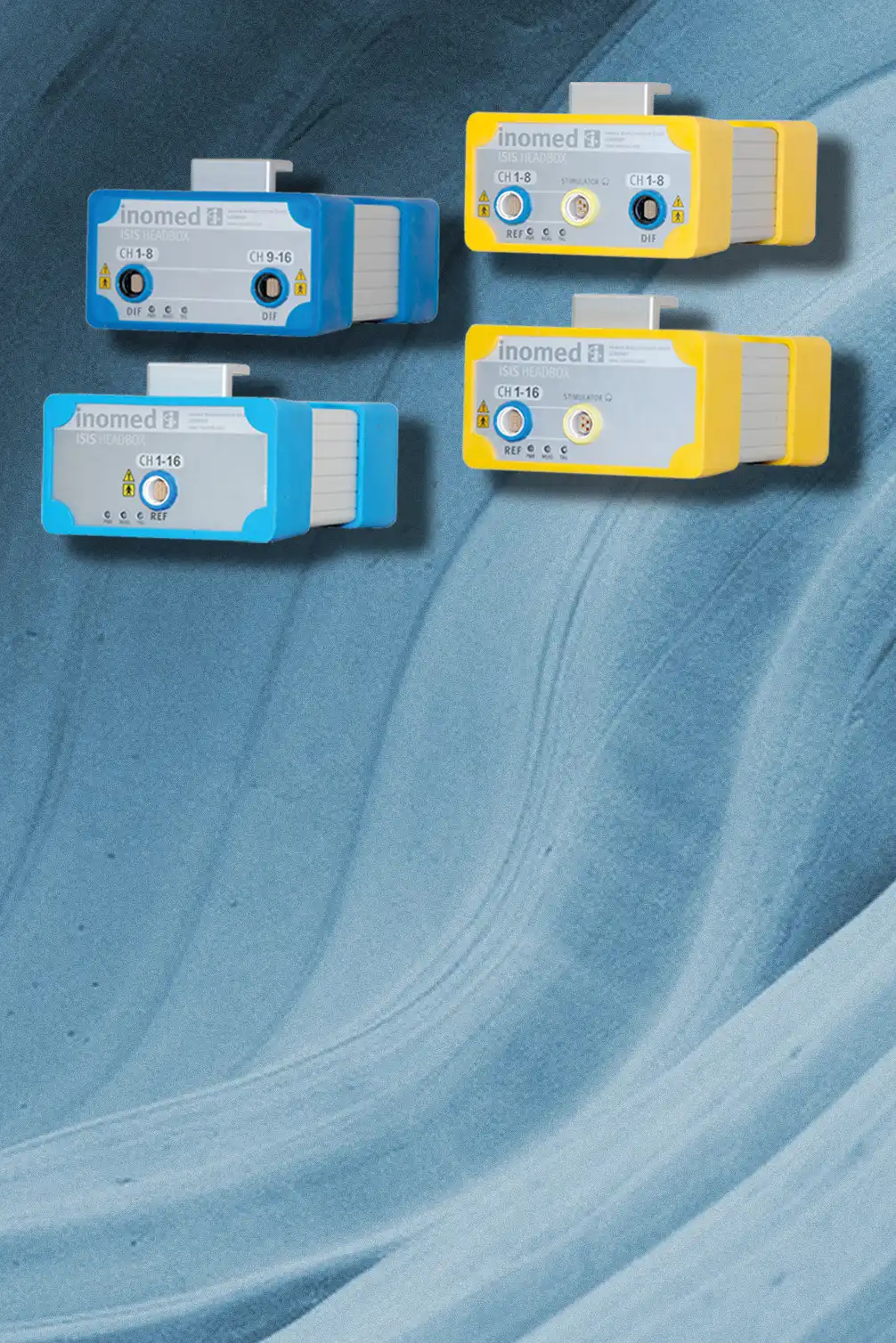

Photo: Headboxes of the ISIS IOM Systems

Modular structures for customised systems

Modular structure

The ISIS IOM systems are characterised by their modular design, which enables you to configure them individually and tailor them to your specific requirements. In this way, you ensure that the systems are optimally customised to your needs. The number of channels can easily be expanded from 16 to 64 channels (ISIS Xpert and ISIS Xpert plus).

Thanks to the modular design of the ISIS IOM systems, they can be individually configured to your requirements.

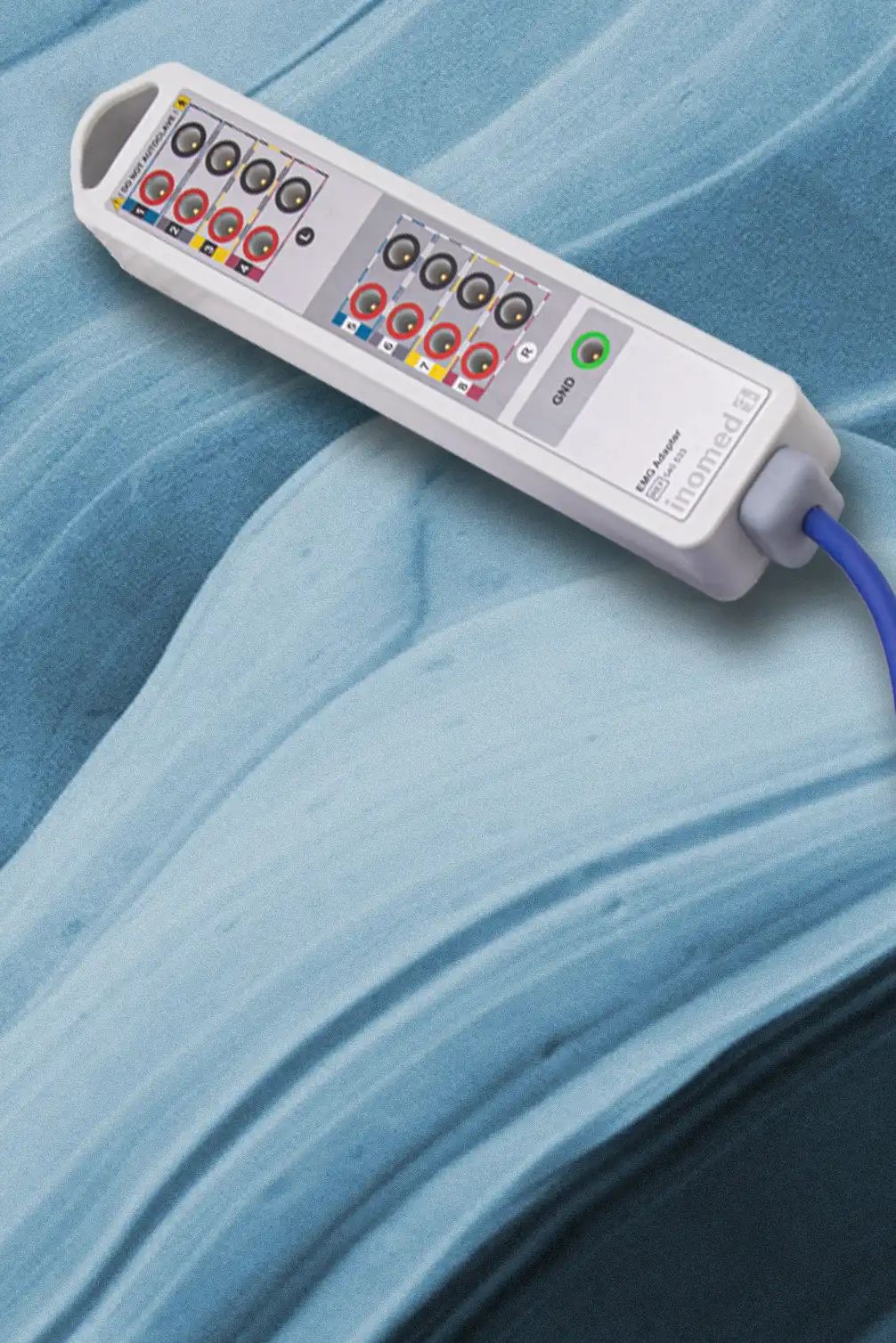

Easy to handle

Handling is simplified and made safer by colour-coded slots, plug connectors, cables, electrodes and measurement programmes. This colour code is also stored in the electrode scheme of the software and, together with the labelled adaptor boxes, enables fast electrode connection.

Brochure – Spine

Easy and safe handling thanks to colour-coded slots, plug connections, cables, electrodes and measuring programmes.

Maximum interconnection and facilitated data transport

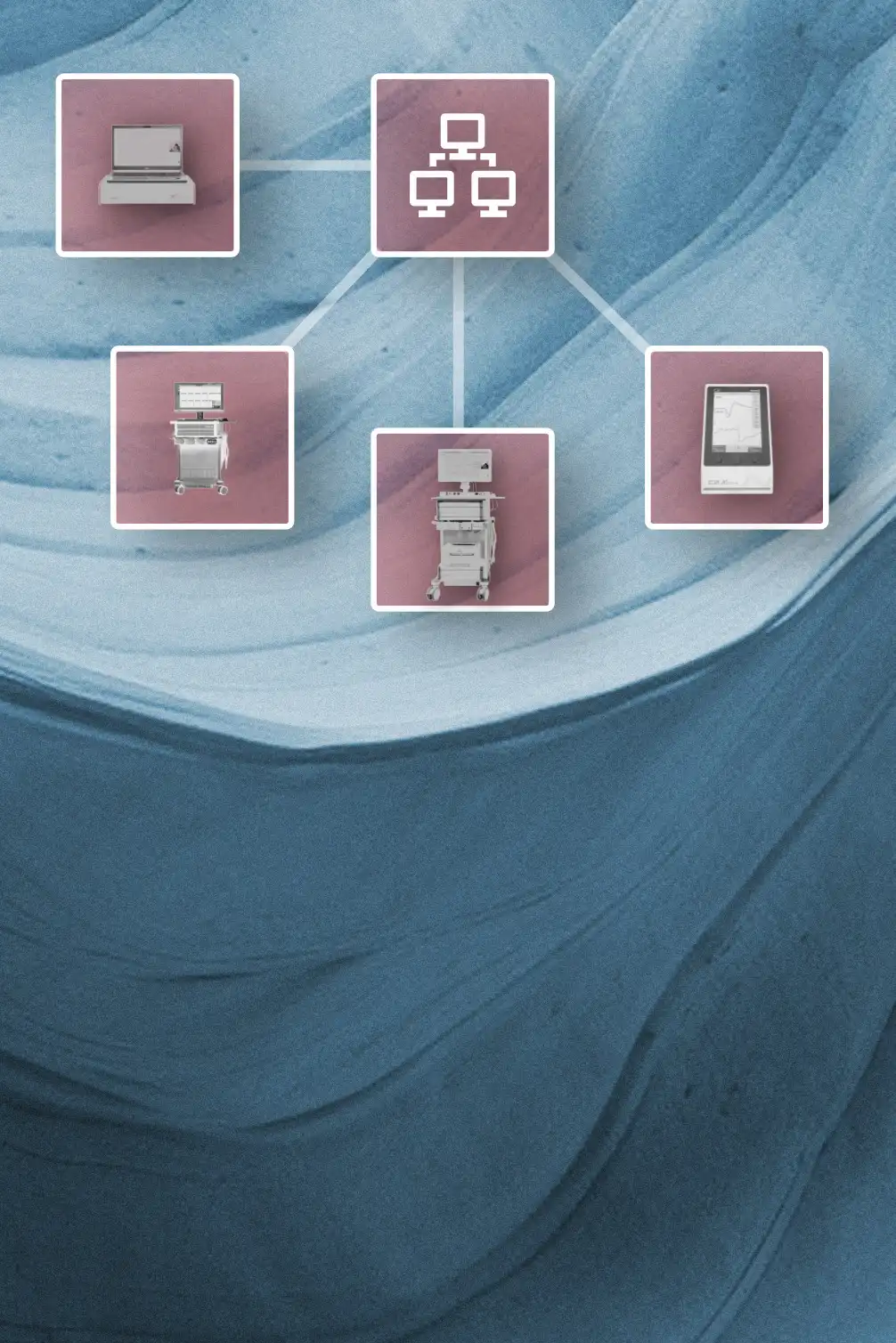

Digital connectivity

With comprehensive HL7 support, we enable efficient communication and data exchange between different hospital information systems, medical devices and medical staff. Further integration possibilities, such as tablet use, printer connection or facilitated network integration, communicate wirelessly with each other. This leads to seamless and improved patient care, as the relevant data is made available in real time.

Brochure – Network integration

Possibility of full HL7 integration into the hospital network. Establishes the interface between the HIS and the IOM device.

Extension options

Each ISIS IOM system can be upgraded to up to 64 (ISIS Xpress 48) channels with additional amplifier and recording boxes (Headboxes). The following options are available:

Recording + AEP stimulation:
	Item no. 504285: 8 referential channels (e.g. VEP, EEG, SEP) + 8 differential channels (e.g. EMG, MEP)
	Item no. 504281: 16 referential channels

Recording only:
	Item no. 504271: 16 differential channels
	Item no. 504261: 16 referential channels

MER:
	Item no. 590210: 5 channels microelectrode recording

Relevant procedures

Subcortical motor mapping

Subcortical motor mapping

During neurosurgical procedures in the motor cortex and motor pathways, precise work is of utmost importance. To avoid damaging functional structures during tumour resection or haemostasis, it is ...

Vestibular schwannomas

Surgical treatment of vestibular schwannomas is challenging for many reasons. Not only positioning, access route and wound closure require special care, but also the intraoperative protection of the ...

Vestibular schwannomas

Scoliosis

Surgical treatment of spinal deformities with curvature and rotation (scoliosis) requires a great deal of sensitivity and patience. The most important tasks are to insert the implants precisely and ...

Scoliosis

Lateral access to the spine

Lateral access to the spine

The lateral access to the lumbar spine has the advantage that both the intervertebral disc space and the vertebral bodies can be worked on and the sensitive cauda fibres do not restrict the surgical ...

All procedures of our products

Relevant applications fields

Neurosurgery deals with the detection and surgical treatment of diseases, malformations and injuries of the central and peripheral nervous system. Maintaining the nervous system’s functions during ...

Spine surgery is a cross-disciplinary field that encompasses neurosurgical, orthopaedic and trauma surgery aspects. Ideally, all specialist disciplines work together to provide the best possible ...

Vascular surgery

Vascular surgery is dedicated to the treatment of various diseases of blood vessels. Intraoperative neuromonitoring plays an important role in this application field, especially during surgery of ...

Vascular surgery

Pelvic intraoperative neuromonitoring

Pelvic intraoperative neuromonitoring

Pelvic intraoperative neuromonitoring enables electrophysiological monitoring of nerve functions during surgical interventions in the small pelvis. pIOM® has been proven to improve functional ...

Thyroid surgery

The cutting-edge ALM (Advanced Laryngeal Monitoring) technology combines highly precise signal recording in thyroid surgery with intelligent software to provide a reliable nerve response signal. More ...

Thyroid surgery

ENT surgery
