inomed Medizintechnik GmbH

ProductsIntraoperative NeuromonitoringIONM accessoriesENT surgery accessories

ENT surgery accessories


Always the right accessories for ENT surgery.

inomed enables reliable signal recording using stimulation and recording accessories, which have been specially developed for the requirements of intraoperative use. Tested and developed together with users and manufactured according to German quality standards, inomed accessories are used worldwide every day to support patient safety.

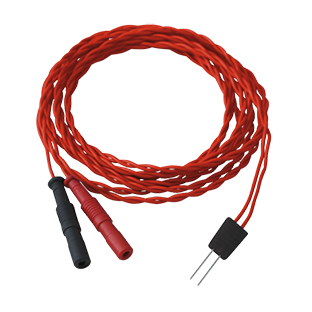

Electrodes

Electrodes are used in ENT primarily for recording muscle response signals. Single electrodes and sets of common standard forms (e.g. needle electrodes) as well as special forms (e.g. double needles) are available. All electrodes have a 1.5 mm touchproof connector and can therefore be used flexibly.

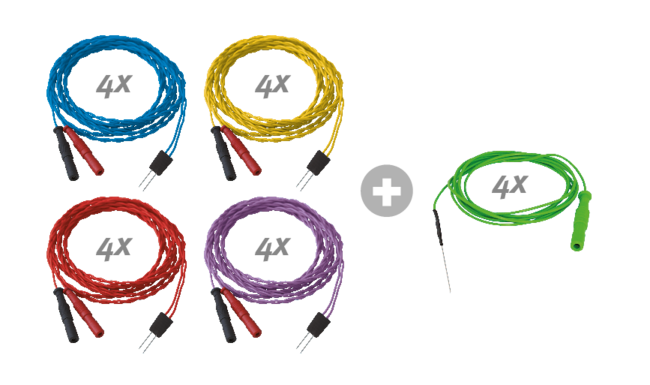

Double Needle Electrode, 4 channel set 12/1500, 2.5 mm, Stainless Steel
Double Needle Electrode, 4 channel set 12/1500, 2.5 mm, Stainless Steel
534643
Double Needle Electrode, 4 channel set 12/1500, 2.5 mm, Stainless Steel
1.5 mm touchproof connectors DIN 42802, 4 applications each with: 1x electrode blue, yellow, violet, red, needle length=12 mm, needle distance=2.5 mm, cable length=1500 mm, and 1x SDN Slimline electrode green 15/1500, disposable product, EO sterilised
Add to watch list
Double Needle Electrode, 2 channel set 12/1500, 2.5 mm, Stainless Steel
Double Needle Electrode, 2 channel set 12/1500, 2.5 mm, Stainless Steel
534641
Double Needle Electrode, 2 channel set 12/1500, 2.5 mm, Stainless Steel
1.5 mm touchproof connectors DIN 42802, 5 applications each with: 1x electrode blue, yellow, needle length=12 mm, needle distance=2.5 mm, cable length=1500 mm, and 1x SDN Slimline electrode green 15/1500, disposable product, EO sterilised
Add to watch list

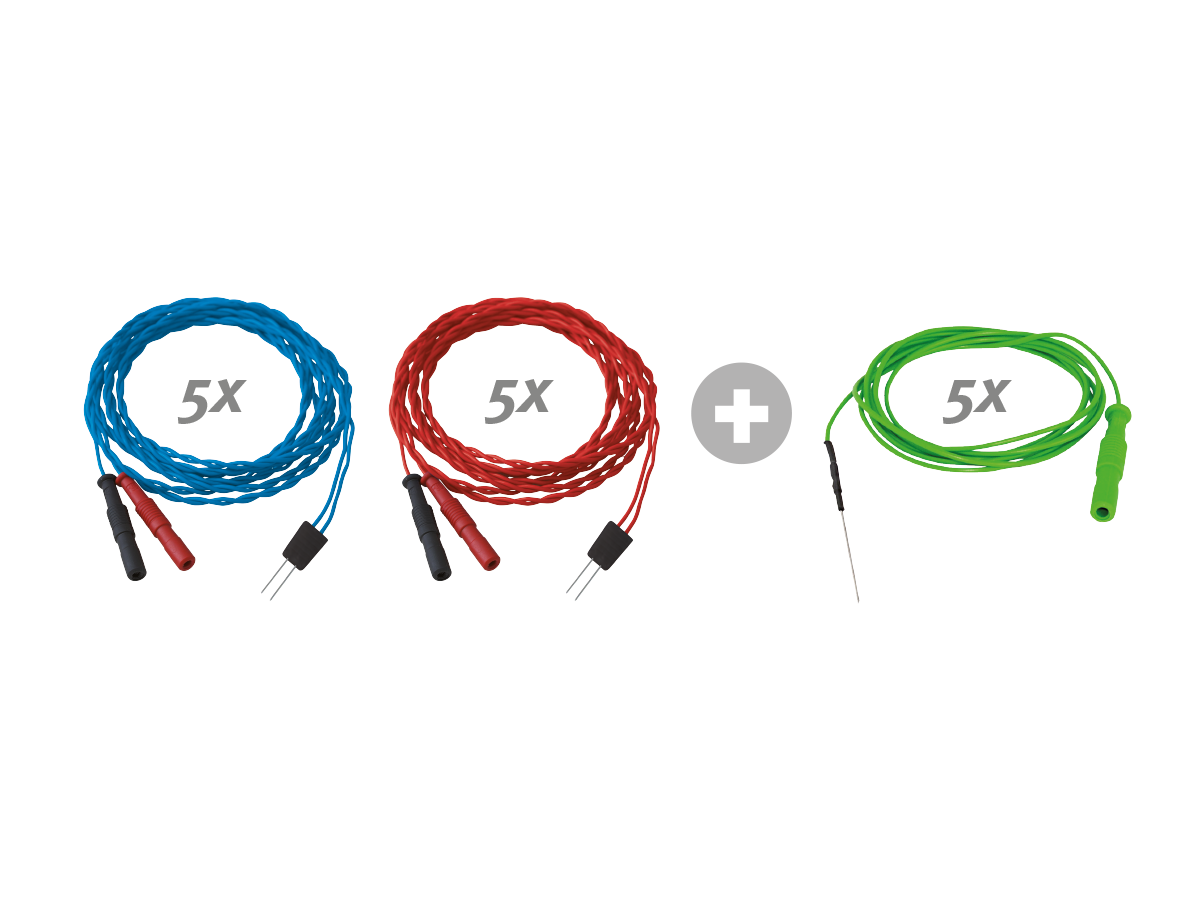

Double Needle Electrode, 2 channel set 12/1500, 2.5 mm, Stainless Steel
Double Needle Electrode, 2 channel set 12/1500, 2.5 mm, Stainless Steel
534671
Double Needle Electrode, 2 channel set 12/1500, 2.5 mm, Stainless Steel
1.5 mm touchproof connectors DIN 42802, 5 applications with each: 1x electrode blue, red, needle length=12 mm, needle distance=2.5 mm, cable length=1500 mm, and 1x SDN Slimline electrode green 15/1500, disposable product, EO sterilised
Add to watch list
All available electrodes

Stimulation probes

Stimulation probes are used for the electrical stimulation of nerves and neuronal structures. Monopolar probes (e.g. for motor mapping of the facial nerve trunk during skull base surgery) and bipolar concentric probes or fork probes (e.g. for nerve stimulation of peripheral nerve branches) are available.
BCS probe 45 mm angled 30°
BCS probe 45 mm angled 30°
522603
BCS probe 45 mm angled 30°
1.5 mm touchproof connector DIN 42802, angled 30°, bipolar concentric, working length=45 mm, total length with handle=155 mm, cable length=3000 mm, disposable product, EO sterilised
Add to watch list
Stimulation probe 45 mm monopolar, angled 30°
Stimulation probe 45 mm monopolar, angled 30°
525603
Stimulation probe 45 mm monopolar, angled 30°
1.5 mm touchproof connector DIN 42802, angled 30°, active tip=2 mm, working length=45 mm, total length with handle=160 mm, with neutral SDN electrode black, cable length=3000 mm, disposable product, EO sterilised
Add to watch list

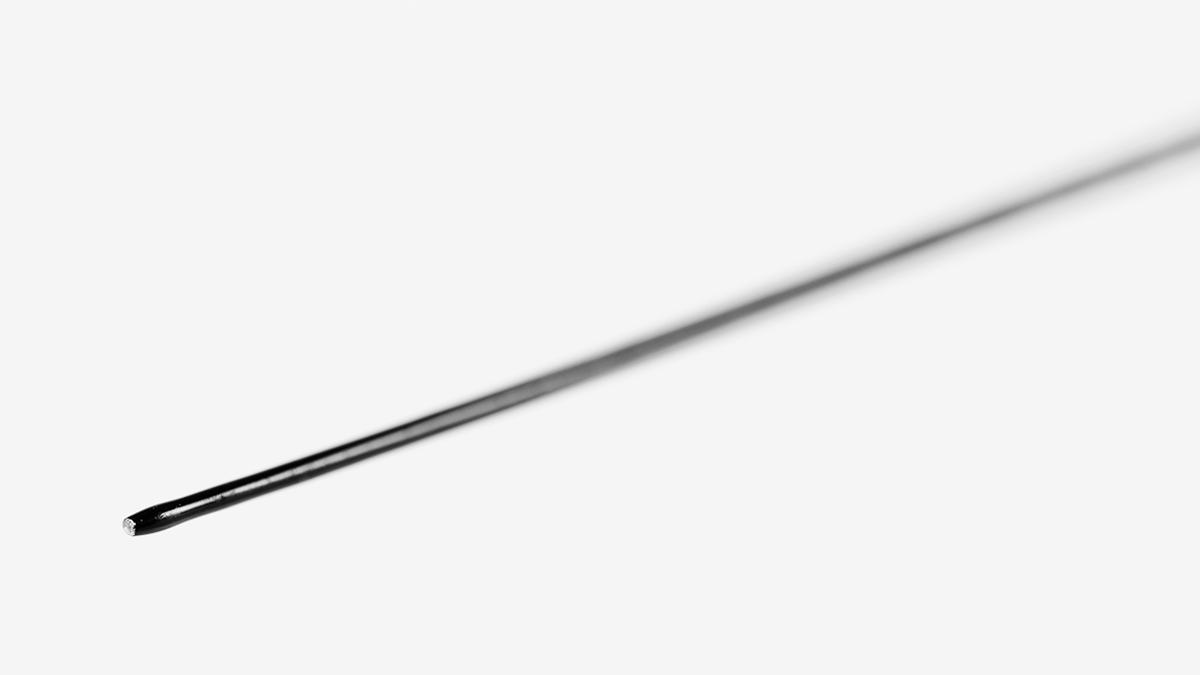

Stimulation probe 85 mm monopolar, straight, flexible
Stimulation probe 85 mm monopolar, straight, flexible
525608
Stimulation probe 85 mm monopolar, straight, flexible
Stimulation probe 85 mm monopolar, straight, flexible, 1.5 mm touchproof connector DIN 42802, active tip=0.4 mm, working length=85 mm, total length with handle=195 mm, with neutral SDN electrode black, cable length=3000 mm, disposable product, EO sterilised
Add to watch list

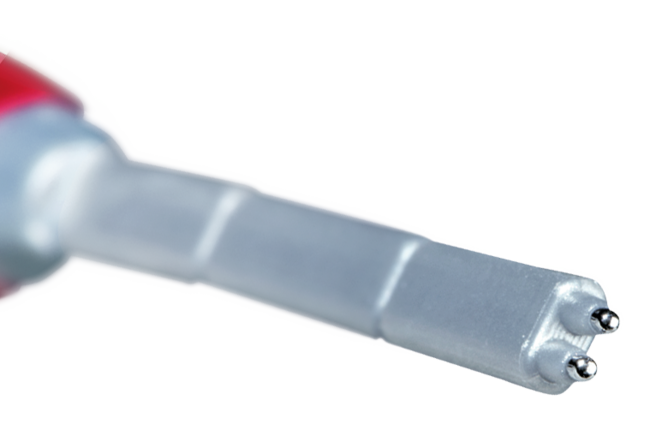

Micro fork probe 45 mm straight
Micro fork probe 45 mm straight
522610
Micro fork probe 45 mm straight
1.5 mm touchproof connector DIN 42802, straight, fork width=2 mm, fork length=3 mm, working length=45 mm, total length with handle=155 mm, cable length=3000 mm, disposable product, EO sterilised
Add to watch list
All available stimulation probes

C2 adaptor boxes and accessories

Cost efficiency through flexibility. 1 system, expandable to 6 application fields by means of additional adaptor boxes.
Trolley for C2 Xplore
Trolley for C2 Xplore
508301
Trolley for C2 Xplore
Floor element with 4 wheels, front wheels with brakes, table with grey handles, rail mounting for adaptor boxes, big drawer, special drawer for keyboard, shelf for printer
Add to watch list
Transport cover for C2 Xplore
Transport cover for C2 Xplore
508313
Transport cover for C2 Xplore
Tear-resistant transport casing, with front reinforcement, with foldable pocket at the back
Add to watch list
Transportation case for C2
Transportation case for C2
508312
Transportation case for C2
Suitable for C2 NerveMonitor and C2 Xplore, top compartment with drawer, telescopic handle, 2 corner castors, WxHxD: 365x270x685 mm
Add to watch list
Holder for tablet
Holder for tablet
508562
Holder for tablet
To be attached to drip stands, suitable for tablets with a height of 222 to 334 mm, width of 128 to 232 mm and depth of 6 to 11 mm
Add to watch list
Sterile cover for tablet
Sterile cover for tablet
504365
Sterile cover for tablet
Tablet cover for use in sterile environment, size: 8‘‘ x 10‘‘ (20 cm x 25.4 cm), latex-free, EO sterilised
Add to watch list
Laser printer set
Laser printer set
508335
Laser printer set
With medical approved power supply
Add to watch list

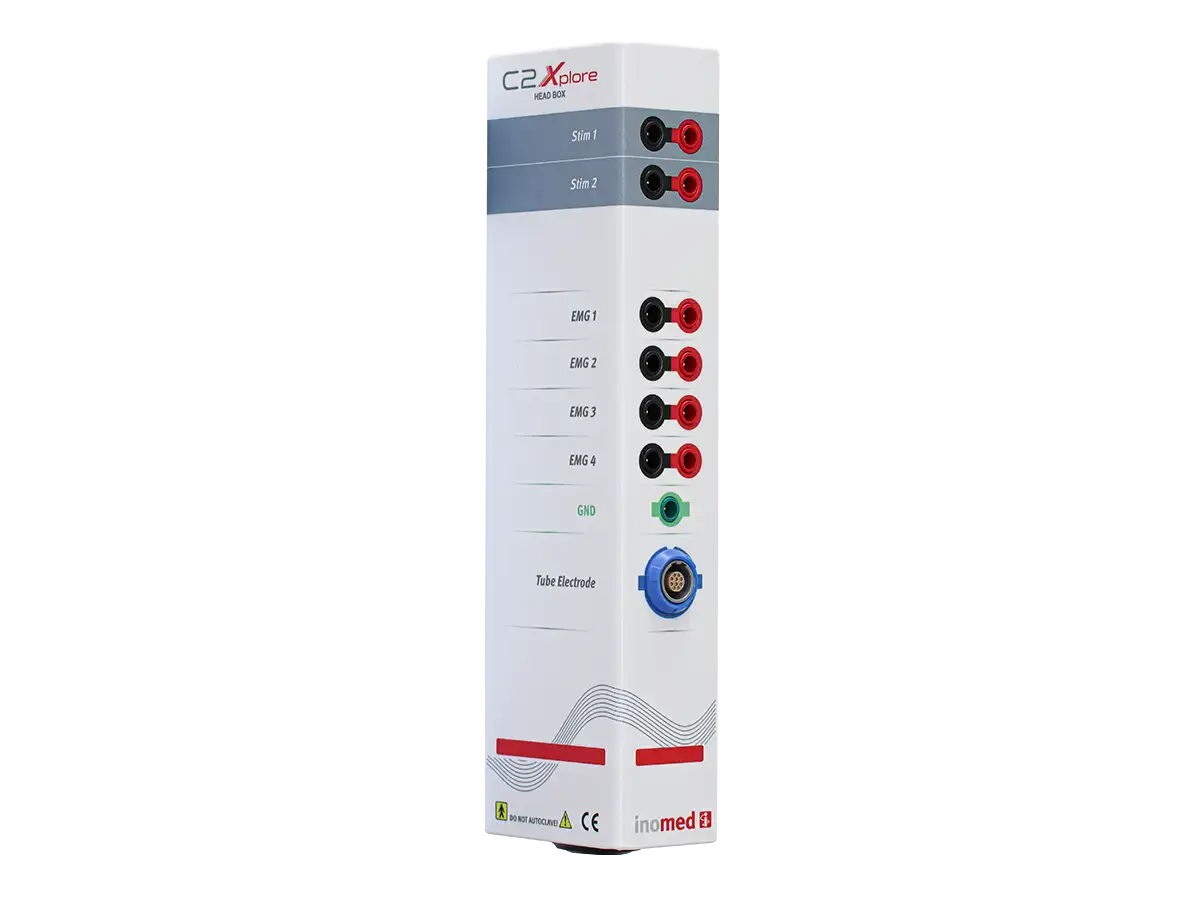

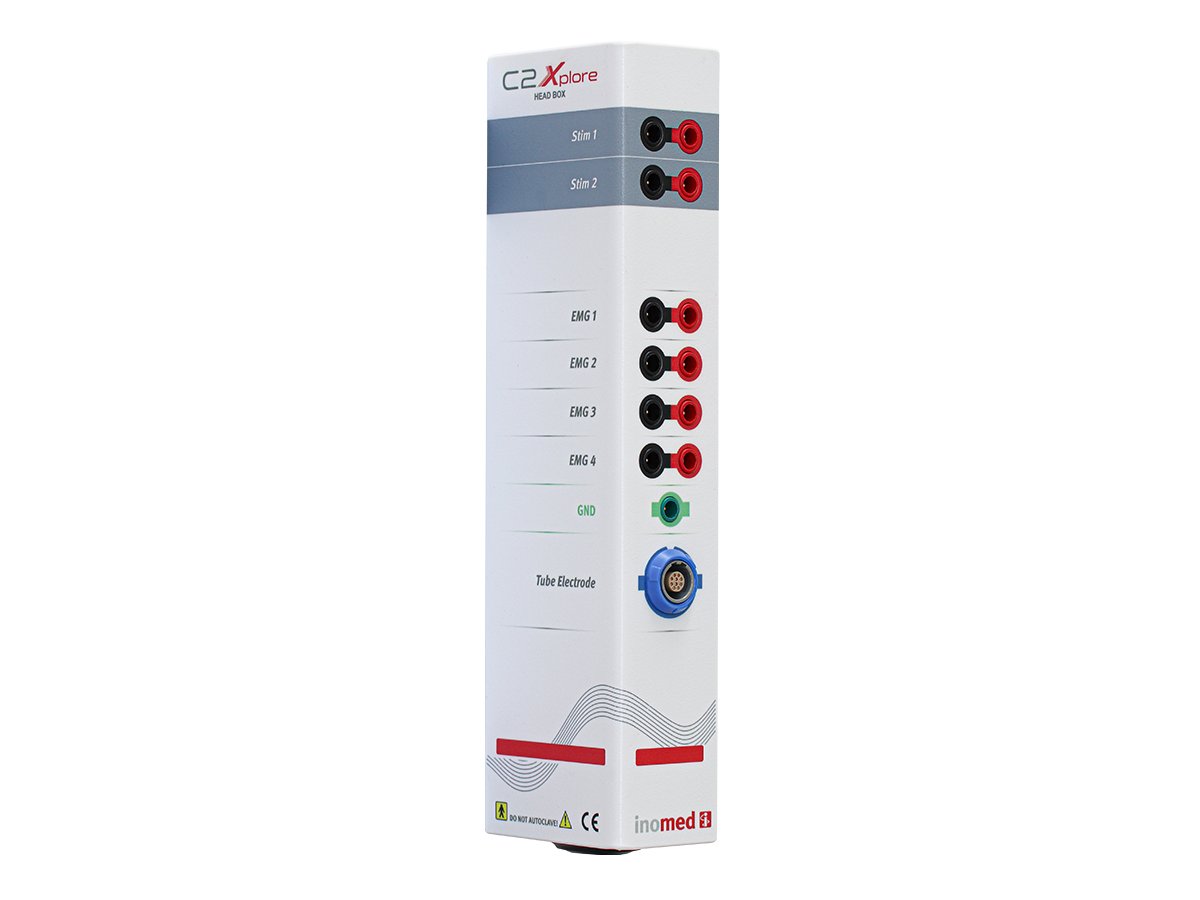

Head Box for C2 Xplore
Head Box for C2 Xplore
540430
Head Box for C2 Xplore
Stimulation: 2 channels, recording: 8 EMG channels (4x Redel, 4x TP) and GND, differential, cable length 5 m, delivered non-sterile, not autoclavable
Add to watch list
inoView V2 Software Module for C2 Xplore
inoView V2 Software Module for C2 Xplore
508517
inoView V2 Software Module for C2 Xplore
Software module for the wireless connection to a tablet to use the inoView app for the C2 Xplore. Contains one WiFi stick.
Add to watch list
C2 Xplore WiFi Set for use inside the operating room
C2 Xplore WiFi Set for use inside the operating room
508566
C2 Xplore WiFi Set for use inside the operating room
WiFi module for wireless connection to the hospital network and for patient data storage via WiFi for the C2 Xplore. Con­tains one WiFi stick. Maximum data rate 150 Mbps, supports IEEE 802.11 n, b, g
Add to watch list
HL7 network integration for C2 Xplore
HL7 network integration for C2 Xplore
508524
HL7 network integration for C2 Xplore
The network connection via HL7 enables data exchange between C2 Xplore and the hospital network (HIS). Includes license and project costs for the initial setup via remote support. The network connection is complemented by the annual support.
Add to watch list
Mute Sensor for suppression of HF noise
Mute Sensor for suppression of HF noise
510025
Mute Sensor for suppression of HF noise
For use with C2 Xplore and ISIS IOM systems, delivered non-sterile, can be disinfected
Add to watch list
All available C2 system components

Further information

Further application accessories in the IONM accessories catalogue
