inomed Medizintechnik GmbH
ProductsFunctional NeurosurgeryMicroDrive
MicroDriveThe MicroDrive is a sophisticated instrument for positioning electrodes during stereotactic interventions. It allows the simultaneous insertion of up to five electrodes during surgery. The tactile feedback with each complete rotation, which corresponds to a feed of 0.5 mm, helps the surgeons to ensure a high level of control and accuracy.
MicroDriveMicroDriveMicroDriveMicroDrive
ProductsFunctional NeurosurgeryMicroDrive
MicroDriveThe MicroDrive is a sophisticated instrument for positioning electrodes during stereotactic interventions. It allows the simultaneous insertion of up to five electrodes during surgery. The tactile feedback with each complete rotation, which corresponds to a feed of 0.5 mm, helps the surgeons to ensure a high level of control and accuracy.


Variants Extensions Accessories
Request demoRequest information
Variants
MicroDrive, hand operated, range 40 mm
Item no.: 590580MicroDrive, hand operated, range 40 mmPrecision instrument for positioning electrodes during stereotactic interventions. The item is autoclavable and can be adapted to many different stereotactic systems.
Available
Go to product page
Add to watch list
Extensions
MicroGun for MicroDrive with ID=1.7 mm, L=90 mm
Item no.: 590038MicroGun for MicroDrive with ID=1.7 mm, L=90 mmThe insertion of up to five electrodes is supported. The screws are used to attach the guide tubes. Only for use with the MicroDrive (590580).
Available
Add to watch list
Adaptation Kit MicroDrive for SUSy
Item no.: 590700Adaptation Kit MicroDrive for SUSyThe kit contains a sterilisation tray with the external dimensions 422x158x70 mm. Included are the base plate of the MicroDrive for adaptation to the SUSy stereotactic system, an electrode holder for MER electrodes with depth stop, an electrode holder for DBS electrodes, a hex wrench (M2 and M3 at both ends), a sterilisation quiver with brush for cleaning the MicroGun, a test needle for the target point simulator as well as an indexer for adjusting the DBS electrode.
Available
Go to product page
Add to watch list
Adaptation Kit MicroDrive for stereotactic frame ZD
Item no.: 590680Adaptation Kit MicroDrive for stereotactic frame ZDThe kit contains a sterilisation tray with the external dimensions 422x158x70 mm. Included are the base plate of the MicroDrive for adaptation to the ZD stereotactic system, an instrument holder for the ZD system, an electrode holder for MER electrodes with depth stop, an electrode holder for DBS electrodes, a hex wrench (M2 and M3 at both ends), a sterilisation quiver with brush for cleaning the MicroGun, a test needle for the target point simulator as well as an indexer for adjusting the DBS electrode.
Available
Go to product page
Add to watch list
Adaptation Kit MicroDrive for stereotactic frame RM
Item no.: 590670Adaptation Kit MicroDrive for stereotactic frame RMThe kit contains a sterilisation tray with the external dimensions 422x158x70 mm. Included are the base plate of the MicroDrive for adaptation to the RM stereotactic system, a rail holder for the RM system, an electrode holder for MER electrodes with depth stop, an electrode holder for DBS electrodes, a hex wrench (M2 and M3 at both ends), a sterilisation quiver with brush for cleaning the MicroGun, a test needle for the target point simulator as well as an indexer for adjusting the DBS electrode.
Available
Go to product page
Add to watch list
Adaptation Kit MicroDrive for Leksell stereotactic frame
Item no.: 590660Adaptation Kit MicroDrive for Leksell stereotactic frameThe kit contains a sterilisation tray with the external dimensions 422x158x70 mm. Included are the base plate of the MicroDrive for adaptation to the Leksell stereotactic system, a clamp with matching screw for the Leksell system, an adjustment holder for the MicroDrive, an electrode holder for MER electrodes with depth stop, a screw set for the MicroDrive, an electrode holder for DBS electrodes, a hex wrench (M2 and M3 at both ends), a sterilisation quiver with brush for cleaning the MicroGun, a test needle for the target point simulator and an indexer for adjusting the DBS electrode.
Available
Go to product page
Add to watch list
Accessories
Hex wrench for MicroDrive screws M2 and M3
Item no.: 590050Hex wrench for MicroDrive screws M2 and M3Delivered non-sterile, autoclavable
Available
Add to watch list
DBS Electrode holder for MicroDrive
Item no.: 590059DBS Electrode holder for MicroDriveDelivered non-sterile, autoclavable
Available
Add to watch list
Electrode holder f. MicroDrive f. electrodes with depth stop
Item no.: 590056Electrode holder f. MicroDrive f. electrodes with depth stopFor the fixation of max. 5 microelectrodes with fixing screws, boring 1.9 mm, delivered non-sterile, autoclavable
Available
Add to watch list
Brush OD=3 mm for cleaning of MicroGun
Item no.: 590082Brush OD=3 mm for cleaning of MicroGunDelivered non-sterile, autoclavable
Available
Add to watch list
Indexer for setting the depth stop position
Item no.: 590063Indexer for setting the depth stop positionFor the DBS electrode, inomed silver, delivered non-sterile, autoclavable
Available
Add to watch list
Single-Channel-Gun ID=2.0 mm for RF TC electrodes (280 mm)
Item no.: 590029Single-Channel-Gun ID=2.0 mm for RF TC electrodes (280 mm)With locking screw, delivered non-sterile, autoclavable
Available
Add to watch list
Single-Channel-Gun ID=2.5 mm for RM Biopsy Probes (280 mm)
Item no.: 590028Single-Channel-Gun ID=2.5 mm for RM Biopsy Probes (280 mm)With locking screw, delivered non-sterile, autoclavable
Available
Add to watch list
Fixing screw long for electrode holder 590055
Item no.: 590033Fixing screw long for electrode holder 590055Isolated tip
Available
Add to watch list
Fixing screw short for electrode holder 590055
Item no.: 590034Fixing screw short for electrode holder 590055Isolated tip
Available
Add to watch list
Fixation screw short hex M2 with 0.6 mm pin
Item no.: 590061Fixation screw short hex M2 with 0.6 mm pinFor electrode holder 590056 and Micro­Gun 590038, electrode position 3, 4
Available
Add to watch list
Fixation screw long hex M2 with 0.6 mm pin
Item no.: 590062Fixation screw long hex M2 with 0.6 mm pinFor electrode holder 590056 and Micro­Gun 590038, electrode position 1, 2, 5
Available
Add to watch list
Fixing screw for MicroGun in ground plate MicroDrive
Item no.: 590035Fixing screw for MicroGun in ground plate MicroDriveDelivered non-sterile, autoclavable
Available
Add to watch list
Screw for electrode holder M2x5
Item no.: 590069Screw for electrode holder M2x5
Available
Add to watch list
Screw set for MicroDrive
Item no.: 590064Screw set for MicroDriveConsisting of: mounting screw MicroGun, fixation screw short and long, mounting screw for electrode holder
Available
Add to watch list
Screw set for electrode holder 590055 isolated
Item no.: 590065Screw set for electrode holder 590055 isolatedWith fixing screws (2 short and 3 long),  isolated
Available
Add to watch list
Screw set for electrode holder 590056 and MicroGun
Item no.: 590066Screw set for electrode holder 590056 and MicroGunWith fixing screws (2 short and 3 long)
Available
Add to watch list

A masterpiece of precision

The MicroDrive is a sophisticated precision instrument for the exact positioning of recording electrodes and DBS electrodes during stereotactic interventions. With the matching MicroGun, up to five recording electrodes can be inserted safely and efficiently. The high resolution of 50 µm enables neurosurgeons to control electrode placement with extreme precision and provides tactile feedback at each complete rotation (0.5 mm). The MicroDrive is compatible with DBS electrodes from all common manufacturers. If the SingleGun is used instead of the MicroGun, the MicroDrive also allows the insertion of RF brain electrodes for lesion applications, thus expanding the system's range of uses.

Product features

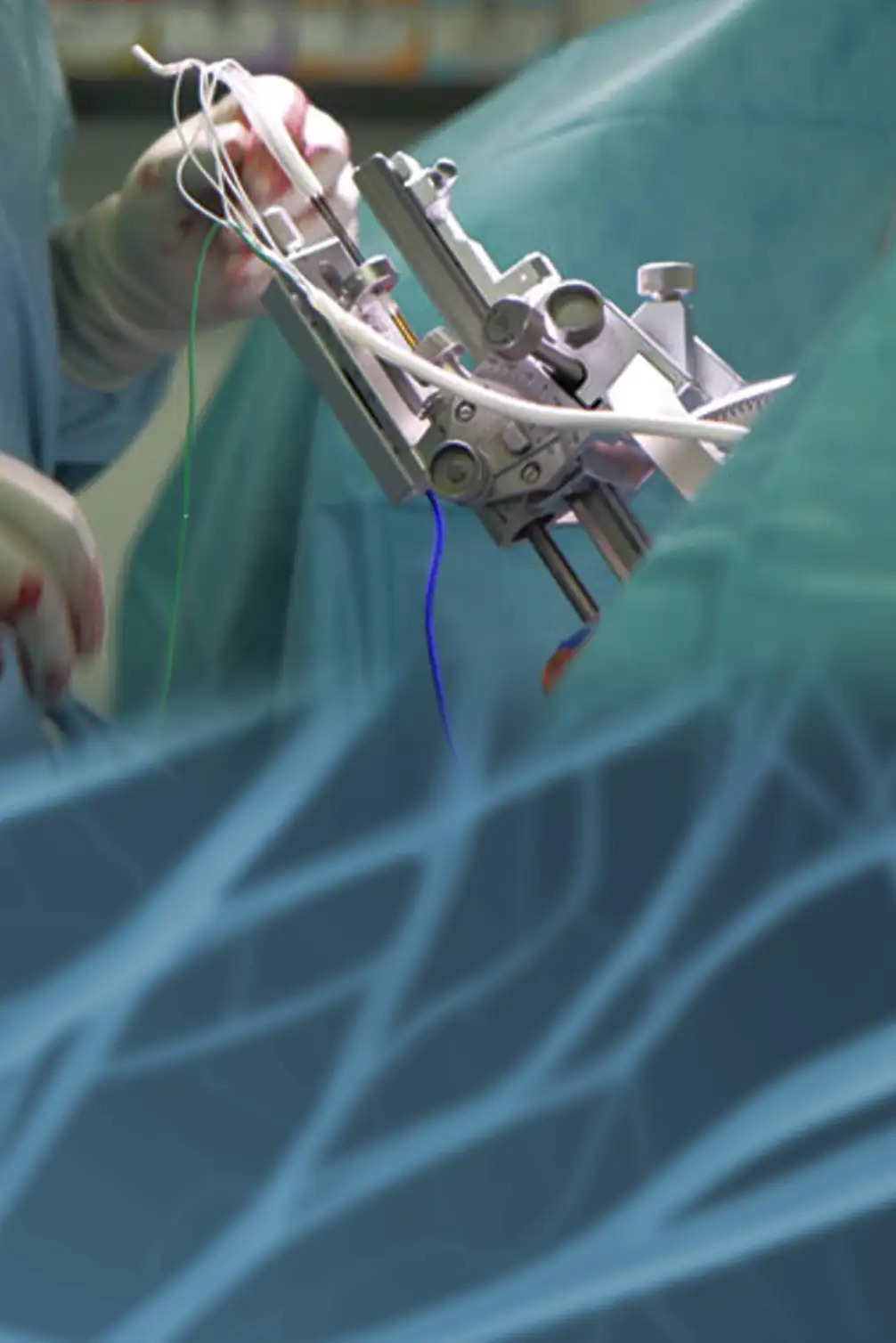

Application on all common stereotactic systems
Application on all common stereotactic systems
For universal use
In order to enable all interested parties to use the inomed MicroDrive for deep brain stimulation, it was developed on a universal platform from the outset. This means that it can be used on all common ring-based stereotactic systems as well as on robotic-guided systems. Special adaptation kits contain the appropriate basic configuration and ensure that the electrode for deep brain stimulation is reliably guided to the target point with the inomed MicroDrive.
Can be used on all common ring-based stereotactic systems as well as on robot-guided systems
For interventions that require dexterity
For interventions that require dexterity
Precision and reliability
Thanks to the scale of the MicroDrive, the users can always see the distance to the calculated target point. With a resolution of 50 µm, the inomed MicroDrive enables the neurosurgeons to precisely position the electrodes for deep brain stimulation, with tactile feedback after each rotation.
Precise and reliable technology

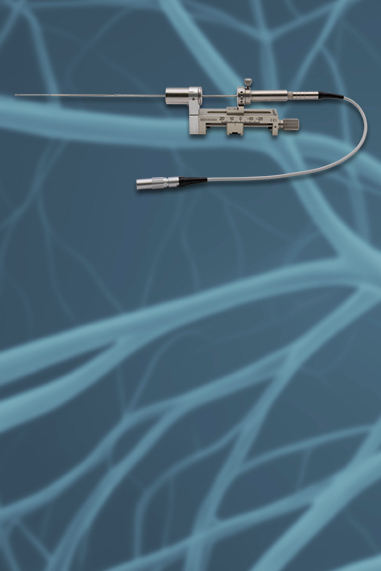

Single-channel guns for MicroDrive
Single-channel guns for MicroDrive
Optional single-channel gun use
The MicroDrive enables the single-channel gun for RF brain electrodes (590029) to be used instead of the MicroGun for brain lesioning applications. It is suitable for brain electrodes with a length of 280 mm and a diameter of 2 mm. In addition, the use of the single-channel gun for biopsy instruments (590028) allows biopsy procedures with samples of 280 mm in length and 2.5 mm in diameter. This expands the MicroDrive’s range of applications.
Suitable for biopsy instruments and RF brain electrodes with a length of 280 mm

Relevant procedures

Relevant application fields

FAQ

Is it only possible to use the inomed MicroDrive on inomed frames?

No, the MicroDrive can be used on all common ring-based stereotactic systems.

What resolution does the MicroDrive offer?

With a resolution of 50 µm, the inomed MicroDrive enables the neurosurgeons to precisely position the electrodes for deep brain stimulation, with tactile feedback after each rotation. The haptic feedback (a tactile “click”) allows the neurosurgeons to “feel” when a complete rotation of the MicroDrive has been completed.

With which instruments is the MicroDrive compatible?

In addition to various electrodes for MER recording, different biopsy instruments and HF brain electrodes can be used on the MicroDrive.
