inomed Medizintechnik GmbH
ProductsFunctional NeurosurgeryISIS MERISIS MER system
ISIS MER systemIn microelectrode recording (MER), MicroMacro electrodes are inserted along the planned trajectory in the brain in order to precisely record the extracellular neuronal activity at the tip of the electrode. Subsequently, a test stimulation via this electrode is also possible. inomed offers the entire hardware, software and accessories.
ISIS MER systemISIS MER systemISIS MER system
ProductsFunctional NeurosurgeryISIS MERISIS MER system
ISIS MER systemIn microelectrode recording (MER), MicroMacro electrodes are inserted along the planned trajectory in the brain in order to precisely record the extracellular neuronal activity at the tip of the electrode. Subsequently, a test stimulation via this electrode is also possible. inomed offers the entire hardware, software and accessories.


Variants Extensions Accessories
Request demoRequest information
Variants

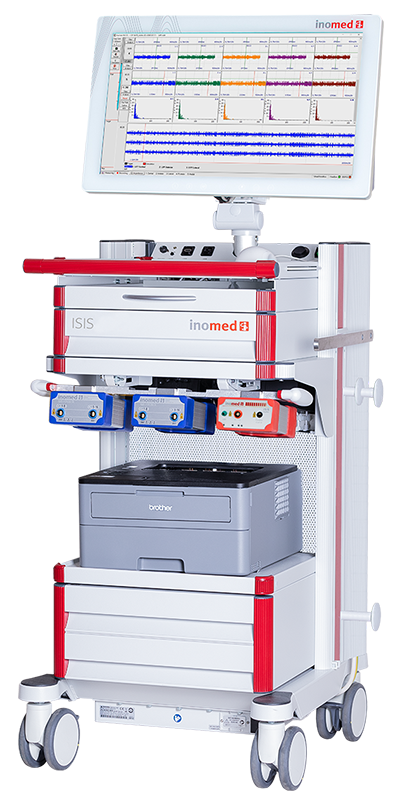

ISIS MER System Complete System
Item no.: 590103ISIS MER System Complete SystemTrolley with PC, widescreen monitor with optional touchscreen function, height-adjustable and rotatable monitor for the best possible view from all angles, powerful loudspeaker system for acoustic inter­pretation of the recording signals, module slider for holding the ISIS Headboxes, laser printer, keyboard drawer, two large drawers for storing accessories.
Available
Go to product page
Add to watch list

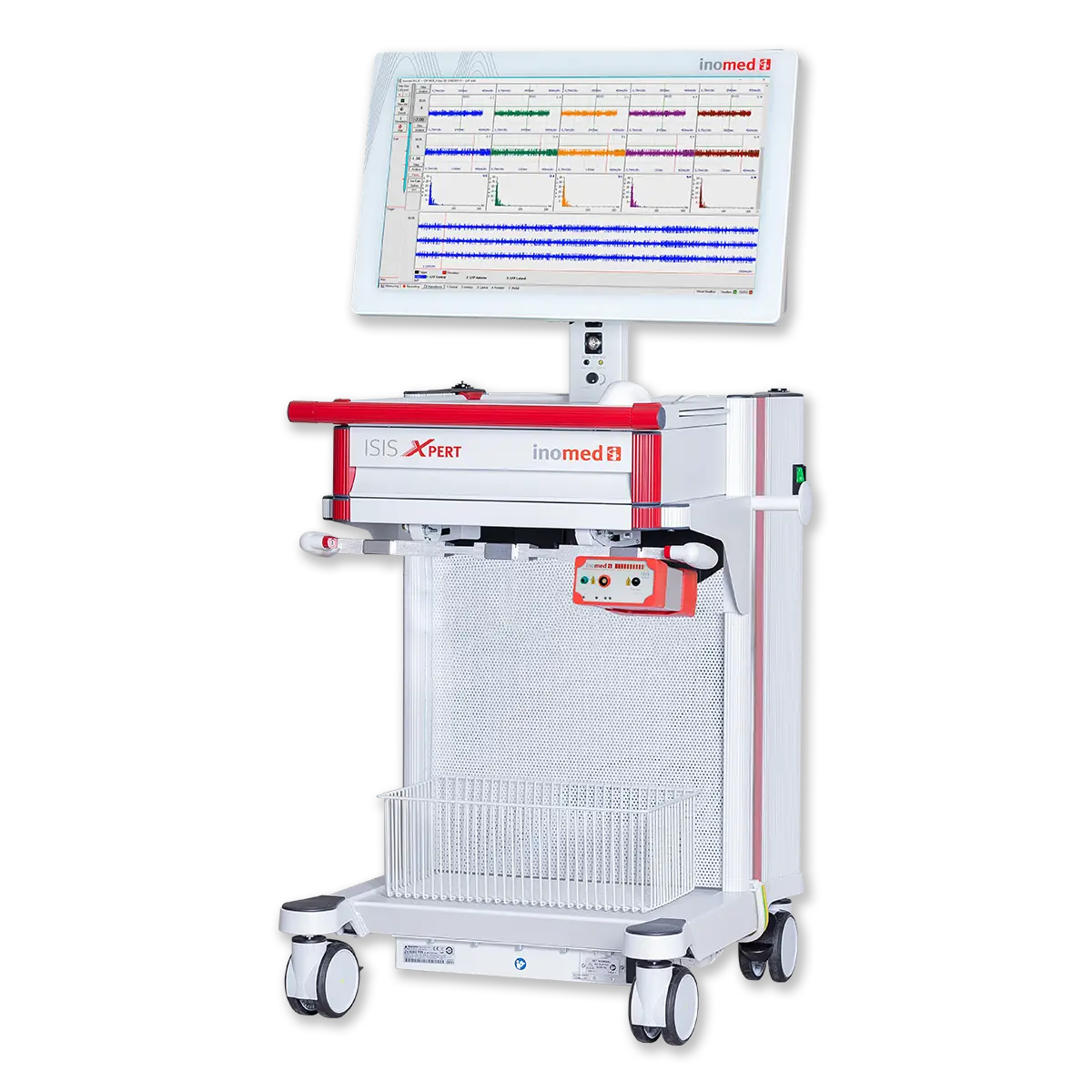

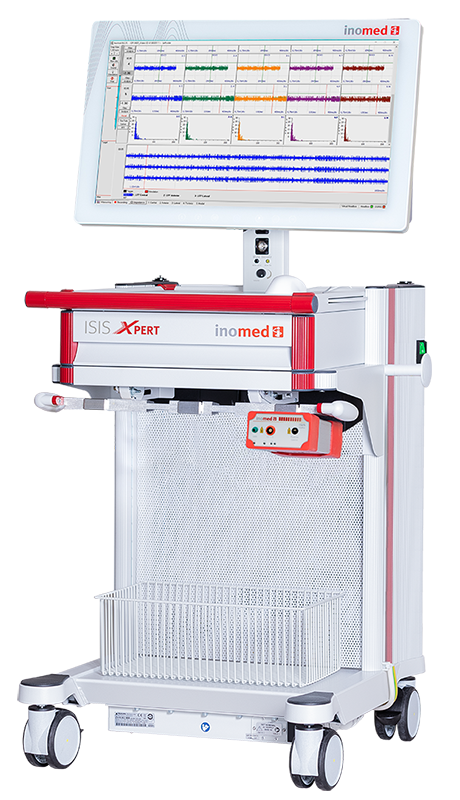

ISIS MER System Compact Complete System
Item no.: 590104ISIS MER System Compact Complete SystemTrolley with PC, widescreen monitor with optional touchscreen function, powerful loudspeaker system for acoustic interpretation of the recording signals, module slider for holding the ISIS Headboxes, keyboard drawer, accessory basket for storing accessories.
Available
Go to product page
Add to watch list

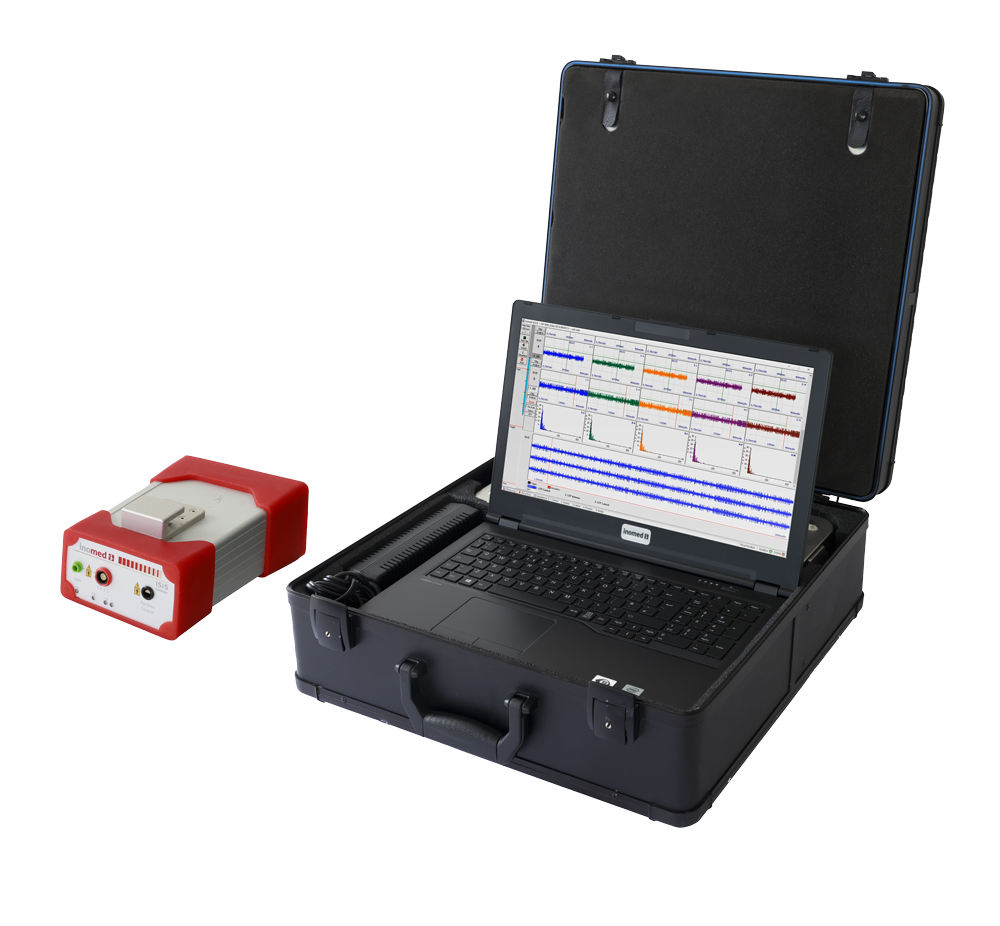

ISIS MER System Portable Complete System
Item no.: 590102ISIS MER System Portable Complete SystemCase with rollable and removable telescopic handle, notebook with medical power supply, two loud­speakers and accessory bags, space for a maximum of two ISIS Headboxes and a MicroDrive adaptor kit, case dimensions 460x460x200 mm.
Available
Go to product page
Add to watch list
Extensions
ISIS Headbox U5S MER
Item no.: 590210ISIS Headbox U5S MERThe box has five channels for micro­elec­trode recording and test stimulation. It can be combined with the connecting cables for MicroMacro electrodes (590710) or MicroMove electrodes (590711).
Available
Add to watch list

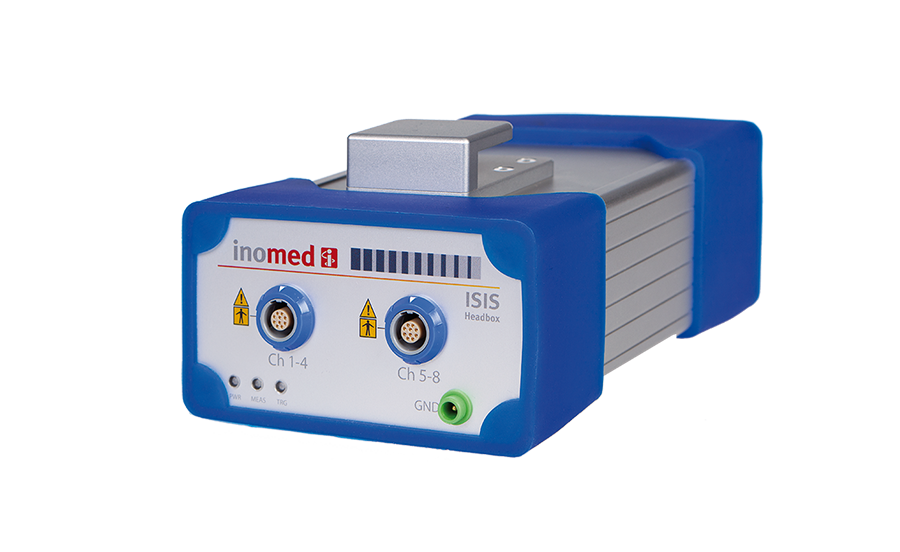

ISIS Headbox U8DRD
Item no.: 504270ISIS Headbox U8DRDThe box has eight differential amplifier channels for recording EMG signals. It can be expanded with the EMG/MEP adaptor (504271) for EMG measurement or with the connecting cable (590721) for LFP measurement.
Available
Add to watch list

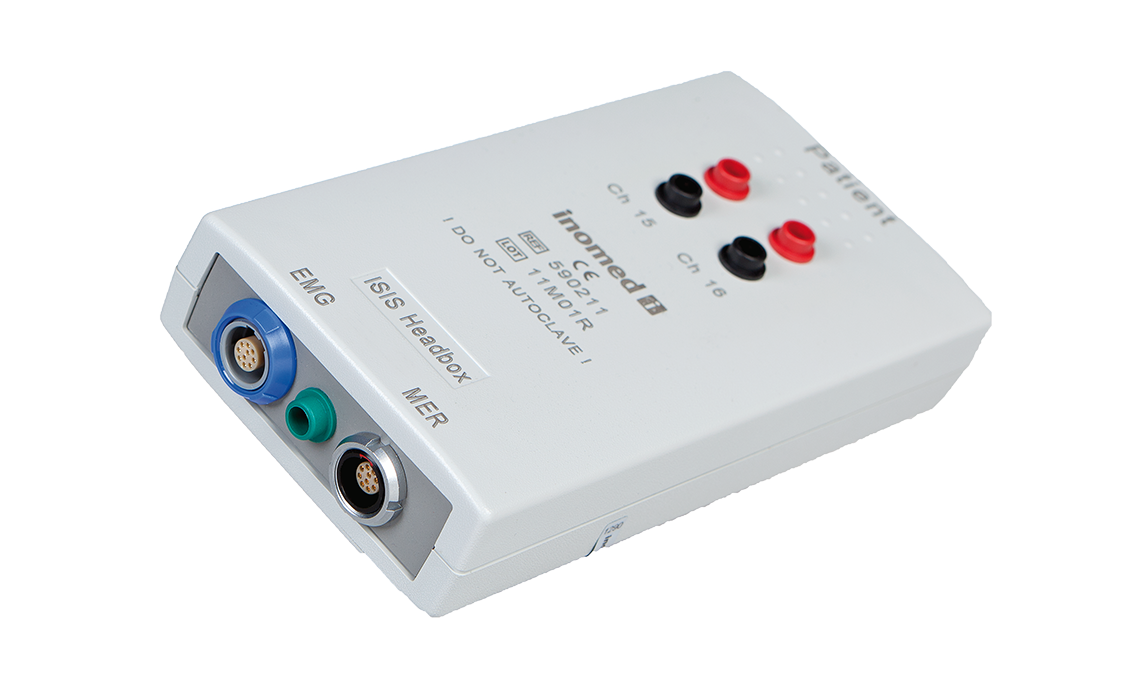

LFP Module for U5S-MER recording of MicroMacro LFP
Item no.: 590211LFP Module for U5S-MER recording of MicroMacro LFPThe module enables parallel LFP measurement on up to five channels. It is connected to the red Headbox with the connecting cable (590720) and to the blue Headbox with the cable (590721). It is also connected to the inomed Micro­Macro electrodes using the connecting cable (590722).
Available
Add to watch list
Accessories
Connection cable for 590210 and 504180
Item no.: 590215Connection cable for 590210 and 504180 With two USB male connectors, with metal male connector Lemo 1B, delivered non sterile, not autoclavable
Available
Add to watch list
Connecting cable 5 channels for FHC and IMM electrodes
Item no.: 590711Connecting cable 5 channels for FHC and IMM electrodesCoax male connector shielded, cable length 2 m, connector Lemo 1B to 59210 – ISIS Headbox U5S-MER, delivered non-sterile, autoclavable
Available
Add to watch list

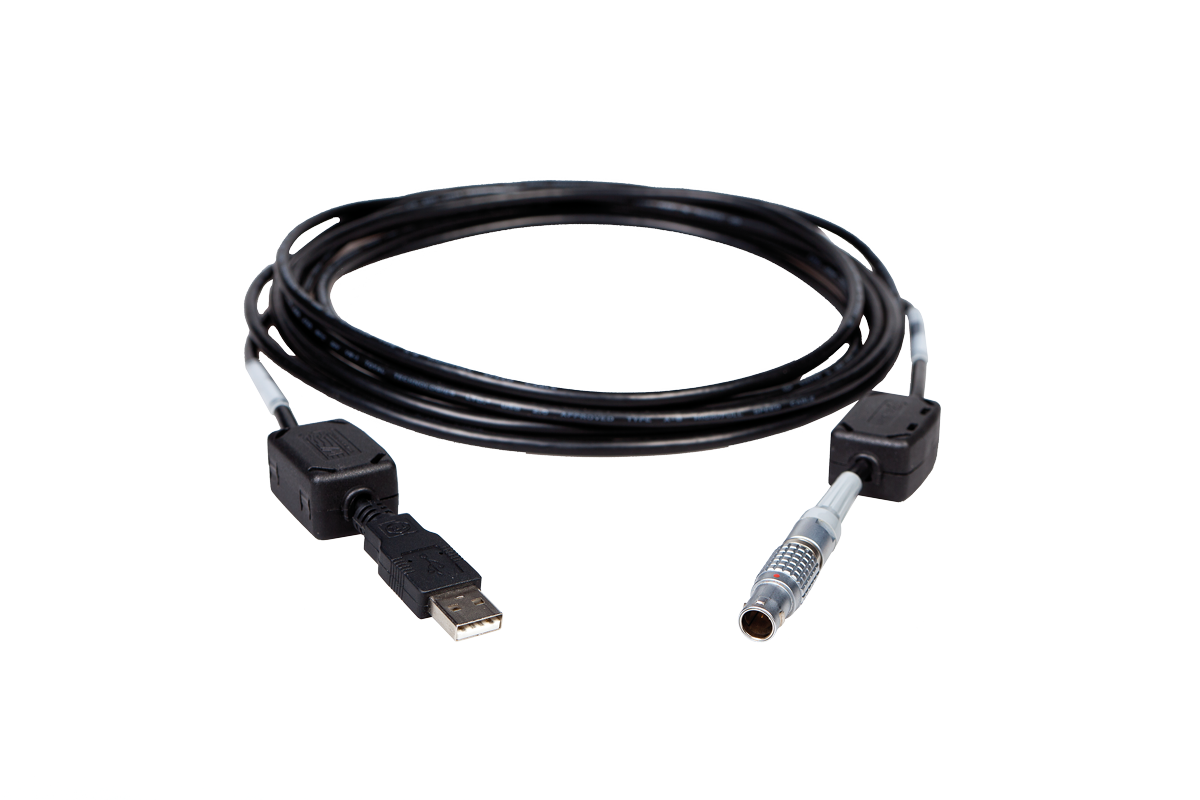

USB connecting cable
Item no.: 504245USB connecting cableWith metal plug connector Lemo 1B to USB plug, cable length=5 m, delivered non-sterile, not autoclavable
Available
Add to watch list
Connecting cable ISIS Headbox U5S-MER to LFP Module
Item no.: 590720Connecting cable ISIS Headbox U5S-MER to LFP Module
Available
Add to watch list
Connecting cable ISIS Headbox U8DRD to LFP Module
Item no.: 590721Connecting cable ISIS Headbox U8DRD to LFP Module
Available
Add to watch list
Connecting cable MicroMacro electrodes to LFP Module
Item no.: 590722Connecting cable MicroMacro electrodes to LFP Module
Available
Add to watch list
Connecting cable 5 channels for micro- and macro­electrodes
Item no.: 590710Connecting cable 5 channels for micro- and macro­electrodesCoax male connector shielded, cable length 2 m, connector Lemo 1B to 59210 – ISIS Headbox U5S-MER, delivered non-sterile, autoclavable
Available
Add to watch list

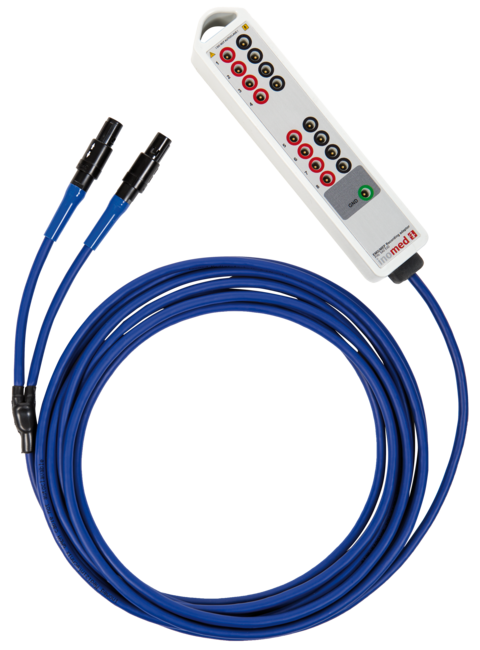

EMG/MEP Adaptor for ISIS Headbox U8DRD
Item no.: 540530EMG/MEP Adaptor for ISIS Headbox U8DRDFor maximal 8 channel differential recording, cable length 5 m, delivered non-sterile, non-autoclavable
Available
Add to watch list

High modularity

inomed offers three basic versions of the ISIS MER system, which can be flexibly adapted to the individual requirements with the necessary modules and accessories. Thanks to the compact design of these modules, the ISIS MER system offers a wide range of configuration options.

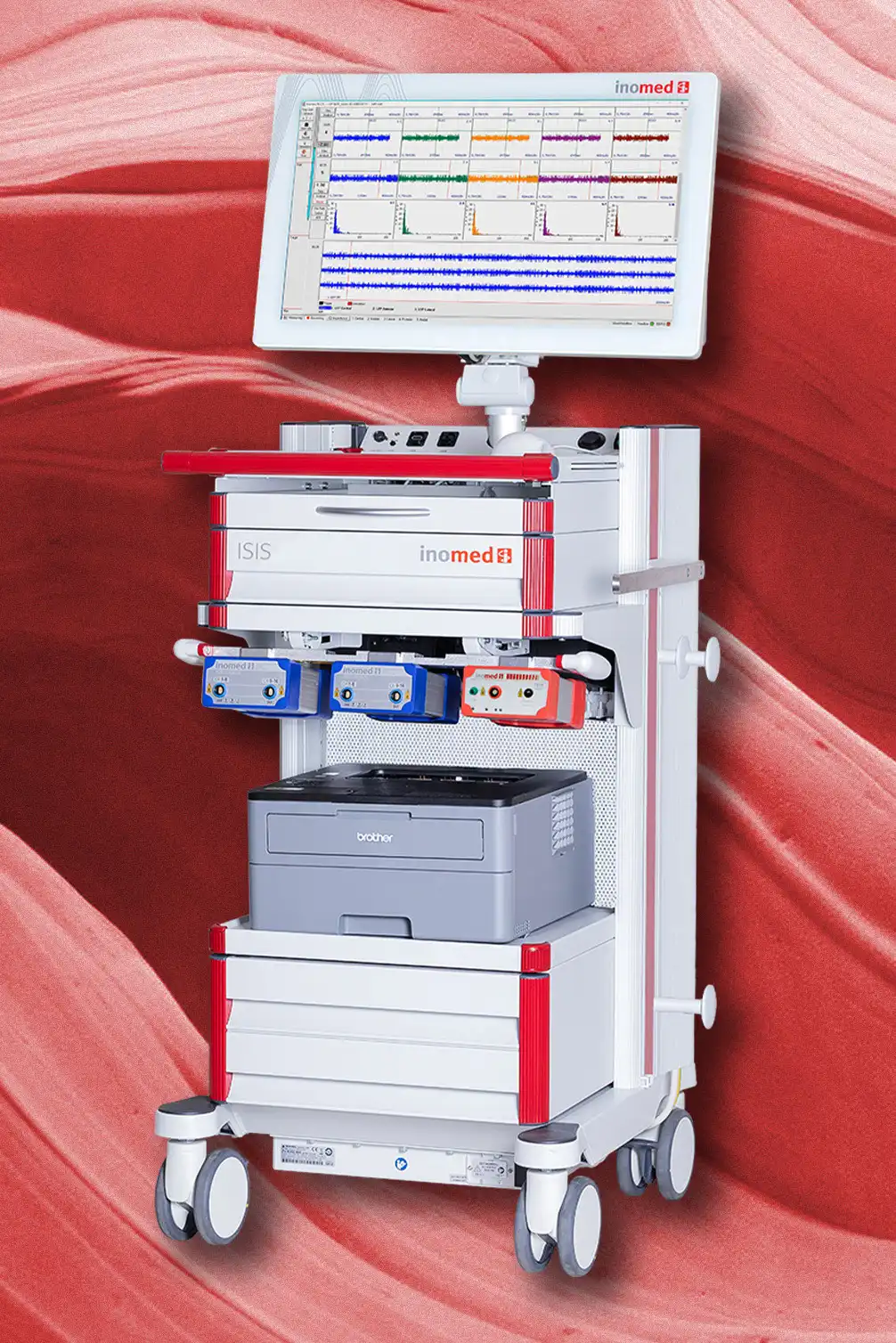

Photo: ISIS MER complete
ISIS MER complete
Item no.: 590103
ISIS MER complete
ISIS MER complete
The ISIS MER complete system includes a wide­screen monitor with an easy-to-clean surface and optional touchscreen function. The monitor is height-adjustable, rotatable and ensures an optimal view from different angles. In addition, the system has a powerful loudspeaker system that supports the acoustic interpretation of the recording signals during MER. A laser printer for outputting the recording signals facilitates documentation in the patient record. Large drawers ensure that accessories are always to hand.

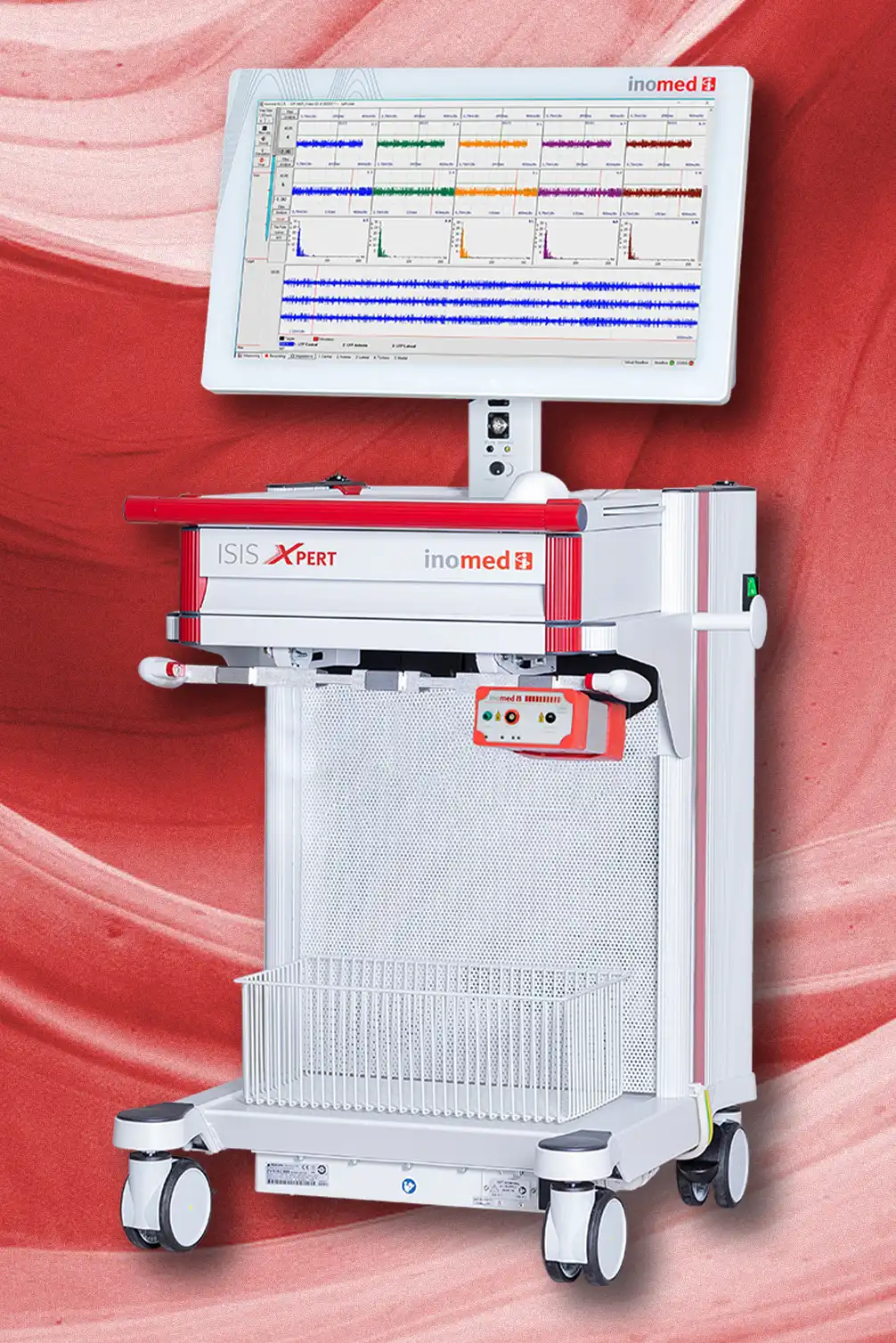

Photo: ISIS MER compact
ISIS MER compact
Item no.: 590104
ISIS MER compact
ISIS MER compact
In addition to the large version, the ISIS MER system compact is also available, which is a space-saving alternative. Thanks to the compact design of our Headbox modules, all three versions can be additionally equipped with up to two modules of the ISIS Headbox EMG for electromyography. This allows for parallel recording of EMG or EEG signals, and, in combination with our inomed LFP adaptor, the recording of up to five LFP channels.

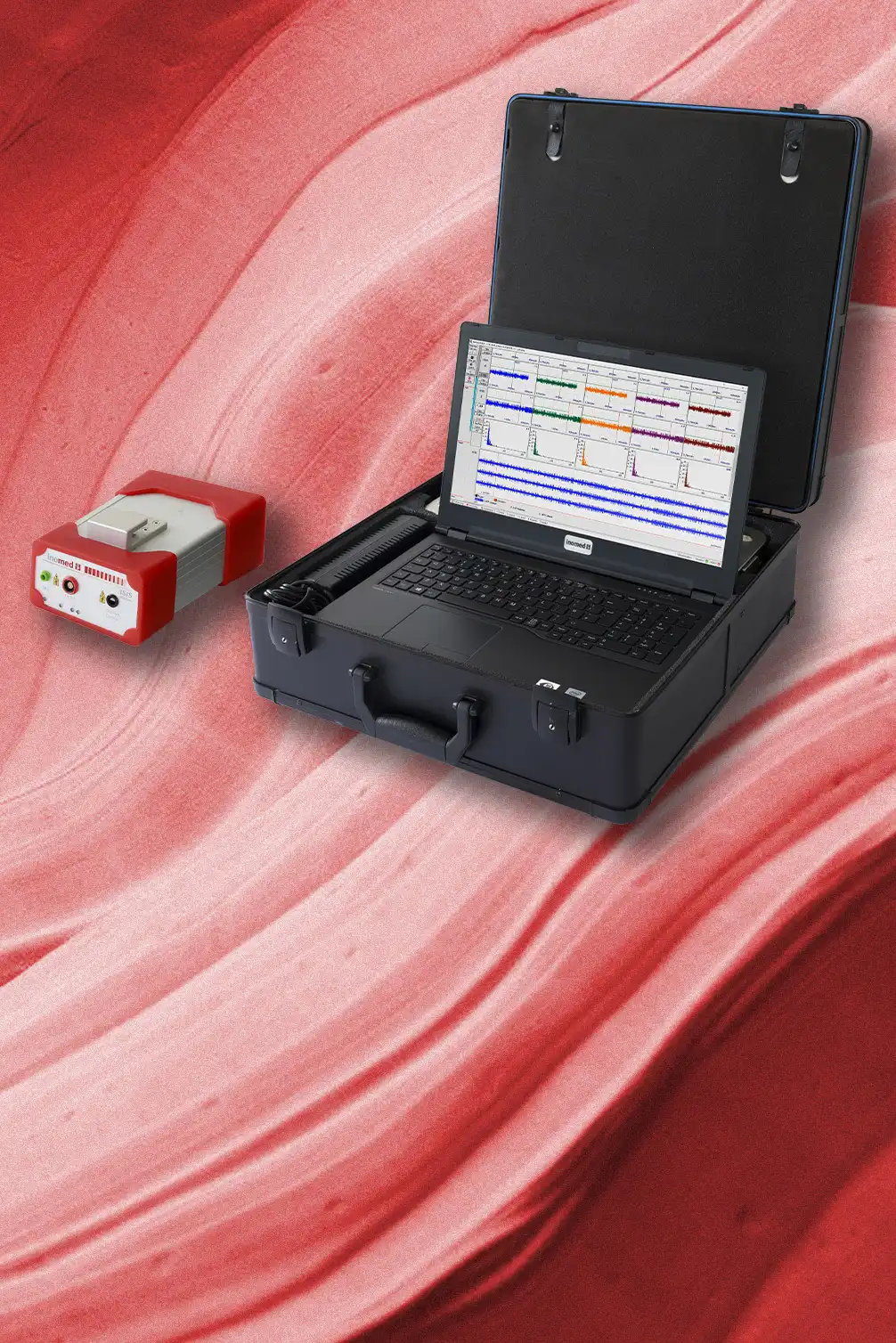

Photo: ISIS MER portable
ISIS MER portable
Item no.: 590102
ISIS MER portable
ISIS MER portable
The ISIS MER system portable combines all the required Headbox modules in one compact case: the ISIS Headbox MER and the ISIS Headbox EMG. The equipment is complemented by a powerful notebook with a medical power supply. In addition, the case offers enough space to easily store the high-precision inomed MicroDrive together with the sterilisation tray. This makes the ISIS MER system portable a powerful, portable workstation that is ideal for use in the operating theatre.

Product features

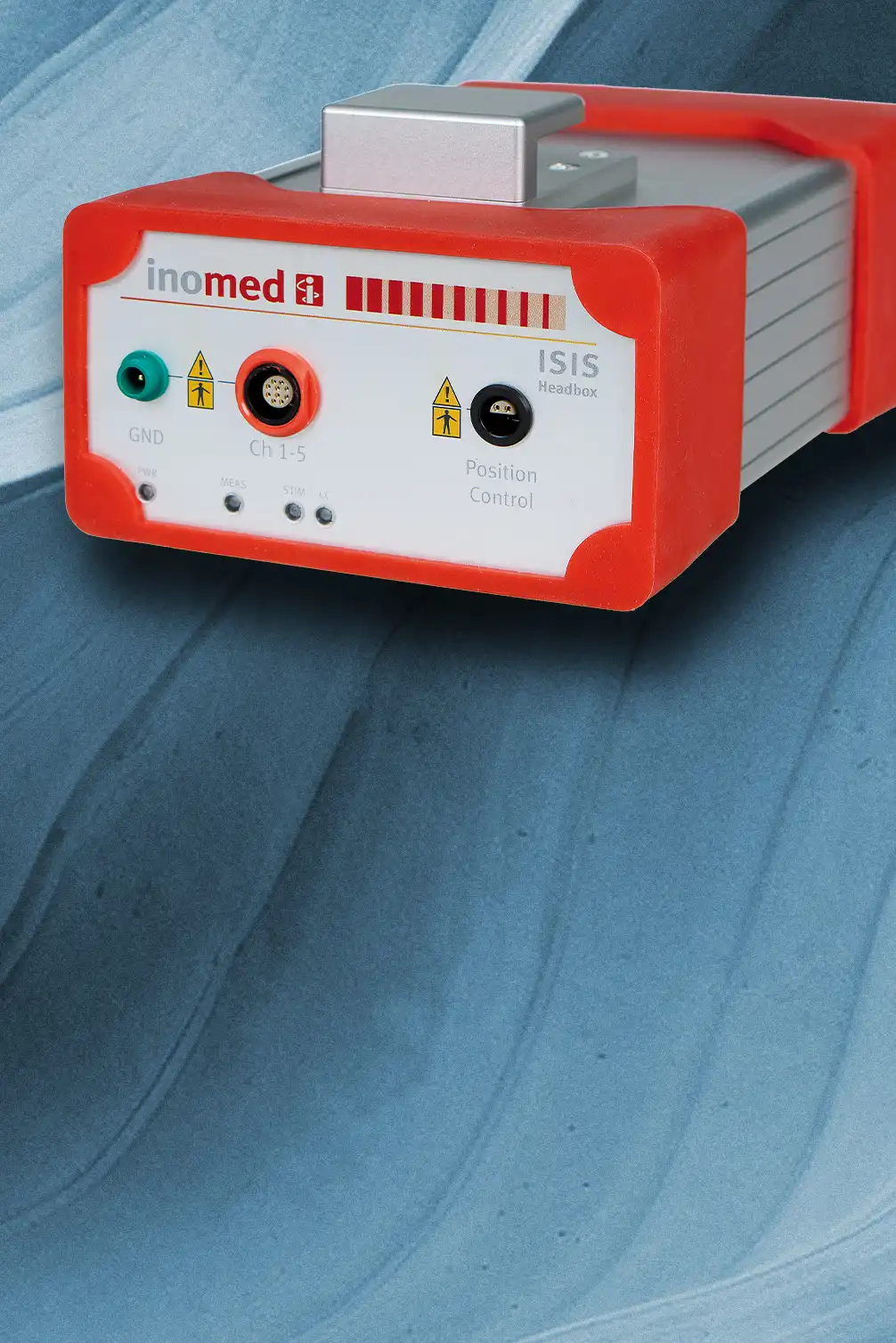

Hardware basis for target point localisation in deep brain stimulation (DBS)
Hardware basis for target point localisation in deep brain stimulation (DBS)
Target point localisation and intraoperative test stimulation
The red ISIS Headbox MER offers the complete hardware solution for target point localisation when implanting DBS electrodes. It has five MER channels for extracellular recording and an integrated stimulator for performing intra­operative test stimulations.
Compact hardware solution for target point localisation with MER recordings and test stimulation

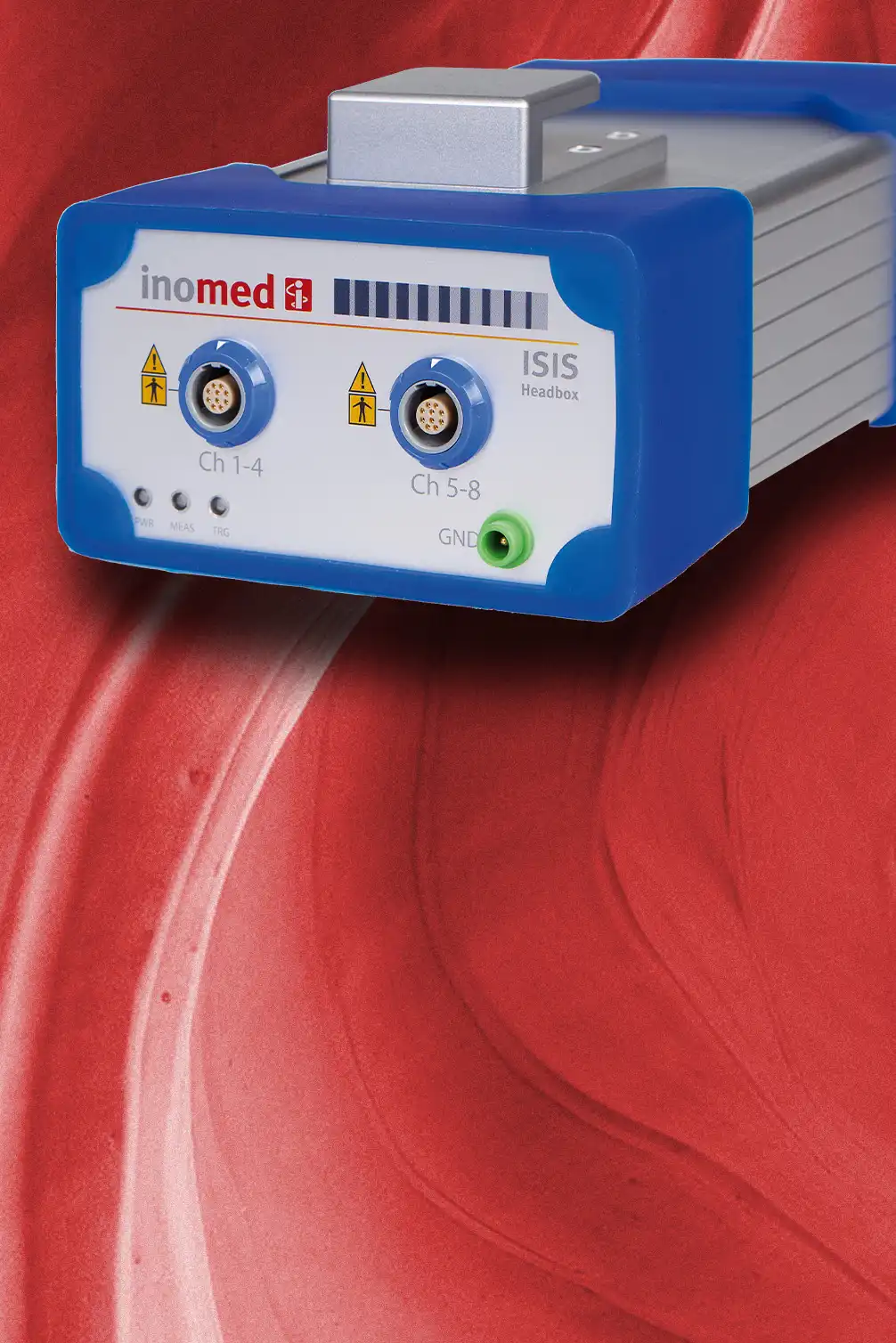

Simultaneous recording of EMG signals
Simultaneous recording of EMG signals
Precise electromyography recordings
The blue ISIS Headbox EMG offers the hardware solution for recording electromyography (EMG) signals. It offers eight differential amplifier inputs and can be used in combination with the ISIS MER systems. This enables users to record EMG signals simultaneously. The use of two blue Headboxes even allows the recording of 16 EMG signals.
High-performance system for electromyography (EMG) with eight differential amplifier inputs for simultaneous EMG recording during MER

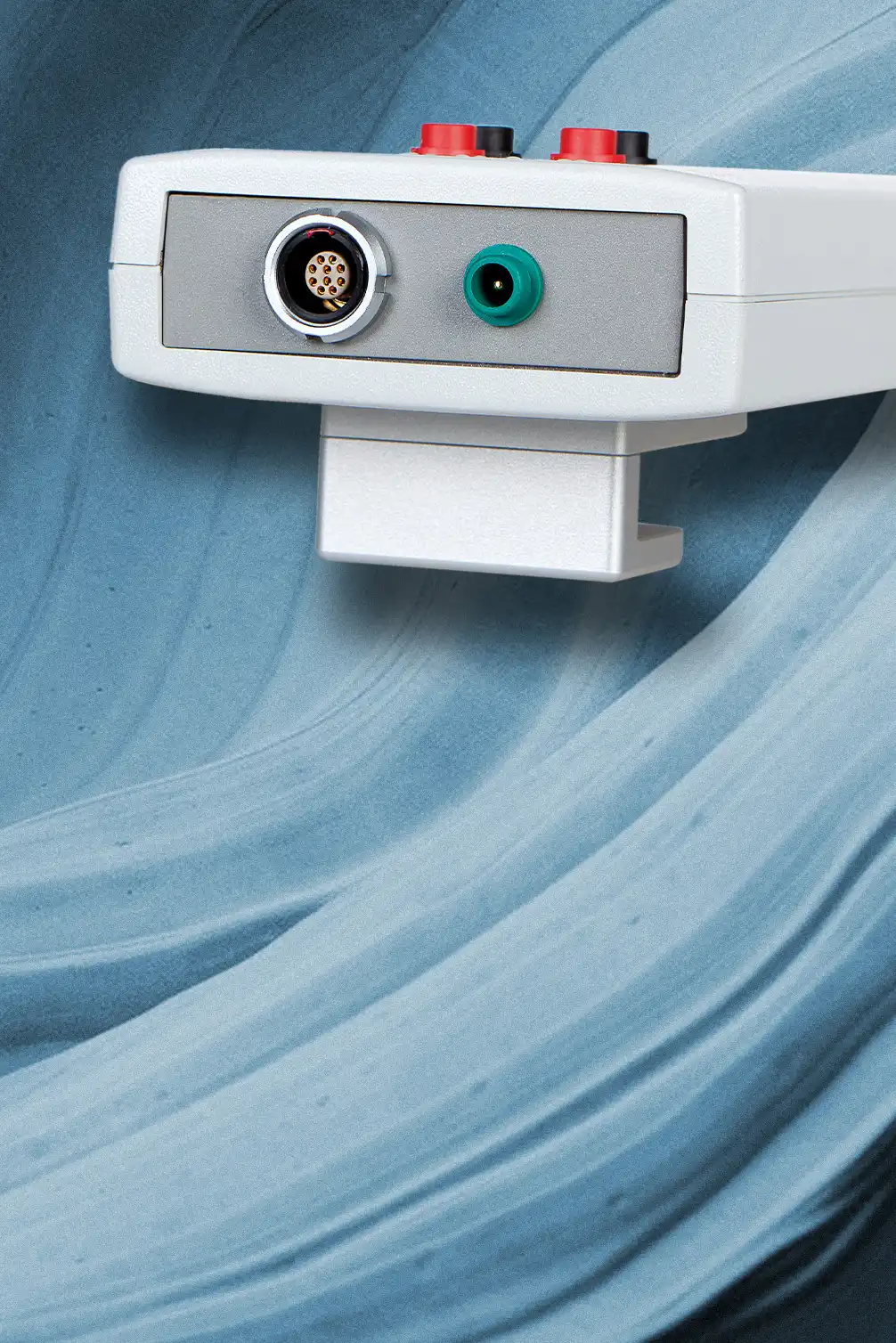

Parallel microelectrode recording and LFP recording
Parallel microelectrode recording and LFP recording
Parallel microelectrode recording and LFP recording
With the ISIS LFP module, it is possible to measure local field potentials (LFP) for up to five channels in parallel with microelectrode recording. The local field potential is the extracellular signal that is formed by the superposition of the activity of individual cells in a group. In contrast to the MER signal, the LFP signal consists of low-frequency signals and is usually analysed in the frequency spectrum.

The specially developed, autoclavable connecting cable ensures the usual easy connectivity of the electrodes. The inomed MicroMacro electrodes are required to use the LFP module. In addition, the ISIS LFP module has two channels that can be used to record EMG or EEG signals. Optionally, a second ISIS Headbox EMG can be connected to provide a further eight channels for additional EMG measurements.
The combination of the MER and EMG Headbox enables the recording of local field potentials (LFP) for up to five channels
Intraoperative MER supports target localisation in stereotactic surgery by recording the electrical activity of individual neurons of the target structure. On the basis of these recordings, users can see which neuronal areas the electrode passes through. For final verification of the target area as a potential implantation site, a test stimulation is performed that simulates the DBS implant and thus offers additional safety. These two steps ultimately make a decisive contribution to the therapeutic success of the procedure.

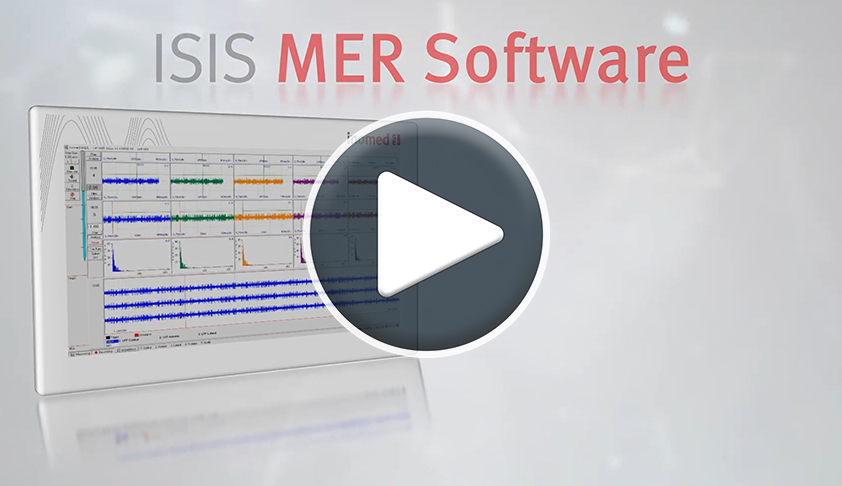

Link: YouTube video ISIS MER System

Relevant procedures

Relevant application fields

Application accessories

The accessories portfolio for our ISIS MER systems includes all the necessary recording and connection cables, guide tubes as well as adaptors for the use of various electrodes on our Headboxes.

Go to ISIS MER accessories

FAQ

How do I switch between recording and stimulation with the ISIS MER systems?

Thanks to the intelligent arrangement of the recording and stimulation contact, only one plug connection per electrode is required for MER when using the inomed MicroMacro electrode. It is very easy to switch between recording and stimulation in the software, there is no need to swap cables.

Learn more:
MicroDrive
MicroMacro electrode/Accessories

Is it possible to record electromyography signals in parallel?

Yes, the ISIS MER systems can easily be equipped with up to two additional ISIS Headbox EMG modules for electromyo­graphy. This expands the option for parallel recording of up to 16 EMG or EEG signals.

Is it possible to record local field potentials (LFP) in parallel?

Yes, with the ISIS LFP module it is possible to measure LFP for up to five channels in parallel to the MER recording. The inomed MicroMacro electrodes are required for this. The module also has two additional channels that can be used to record EMG signals.

Which versions of the ISIS MER system does inomed offer?

The compact design of the ISIS Headbox MER measurement and stimulation system opens up a wide range of possible configurations. We offer three basic versions that can be individually equipped with the necessary measuring systems: the ISIS MER system, the ISIS MER system compact and the ISIS MER system portable.

Enjoy a wide range of benefits

Register now!

Further information

Brochure – ISIS MER system
