ISIS MER accessoriesThe accessories portfolio for our ISIS MER systems includes all the necessary recording and connection cables, guide tubes as well as adaptors for the use of various electrodes on our Headboxes. inomed offers three types of recording electrodes that allow flexible adaptation to different requirements.
ISIS MER accessoriesISIS MER accessoriesISIS MER accessories
ISIS MER accessoriesThe accessories portfolio for our ISIS MER systems includes all the necessary recording and connection cables, guide tubes as well as adaptors for the use of various electrodes on our Headboxes. inomed offers three types of recording electrodes that allow flexible adaptation to different requirements.

The electrodes for the ISIS MER system include the MicroMacro electrodes, the inomed MicroMove (IMM) electrodes and the Macro electrodes. All inomed electrodes are delivered in sterile packaging. One packaging unit consists of five electrodes.


Accessories

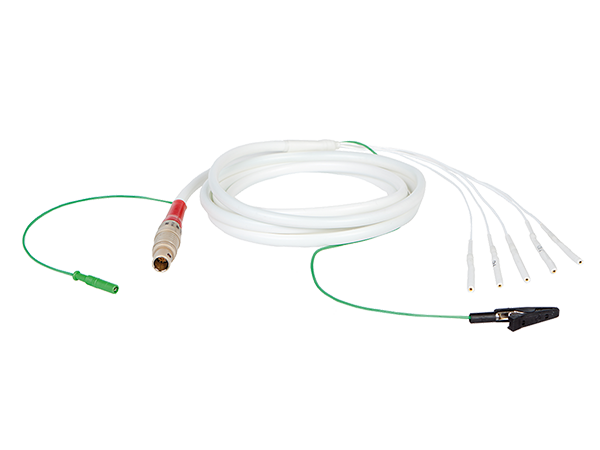

Connecting cable 5 channels for micro- and macro­electrodes
Item no.: 590710Connecting cable 5 channels for micro- and macro­electrodesCoax male connector shielded, cable length 2 m, connector Lemo 1B to 59210 – ISIS Headbox U5S-MER, delivered non-sterile, autoclavable
Available
Add to watch list

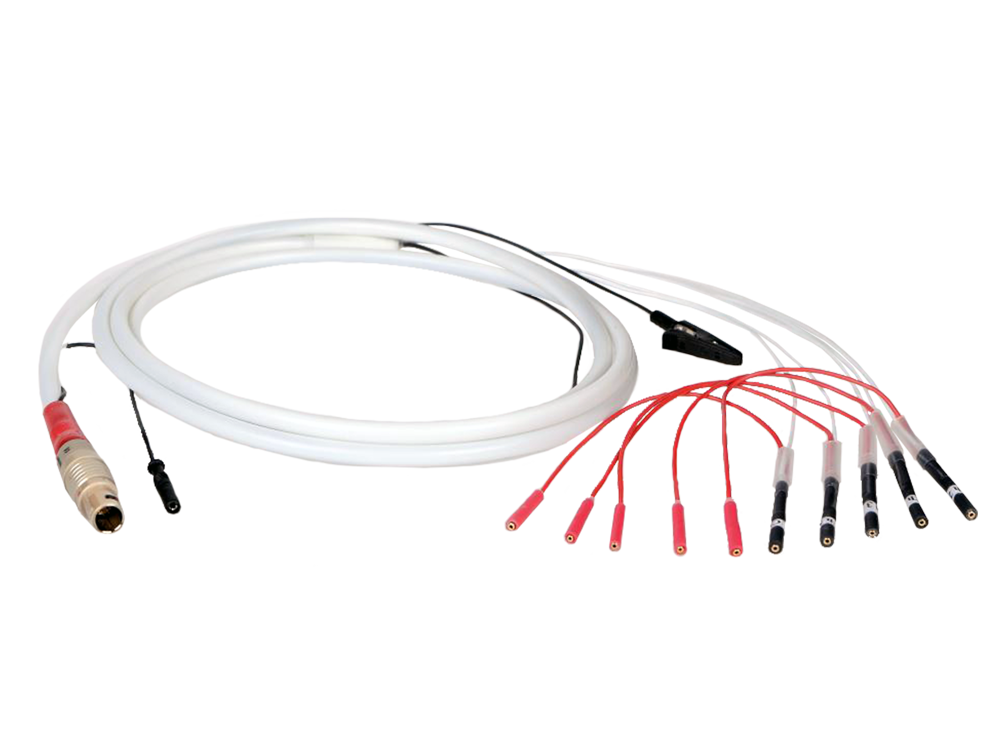

Connecting cable 5 channels for FHC and IMM electrodes
Item no.: 590711Connecting cable 5 channels for FHC and IMM electrodesCoax male connector shielded, cable length 2 m, connector Lemo 1B to 59210 – ISIS Headbox U5S-MER, delivered non-sterile, autoclavable
Available
Add to watch list
Application accessories

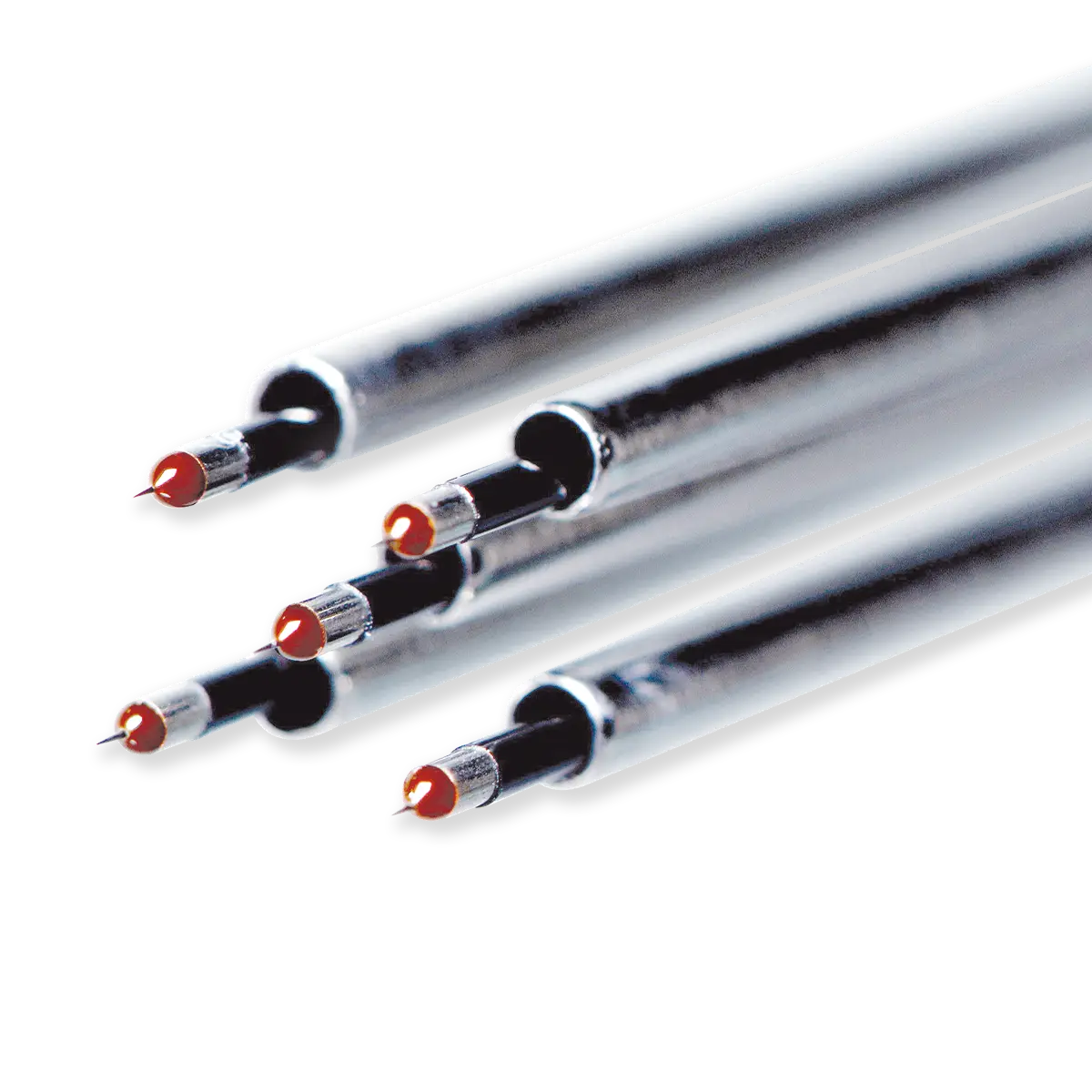

MicroMacro electrode 0.6 mm with depth stop
Item no.: 230766MicroMacro electrode 0.6 mm with depth stopRecording bipolar, stimulation monopolar, L=300 mm, electrode in MOhm range, disposable product, EO sterilised
Available
Add to watch list

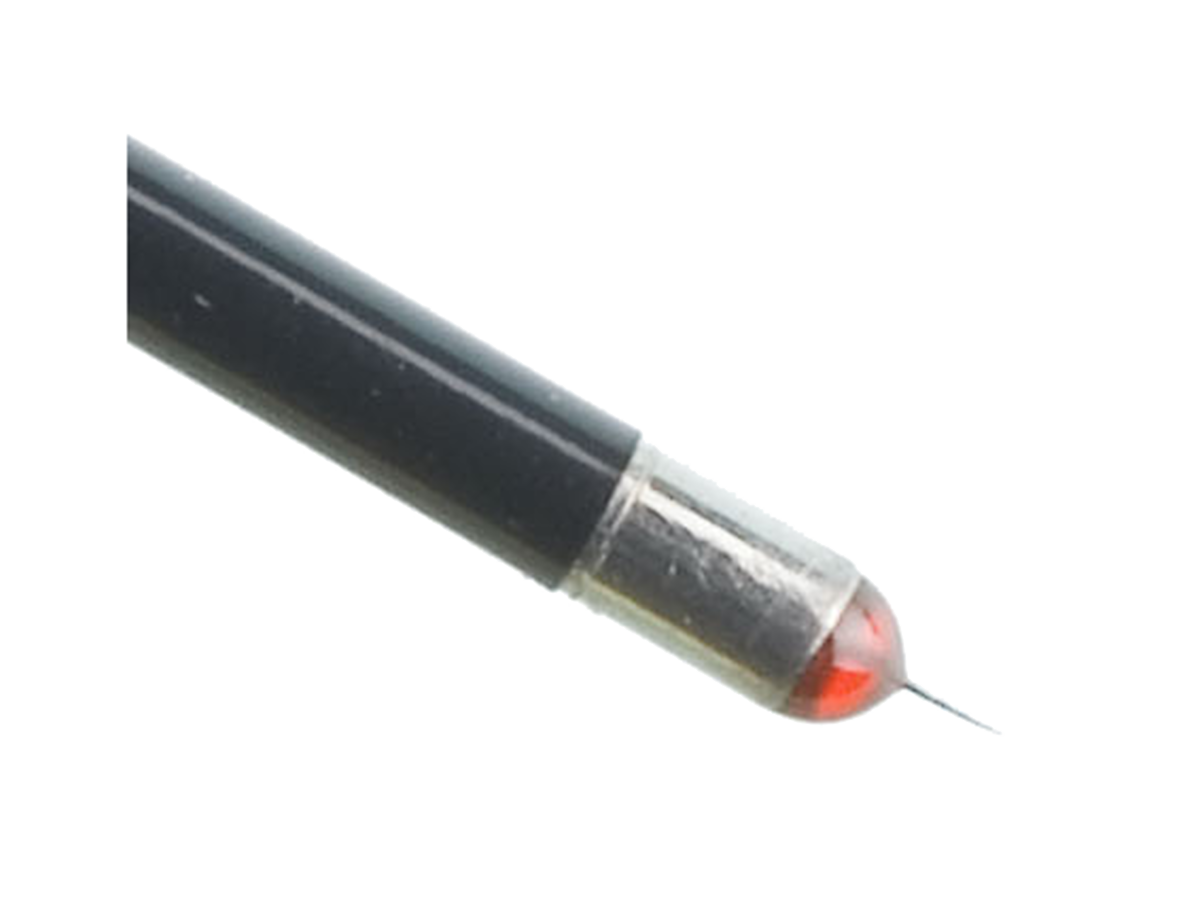

MicroMacro electrode 0.8 mm with depth stop
Item no.: 230767MicroMacro electrode 0.8 mm with depth stopRecording bipolar, stimulation monopolar, L=300 mm, electrode in MOhm range, disposable product, EO sterilised
Available
Add to watch list

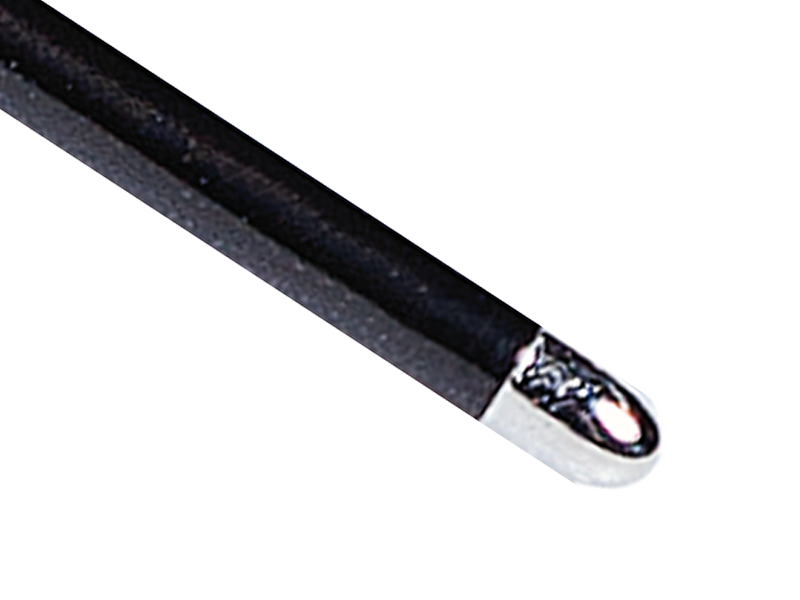

Macro electrode 0.8 mm with depth stop
Item no.: 230769Macro electrode 0.8 mm with depth stopFor monopolar stimulation, L=300 mm, disposable product, EO sterilised
Available
Add to watch list
inomed MicroMove electrode with movable microelectrode
Item no.: 230780inomed MicroMove electrode with movable microelectrodeWithout depth stop, impedance appr. 1 MOhm, OD=0.6 mm, with 0.7 mm male connectors, disposable product, EO sterilised
Available
Add to watch list

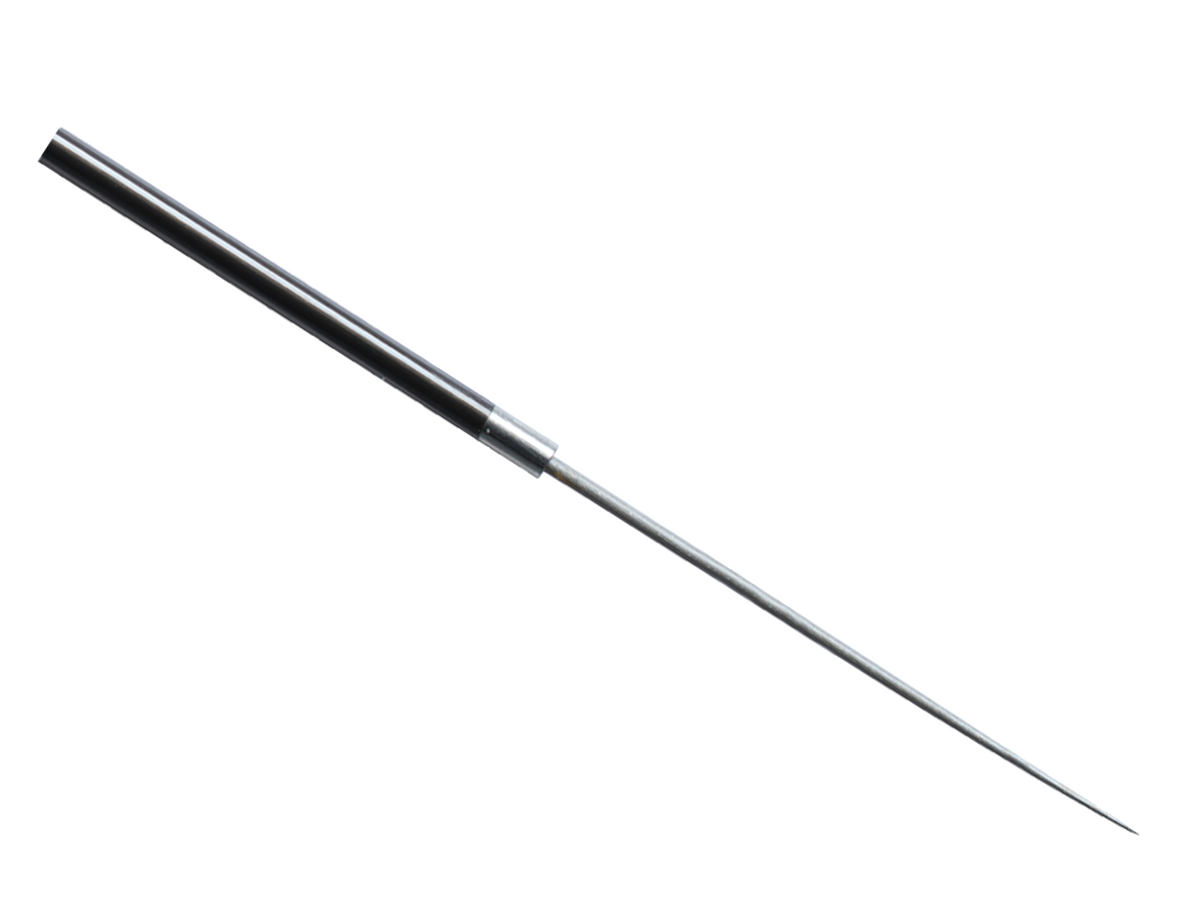

inomed MicroMove electrode with movable micro electrode
Item no.: 230781inomed MicroMove electrode with movable micro electrodeAnd depth stop, impedance appr. 1 MOhm, OD=0.6 mm, with 0.7 mm male connectors, disposable product, EO sterilised
Available
Add to watch list
Guide tube for MicroDrive for 10 mm before target point
Item no.: 230882Guide tube for MicroDrive for 10 mm before target pointFor MicroMacro electrodes, OD=1.30 mm, ID=1.0 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list
Guide tube for MicroDrive for 20 mm before target point
Item no.: 230885Guide tube for MicroDrive for 20 mm before target pointFor MicroMacro electrodes, OD=1.30 mm, ID=1.0 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list
Guide tube for art. no. 230780 inomed MicroMove electrode
Item no.: 230888Guide tube for art. no. 230780 inomed MicroMove electrodeGuide tube MicroDrive for 230780, 20 mm before target point, OD=1.0 mm, ID=0.65 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list

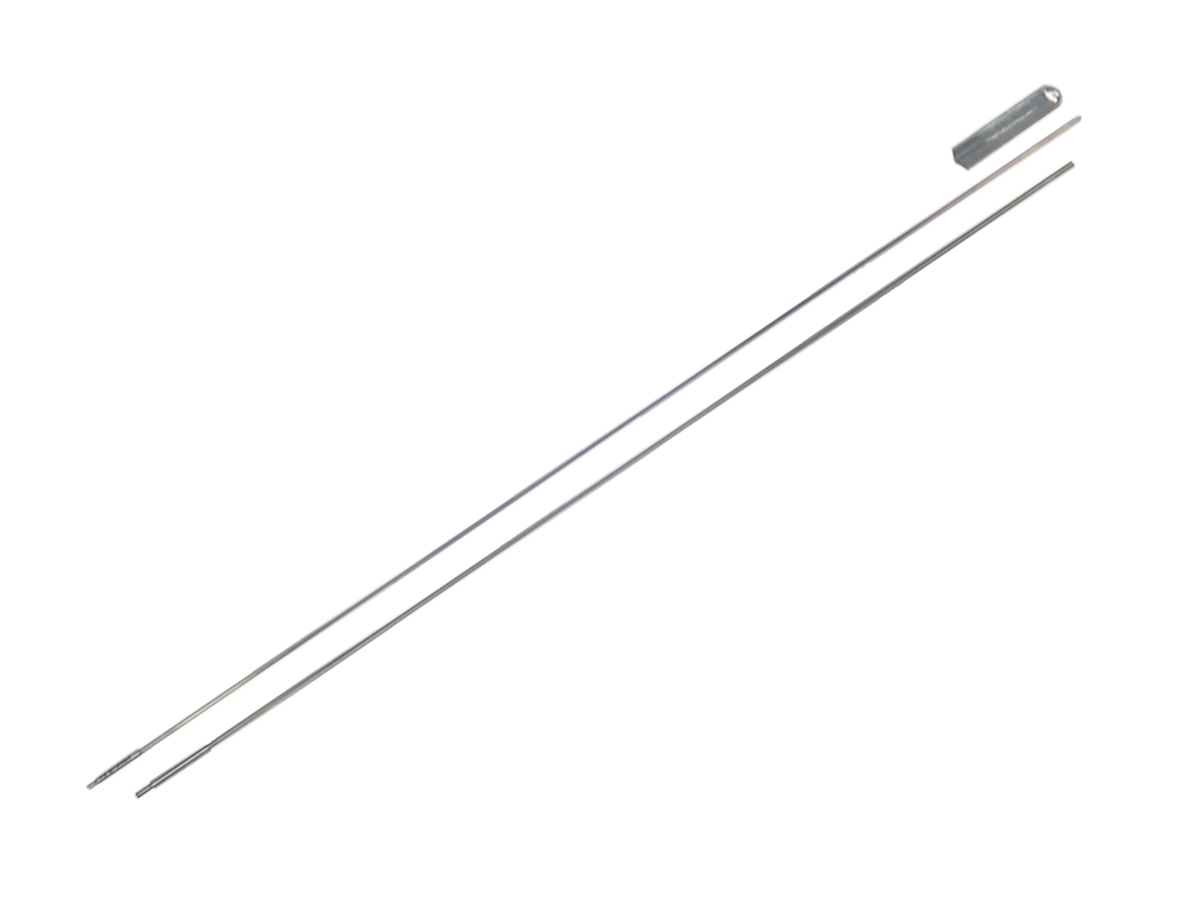

Guide tube MicroDrive for 230781 10 mm before target point
Item no.: 230889Guide tube MicroDrive for 230781 10 mm before target pointOD=1.0 mm, ID=0.65 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list
DBS guide tube, 10 mm to target, for DBS electrode
Item no.: 230854DBS guide tube, 10 mm to target, for DBS electrodeOD=1.65 mm, ID=1.45 mm, total length=206.0 mm, disposable product, EO sterilised, use with MicroGun for MicroDrive, item 590038
Available
Add to watch list
DBS guide tube, 30 mm to target, for DBS electrode
Item no.: 230852DBS guide tube, 30 mm to target, for DBS electrodeOD=1.65 mm, ID=1.45 mm, total length=186.0 mm, disposable product, EO sterilised, use with MicroGun for MicroDrive, item 590038
Available
Add to watch list
DBS guide tube, 40 mm to target, for DBS electrode
Item no.: 230850DBS guide tube, 40 mm to target, for DBS electrodeOD=1.65 mm, ID=1.45 mm, total length=176.0 mm, disposable product, EO sterilised, use with MicroGun for MicroDrive, item 590038
Available
Add to watch list
DBS guide tube, 50 mm to target, for DBS electrode
Item no.: 230851DBS guide tube, 50 mm to target, for DBS electrodeOD=1.65 mm, ID=1.45 mm, total length=166.0 mm, disposable product, EO sterilised, use with MicroGun for MicroDrive, item 590038
Available
Add to watch list

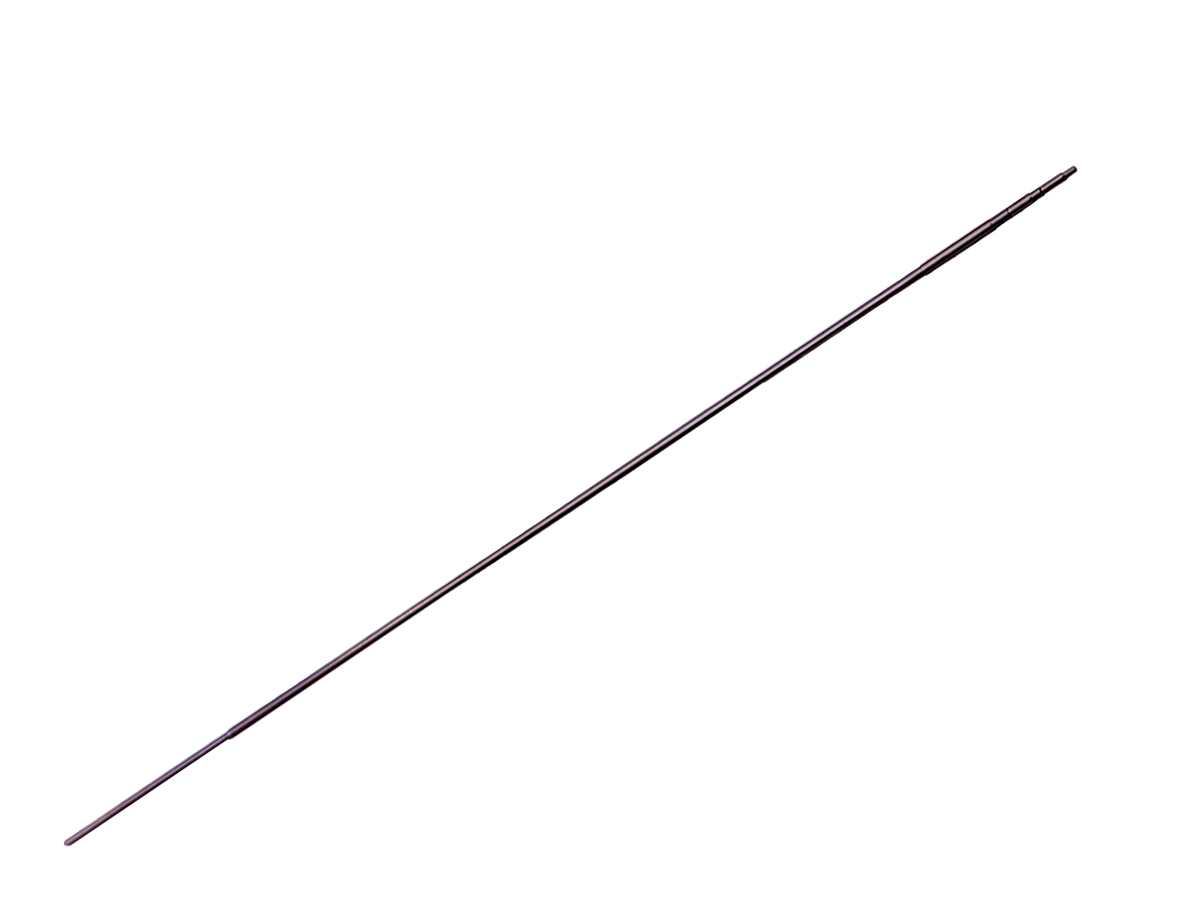

Universal guide tube MicroDrive for micro- and DBS electrodes
Item no.: 230867Universal guide tube MicroDrive for micro- and DBS electrodesElectrode guide tube 10 mm before target point, DBS guide tube 50 mm before target point, OD=1.65 mm, ID=1.0 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list
Universal guide tube MicroDrive for micro- and DBS electrodes
Item no.: 230880Universal guide tube MicroDrive for micro- and DBS electrodesElectrode guide tube 10 mm before target point, DBS guide tube 13 mm before target point, OD=1.65 mm, ID=1.0 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list
Universal guide tube for MicroDrive, for IMM, FHC and DBS electrodes
Item no.: 230868Universal guide tube for MicroDrive, for IMM, FHC and DBS electrodesElectrode guide tube 10 mm before target point, DBS guide tube 50 mm before target point, OD=1.65 mm, ID=0.65 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list
Universal guide tube for MicroDrive, for IMM, FHC and DBS electrodes
Item no.: 230881Universal guide tube for MicroDrive, for IMM, FHC and DBS electrodesElectrode guide tube 10 mm before target point, DBS guide tube 13 mm before target point, OD=1.65 mm, ID=0.65 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list
Universal guide tube MicroDrive for micro and DBS electrodes
Item no.: 230886Universal guide tube MicroDrive for micro and DBS electrodesElectrode guide tube 10 mm before target, DBS guide tube 30 mm before target, OD=1.65 mm, ID=1 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list

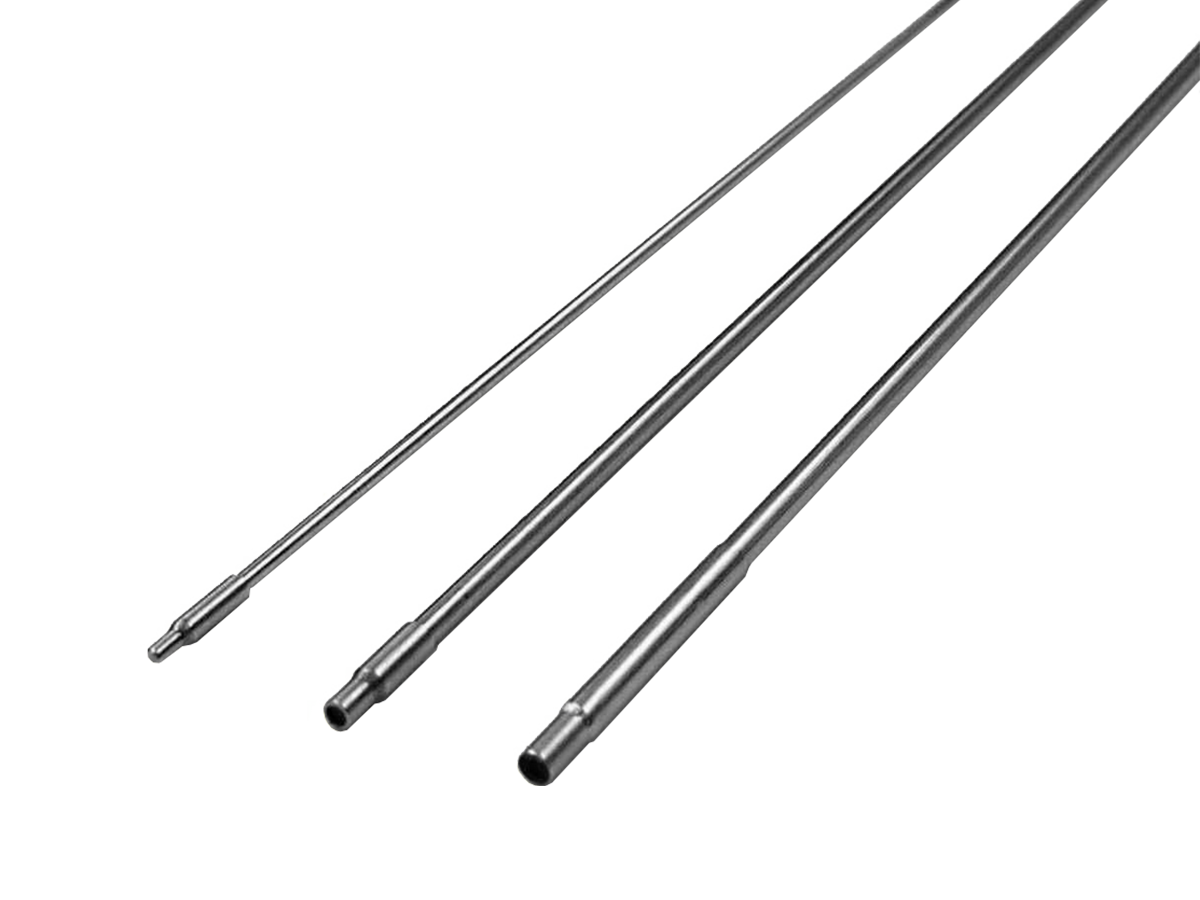

Universal guide tube MicroDrive for micro and DBS electrodes
Item no.: 230887Universal guide tube MicroDrive for micro and DBS electrodesElectrode guide tube 20 mm before target, DBS guide tube 30 mm before target, OD=1.65 mm, ID=1.0 mm, packed individually, disposable product, EO sterilised
Available
Add to watch list

Electrodes for the ISIS MER systems

Three different MER electrode designs allow flexible adaptation to different target structures.

Product features

Precise electrophysio­logical localisation of anatomical target points
Precise electrophysio­logical localisation of anatomical target points

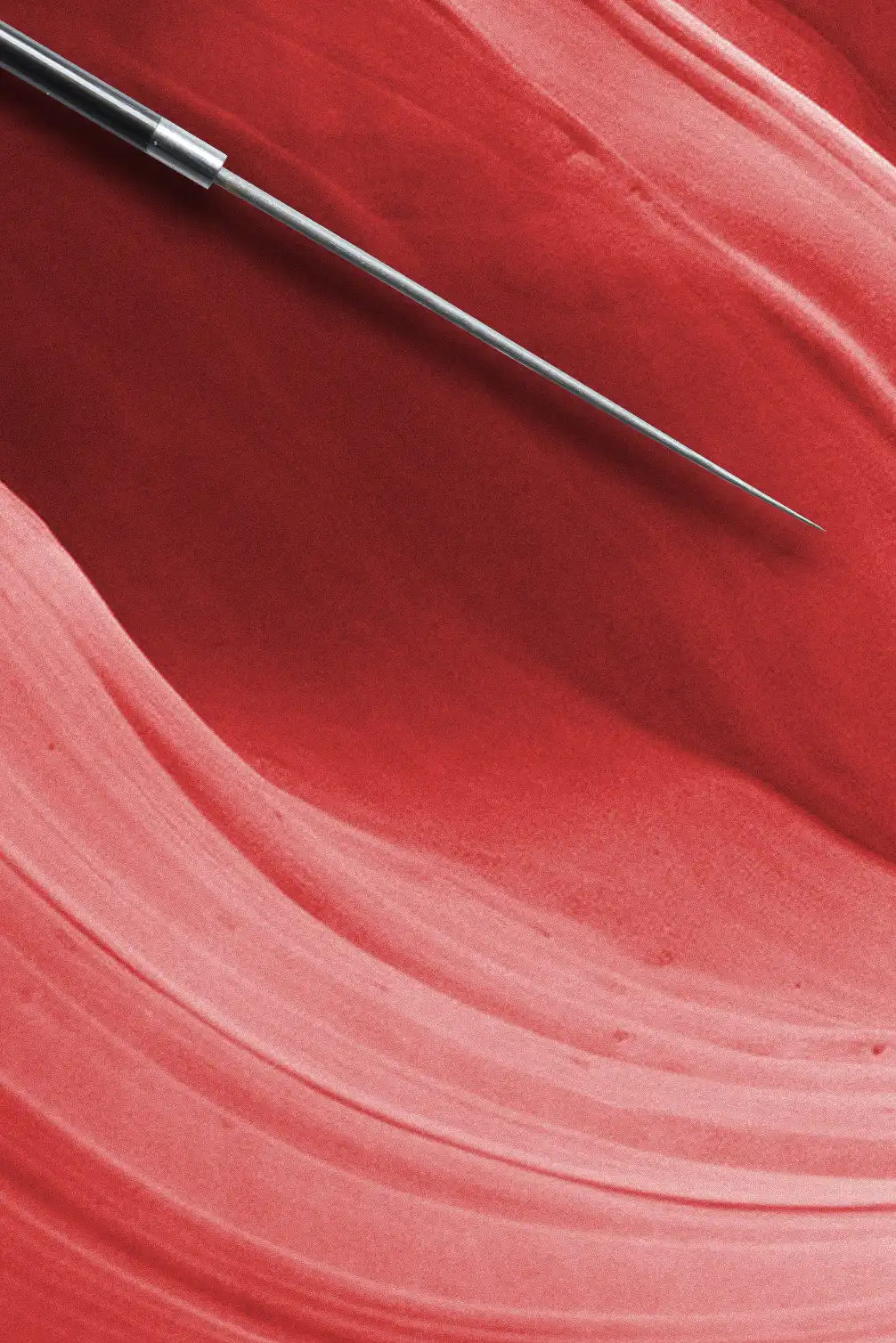

MicroMacro electrode
The MicroMacro electrode was specially developed for precise electrophysiological determination of the anatomical target point during functional interventions. The innovative design combines an ultrafine micro tip with a ring-shaped macro contact. The micro tip allows the recording of individual neurons, while the macro contact is also used for test stimulation.
Ideal for brain surgery with electrophysio­logical determination of the anatomical target point for stereotactic-functional interventions such as deep brain stimulation
Precise electrophysiological localisation of anatomical target points
Precise electrophysiological localisation of anatomical target points

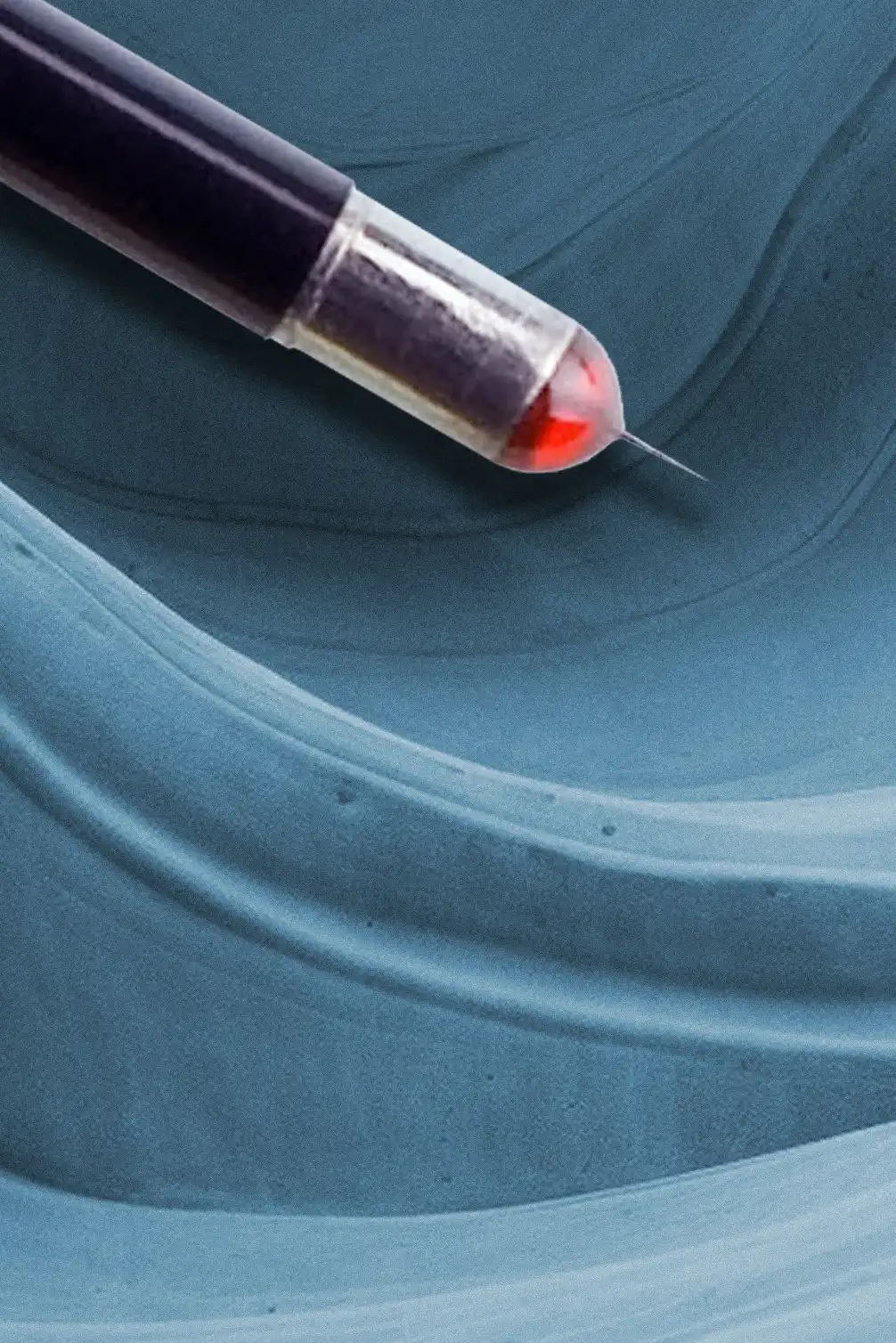

MicroMove electrode
The MicroMove electrode is a combined electrode for precise electrophysiological determination of the anatomical target point during functional interventions. The electrode has a movable micro tip for single-cell recording. This movable micro tip minimises tissue displacement and enables high-precision application.
A combined electrode for the precise electrophysiological localisation of anatomical target points in the human brain during brain surgery
Precise electrophysiological localisation of anatomical target points
Precise electrophysiological localisation of anatomical target points

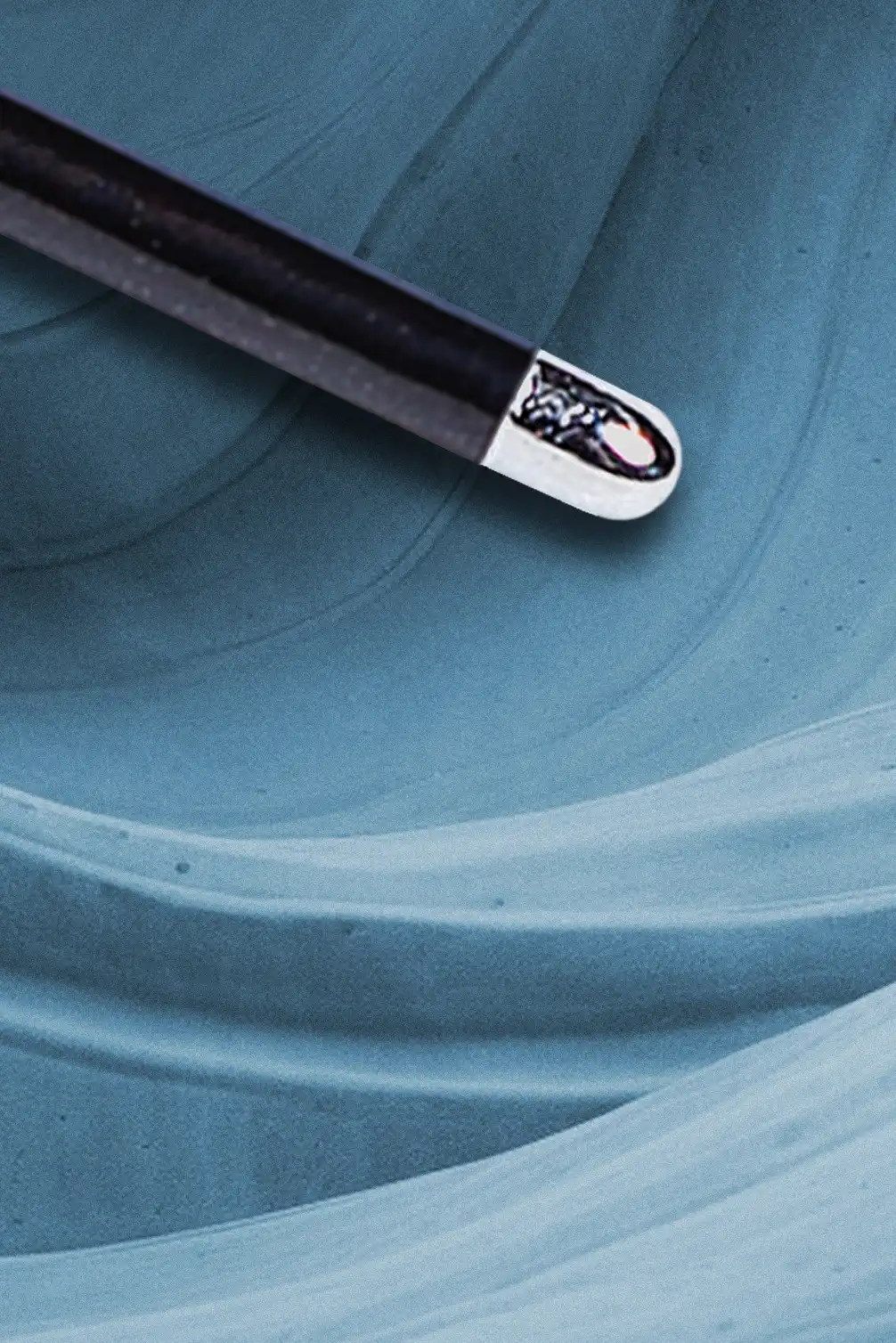

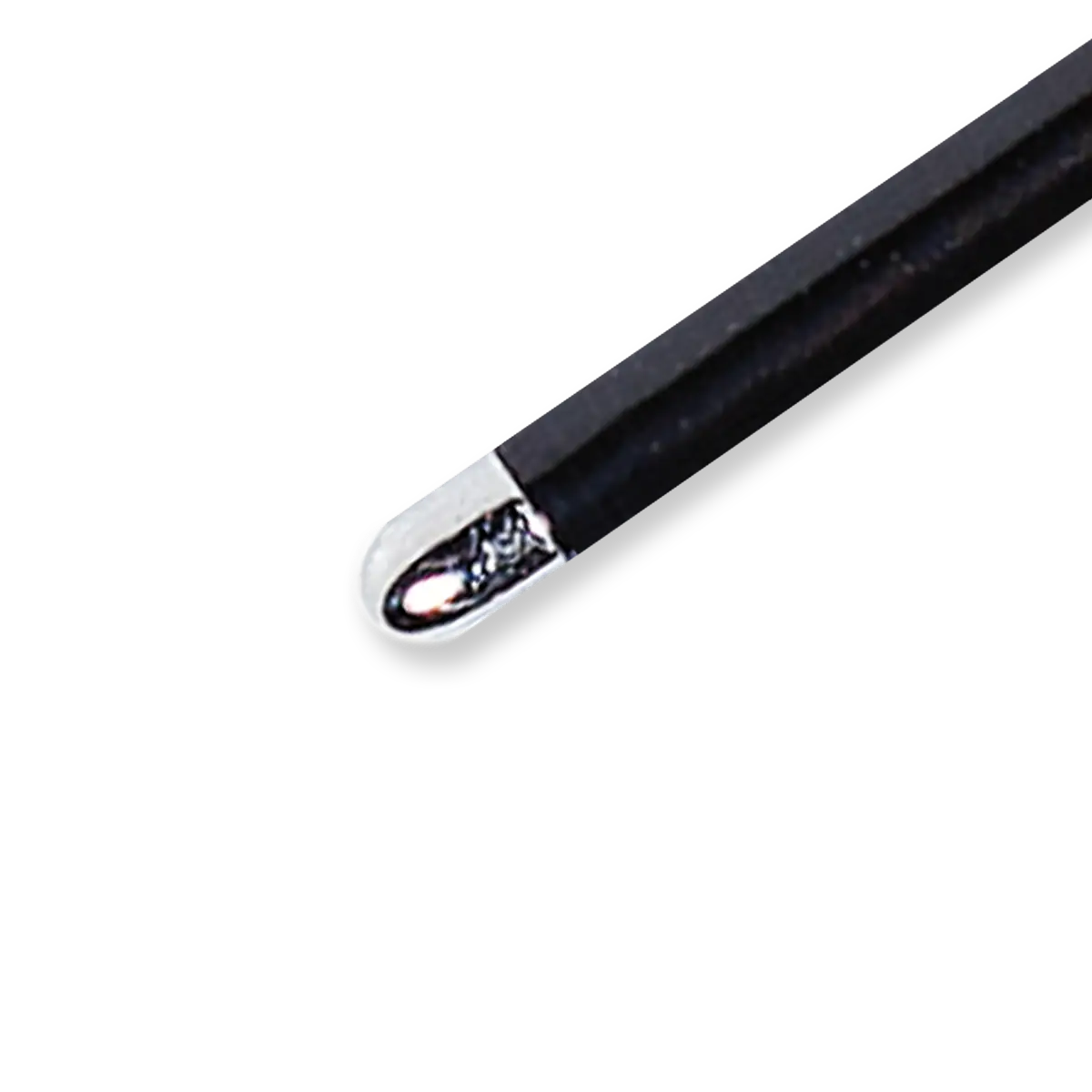

Macro electrode
The Macro electrode is used to precisely determine the anatomical target point with the help of selective test stimulation. The mode of operation is similar to that of a DBS electrode, whereby it is used specifically to obtain feedback on the stimulation effects during the intervention.
This electrode can be used to determine the anatomical target point by selective test stimulation during brain surgery
