inomed Medizintechnik GmbH
ProductsFunctional Neurosurgeryinomed Planning System
inomed Planning System (iPS)The inomed Planning System (iPS) – your solution for precise and efficient stereotactic interventions. The user-friendly interface, combined with powerful tools, enables intuitive and reliable planning.
inomed Planning System (iPS)inomed Planning System (iPS)inomed Planning System (iPS)
ProductsFunctional Neurosurgeryinomed Planning System
inomed Planning System (iPS)The inomed Planning System (iPS) – your solution for precise and efficient stereotactic interventions. The user-friendly interface, combined with powerful tools, enables intuitive and reliable planning.

Thanks to a unique software solution, the system can be expanded to plan stereotactic brachytherapy in the brain. In addition, the volume modelling tool provides a 3D representation of individual RF lesions in the brain and improves the planning process for different lesion techniques.


Flyer – inomed Planning System
Variants Extensions Accessories
Request demoRequest information
Variants
inomed Planning Software iPS, 3D stereotactic applications
Item no.: 300100inomed Planning Software iPS, 3D stereotactic applicationsOnly applies with the fusion module expansion (300208). The volume module for 3D visualisation of individual lesion volumes for planning various lesion techniques or the brachytherapy module for planning the stereotactic insertion of seeds can be expanded if required.
Available
Add to watch list
iPS Trial Licence valid for 3 months
Item no.: 300330iPS Trial Licence valid for 3 monthsTest licence for 3 months for clinical use. This licence includes all three expansions: fusion module (300208), volume module (300170) and brachytherapy module (300160).
Available
Add to watch list
Extensions
Fusion module for iPS automatic coregistration
Item no.: 300208Fusion module for iPS automatic coregistrationFor the fusion of registered image series, e.g. CT scans with and without contrast agent, MRI scans with different parameters, preoperative and postoperative scans as well as PET scans.
Available
Add to watch list
Volume module for iPS planning for lesions
Item no.: 300170Volume module for iPS planning for lesionsFor 3D visualisation of individual lesion volumes for the planning of different lesions in the brain and to improve the planning process for different lesion techniques.
Available
Add to watch list
Brachytherapy module for iPS planning of seed implantation
Item no.: 300160Brachytherapy module for iPS planning of seed implantationSafe and precise brachytherapy treatment involves determining the positioning, strength and dwell time of the radiotherapeutic sources.
Available
Add to watch list
Accessories
PC for inomed Planning Software iPS
Item no.: 300300PC for inomed Planning Software iPSiPS Configuration: Windows 10 Pro 64 Bit, Intel Core i7-13700, 16 GB RAM, 512 GB Solid-State-Drive, Intel UHD-Graphics 630, 1 x 24" wide screen full HD Display, Colour laser printer
Available
Add to watch list

Safe trajectory planning

The inomed Planning System (iPS) – your solution for precise and efficient stereotactic planning. The application-oriented interface combined with powerful tools enables intuitive planning that integrates seamlessly into your workflows. Enjoy the freedom to use different imaging modalities and stereotactic systems to implement both individual and proven workflows.

Product features

Trajectory planning
Trajectory planning
Powerful tools

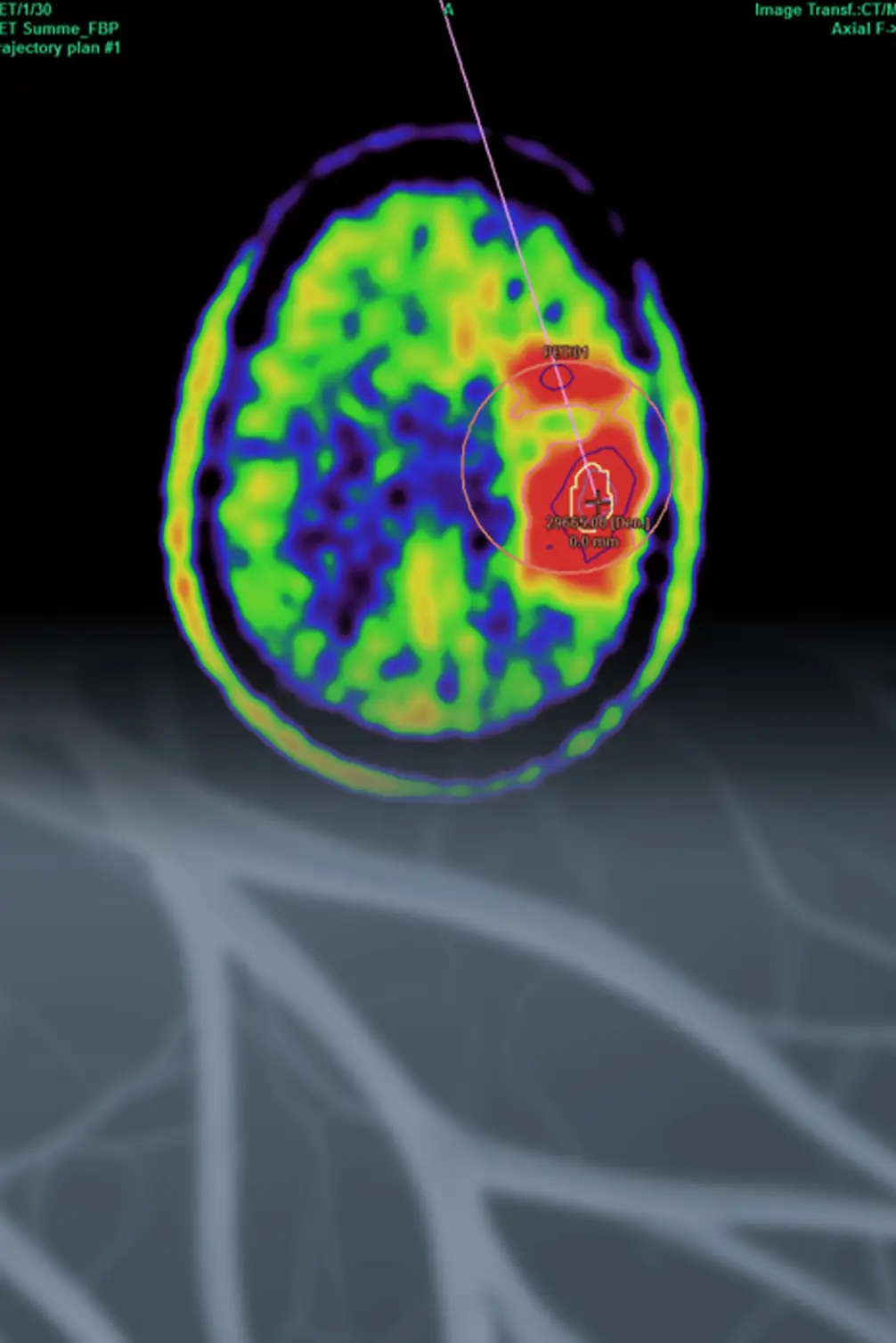

Hotspot tool
  • Quantitative identification of the most active tissue of the tumour
  • One-click target point definition based on calculated hotspot (PET)

MicroDrive tool
  • Visualisation of up to 5 trajectories (Ben-Gun)
  • Safety for all planned trajectories

Semi-automatic brush tool
  • Easy segmentation of anatomical structures
  • 3D visualisation of the ROI

Coordinate-based 3D animation of the stereotactic system
  • Final check of the planned intervention for possible mechanical collisions of the stereotactic system
  • Spatial understanding of the stereotactic setup in the OR
For efficiency and safety
Application-oriented workflows
Application-oriented workflows
Intuitive workflows
Brachytherapy – seed implantation
  • Physical calculations based on empirical recommendations of the TG43 working group
  • Optimisation tool for seed strength and position for ideal coverage of the tumour

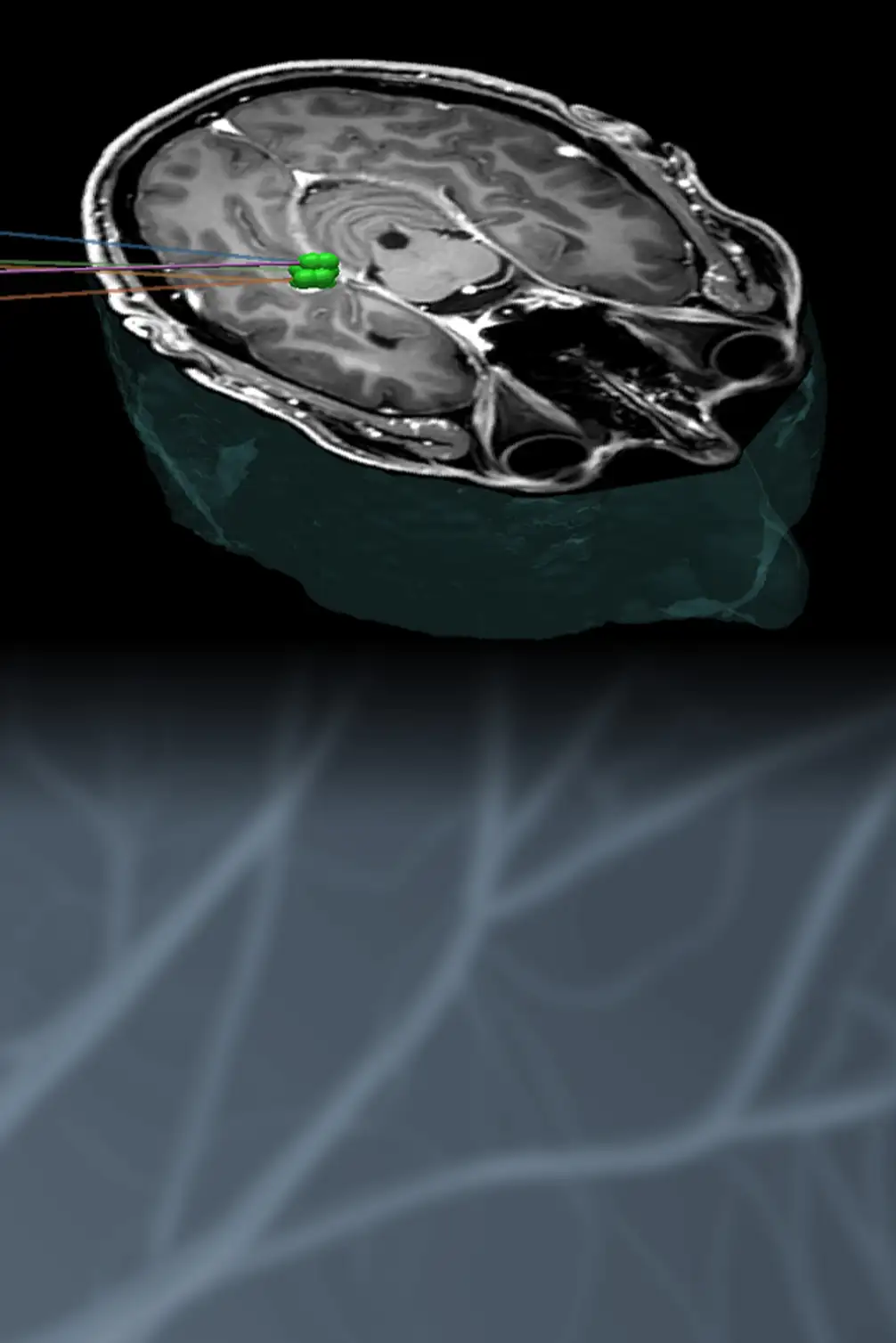

3D object modelling tool – Rf lesion planning
  • Visualisation and preoperative planning of various lesion techniques
  • Customised selection of lesion forms
  • Multiple trajectories for sEEG planning
  • Electrode catalogue with various electrodes for brain lesions
A clear path to the trajectory for every application
Compatibility
Compatibility
Individual freedom
Supports common imaging techniques
  • MRI
  • CT
  • X-ray
  • PET

Supports common stereotactic systems
  • inomed ZD
  • inomed RM
  • Elekta G-frame
  • Adeor Zeppelin
  • CRW Radionics
For imaging modalities and stereotactic systems

Relevant procedures

Relevant application fields

FAQ

Can the inomed Planning System be used to visualise 3D views of the patient’s skull?

The possibility to quickly generate 3D views of the patient’s skull helps to verify target point planning for a stereotactic procedure. By projecting the stereotactic systems used, the users receive a realistic visualisation of the arrangement and effect of the trajectory planning on the system configuration.

Which imaging techniques are supported and can be processed?

CT, MRI, PET and X-ray images are supported.

Which measuring functions can be used to verify the trajectories?

The iPS is complemented by many other functions, such as measuring distances, angles and areas. For the verification of the trajectory, the images can be aligned to all typical sectional planes (sagittal, coronal, axial plane) and additionally adjusted according to the top view of the trajectory (perpendicular or probe’s eye) or along the trajectory.

Further information

Flyer – inomed Planning System
