ProductsAblationVIVA RF System
VIVA RF SystemExperience high precision with the VIVA RF System. This radiofrequency system sets a benchmark for medical engineering and innovation. Its advanced radiofrequency technology is highly effective across multiple applications.
VIVA RF SystemVIVA RF SystemVIVA RF System
ProductsAblationVIVA RF System
VIVA RF SystemExperience high precision with the VIVA RF System. This radiofrequency system sets a benchmark for medical engineering and innovation. Its advanced radiofrequency technology is highly effective across multiple applications.

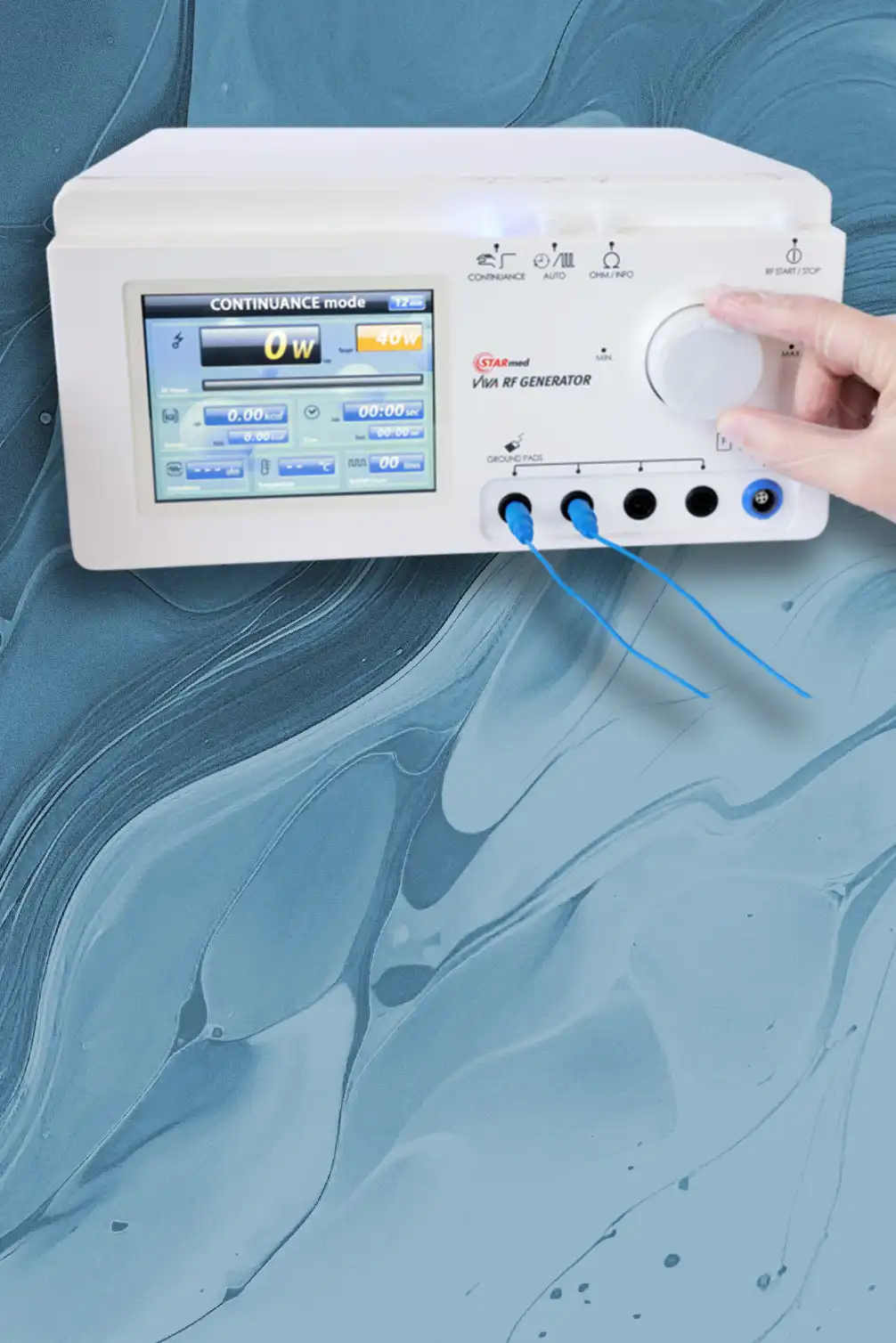

The VIVA RF Generator is an ablation system with temperature and impedance control and is suitable for both monopolar and bipolar applications. It is compatible with all 1-channel electrodes from STARmed and has a continuous mode designed specifically for RFA of thyroid nodules and uterine fibroids.


Brochure – VIVA RF GeneratorBrochure – Thyroid RFABrochure – Uterine fibroid RFA
Variants Accessories
Request demoRequest information
Variants
VIVA RF System, consisting of VIVA RF Generator and VIVA Pump
Item no.: VRFSVIVA RF System, consisting of VIVA RF Generator and VIVA PumpSystem for radiofrequency ablation with impedance and temperature control. Suitable for monopolar and bipolar single-electrode ablation in many application fields. The system features an intuitive user interface and a special mode for RFA of thyroid nodules and uterine fibroids.
Available
Go to product page
Add to watch list
Accessories
star RF Electrode – Fixed
star RF Electrode – FixedThe radiofrequency electrodes of the monopolar star RF Electrode series from STARmed are versatile and can be used for all possible applications. This is made possible by the large selection of different sizes and lengths. The electrodes offer optimal flexibility thanks to their simplicity and functionality.
Available
star RF Electrode – Bipolar
star RF Electrode – BipolarThe radiofrequency electrodes of the bipolar star RF Electrode series from STARmed are versatile and can be used for all possible applications. This is made possible by the large selection of different sizes and lengths. The electrodes offer high patient safety, as the current does not have to be conducted through additional reference electrodes on the patient’s body.
Available
VIVA RF Electrode_V2
VIVA RF Electrode_V2Radiofrequency electrodes in the VIVA II series offer maximum flexibility during applications thanks to the adjustable length of the active tip. The active tip can be adjusted over a length of 5 mm to 30 mm using a slider. The VIVA II electrodes are suitable for all radiofrequency applications.
Available
Foot switch for RF Generator for power up/down function of the coagulation
Item no.: FS02-01RFoot switch for RF Generator for power up/down function of the coagulationFoot switch to increase or decrease the power output of the generator
Available
Add to watch list
Single foot switch for start/stop function of the ablation
Item no.: FS01-02RSingle foot switch for start/stop function of the ablationFoot switch to turn the ablation on and off
Available
Add to watch list

VIVA RF System

The versatile application of the VIVA RF System enables minimally invasive interventions at up to 200 watts of power. The radiofrequency generator is impedance-controlled and has an automatic switch-off function. This contributes to a high level of patient safety. The expansion with a foot switch enables optimal handling during the procedure. The system is complemented by a peristaltic pump. This makes it possible to cool any electrode internally in order to achieve an optimal ablation zone within each application field. The system is designed for both monopolar and bipolar electrodes.

Product features

Automatic impedance control
Automatic impedance control
Impedance monitoring
When a predefined impedance threshold is reached during ablation, the radiofrequency generator shuts off automatically. This ensures that no carbonisation takes place in the tissue and that the coagulated tissue can be broken down by the body’s own immune system in the best possible way.
Increased patient safety thanks to automatic shut-off after reaching a predefined impedance.
Monopolar and bipolar electrode compatibility
Monopolar and bipolar electrode compatibility
Monopolar & bipolar
The many different 1-channel STARmed electrodes are all compatible with the 1-channel VIVA RF System. Both bipolar and monopolar ablations are possible. The monopolar technology requires the current to be fed back via neutral electrodes, which are included with the electrodes. The various electrodes are available with diameters between 15G and 19G and shaft lengths between 7 cm and 30 cm. This makes them suitable for a wide range of applications.
The VIVA RF System is compatible with both monopolar and bipolar STARmed electrodes. These are characterised by their exceptionally sharp electrode tip.
Cooling system for all STARmed electrodes
Cooling system for all STARmed electrodes
Internal electrode cooling
All STARmed electrodes are equipped with a cooling system. This ensures reliable handling in all application fields. The cooling system makes it possible to achieve not only a large but also a linear spread of the ablation zone. Cooling limits the tissue temperature so that necrosis but not carbonisation occurs in the tissue. This enables the body's immune system to break down the dead tissue.
The internal cooling of all STARmed electrodes results in a balanced ablation zone and temperature regulation.

Relevant procedures

Relevant application fields

Application accessories

The VIVA RF System can be equipped with a wide range of accessories. It is important to select the right radiofrequency electrode for each application.

Go to VIVA RF System accessories

FAQ

Does the VIVA RF System display the power output?

Yes, the display shows the output power required for the ablation zone in kcal.

Is the pump for electrode cooling integrated in the generator?

The peristaltic pump is not integrated in the generator. This enables more flexibility in equipment positioning to suit the individual procedure setting.

Further information

Brochure – VIVA RF Generator
Brochure – Thyroid RFA
Brochure – Uterine fibroid RFA
Flyer – STAR RF Electrode monopolar
Flyer – STAR RF Electrode bipolar
Flyer – VIVA Electrode
