Neuromonitoring during resection of vestibular schwannomas

Surgical treatment of vestibular schwannomas is challenging for many reasons. Not only positioning, access route and wound closure require special care, but also the intraoperative protection of the surrounding cranial nerves and the brainstem is of the utmost importance. Neuromonitoring focuses in particular on the VII and VIII cranial nerves.

Introduction to neuromonitoring in the cerebellopontine angle

Technique

Preparation

Procedure

Monitoring
After the baseline measurements have been completed, the monitoring team should report back to the surgical team whether all planned modalities have produced reproducible measurements or whether pre-existing deficits are limiting the intraoperative measurements. In particular, the surgical strategy can be influenced by this with regard to hearing ability.

Once the access has been made and the tumour resection begins, it is important to keep an eye on the function of the auditory nerve while localising the facial nerve, which is often displaced or fanned out by the tumour. Functional mapping using stimulation has proven to be a reliable method for localisation.

To prepare the mapping, the stimulation probe or Mapping Suction Probe used must be ready on the instrument table. A reference electrode is placed and fixed at the edge of the surgical field, e.g. in the subcutaneous tissue. This electrode and the connection cable of the probe or suction device are then inserted into the appropriate channel of the monitoring system in the non-sterile area by the person responsible for monitoring.

The instruments used can now be tested by the surgeons making contact with the tissue near the reference electrode and the monitorists triggering the stimulation. A current should flow, which the monitoring device reports back.

Low currents are now used to stimulate different parts of the tumour. In the case of very large tumours, it may also be necessary to first perform a debulking and to stimulate during this procedure in order to be warned when the facial nerve is approached.

Seidel et al., 2020. Continuous dynamic mapping to avoid accidental injury of the facial nerve during surgery for large vestibular schwannomas

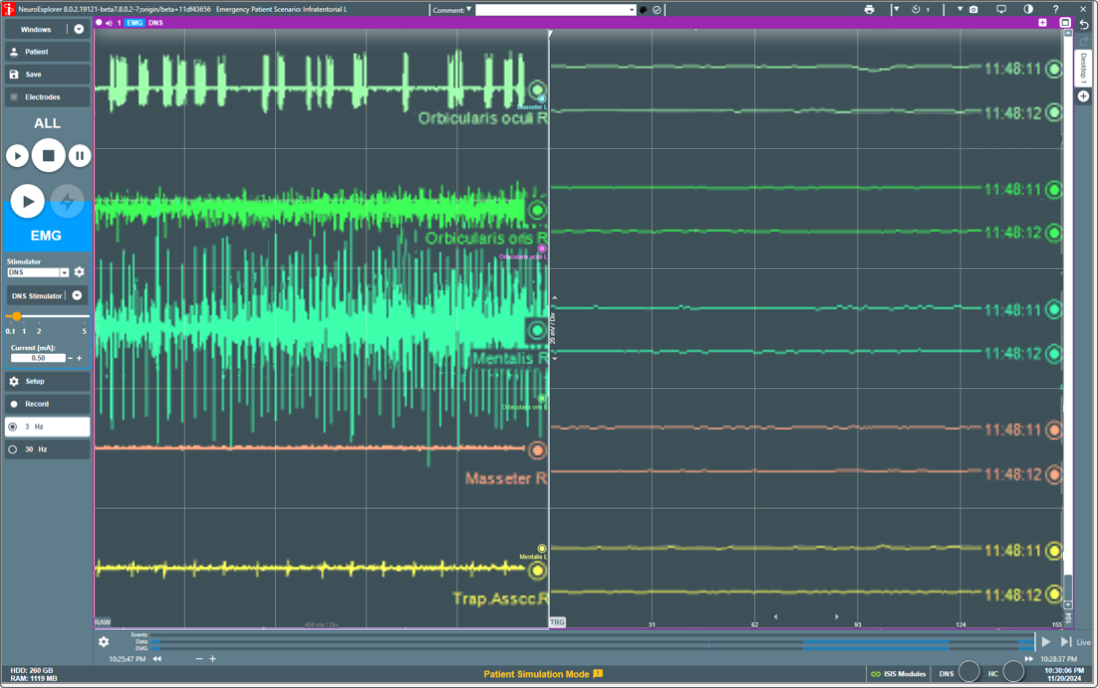

During resection, spontaneous activity in the EMG can be used to detect irritation of the cranial nerves, in particular the facial nerve. Clinically, the high-frequency A-trains are particularly relevant, as they indicate the threat of nerve damage. If A-trains occur more frequently, a change in the surgical strategy is recommended, including a break with warm irrigation if necessary.

If the AEP deteriorates intraoperatively, a surgical break and, if necessary, an improvement in the blood flow situation by raising blood pressure or flushing with vasoactive substances may also be helpful until the measurements normalise. Not to forget: A retractor can also exert tension on the nerves. Repositioning should therefore also be considered.

In this way, the tumour can be gently removed using monitoring. Cranial nerves can be directly stimulated at low intensity for identification and functional testing.

Product information

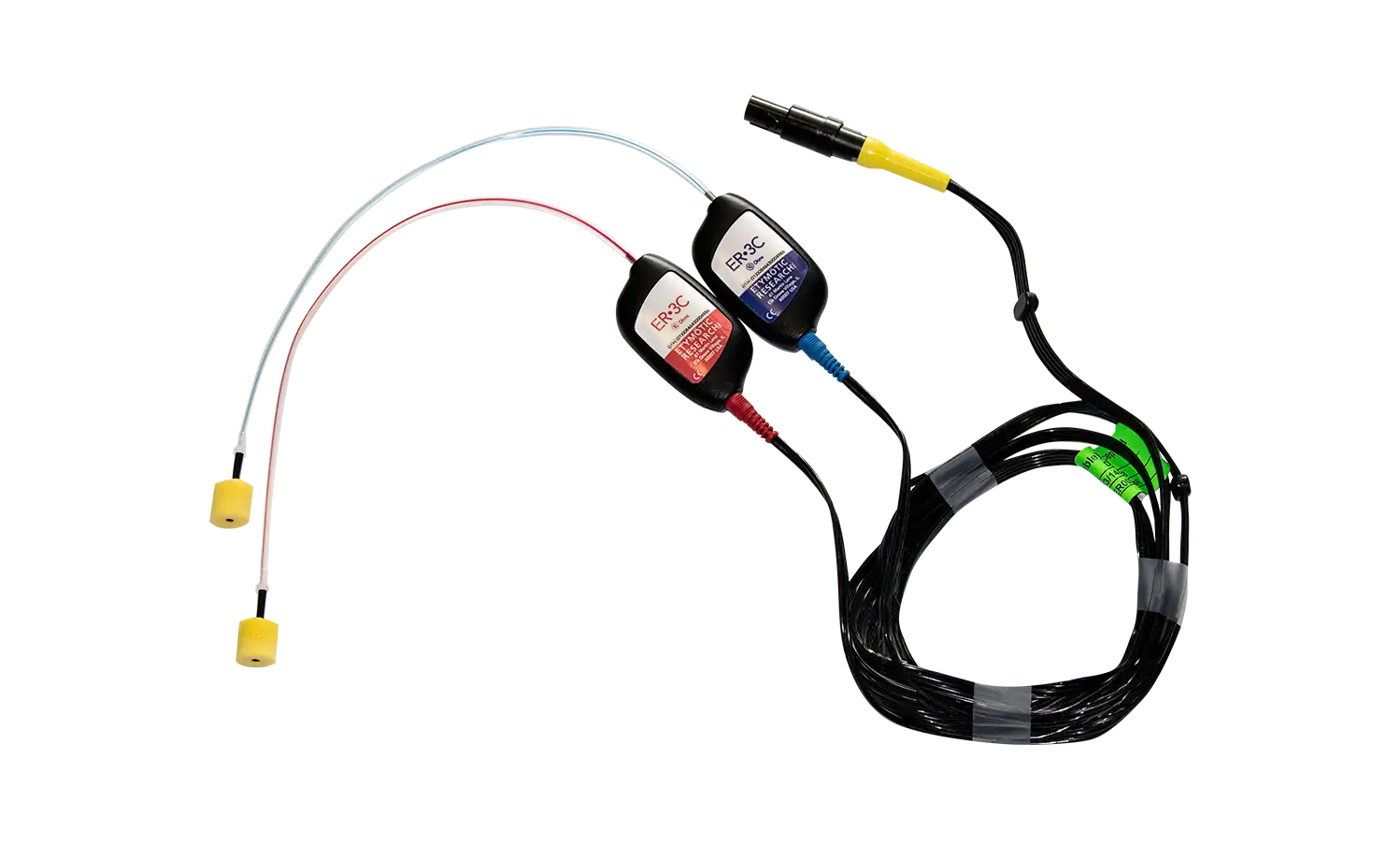

AEP Insert Earphones for ISIS IOM systems and NeMo

540340

AEP Insert Earphones for ISIS IOM systems and NeMo

For ISIS IOM systems with range of earplugs in three different sizes, silicon tubes red and blue, cable length 2 m, with Redel connector yellow, delivered non-sterile, not autoclavable

Add to watch list

SDN electrodes 15/2000, stainless steel

533646

SDN electrodes 15/2000, stainless steel

1.5 mm touchproof connector DIN 42802, pair of electrodes red/black, red/white, blue/black, blue/white, yellow/black, yellow/white, violet/black, violet/white, grey/black, grey/white, needle length=15 mm, needle diameter=0.45 mm, cable length=2000 mm, disposable product, EO sterilised

Add to watch list

Corkscrew electrode set spiral needle 0.6 mm with tip cable 1.5 m

530751

Corkscrew electrode set spiral needle 0.6 mm with tip cable 1.5 m

With 1.5 mm touchproof male connector DIN 42802, 10 sterile sets with each 6 electrodes red, green, yellow, blue, black and white, each individually sterile packed, disposable product, EO sterilised

Add to watch list

SDN electrode RD 15/1000, stainless steel

533626

SDN electrode RD 15/1000, stainless steel

1.5 mm touchproof connector, 1 electrode red, needle length 15 mm, diameter 0.45 mm, cable length 1000 mm, disposable product, EO sterilised

Add to watch list

SDN electrode BU 15/1000, stainless steel

533621

SDN electrode BU 15/1000, stainless steel

1.5 mm touchproof connector DIN 42802, 1 electrode blue, needle length=15 mm, diameter=0.45 mm, cable length=1000 mm, disposable product, EO sterilised

Add to watch list

Oculomotor electrode bipolar, needle 20 mm

532711

Oculomotor electrode bipolar, needle 20 mm

Needle length=20 mm, cable length=1.5 m, 1.5 mm touchproof connector (red and black),disposable product, EO sterilised

Add to watch list

Stimulation probe 130 mm monopolar, bayonet, ball tip

525615

Stimulation probe 130 mm monopolar, bayonet, ball tip

1.5 mm touchproof connector DIN 42802, bayonet, ball diameter=2.5 mm, working length=130 mm, total length with handle=245 mm, with neutral SDN electrode black, cable length=3000 mm, disposable product, EO sterilised

Add to watch list

BCS Probe 130 mm bayonet

522606

BCS Probe 130 mm bayonet

1.5 mm touchproof connector DIN 42802, bayonet, bipolar concentric, working length=130 mm, total length with handle=240 mm, cable length=3000 mm, disposable product, EO sterilised

Add to watch list

Mapping Suction Probe 2/130, monopolar

525656

Mapping Suction Probe 2/130, monopolar

Among others for continuous mapping by Raabe, work length=130 mm, total length=230 mm, Lumen: 6fg–2 mm, isolated, active tip=2 mm, connecting cable: red, neutral electrode: black, cable length=3000 mm, disposable product, EO sterilised

Add to watch list

ISIS Xpert plus 32-channel system for neurosurgery

504004-32CH

ISIS Xpert plus 32-channel system for neurosurgery

The powerful ISIS Xpert plus combines mobility with functionality. It consists of an equipment cart with panel PC, height-adjustable monitor, laser printer, keyboard drawer, two large accessory drawers, constant-current stimulator, amplifier with a total of 32 recording channels (56 inputs: 8 referential and 48 differential) and all necessary adaptor boxes.

Go to product page

Add to watch list

ISIS Xpert 32-channel system for neurosurgery

504005-32CH

ISIS Xpert 32-channel system for neurosurgery

The powerful ISIS Xpert combines mobility with functionality. It consists of an equipment cart with panel PC, keyboard drawer, accessory basket, constant-current stimulator, amplifier with a total of 32 recording channels (56 inputs: 8 referential and 48 differential) and all necessary adaptor boxes.

Go to product page

Add to watch list

ISIS Xpert 16-channel system

504005-16CH

ISIS Xpert 16-channel system

The powerful ISIS Xpert combines mobility with functionality. It consists of an equipment cart with panel PC, keyboard drawer, accessory basket, constant current stimulator, amplifier with a total of 16 recording channels (24 inputs: 8 referential and 16 differential) and all necessary adaptor boxes.

Go to product page

Add to watch list

ISIS Xpress 32-channel system for neurosurgery

504006-32CH

ISIS Xpress 32-channel system for neurosurgery

The ISIS Xpress is the portable version of the ISIS IOM system. It consists of the ISIS Xpress base unit, trolley, notebook, notebook and accessory bag, constant current stimulator, amplifier with a total of 32 recording channels (56 inputs: 8 referential and 48 differential) and all necessary adaptor boxes.

Go to product page

Add to watch list

ISIS Xpress 16-channel system

504006-16CH

ISIS Xpress 16-channel system

The ISIS Xpress is the portable version of the ISIS IOM system. It consists of the ISIS Xpress base unit, trolley, notebook, notebook and accessory bag, constant current stimulator, amplifier with a total of 16 recording channels (24 inputs: 8 referential and 16 differential) and all necessary adaptor boxes.
