Radiofrequency ablation of uterine fibroids

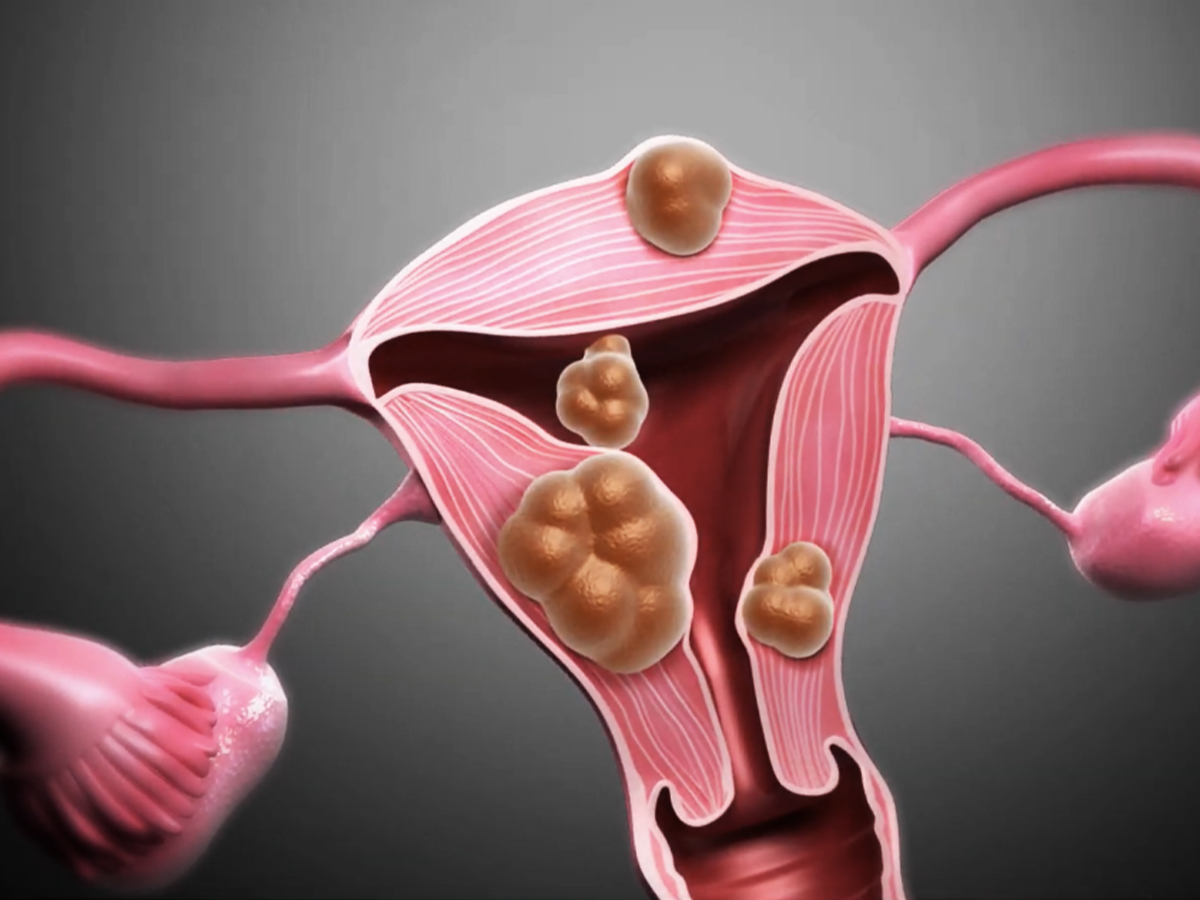

Uterine fibroids are very common, and although the majority of fibroids are benign and do not cause any symptoms, in up to one third of the cases women will experience pain, heavy menstrual bleeding and further complications.

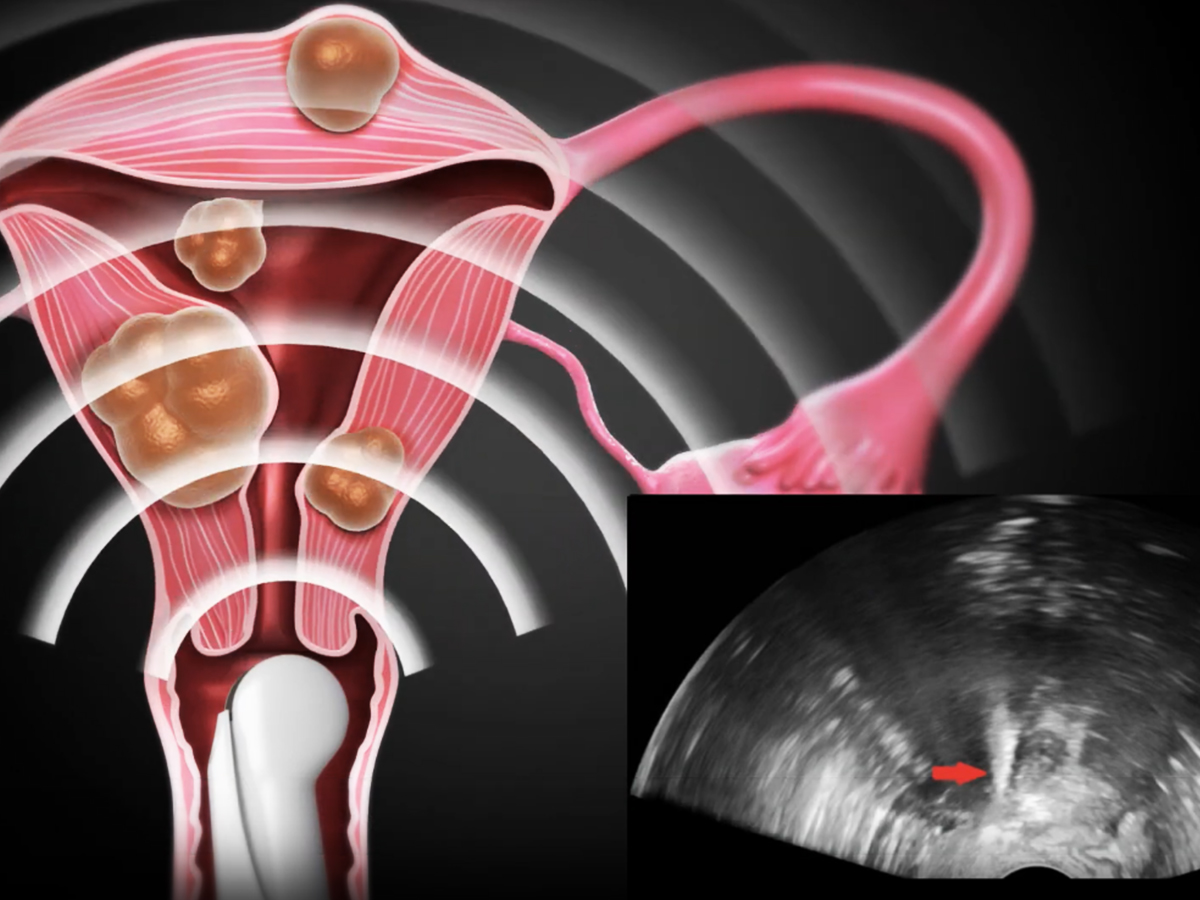

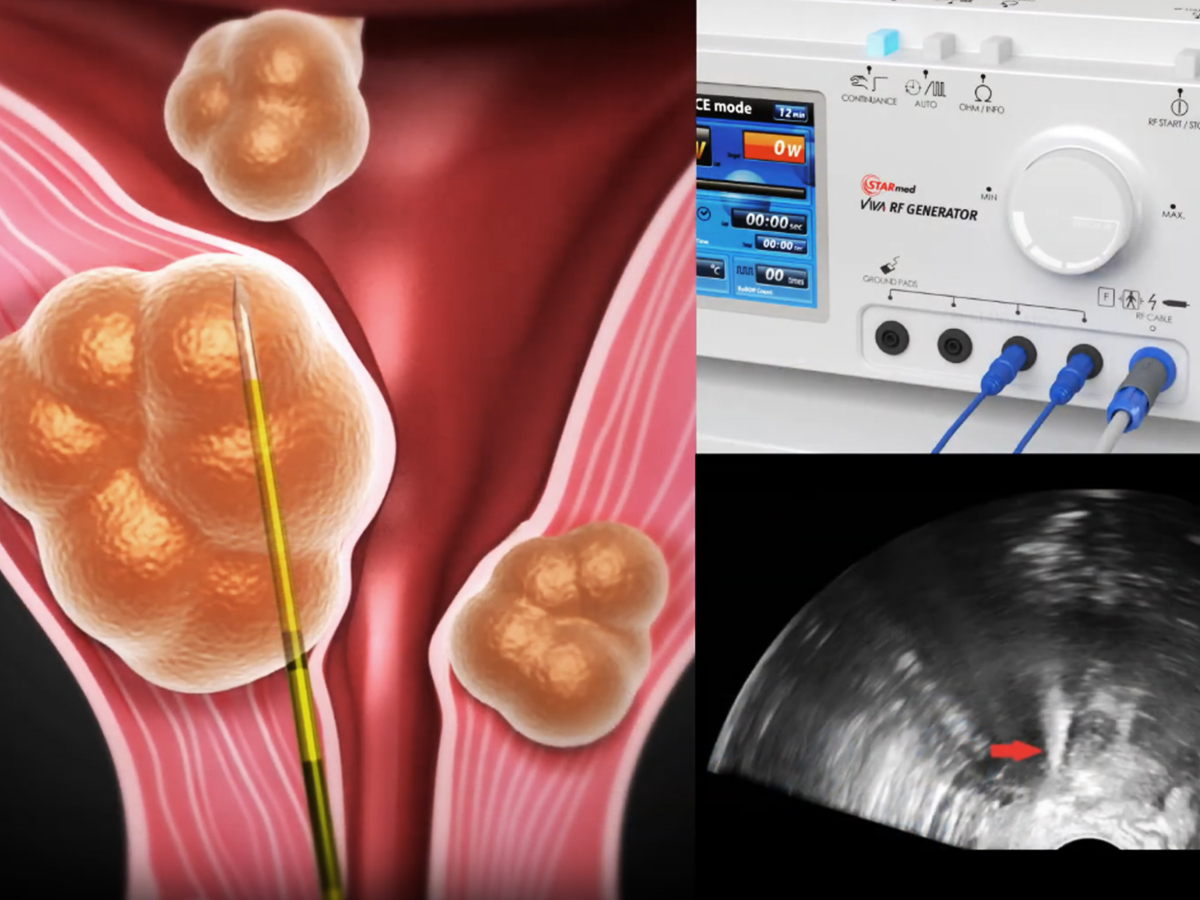

Radiofrequency ablation is a gentle thermoablative procedure in which diseased tissue is destroyed by a high-frequency current, while the healthy surrounding tissue is preserved. The RFA is carried out under ultrasound guidance using special RFA electrodes and an RFA generator. In the context of (interventional) gynaecology, this treatment alternative offers decisive advantages compared to conventional hysterectomy or myomectomy. It is minimally invasive and the diseased tissue can be treated in a targeted manner. Furthermore, a general anaesthetic is not absolutely necessary and the procedure can be performed under local anaesthetic and a sedative.

Brochure – Uterine fibroid RFA

Introduction to radiofrequency (RFA) of uterine fibroids

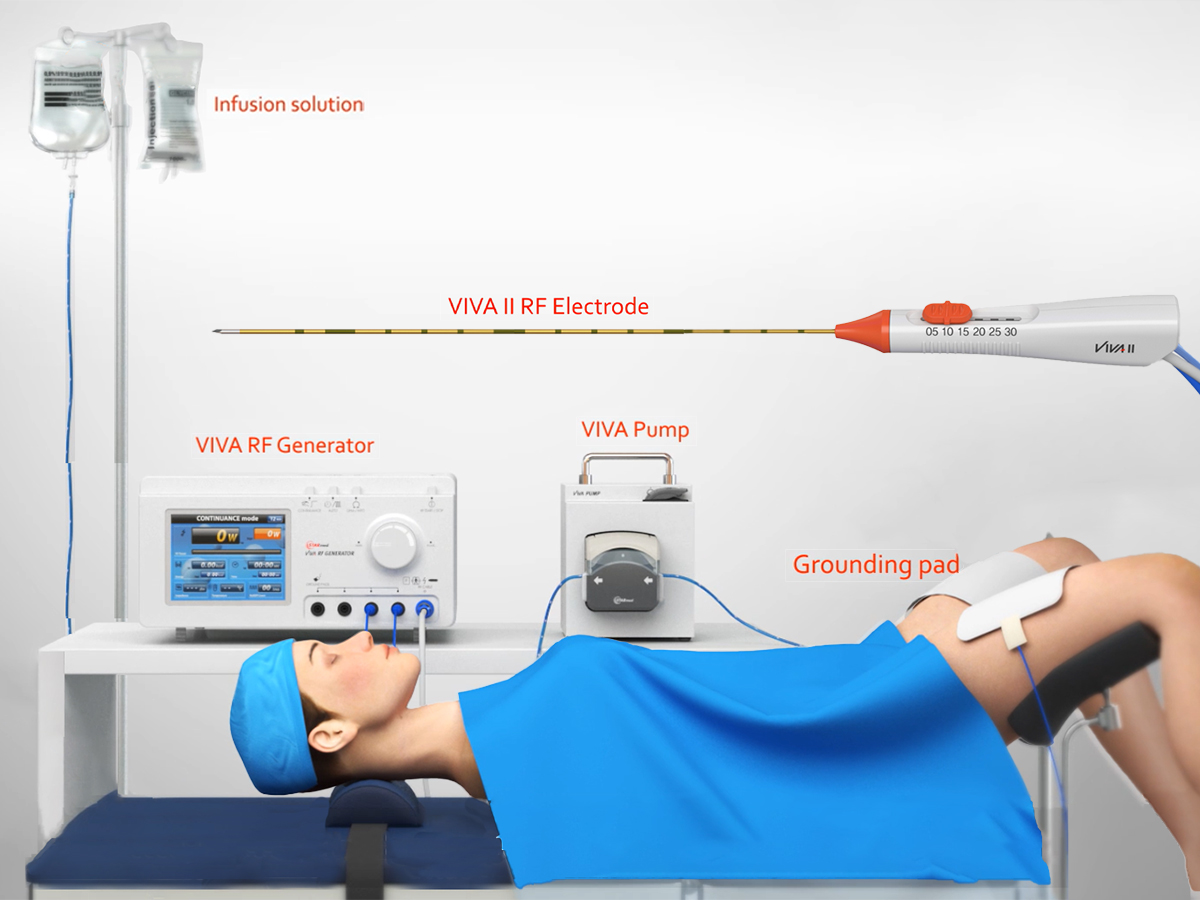

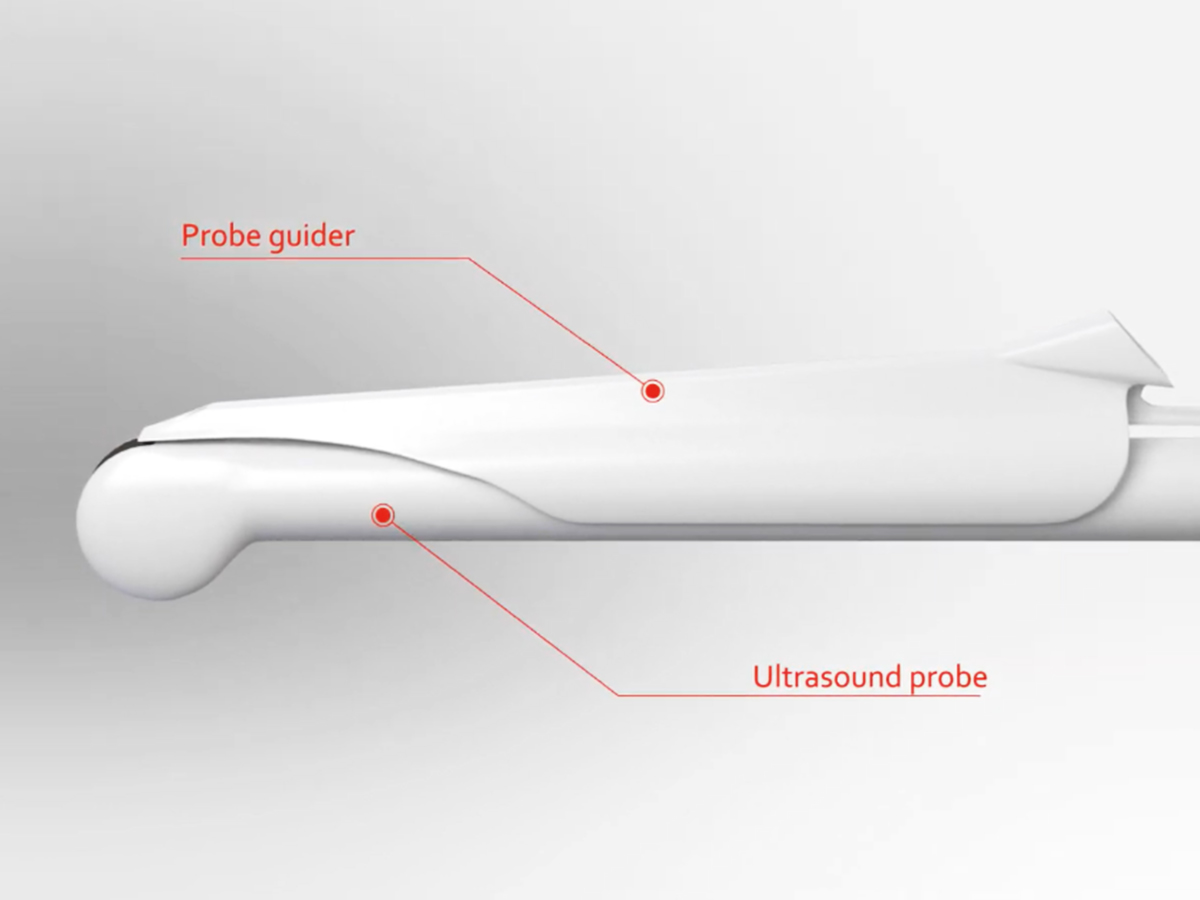

Treatment process

Product information

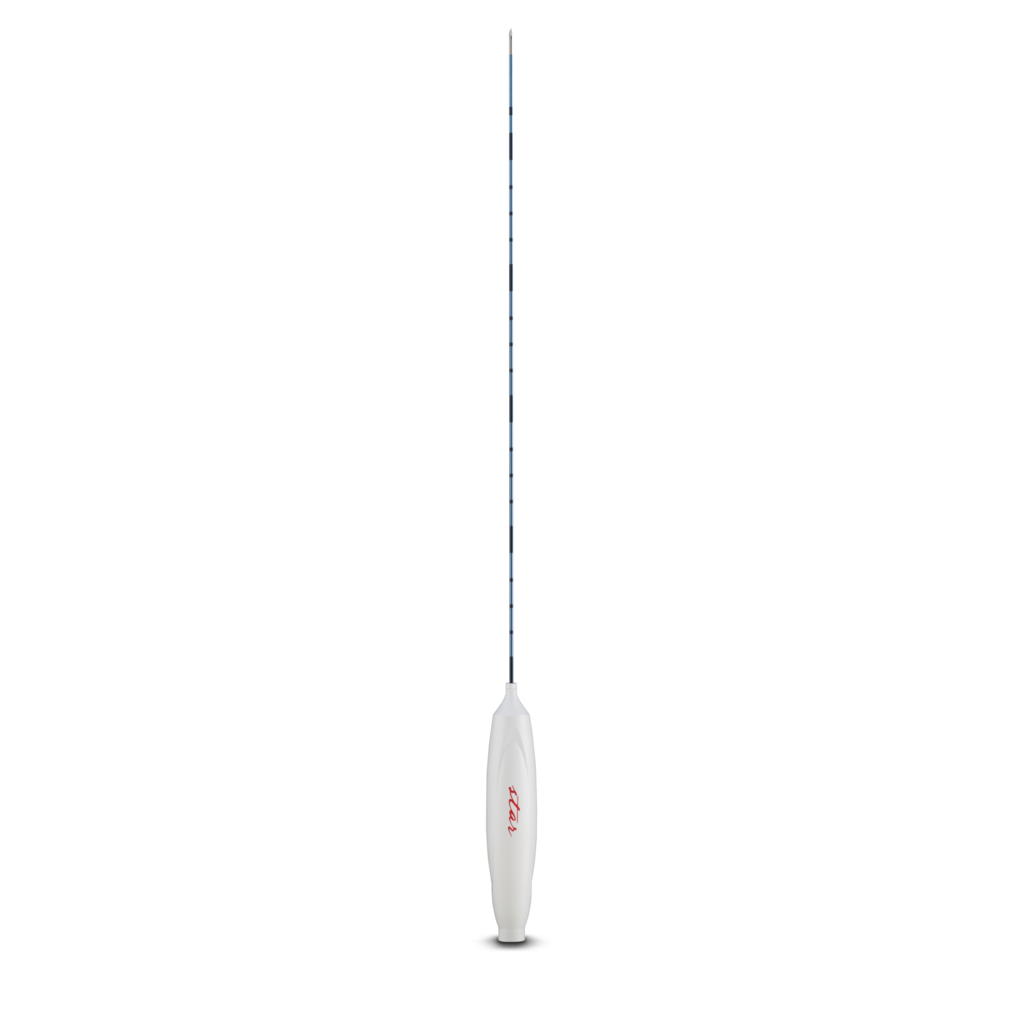

star RF Electrode-Fixed Sterile single-use RF coagulation electrode
star RF Electrode-Fixed Sterile single-use RF coagulation electrode
16-30s10F
star RF Electrode-Fixed Sterile single-use RF coagulation electrode
Monopolar RF electrode with internal cooling for single use. 16 Gauge, shaft=300 mm, active tip=10 mm
Add to watch list

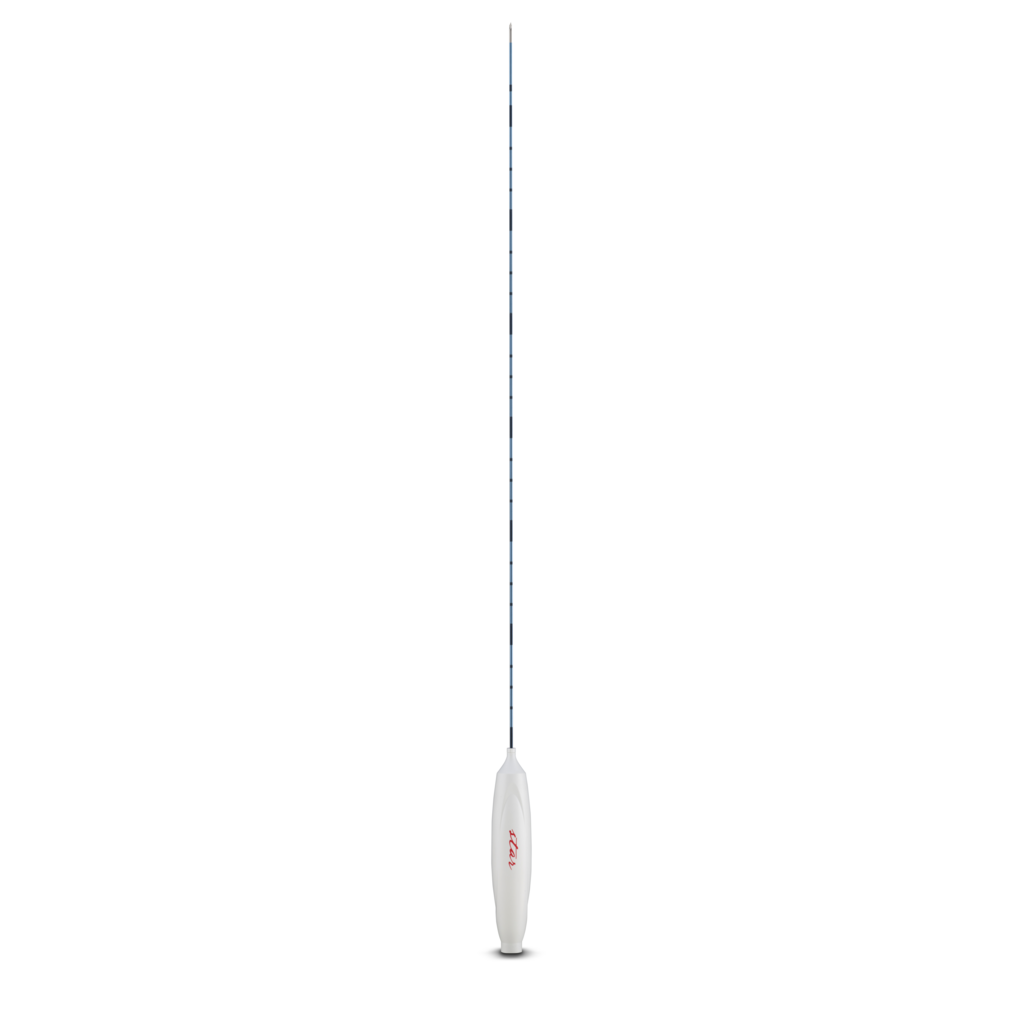

star RF Electrode-Fixed Sterile single-use RF coagulation electrode
star RF Electrode-Fixed Sterile single-use RF coagulation electrode
17-35s10F
star RF Electrode-Fixed Sterile single-use RF coagulation electrode
Monopolar RF electrode with internal cooling for single use. 17 Gauge, shaft=350 mm, active tip=10 mm
Add to watch list

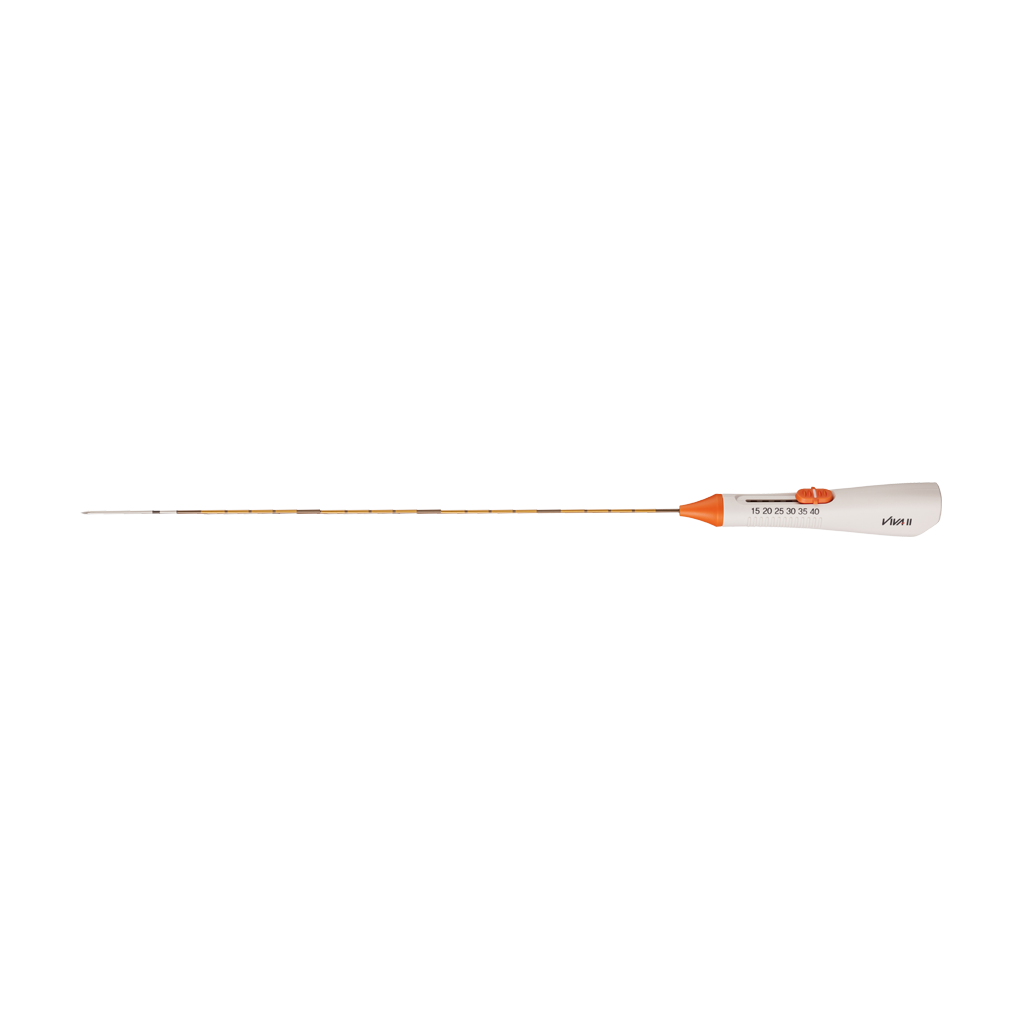

VIVA RF Electrode_V2 Adjustable RF coagulation electrode
VIVA RF Electrode_V2 Adjustable RF coagulation electrode
17-35V05-30X_V2
VIVA RF Electrode_V2 Adjustable RF coagulation electrode
Monopolar RF electrode with internal cooling and adjustable active tip for single use. 17 Gauge, shaft=350 mm, active tip=5–30 mm
Add to watch list
VIVA RF System, consisting of VIVA RF Generator and VIVA Pump
VIVA RF System, consisting of VIVA RF Generator and VIVA Pump
VRFS
VIVA RF System, consisting of VIVA RF Generator and VIVA Pump
System for radiofrequency ablation with impedance and temperature control. Suitable for monopolar and bipolar single-electrode ablation in many application fields. The system features an intuitive user interface and a special mode for RFA of thyroid nodules and uterine fibroids.
Go to product page
Add to watch list
Single foot switch for start/stop function of the ablation
Single foot switch for start/stop function of the ablation
FS01-02R
Single foot switch for start/stop function of the ablation
Foot switch to turn the ablation on and off
Add to watch list

Further procedures of ablation

Further information

Brochure – Uterine fibroid RFA
