ApplicationsProceduresFunctional neurosurgeryStereoelectroencephalography

Stereoelectro­encephalography


Stereoelectroencephalography or stereotactic electroencephalography (sEEG) is a modern diagnostic procedure in functional neurosurgery that is used to precisely identify epileptic foci in the brain. This procedure plays a central role in the planning of epilepsy surgery, especially for patients with treatment-resistant epilepsy. The aim of sEEG is to precisely localise the epileptogenic zone and determine its relationship to functionally important areas of the brain.

What is stereotactic electroencephalography?

Surgical technique

Product information

SUSy stereotactic system for titanium ring
SUSy stereotactic system for titanium ring
808000
SUSy stereotactic system for titanium ring
Center-of-arc principle, two-point fixation for high stability, working length of 190 mm, carbon fibre reinforced PEEK, ultralight weight, crosshairs for position control, vernier display for fine adjustment, lateral and AP mounting options, drumstop for folding the arc out and back into the surgical field, matching cleaning tray included.
Go to product page
Add to watch list
SUSy stereotactic system for ceramic ring
SUSy stereotactic system for ceramic ring
808020
SUSy stereotactic system for ceramic ring
Center-of-arc principle, two-point fixation for high stability, working length of 190 mm, carbon fibre reinforced PEEK, ultralight weight, crosshairs for position control, vernier display for fine adjustment, lateral and AP mounting options, drumstop for folding the arc out and back into the surgical field, matching cleaning tray included.
Go to product page
Add to watch list
ZD module unit with micrometer advance
ZD module unit with micrometer advance
802010
ZD module unit with micrometer advance
Center-of-arc principle, working length of 190 mm, single-point fixation for flexible and easy mounting, lateral and AP mounting options. The scope of delivery also includes instrument holders and instrument guides in two sizes (2–3 mm and 4–8 mm) as well as a matching cleaning tray.
Go to product page
Add to watch list
Headring unit CT compatible for convergence radiation
Headring unit CT compatible for convergence radiation
803004
Headring unit CT compatible for convergence radiation
The set consists of a head ring made of titanium, 4 head fixing posts each in size M (46.5 mm) and XL (91.5 mm), 4 carriers for head fixing posts, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Add to watch list
CT Localisation set for Titanium & Aluminium Headring
CT Localisation set for Titanium & Aluminium Headring
809050
CT Localisation set for Titanium & Aluminium Headring
The Rev R localisation set is designed for use with the closed titanium ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Add to watch list
OSS head ring unit
OSS head ring unit
803005
OSS head ring unit
The set consists of a head ring made of ceramic, 4 CFRP head fixing posts, a locking bow for the option of AP mounting, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Add to watch list
CT/MR Localisation set for OSS incl. transport case
CT/MR Localisation set for OSS incl. transport case
809045
CT/MR Localisation set for OSS incl. transport case
The Rev U localisation set is designed for use with the open ceramic ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Add to watch list
inomed Planning Software iPS, 3D stereotactic applications
inomed Planning Software iPS, 3D stereotactic applications
300100
inomed Planning Software iPS, 3D stereotactic applications
Only applies with the fusion module expansion (300208). The volume module for 3D visualisation of individual lesion volumes for planning various lesion techniques or the brachytherapy module for planning the stereotactic insertion of seeds can be expanded if required.
Go to product page
Add to watch list
LG2-sEEG RF Lesion Generator (1 channel TC and 1 channel sEEG)
LG2-sEEG RF Lesion Generator (1 channel TC and 1 channel sEEG)
263000
LG2-sEEG RF Lesion Generator (1 channel TC and 1 channel sEEG)
The LG2-sEEG: Intuitive lesion generator for thermocoagulation in pain treatment and neurosurgery, specially designed for use with sEEG electrodes. The generator is supplied with the following accessory kit: hand-held remote control for use from a distance of approx. 2.5 m, equipotential cable, neutral surface electrode set, neutral electrode cable and termination plug for the RF function test. No sEEG Box (263001) included.
Go to product page
Add to watch list

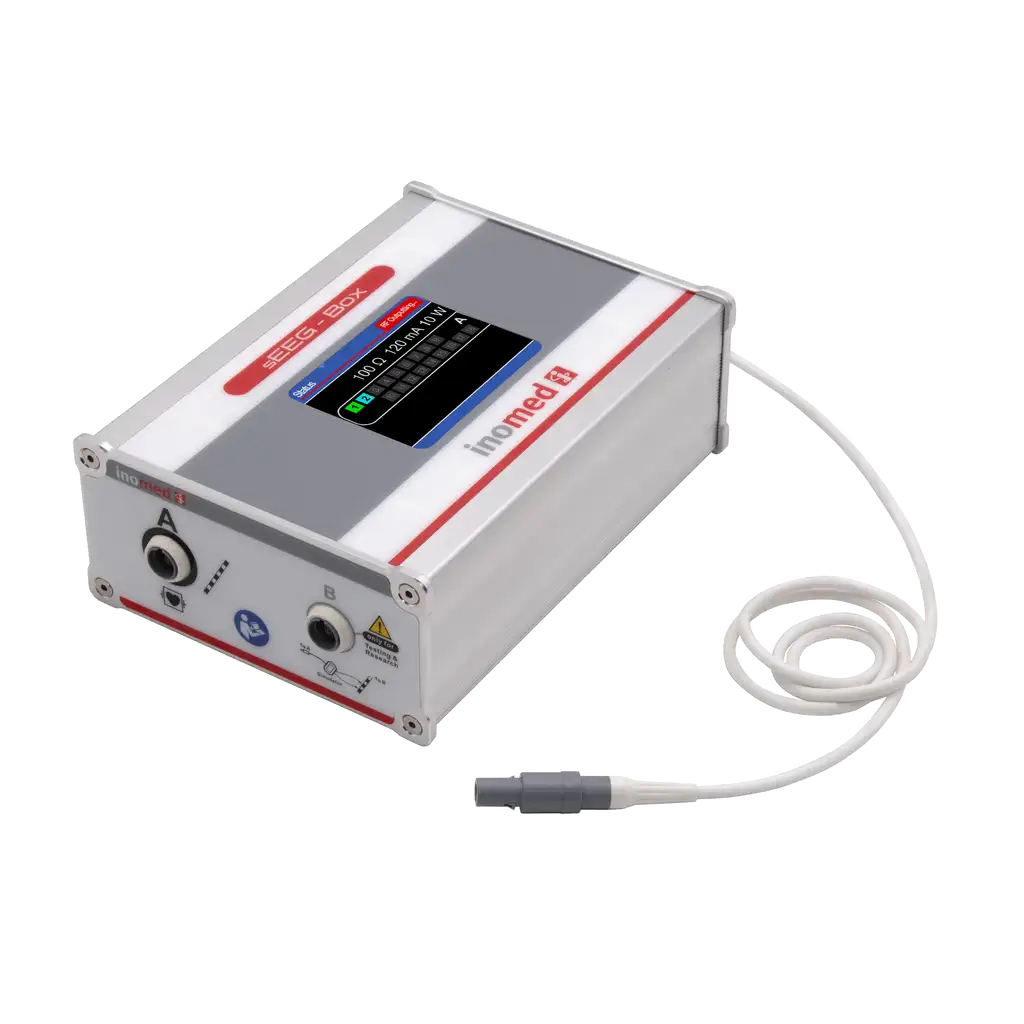

sEEG Box for LG2-sEEG, power-controlled
sEEG Box for LG2-sEEG, power-controlled
263001
sEEG Box for LG2-sEEG, power-controlled
Including LCD display, cable 1.5 m and self-test plug
Add to watch list
TC stereotactic electrode monopolar 2.0x4.0 mm
TC stereotactic electrode monopolar 2.0x4.0 mm
260503
TC stereotactic electrode monopolar 2.0x4.0 mm
Type TCU003, OD=2 mm, active tip=4 mm, effective length=300 mm, with 7-pole Lemosa connector, delivered non-sterile, autoclavable
Add to watch list
TC stereotactic electrode monopolar 1.0x1.5 mm
TC stereotactic electrode monopolar 1.0x1.5 mm
260501
TC stereotactic electrode monopolar 1.0x1.5 mm
Type TCU001, OD=1 mm, active tip=1.5 mm, effective length=300 mm, with 7-pole Lemosa connector, delivered non-sterile, autoclavable
Add to watch list
TC stereotactic electrode bipolar 2.0x2.0 mm
TC stereotactic electrode bipolar 2.0x2.0 mm
260513
TC stereotactic electrode bipolar 2.0x2.0 mm
Type TCB013, OD=2 mm, active tip=2x2 mm, effective length=300 mm, with 7-pole Lemosa connector, delivered non-sterile, autoclavable
Add to watch list
TC stereotactic electrode monopolar 1.0x1.5 mm
TC stereotactic electrode monopolar 1.0x1.5 mm
220401
TC stereotactic electrode monopolar 1.0x1.5 mm
OD=1.0 mm, active tip=1.5 mm, effective length=190.75 mm, with 7-pole Lemosa connection, delivered non-sterile, autoclavable
Add to watch list
TC stereotactic electrode bipolar 2.2x2.0 mm
TC stereotactic electrode bipolar 2.2x2.0 mm
220413
TC stereotactic electrode bipolar 2.2x2.0 mm
OD=2.2 mm, active tip=2x2.0 mm, effective length=193.0 mm, with 7-pole Lemosa connection, delivered non-sterile, autoclavable
Add to watch list

Further procedures of functional neurosurgery
