Nerve-sparing access to the lateral spine

The lateral access to the lumbar spine has the advantage that both the
intervertebral disc space and the vertebral bodies can be worked on and
the sensitive cauda fibres do not restrict the surgical field.

Introduction to the stimulation technique for lateral access to the lumbar spine

Surgical technique

Preparation

Electrode placement
The target muscles of the nerves of the lumbosacral plexus can be monitored using electromyography. Covering all four extremities with different muscle groups ensures that any changes that occur can be analysed quickly and technical defects can be ruled out rapidly.

A setup can contain, for example:

M. abductor pollicis brevis
M. vastus medialis
M. tibialis anterior
M. biceps femoris
M. gastrocnemius

Do not forget to place the ground electrodes.

The electrodes should be placed after the patients have been preoperatively informed and anaesthesia has been induced. Precise placement in the muscle and careful fixation, as well as the use of a bite block to prevent bite injuries, if necessary, must be observed.

Patient positioning
Depending on the access side, the patient is positioned in a padded lateral position. The operating table is bent so that the spine is slightly opened laterally. The height is now determined using X-rays and the skin incision is marked.

Important: Under no circumstances should muscle relaxants be administered during surgery, as these can prevent EMG recordings from being made. A TOF measurement should be carried out before monitoring begins to ensure that there is no residual effect.

Probe connection and technical test

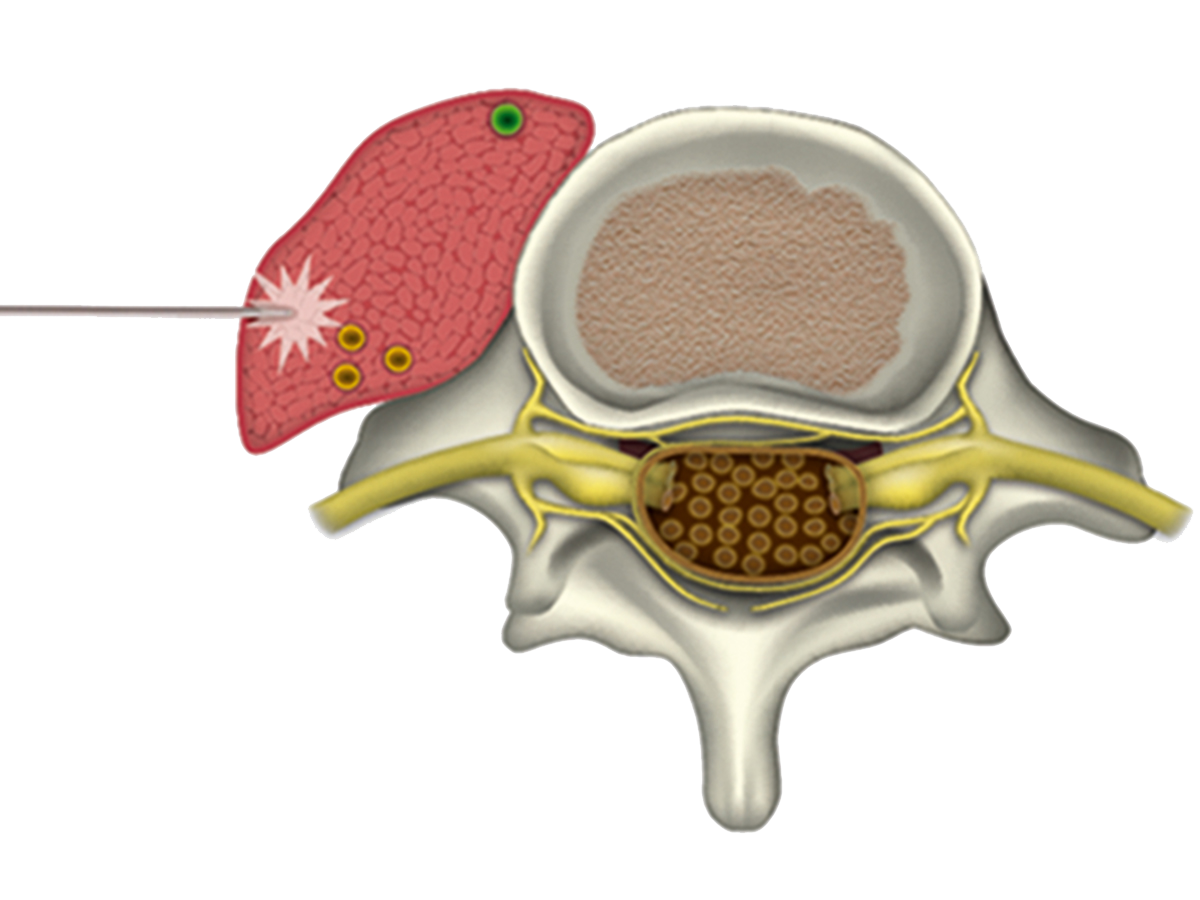

The stimulation probe or stimulated dilator and reference electrode are inserted into the designated stimulation channel of the monitoring device. A functional test can now be carried out by immersing both instruments in a bowl of saline solution and activating the stimulation. The monitoring device should report that a current is flowing. The reference electrode is inserted into the tissue at the edge of the surgical field and firmly fixed. The probe or dilator can now be advanced into the psoas muscle under stimulation.

The following stimulation parameters should be used:

1 pulse, cathodal (negative)
1–3 Hz
10 mA

To ensure that everything is working technically, stimulation should initially be at up to 25 mA to document a positive muscle response. For stimulation, manual EMG programmes or automated stimulation up to a fixed threshold value (e.g. NeuroExplorer Spine or C2 Spine module) can be used.

Procedure

Product information

SDN electrodes 15/2000, stainless steel

533646

SDN electrodes 15/2000, stainless steel

1.5 mm touchproof connector DIN 42802, pair of electrodes red/black, red/white, blue/black, blue/white, yellow/black, yellow/white, violet/black, violet/white, grey/black, grey/white, needle length=15 mm, needle diameter=0.45 mm, cable length=2000 mm, disposable product, EO sterilised

Add to watch list

Spine surgery set for EMG recording

535640

Spine surgery set for EMG recording

Colour-coded needle electrode set, 1.5 mm touchproof connector DIN 42802, pair of electrodes red/black, blue/black, blue/white, yellow/black, yellow/white, violet/black, violet/white, grey/black, grey/white, green ground needle, disposable product, EO sterilised

Add to watch list

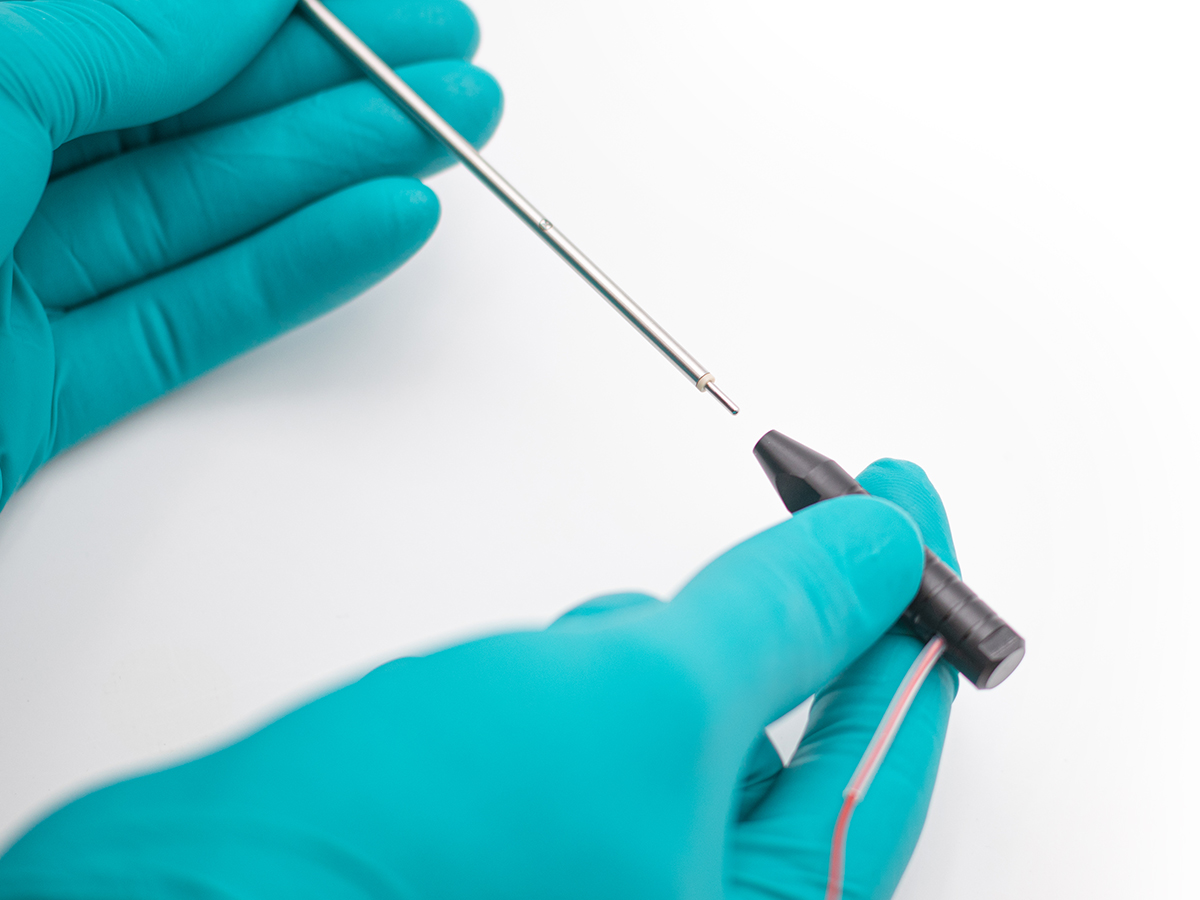

Stimulation probe 200 mm monopolar, straight
