ApplicationsProceduresFunctional neurosurgeryDeep brain stimulation

Deep brain stimulation


Deep brain stimulation (DBS) is a neurosurgical treatment option used for a range of neurological diseases, in particular Parkinson’s disease, but also for dystonia and tremor. The aim of the treatment is to effectively relieve symptoms such as tremor, stiffness and movement restrictions.

What is deep brain stimulation?

Surgical technique

Product information

SUSy stereotactic system for titanium ring
SUSy stereotactic system for titanium ring
808000
SUSy stereotactic system for titanium ring
Center-of-arc principle, two-point fixation for high stability, working length of 190 mm, carbon fibre reinforced PEEK, ultralight weight, crosshairs for position control, vernier display for fine adjustment, lateral and AP mounting options, drumstop for folding the arc out and back into the surgical field, matching cleaning tray included.
Go to product page
Add to watch list
SUSy stereotactic system for ceramic ring
SUSy stereotactic system for ceramic ring
808020
SUSy stereotactic system for ceramic ring
Center-of-arc principle, two-point fixation for high stability, working length of 190 mm, carbon fibre reinforced PEEK, ultralight weight, crosshairs for position control, vernier display for fine adjustment, lateral and AP mounting options, drumstop for folding the arc out and back into the surgical field, matching cleaning tray included.
Go to product page
Add to watch list
ZD module unit with micrometer advance
ZD module unit with micrometer advance
802010
ZD module unit with micrometer advance
Center-of-arc principle, working length of 190 mm, single-point fixation for flexible and easy mounting, lateral and AP mounting options. The scope of delivery also includes instrument holders and instrument guides in two sizes (2–3 mm and 4–8 mm) as well as a matching cleaning tray.
Go to product page
Add to watch list

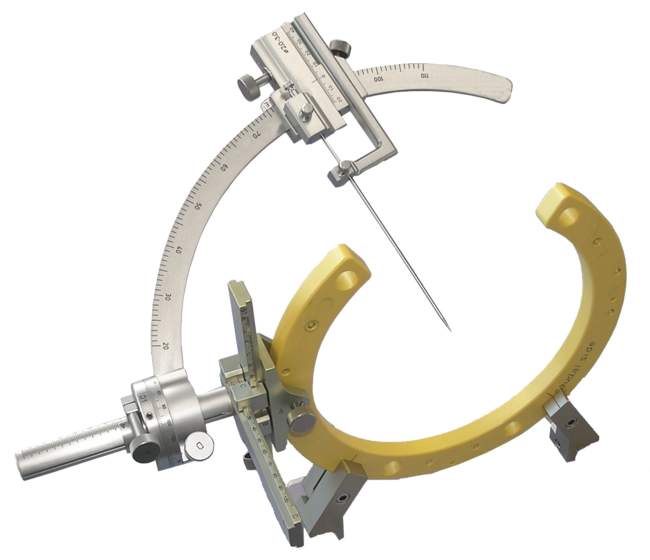

RM stereotaxy unit
RM stereotaxy unit
801000
RM stereotaxy unit
Polar coordinate principle, working length of 280 mm, three-point fixation for maximum stability and precision, positive and negative mounting options. The scope of delivery also includes vertical arcs in two sizes (105° and 85°) as well as a matching cleaning tray.
Go to product page
Add to watch list
Headring unit CT compatible for convergence radiation
Headring unit CT compatible for convergence radiation
803004
Headring unit CT compatible for convergence radiation
The set consists of a head ring made of titanium, 4 head fixing posts each in size M (46.5 mm) and XL (91.5 mm), 4 carriers for head fixing posts, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Add to watch list
CT Localisation set for Titanium & Aluminium Headring
CT Localisation set for Titanium & Aluminium Headring
809050
CT Localisation set for Titanium & Aluminium Headring
The Rev R localisation set is designed for use with the closed titanium ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Add to watch list
OSS head ring unit
OSS head ring unit
803005
OSS head ring unit
The set consists of a head ring made of ceramic, 4 CFRP head fixing posts, a locking bow for the option of AP mounting, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Add to watch list
CT/MR Localisation set for OSS incl. transport case
CT/MR Localisation set for OSS incl. transport case
809045
CT/MR Localisation set for OSS incl. transport case
The Rev U localisation set is designed for use with the open ceramic ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Add to watch list
inomed Planning Software iPS, 3D stereotactic applications
inomed Planning Software iPS, 3D stereotactic applications
300100
inomed Planning Software iPS, 3D stereotactic applications
Only applies with the fusion module expansion (300208). The volume module for 3D visualisation of individual lesion volumes for planning various lesion techniques or the brachytherapy module for planning the stereotactic insertion of seeds can be expanded if required.
Go to product page
Add to watch list
ISIS MER System Complete System
ISIS MER System Complete System
590103
ISIS MER System Complete System
Trolley with PC, widescreen monitor with optional touchscreen function, height-adjustable and rotatable monitor for the best possible view from all angles, powerful loudspeaker system for acoustic inter­pretation of the recording signals, module slider for holding the ISIS Headboxes, laser printer, keyboard drawer, two large drawers for storing accessories.
Go to product page
Add to watch list
ISIS MER System Compact Complete System
ISIS MER System Compact Complete System
590104
ISIS MER System Compact Complete System
Trolley with PC, widescreen monitor with optional touchscreen function, powerful loudspeaker system for acoustic interpretation of the recording signals, module slider for holding the ISIS Headboxes, keyboard drawer, accessory basket for storing accessories.
Go to product page
Add to watch list
ISIS MER System Portable Complete System
ISIS MER System Portable Complete System
590102
ISIS MER System Portable Complete System
Case with rollable and removable telescopic handle, notebook with medical power supply, two loud­speakers and accessory bags, space for a maximum of two ISIS Headboxes and a MicroDrive adaptor kit, case dimensions 460x460x200 mm.
Go to product page
Add to watch list
MicroDrive, hand operated, range 40 mm
MicroDrive, hand operated, range 40 mm
590580
MicroDrive, hand operated, range 40 mm
Precision instrument for positioning electrodes during stereotactic interventions. The item is autoclavable and can be adapted to many different stereotactic systems.
Go to product page
Add to watch list
MicroMacro electrode 0.6 mm with depth stop
MicroMacro electrode 0.6 mm with depth stop
230766
MicroMacro electrode 0.6 mm with depth stop
Recording bipolar, stimulation monopolar, L=300 mm, electrode in MOhm range, disposable product, EO sterilised
Add to watch list
MicroMacro electrode 0.8 mm with depth stop
MicroMacro electrode 0.8 mm with depth stop
230767
MicroMacro electrode 0.8 mm with depth stop
Recording bipolar, stimulation monopolar, L=300 mm, electrode in MOhm range, disposable product, EO sterilised
Add to watch list

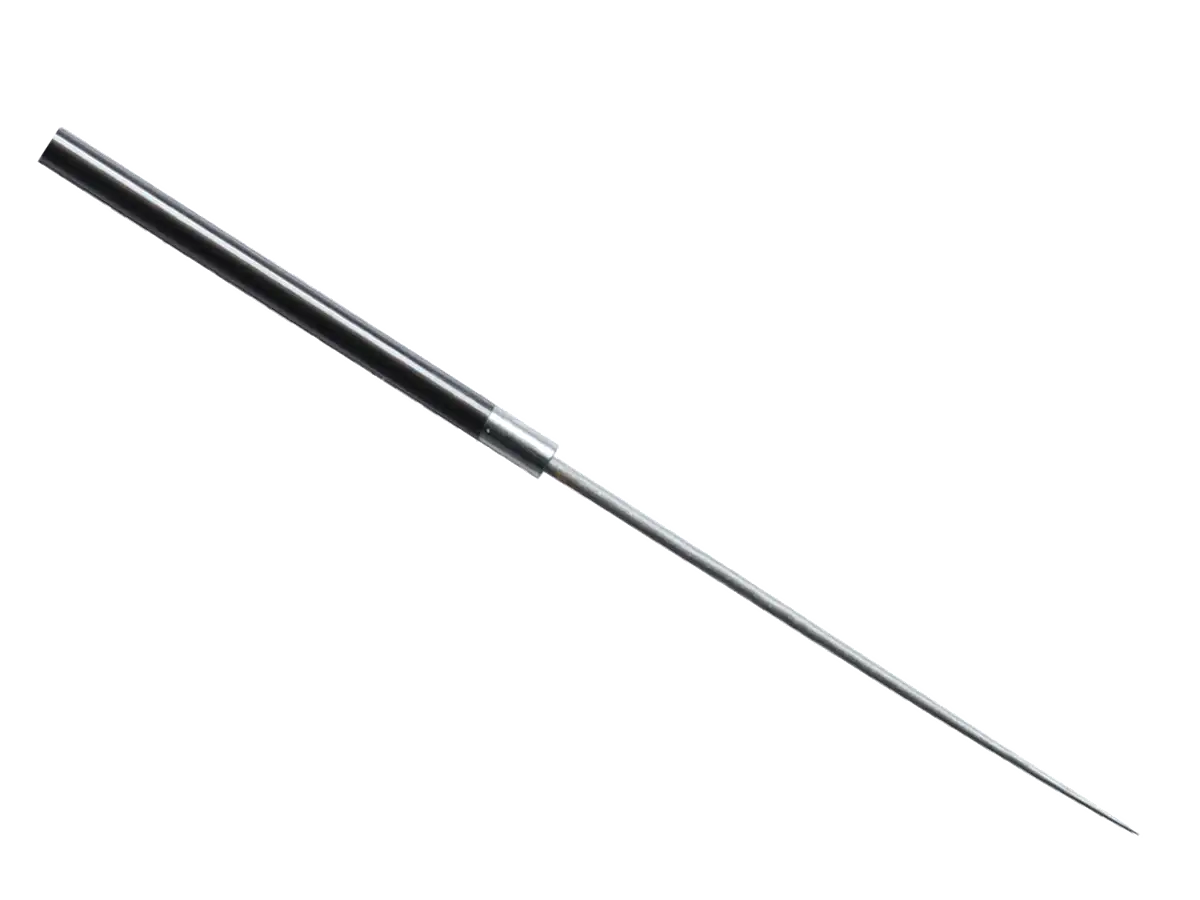

inomed MicroMove electrode with movable microelectrode
inomed MicroMove electrode with movable microelectrode
230780
inomed MicroMove electrode with movable microelectrode
Without depth stop, impedance appr. 1 MOhm, OD=0.6 mm, with 0.7 mm male connectors, disposable product, EO sterilised
Add to watch list
inomed MicroMove electrode with movable micro electrode
inomed MicroMove electrode with movable micro electrode
230781
inomed MicroMove electrode with movable micro electrode
And depth stop, impedance appr. 1 MOhm, OD=0.6 mm, with 0.7 mm male connectors, disposable product, EO sterilised
Add to watch list
Macro electrode 0.8 mm with depth stop
Macro electrode 0.8 mm with depth stop
230769
Macro electrode 0.8 mm with depth stop
For monopolar stimulation, L=300 mm, disposable product, EO sterilised
Add to watch list

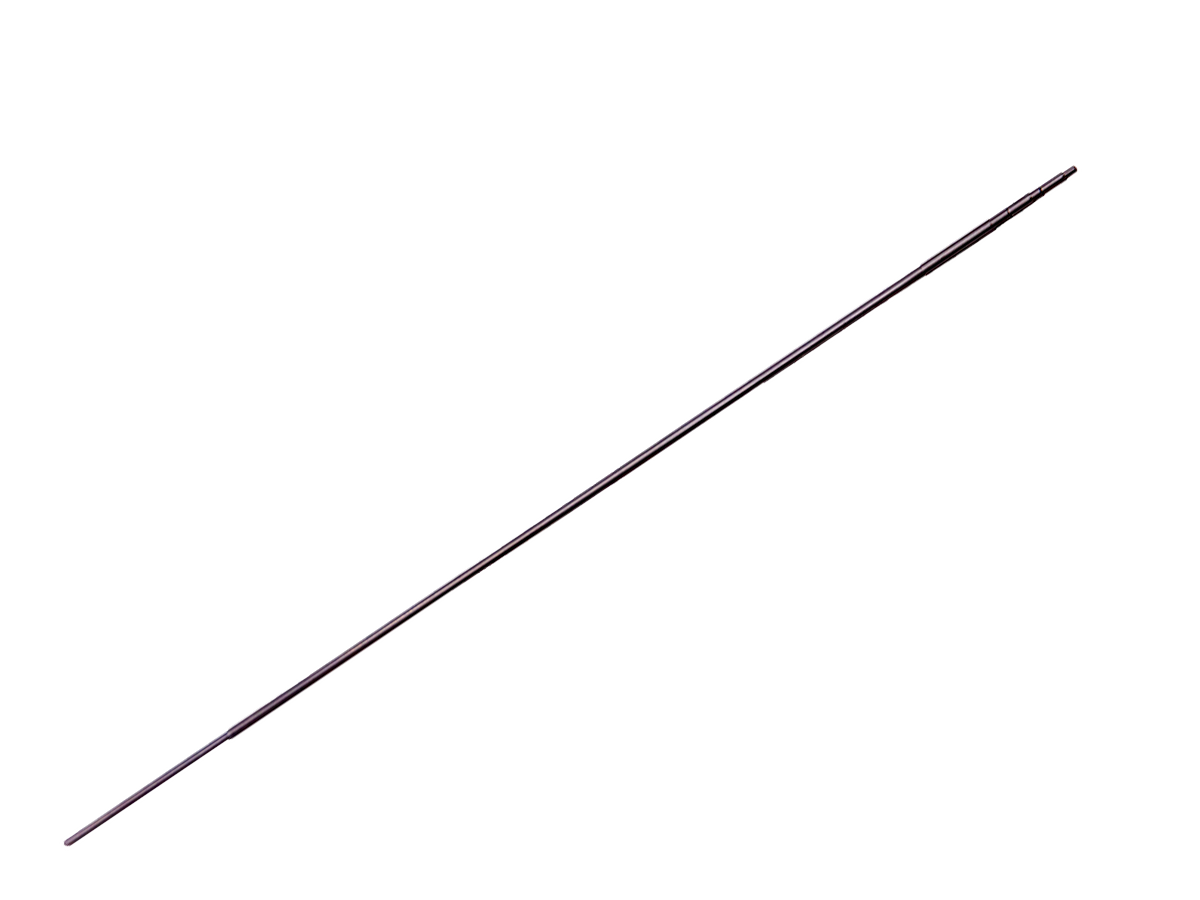

Universal guide tube MicroDrive for micro- and DBS electrodes
Universal guide tube MicroDrive for micro- and DBS electrodes
230867
Universal guide tube MicroDrive for micro- and DBS electrodes
Electrode guide tube 10 mm before target point, DBS guide tube 50 mm before target point, OD=1.65 mm, ID=1.0 mm, packed individually, disposable product, EO sterilised
Add to watch list

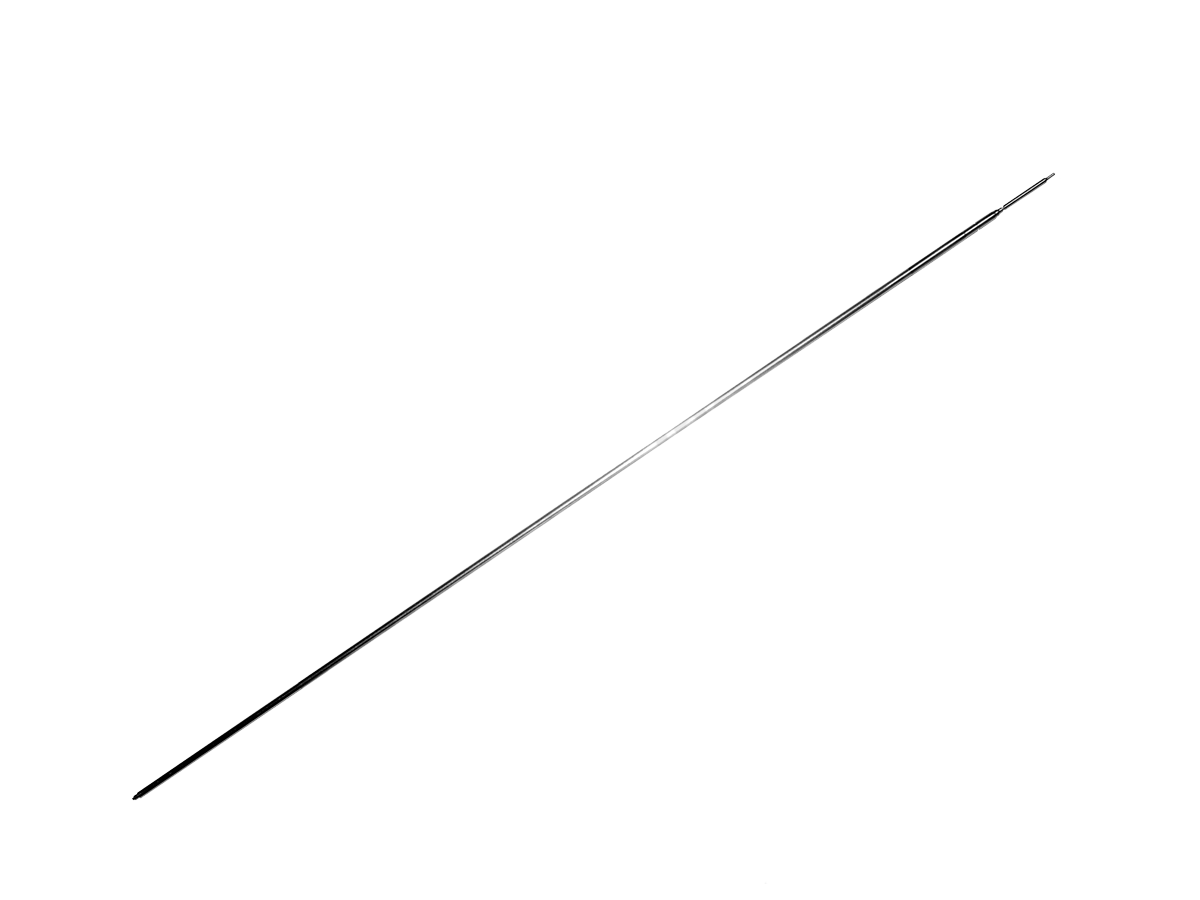

Universal guide tube for MicroDrive, for IMM, FHC and DBS electrodes
Universal guide tube for MicroDrive, for IMM, FHC and DBS electrodes
230868
Universal guide tube for MicroDrive, for IMM, FHC and DBS electrodes
Electrode guide tube 10 mm before target point, DBS guide tube 50 mm before target point, OD=1.65 mm, ID=0.65 mm, packed individually, disposable product, EO sterilised
Add to watch list

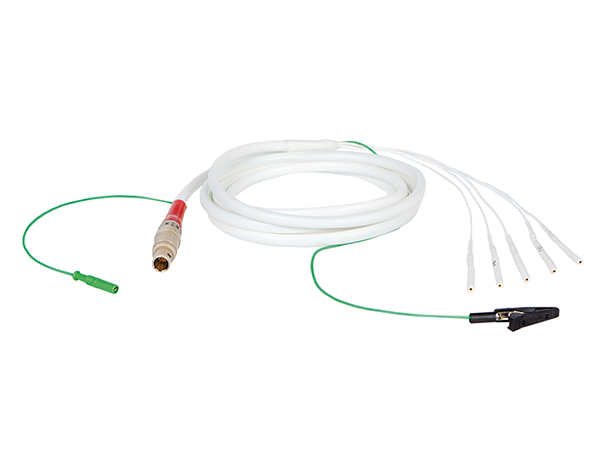

Connecting cable 5 channels for micro- and macro­electrodes
Connecting cable 5 channels for micro- and macro­electrodes
590710
Connecting cable 5 channels for micro- and macro­electrodes
Coax male connector shielded, cable length 2 m, connector Lemo 1B to 59210 – ISIS Headbox U5S-MER, delivered non-sterile, autoclavable
Add to watch list

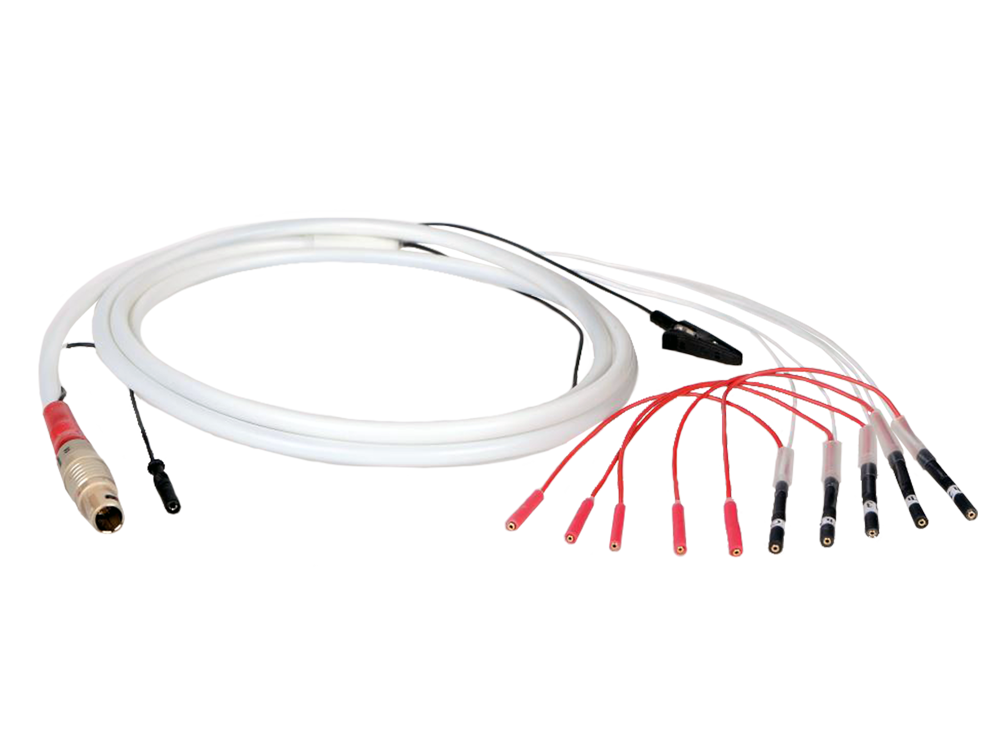

Connecting cable 5 channels for FHC and IMM electrodes
Connecting cable 5 channels for FHC and IMM electrodes
590711
Connecting cable 5 channels for FHC and IMM electrodes
Coax male connector shielded, cable length 2 m, connector Lemo 1B to 59210 – ISIS Headbox U5S-MER, delivered non-sterile, autoclavable
Add to watch list
