Functional neurosurgery


Functional neurosurgery is a specialised branch of neurosurgery that focuses on the diagnosis and treatment of diseases of the central and peripheral nervous system that significantly impair the functionality and quality of life of patients. Typical interventions aim to modulate or correct disrupted neuronal networks using minimally invasive techniques. An example of this is deep brain stimulation (DBS) in the treatment of Parkinson’s disease.

Innovative approaches for neurological diseases

The focus of functional neurosurgery is on highly precise and at the same time gentle therapy of the brain. Stereotactically guided interventions require precise planning and execution, which is significantly supported by inomed’s innovative technology. Imaging techniques provide precise coordinates of the target region in the brain. A stereotactic frame attached to the patient’s head allows the exact determination and localisation of the target point. Instruments such as electrodes, biopsy probes or other tools can be precisely guided to the desired location through a small opening in the skull.

Product diversity and precision technologies from inomed

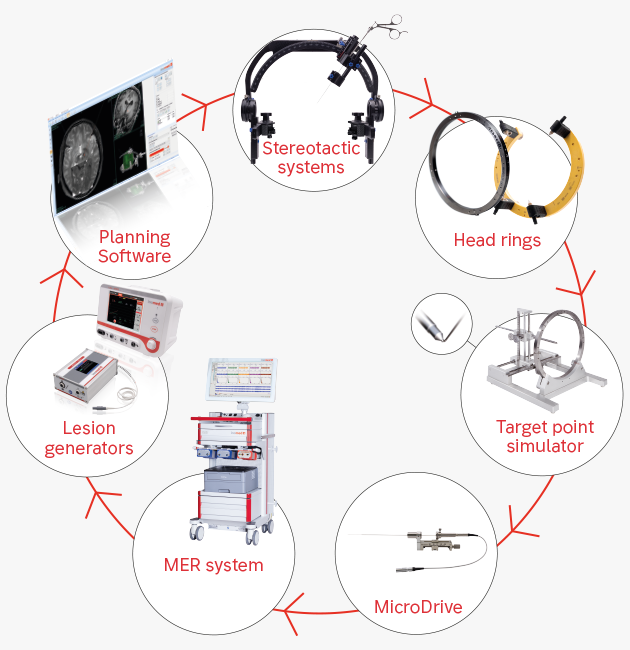

Graphic: Devices and accessories for functional neurosurgery

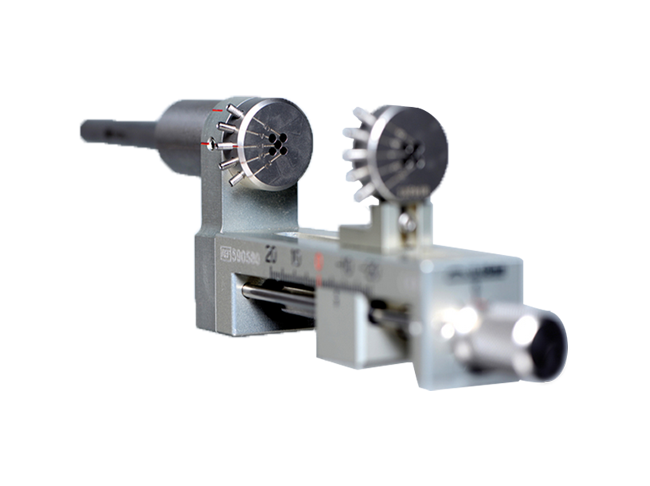

inomed offers comprehensive complete solutions for functional neurosurgery, covering the full range of requirements with a modern product range developed specifically for the demands of the field. This includes stereotactic systems, MER recording systems, the MicroDrive, the inomed Planning Software (iPS), RF lesion generators, electrodes and various accessories. With this comprehensive system, inomed supports neurosurgeons in performing interventions with high precision and safety, while improving the quality of life of patients.

Relevant products for the application field

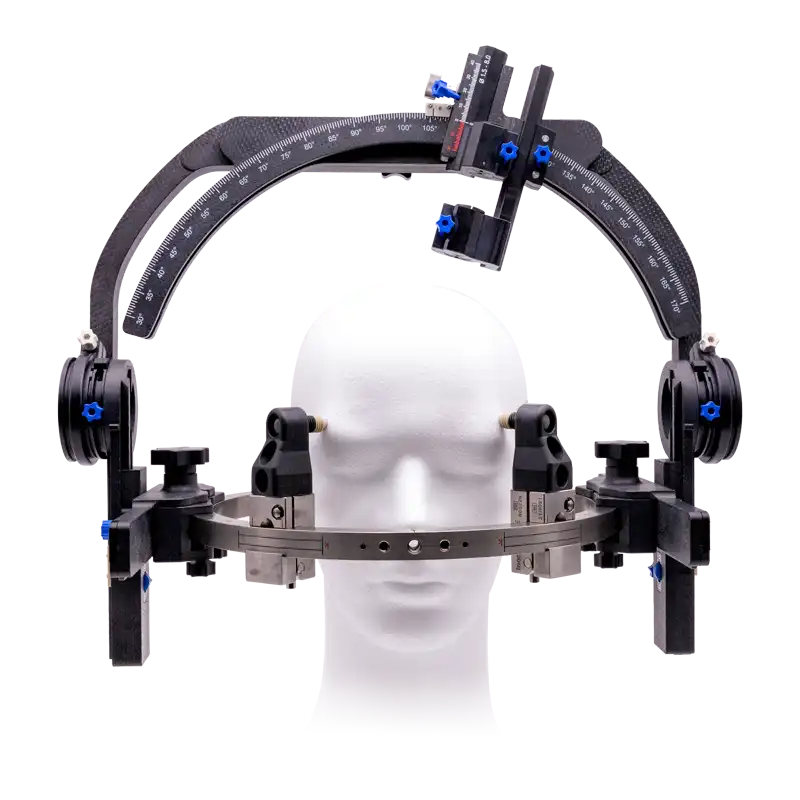

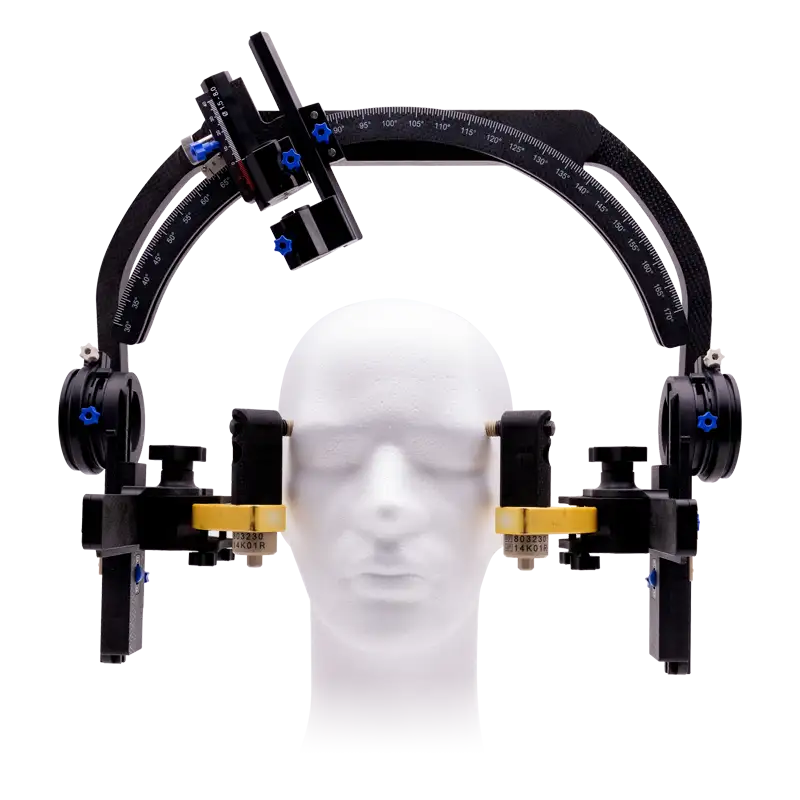

SUSy stereotactic system for titanium ring
SUSy stereotactic system for titanium ring
808000
SUSy stereotactic system for titanium ring
Center-of-arc principle, two-point fixation for high stability, working length of 190 mm, carbon fibre reinforced PEEK, ultralight weight, crosshairs for position control, vernier display for fine adjustment, lateral and AP mounting options, drumstop for folding the arc out and back into the surgical field, matching cleaning tray included.
Go to product page
Add to watch list
SUSy stereotactic system for ceramic ring
SUSy stereotactic system for ceramic ring
808020
SUSy stereotactic system for ceramic ring
Center-of-arc principle, two-point fixation for high stability, working length of 190 mm, carbon fibre reinforced PEEK, ultralight weight, crosshairs for position control, vernier display for fine adjustment, lateral and AP mounting options, drumstop for folding the arc out and back into the surgical field, matching cleaning tray included.
Go to product page
Add to watch list
ZD module unit with micrometer advance
ZD module unit with micrometer advance
802010
ZD module unit with micrometer advance
Center-of-arc principle, working length of 190 mm, single-point fixation for flexible and easy mounting, lateral and AP mounting options. The scope of delivery also includes instrument holders and instrument guides in two sizes (2–3 mm and 4–8 mm) as well as a matching cleaning tray.
Go to product page
Add to watch list

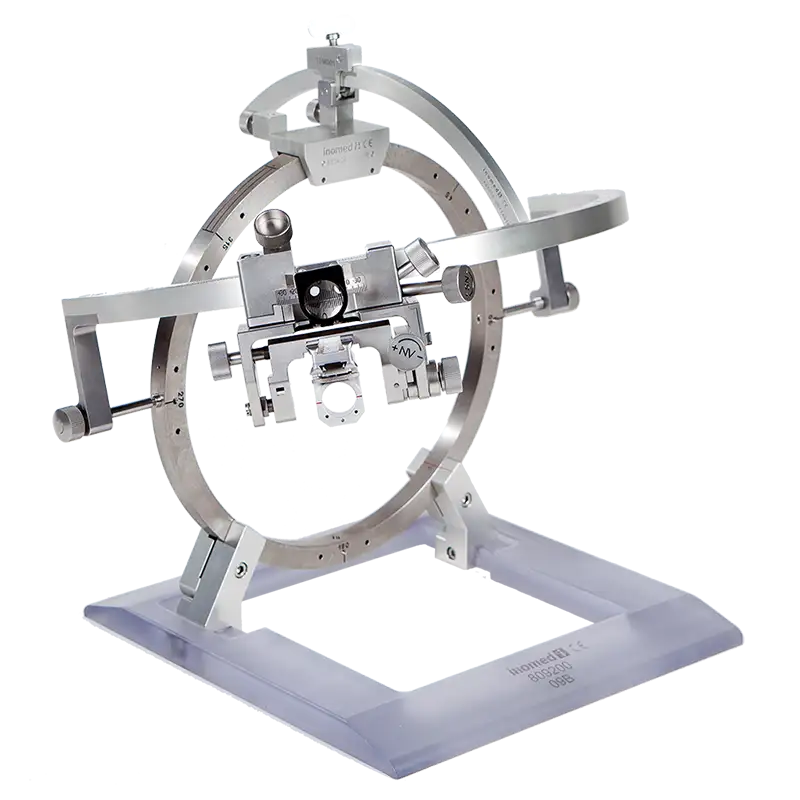

RM stereotaxy unit
RM stereotaxy unit
801000
RM stereotaxy unit
Polar coordinate principle, working length of 280 mm, three-point fixation for maximum stability and precision, positive and negative mounting options. The scope of delivery also includes vertical arcs in two sizes (105° and 85°) as well as a matching cleaning tray.
Go to product page
Add to watch list

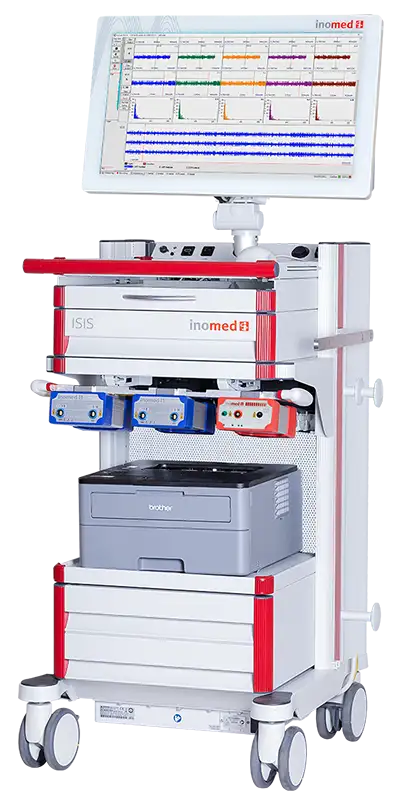

ISIS MER System Complete System
ISIS MER System Complete System
590103
ISIS MER System Complete System
Trolley with PC, widescreen monitor with optional touchscreen function, height-adjustable and rotatable monitor for the best possible view from all angles, powerful loudspeaker system for acoustic inter­pretation of the recording signals, module slider for holding the ISIS Headboxes, laser printer, keyboard drawer, two large drawers for storing accessories.
Go to product page
Add to watch list

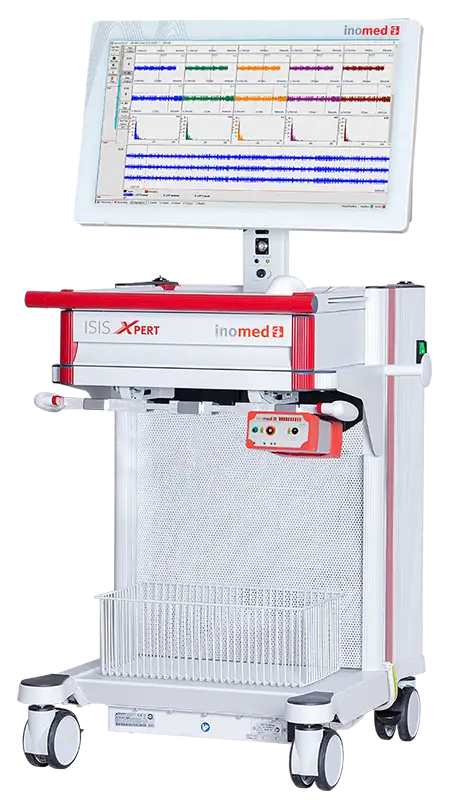

ISIS MER System Compact Complete System
ISIS MER System Compact Complete System
590104
ISIS MER System Compact Complete System
Trolley with PC, widescreen monitor with optional touchscreen function, powerful loudspeaker system for acoustic interpretation of the recording signals, module slider for holding the ISIS Headboxes, keyboard drawer, accessory basket for storing accessories.
Go to product page
Add to watch list

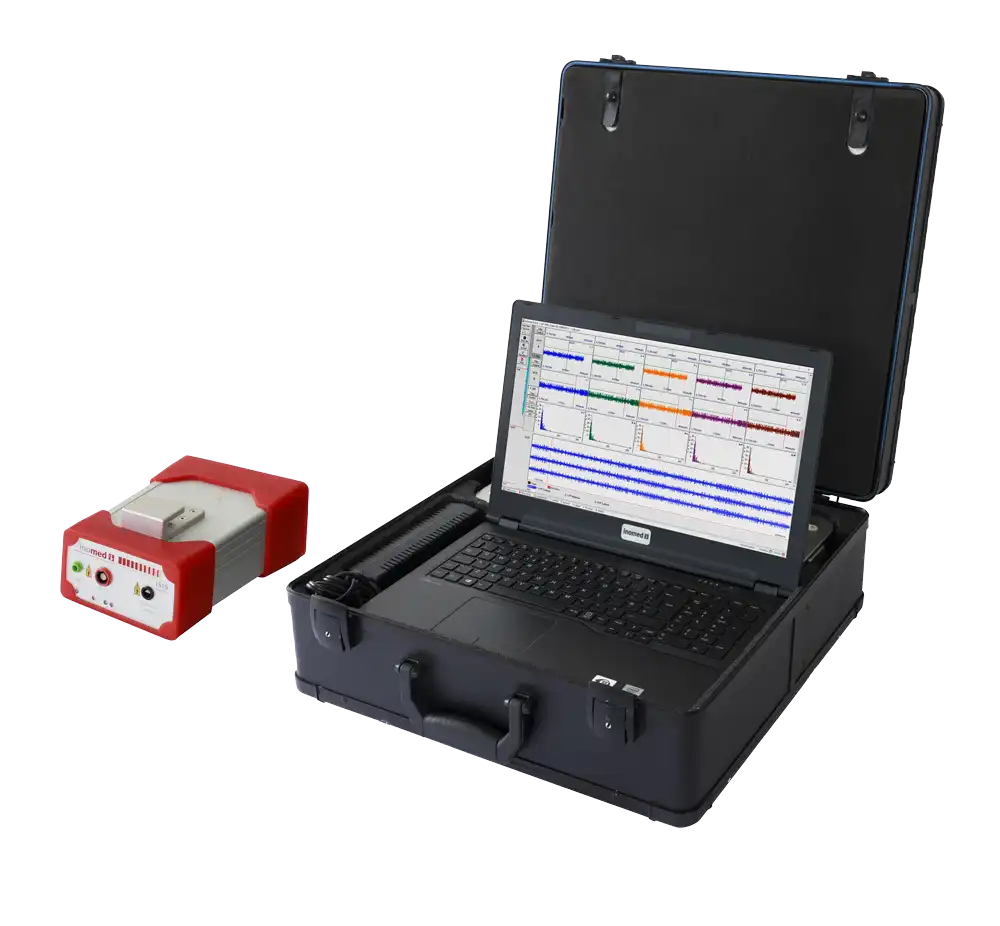

ISIS MER System Portable Complete System
ISIS MER System Portable Complete System
590102
ISIS MER System Portable Complete System
Case with rollable and removable telescopic handle, notebook with medical power supply, two loud­speakers and accessory bags, space for a maximum of two ISIS Headboxes and a MicroDrive adaptor kit, case dimensions 460x460x200 mm.
Go to product page
Add to watch list

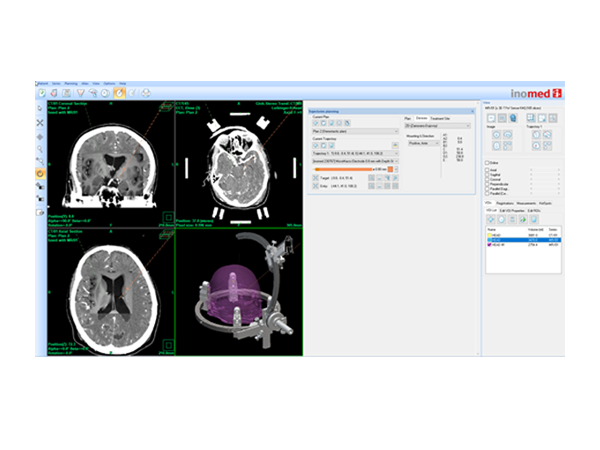

inomed Planning Software iPS, 3D stereotactic applications
inomed Planning Software iPS, 3D stereotactic applications
300100
inomed Planning Software iPS, 3D stereotactic applications
Only applies with the fusion module expansion (300208). The volume module for 3D visualisation of individual lesion volumes for planning various lesion techniques or the brachytherapy module for planning the stereotactic insertion of seeds can be expanded if required.
Go to product page
Add to watch list

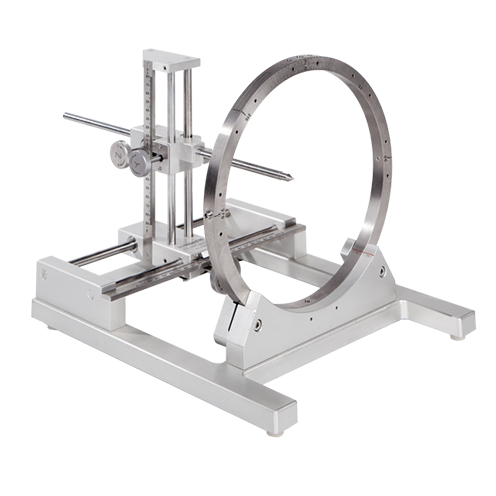

Target point simulator complete (for titanium head ring unit)
Target point simulator complete (for titanium head ring unit)
803400
Target point simulator complete (for titanium head ring unit)
Compatible with all inomed stereotactic systems. The set includes the TPS, a simulator mounting ring for the ceramic ring made of aluminium as well as a sterilisation box.
Go to product page
Add to watch list

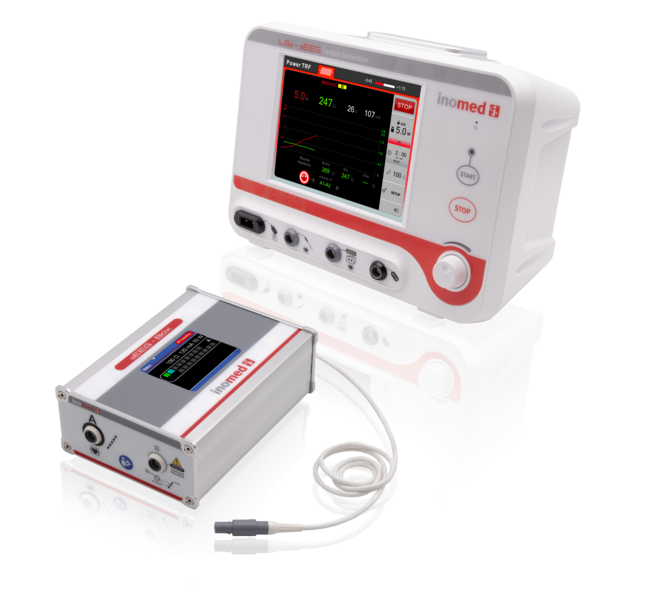

LG2-sEEG RF Lesion Generator (1 channel TC and 1 channel sEEG)
LG2-sEEG RF Lesion Generator (1 channel TC and 1 channel sEEG)
263000
LG2-sEEG RF Lesion Generator (1 channel TC and 1 channel sEEG)
The LG2-sEEG: Intuitive lesion generator for thermocoagulation in pain treatment and neurosurgery, specially designed for use with sEEG electrodes. The generator is supplied with the following accessory kit: hand-held remote control for use from a distance of approx. 2.5 m, equipotential cable, neutral surface electrode set, neutral electrode cable and termination plug for the RF function test. No sEEG Box (263001) included.
Go to product page
Add to watch list

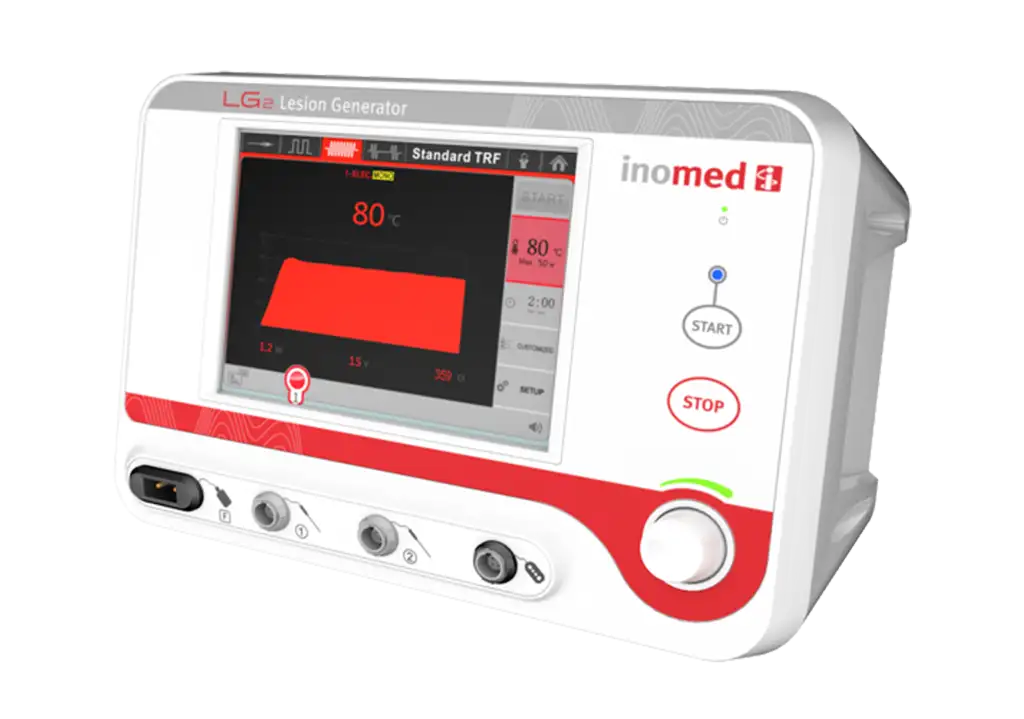

LG2 RF Lesion Generator
LG2 RF Lesion Generator
262000
LG2 RF Lesion Generator
The LG2: Intuitive lesion generator for thermocoagulation in pain treatment and neurosurgery with 2 channels for monopolar and bipolar application.
Go to product page
Add to watch list

Relevant accessories for the application field

Headring unit CT compatible for convergence radiation
Headring unit CT compatible for convergence radiation
803004
Headring unit CT compatible for convergence radiation
The set consists of a head ring made of titanium, 4 head fixing posts each in size M (46.5 mm) and XL (91.5 mm), 4 carriers for head fixing posts, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Add to watch list

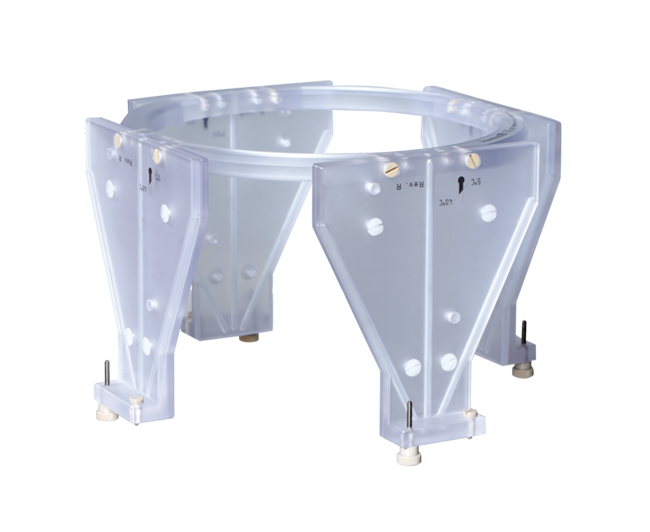

CT Localisation set for Titanium & Aluminium Headring
CT Localisation set for Titanium & Aluminium Headring
809050
CT Localisation set for Titanium & Aluminium Headring
The Rev R localisation set is designed for use with the closed titanium ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Add to watch list

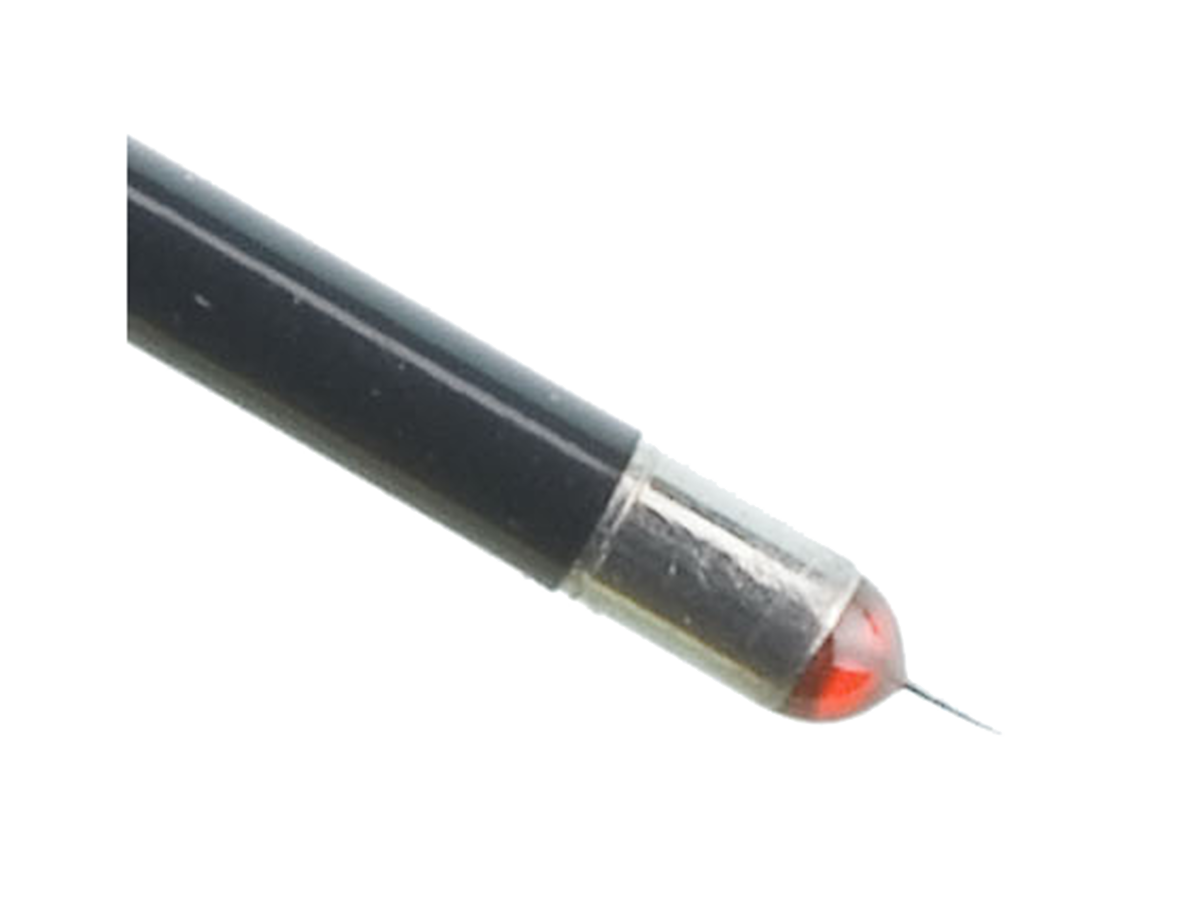

MicroMacro electrode 0.6 mm with depth stop
MicroMacro electrode 0.6 mm with depth stop
230766
MicroMacro electrode 0.6 mm with depth stop
Recording bipolar, stimulation monopolar, L=300 mm, electrode in MOhm range, disposable product, EO sterilised
Add to watch list
MicroMacro electrode 0.8 mm with depth stop
MicroMacro electrode 0.8 mm with depth stop
230767
MicroMacro electrode 0.8 mm with depth stop
Recording bipolar, stimulation monopolar, L=300 mm, electrode in MOhm range, disposable product, EO sterilised
Add to watch list

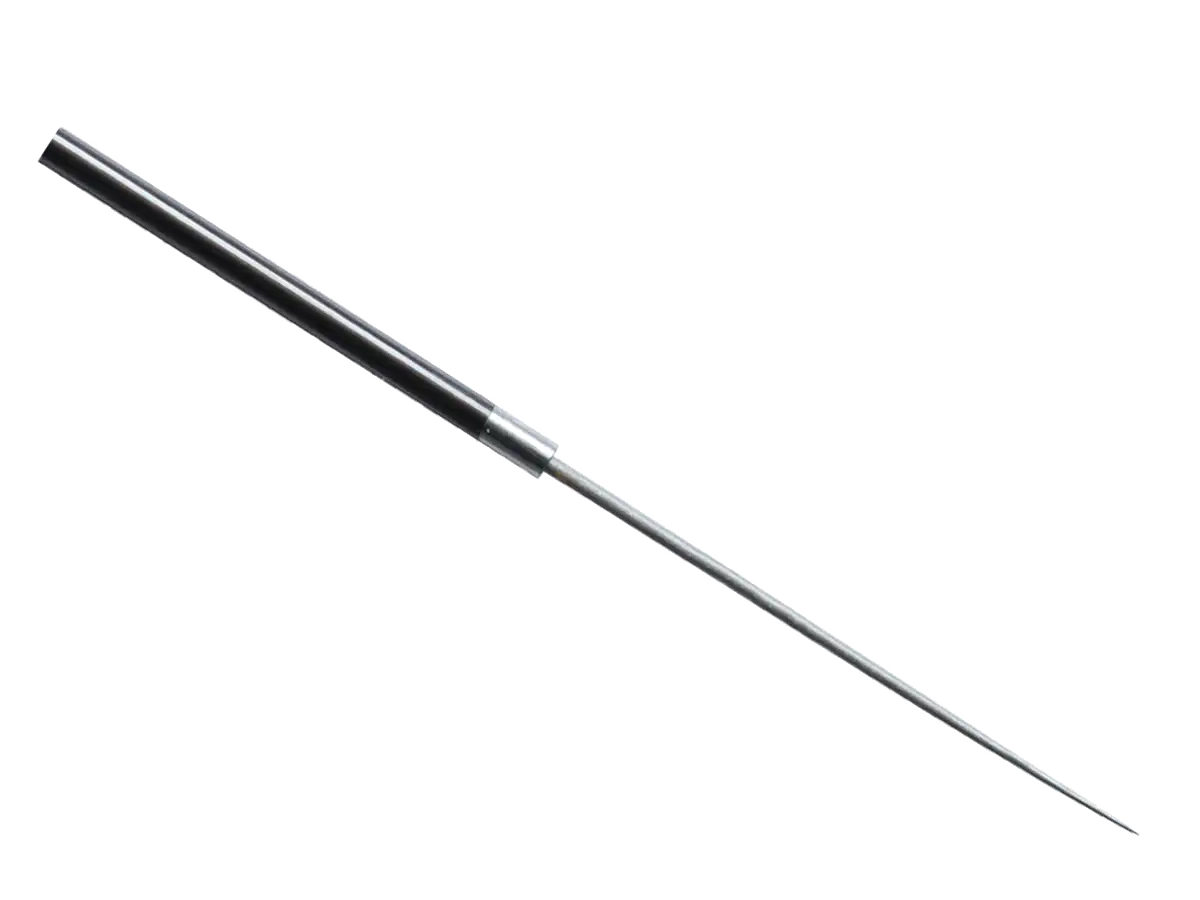

inomed MicroMove electrode with movable micro electrode
inomed MicroMove electrode with movable micro electrode
230781
inomed MicroMove electrode with movable micro electrode
And depth stop, impedance appr. 1 MOhm, OD=0.6 mm, with 0.7 mm male connectors, disposable product, EO sterilised
Add to watch list

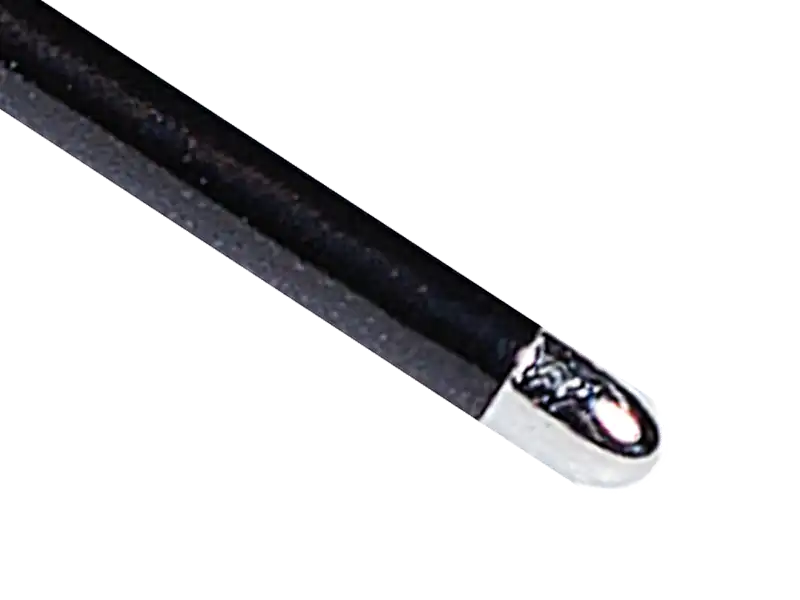

Macro electrode 0.8 mm with depth stop
Macro electrode 0.8 mm with depth stop
230769
Macro electrode 0.8 mm with depth stop
For monopolar stimulation, L=300 mm, disposable product, EO sterilised
Add to watch list

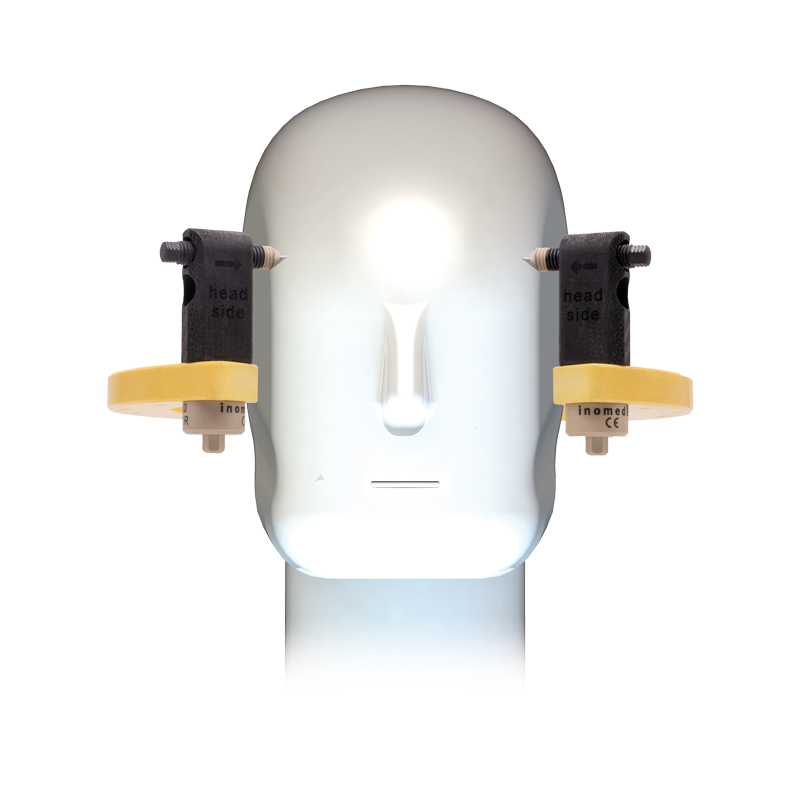

OSS head ring unit
OSS head ring unit
803005
OSS head ring unit
The set consists of a head ring made of ceramic, 4 CFRP head fixing posts, a locking bow for the option of AP mounting, 4 fixing pins each in 40 mm, 50 mm, 60 mm and 70 mm, a multi-socket wrench, a torque wrench and a sterilisation tray.
Add to watch list

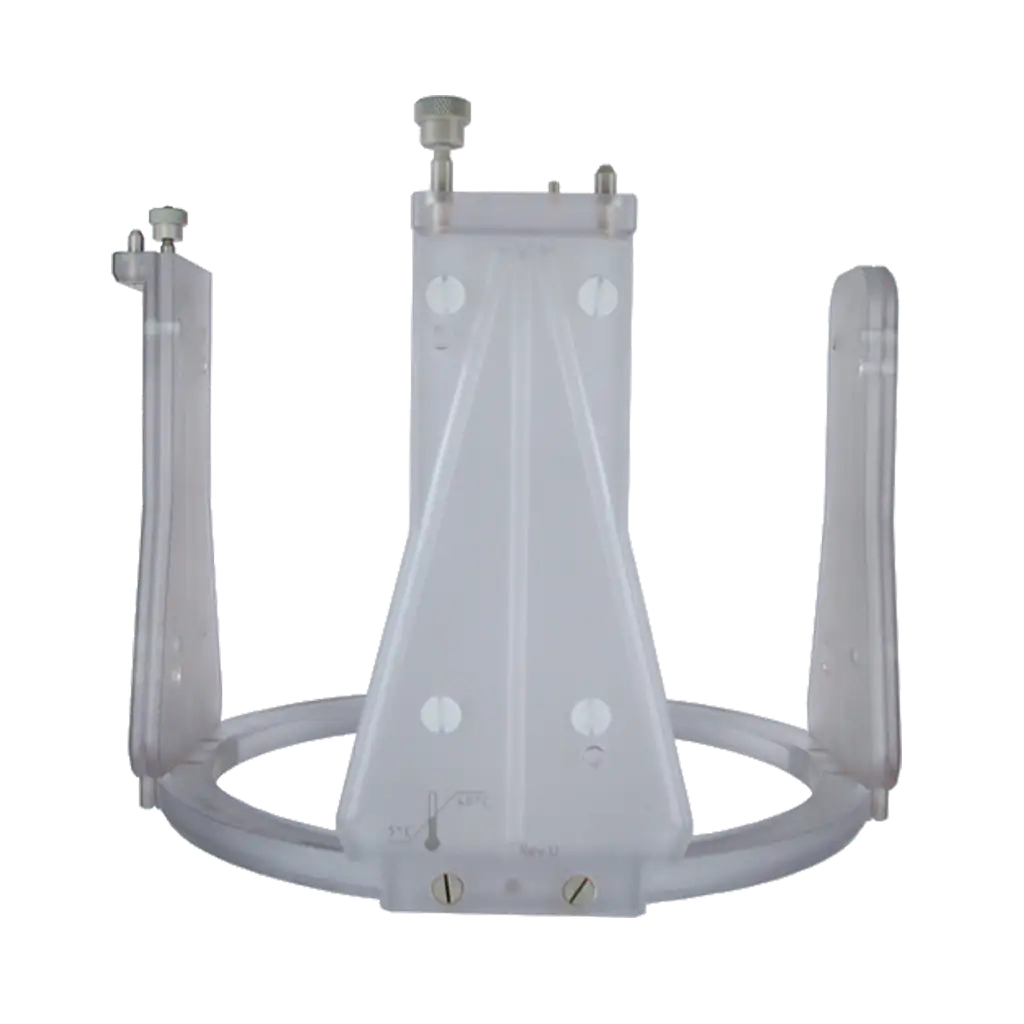

CT/MR Localisation set for OSS incl. transport case
CT/MR Localisation set for OSS incl. transport case
809045
CT/MR Localisation set for OSS incl. transport case
The Rev U localisation set is designed for use with the open ceramic ring. If necessary, the anterior plate can be removed. The item is supplied in a transport case.
Add to watch list

FAQ

Is functional neurosurgery internationally recognised?

Yes, functional neurosurgery is internationally recognised and supported by leading professional associations worldwide, such as the World Society for Stereotactic and Functional Neurosurgery (WSSFN) and national professional associations. Clinical studies and the prove of efficacy for specific indications have contributed to its widespread acceptance.

What role does stereotaxy play in functional neurosurgery?

Stereotaxy is a key technique in functional neurosurgery that enables precise interventions in the brain. The target region is precisely localised in three-dimensional space using modern imaging techniques such as MRI or CT and transferred to a stereotactic coordinate system. The intervention is then performed using a stereotactic system that ensures precise placement of the instruments.

Which diseases are treated in functional neurosurgery?

Functional neurosurgery treats a variety of diseases that can be treated by targeted interventions in the nervous system. The most common indications include movement disorders such as Parkinson’s disease, essential tremor and dystonia, treatment-resistant epilepsy, chronic pain and, in exceptional cases, psychiatric illnesses such as depression and obsessive-compulsive disorder.
